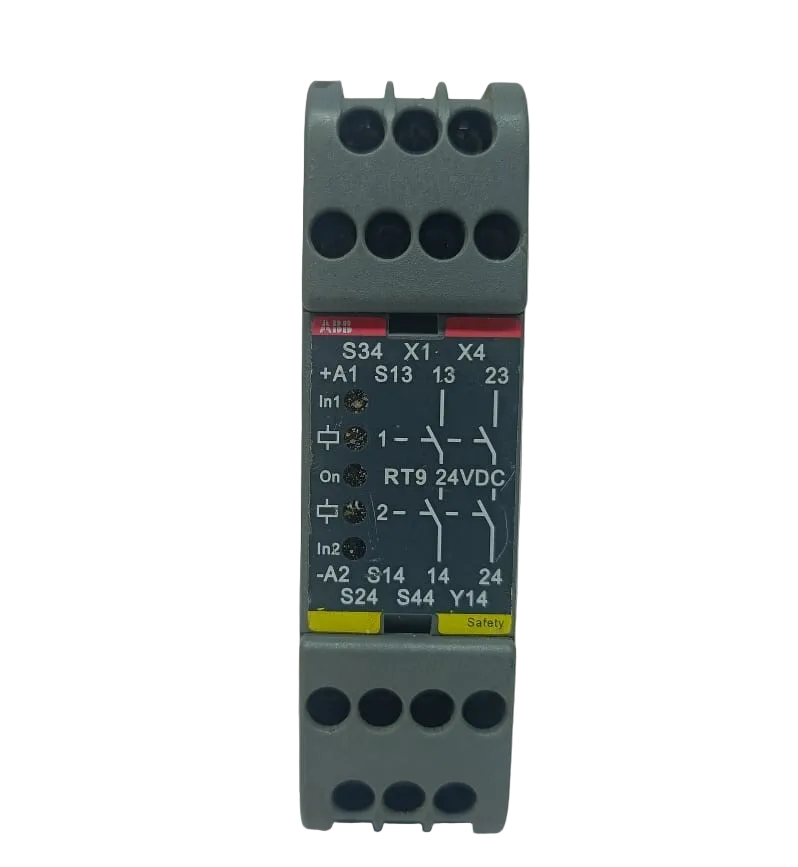

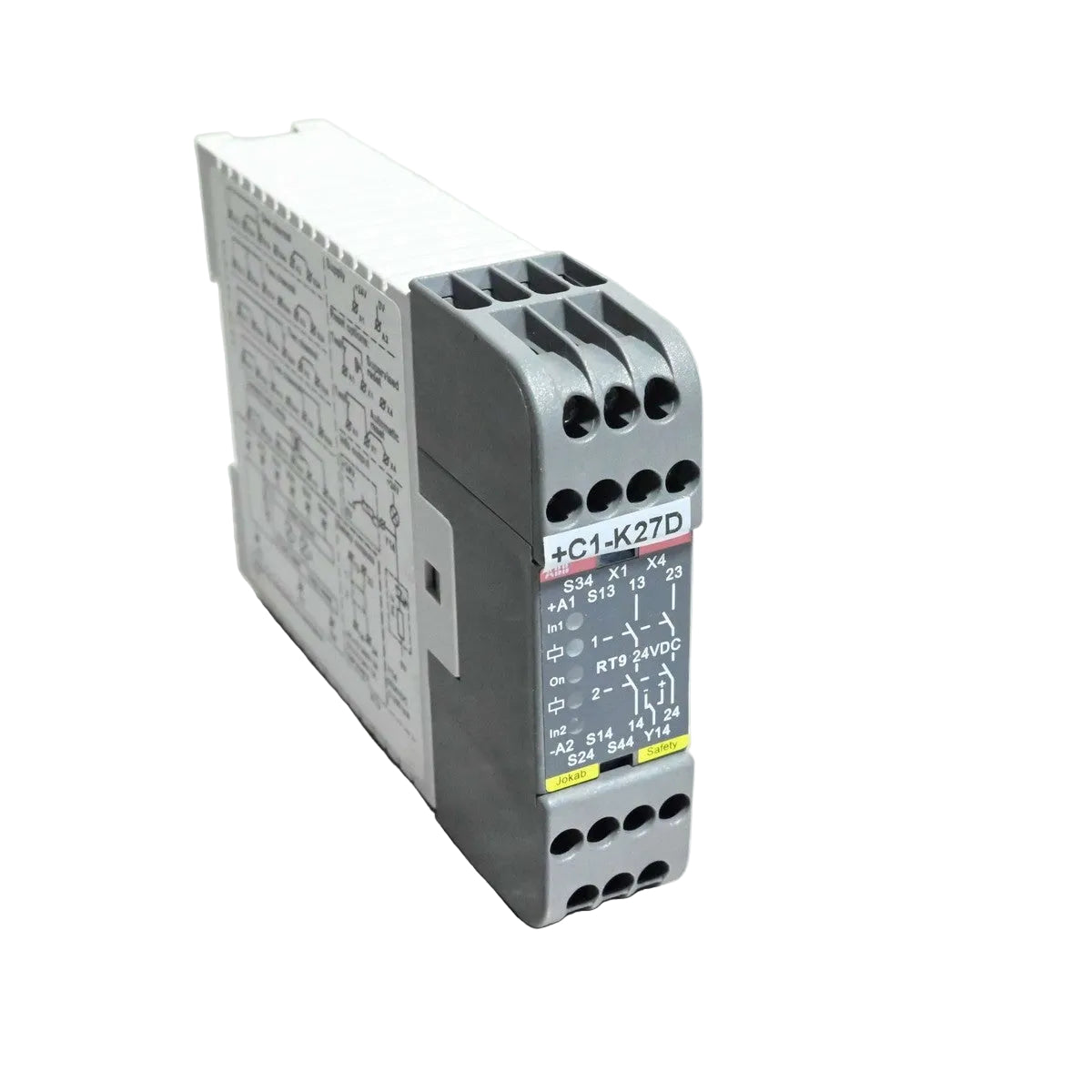

ABB 2TLA010029R0000 RT9 Universal Safety Relay for Machine Safety Systems
- Regular price
- $475.00
- Sale price
- $475.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 2TLA010029R0000
Description
The ABB 2TLA010029R0000 is an RT9 series universal safety relay designed for monitoring emergency stops, safety switches, safety mats, light curtains, and other machine-safety devices. It operates from a 24 volt direct current supply and provides two normally open safety relay outputs for interrupting hazardous machine functions when a safety condition is detected.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Safety Systems |
| Part Number | 2TLA010029R0000 |
| Subcategory | Safety Relay |
| Series | RT9 |
| Product Type | Universal Safety Relay |
| Supply Voltage | 24 Volts Direct Current ±20 Percent |
| Power Consumption | 2 Watts |
| Safety Outputs | 2 Normally Open |
| Input Configuration | Single-Channel or Dual-Channel |
| Reset Modes | Manual Supervised or Automatic |
| Maximum Switching Current | 6 Amperes |
| Mounting | DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | -10 to 55 Degrees Celsius |
| Dimensions | 22.5 × 84 × 120 Millimeters |
| Lifecycle Status | Discontinued / Withdrawn Product |
| Replacement Family | ABB Sentry |
| Weight | 0.40 lbs |
Information About 2TLA010029R0000
The 2TLA010029R0000 is an ABB Jokab Safety RT9 relay developed for flexible machine-safety circuits using single-channel or dual-channel inputs. Its internal dual-channel and monitored relay architecture supports supervised safety functions with manual supervised or automatic reset configurations. The unit can monitor external contactors through its test input and provides status indication for troubleshooting and system monitoring. Its narrow housing is designed for DIN rail installation in industrial control cabinets and safety panels.
Key Features:
- Universal Safety Monitoring: Supports emergency stops, interlocking switches, safety mats, contact strips, and compatible safety sensors.
- Dual Safety Outputs: Provides two normally open relay outputs for safety-related machine control circuits.
- Flexible Input Configuration: Supports single-channel and dual-channel safety device connections.
- 24 Volt Supply: Operates from a nominal 24 volt direct current control supply with a ±20 percent tolerance.
- Supervised Reset: Supports manual supervised reset as well as automatic reset where permitted by the machine risk assessment.
- External Contactor Monitoring: Test circuitry allows monitoring of external positively guided relays or contactors.
- DIN Rail Installation: Compact 22.5 millimeter housing is designed for mounting on standard industrial DIN rail.
- Status Indication: Integrated light-emitting diode indicators provide operating and relay status information.
The 2TLA010029R0000 delivers the reliability and precision required for safety-device monitoring and controlled shutdown of hazardous industrial machinery.
Description
The ABB 2TLA010029R0000 is an RT9 series universal safety relay designed for monitoring emergency stops, safety switches, safety mats, light curtains, and other machine-safety devices. It operates from a 24 volt direct current supply and provides two normally open safety relay outputs for interrupting hazardous machine functions when a safety condition is detected.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Safety Systems |
| Part Number | 2TLA010029R0000 |
| Subcategory | Safety Relay |
| Series | RT9 |
| Product Type | Universal Safety Relay |
| Supply Voltage | 24 Volts Direct Current ±20 Percent |
| Power Consumption | 2 Watts |
| Safety Outputs | 2 Normally Open |
| Input Configuration | Single-Channel or Dual-Channel |
| Reset Modes | Manual Supervised or Automatic |
| Maximum Switching Current | 6 Amperes |
| Mounting | DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | -10 to 55 Degrees Celsius |
| Dimensions | 22.5 × 84 × 120 Millimeters |
| Lifecycle Status | Discontinued / Withdrawn Product |
| Replacement Family | ABB Sentry |
| Weight | 0.40 lbs |
Information About 2TLA010029R0000
The 2TLA010029R0000 is an ABB Jokab Safety RT9 relay developed for flexible machine-safety circuits using single-channel or dual-channel inputs. Its internal dual-channel and monitored relay architecture supports supervised safety functions with manual supervised or automatic reset configurations. The unit can monitor external contactors through its test input and provides status indication for troubleshooting and system monitoring. Its narrow housing is designed for DIN rail installation in industrial control cabinets and safety panels.
Key Features:
- Universal Safety Monitoring: Supports emergency stops, interlocking switches, safety mats, contact strips, and compatible safety sensors.
- Dual Safety Outputs: Provides two normally open relay outputs for safety-related machine control circuits.
- Flexible Input Configuration: Supports single-channel and dual-channel safety device connections.
- 24 Volt Supply: Operates from a nominal 24 volt direct current control supply with a ±20 percent tolerance.
- Supervised Reset: Supports manual supervised reset as well as automatic reset where permitted by the machine risk assessment.
- External Contactor Monitoring: Test circuitry allows monitoring of external positively guided relays or contactors.
- DIN Rail Installation: Compact 22.5 millimeter housing is designed for mounting on standard industrial DIN rail.
- Status Indication: Integrated light-emitting diode indicators provide operating and relay status information.
The 2TLA010029R0000 delivers the reliability and precision required for safety-device monitoring and controlled shutdown of hazardous industrial machinery.
