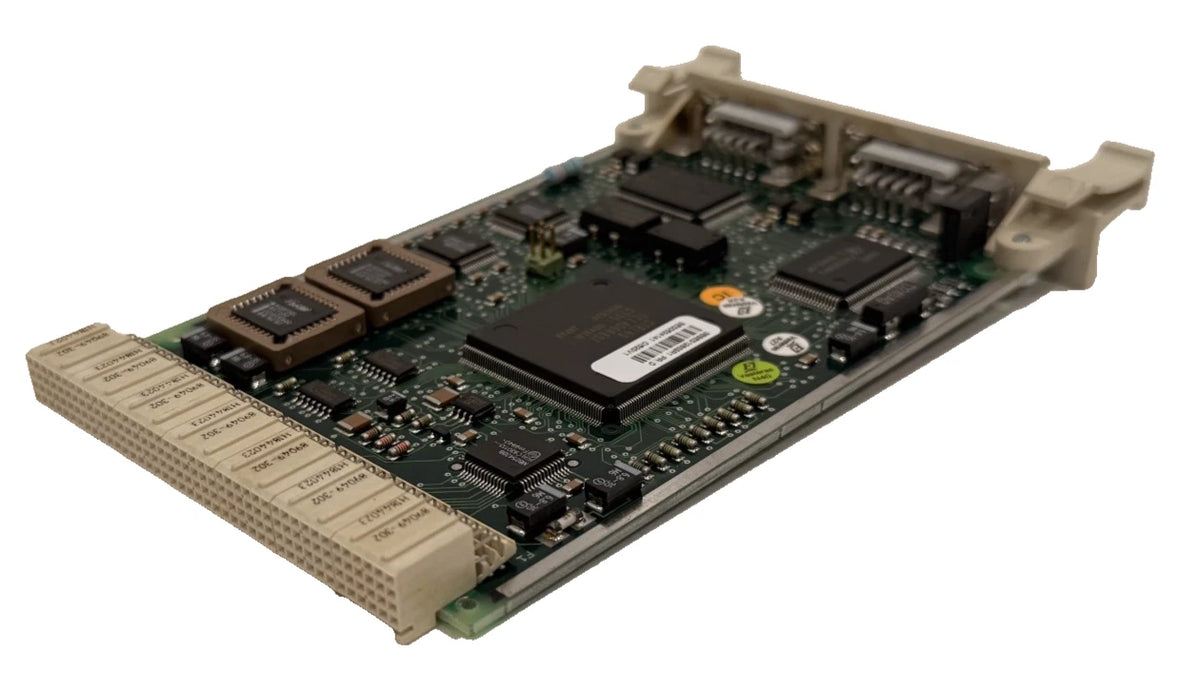

ABB 3BSE012869R1 CI520V1 Advant Fieldbus Communication Interface Module
- Regular price
- $1,989.00
- Sale price
- $1,989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3BSE012869R1
Description
The ABB 3BSE012869R1 is a CI520V1 communication interface that connects compatible Advant Controller 400 series equipment to Advant Fieldbus 100. It supports process data communication and can perform bus administrator and bus master functions within the configured network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | PLCs/Machine Control |
| Part Number | 3BSE012869R1 |
| Subcategory | Communication Interface Modules |
| Model | CI520V1 |
| Control Platform | Advant OCS / AC 400 |
| Communication Protocol | Advant Fieldbus 100 / AF100 |
| Module Format | Controller interface submodule |
| Bus Functions | Bus administrator and bus master |
| External Modem Requirement | Required |
| Compatible Modems | TC625, TC512, or TC516, according to network configuration |

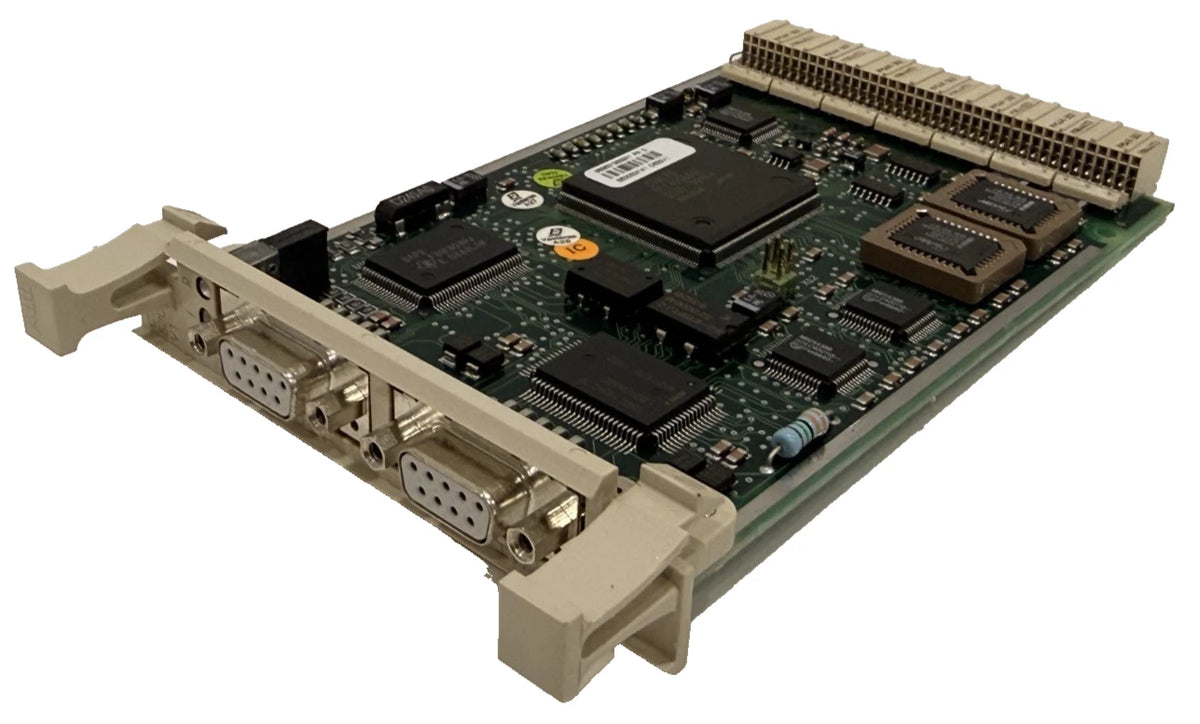

| Interface Connectors | X8 and X9; 9-pin female D-sub |
| Status Indicators | Green Run LED; red Fault LED |
| Dimensions (L × W × H) | 234 × 112.5 × 13.5 mm |
| Weight | 0.145 kg (0.32 lb) |
Information About 3BSE012869R1
The 3BSE012869R1 is an interface submodule in ABB’s Advant OCS control platform. It installs in a compatible controller submodule carrier or the designated AC 410 CPU position. Connection to the fieldbus requires an external modem selected for the network medium. Front-panel Run and Fault indicators provide local operating status.
Key Features:
- AF100 Interface: Connects compatible controllers to Advant Fieldbus 100.
- Controller Integration: Supports the documented AC 410 and AC 450/460 mounting arrangements.
- Bus Administration: Provides bus administrator functionality when configured.
- Bus Master Capability: Can assume the bus master role.
- Modem Connections: Includes X8 and X9 interfaces for external modem cabling.
- Status Indicators: Uses green Run and red Fault LEDs for local checks.
The 3BSE012869R1 delivers the reliability and precision required for controller communication in Advant Fieldbus 100 systems.
