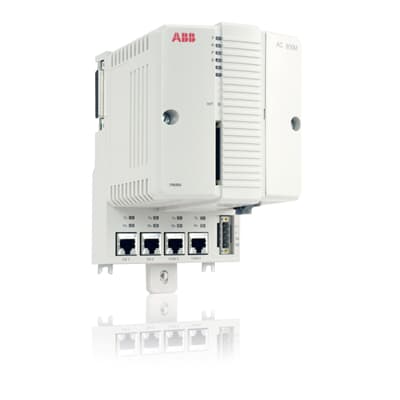

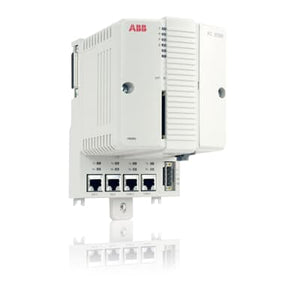

ABB 3BSE018161R1 PM864AK01 AC 800M Processor Unit Kit
- Regular price
- $13,999.00
- Sale price
- $13,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3BSE018161R1
Description
The ABB 3BSE018161R1 is a PM864AK01 processor unit kit for the AC 800M control platform. Its 96 MHz CPU and 32 MB memory execute control applications in industrial automation and process-control installations. Four communication ports provide connections for controller networking and serial communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Automation |
| Part Number | 3BSE018161R1 |
| Subcategory | Controller Processor Units |
| Model Designation | PM864AK01 |
| Controller Series | AC 800M |
| CPU Module | PM864A |
| CPU Clock Frequency | 96 MHz |
| Memory Capacity | 32 MB |
| Communication Ports | 4 |
| Baseplate | TP830 |
| Status Indication | LEDs |
| Bus Terminators | TB850 CEX-bus; TB807 ModuleBus; TB852 RCU-Link |
| Power Connector | Four-position plug, 3BSC840088R4 |
| Dimensions (W × H × D) | 119 × 186 × 135 mm |
| Battery | 1 portable memory-backup battery; 9 g |
| RoHS Information | Not RoHS compliant |
| WEEE Category | 5 — Small Equipment; no external dimension exceeds 50 cm |
| Weight | 1.2 kg (2.65 lb) |
Information About 3BSE018161R1
The 3BSE018161R1 is an AC 800M assembly built around the PM864A CPU and TP830 baseplate. ABB specifies the kit with CEX-bus, ModuleBus, and RCU-Link terminators for the associated controller connections. A memory-backup battery and four-position power plug are also listed as kit components. The assembly serves as a central processing element in compatible ABB control systems, with status LEDs providing local operating indications.
Key Features:
- Processor Performance: Uses a 96 MHz CPU to execute configured industrial control applications.
- Installed Memory: Provides 32 MB of memory for controller software and application data.
- Communication Connections: Includes four communication ports for integration with the control installation.
- AC 800M Architecture: Operates within ABB’s modular controller platform.
- Baseplate Assembly: Combines the PM864A processor with a TP830 baseplate.
- Memory Backup: Includes a battery to support retention of memory contents during power interruptions.
- Local Diagnostics: Uses status LEDs to indicate controller operating conditions.
- Bus Termination Components: Includes TB850, TB807, and TB852 terminators in the specified processor kit.
The 3BSE018161R1 delivers the reliability and precision required for application execution and system coordination in industrial process-control installations.
