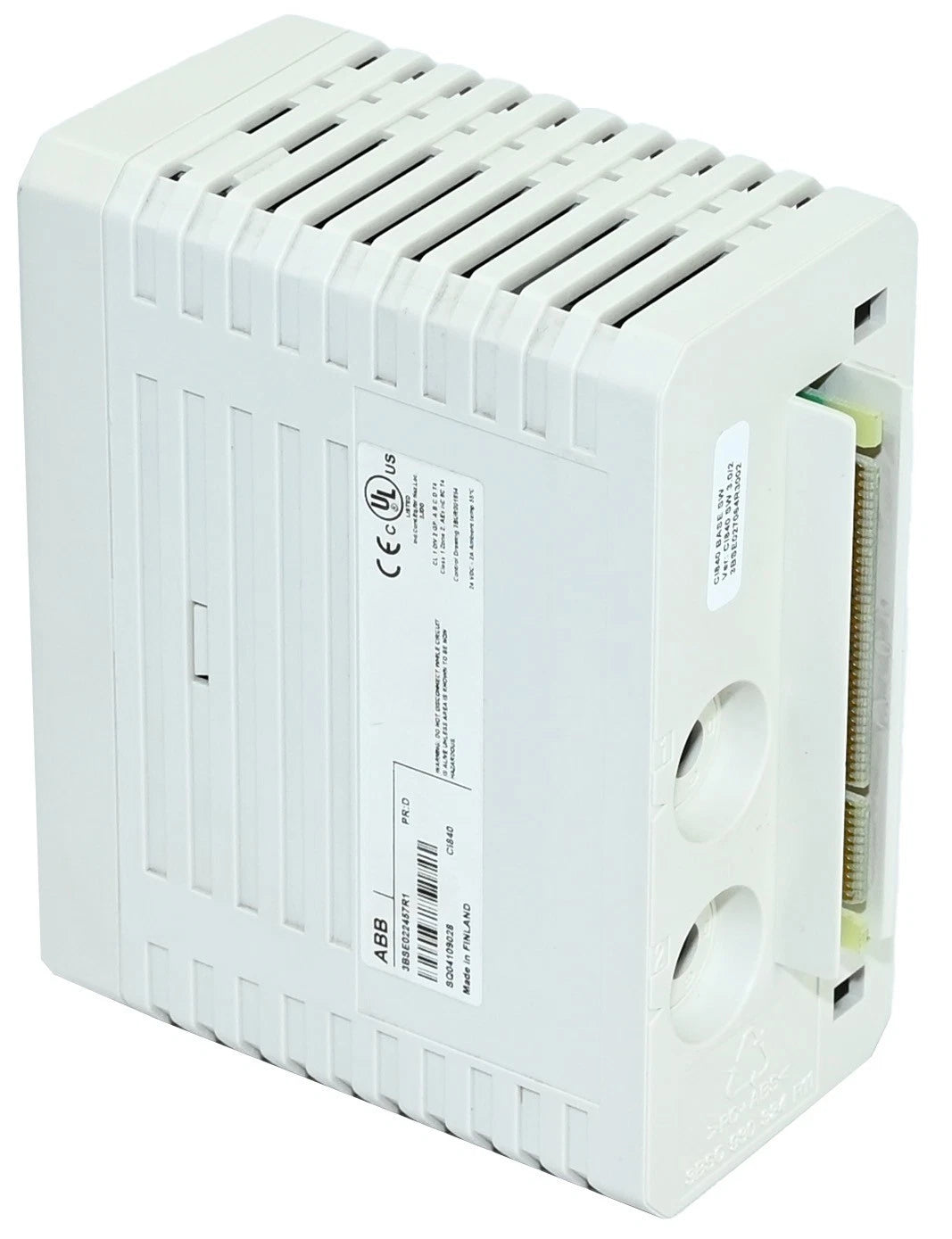

ABB 3BSE022457R1 CI840 PROFIBUS Fieldbus Communication Interface Module for S800 Input and Output
- Regular price
- $917.00
- Sale price
- $917.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3BSE022457R1
Description
The ABB 3BSE022457R1 is a CI840 fieldbus communication interface module designed to connect S800 input and output stations with controllers through a PROFIBUS DP-V1 network. It supports redundant communication arrangements and manages data exchange, input and output supervision, configuration, and ModuleBus communication in ABB distributed control and industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Programmable Logic Controllers / Machine Control |
| Part Number | 3BSE022457R1 |
| Subcategory | Fieldbus Communication Interface Module |
| Type Designation | CI840 |
| Product Family | S800 Input and Output |
| Product Type | Fieldbus Communication Interface |
| Communication Protocol | PROFIBUS DP-V1 |
| Network Function | PROFIBUS Slave |
| Maximum Communication Speed | 12 megabits per second |
| Redundancy | One-plus-one redundant operation |
| Power Input | 24 volts direct current, 19.2 to 30 volts allowable range |
| Typical Current Consumption | 190 milliamperes at 24 volts direct current |
| Service Interface | Optically isolated RS-232 |
| Compatible Termination Units | TU846 and TU847 |
| Protection Rating | IP20 |
| Dimensions | 2.13 inches wide × 4.69 inches high × 3.78 inches deep |
| Weight | 0.24 lbs |
Information About 3BSE022457R1
The 3BSE022457R1 is an ABB CI840 fieldbus communication interface from the S800 input and output system, developed for PROFIBUS DP-V1 communication in distributed automation architectures. Its electronic assembly incorporates one PROFIBUS DP-V1 interface, two electrical ModuleBus interfaces, status indicators, and an optically isolated service port. The module operates as a PROFIBUS slave and is designed for redundant applications, with TU846 or TU847 module termination units providing the physical mounting and system connections. It performs signal processing, supervision, output set as predetermined handling, Hot Configuration In Run, HART pass-through, and configuration functions for connected S800 input and output modules.
Key Features:
- PROFIBUS DP-V1 Communication: Provides the fieldbus connection between a compatible controller and ABB S800 input and output modules.
- Redundant Operation: Designed for one-plus-one redundant interface arrangements where communication availability is required.
- 12 Megabit Communication Rate: The PROFIBUS interface supports transmission speeds up to 12 megabits per second.
- ModuleBus Integration: Includes two electrical ModuleBus interfaces for communication with connected S800 input and output modules.
- Hot Configuration In Run: Supports configuration changes while the input and output station remains in operation.
- HART Pass-Through: Supports the transfer of HART communication through compatible S800 input and output configurations.
- 24-Volt Power Input: Operates from a nominal 24-volt direct-current supply, with an allowable input range of 19.2 to 30 volts direct current.
- TU846 and TU847 Compatibility: Mounts on the TU846 termination unit for redundant input and output arrangements or TU847 for single input and output arrangements.
The 3BSE022457R1 delivers the reliability and precision required for PROFIBUS communication and distributed input and output management in ABB industrial control systems.
