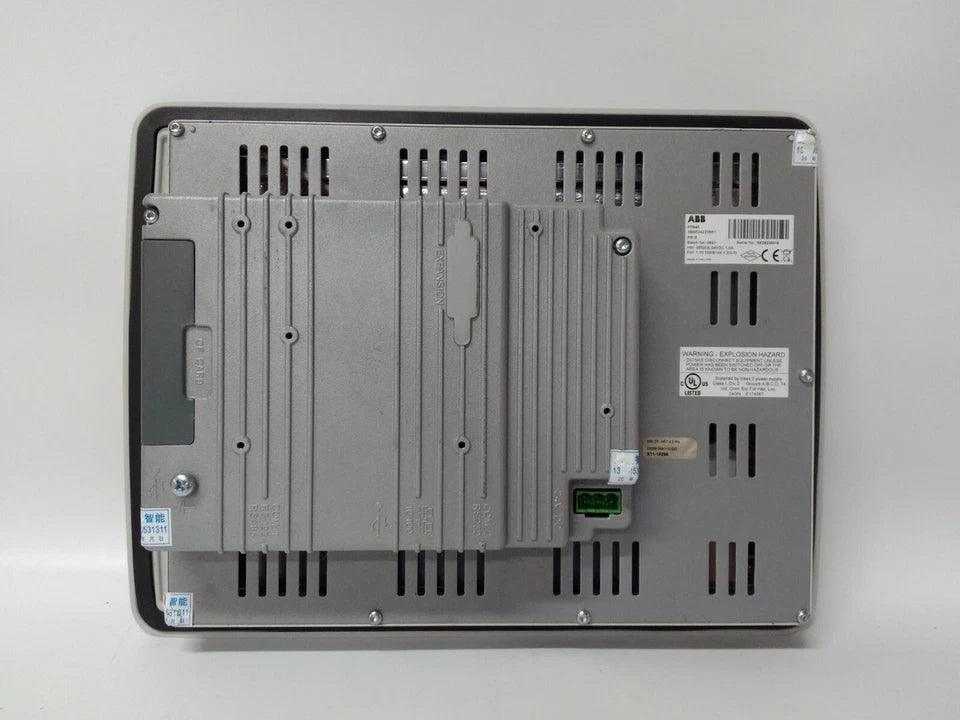

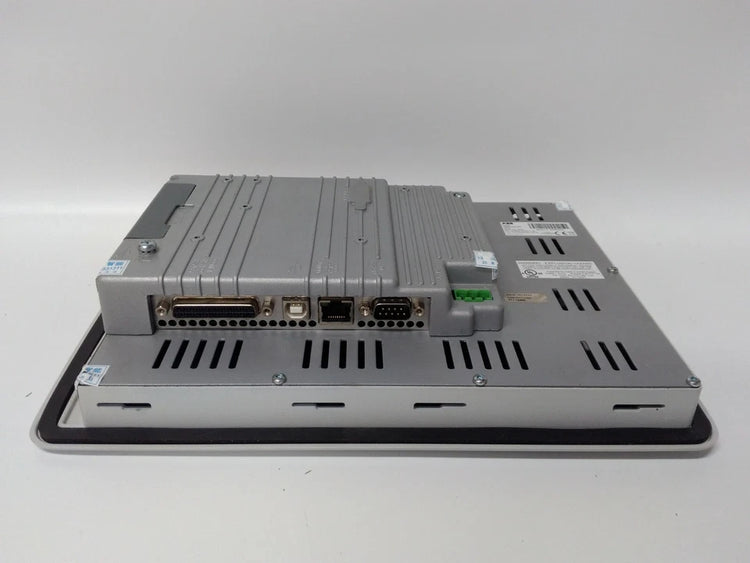

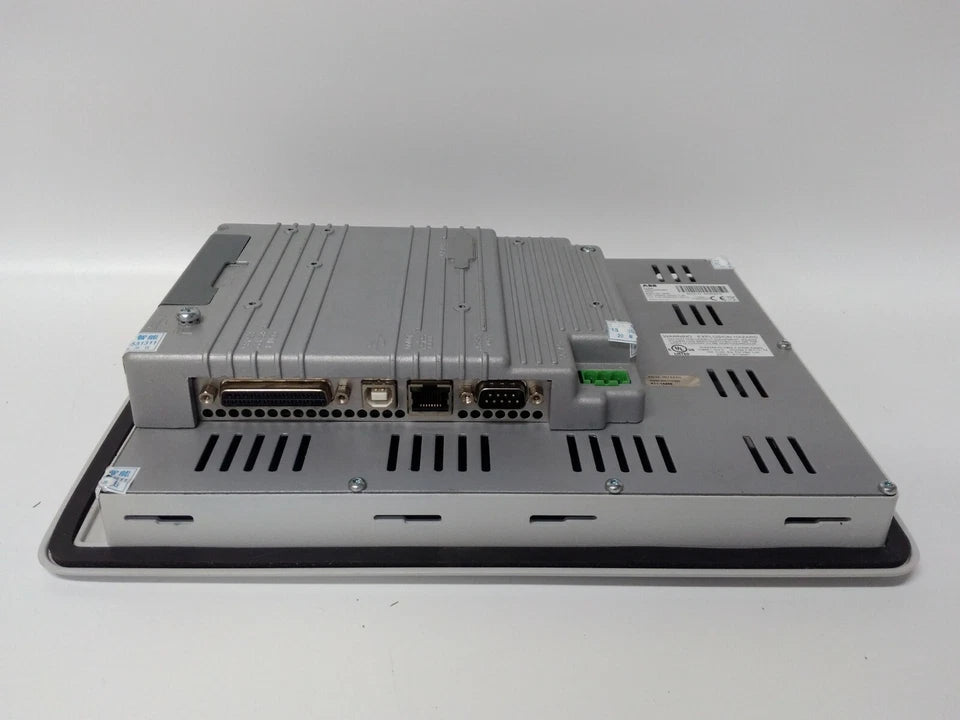

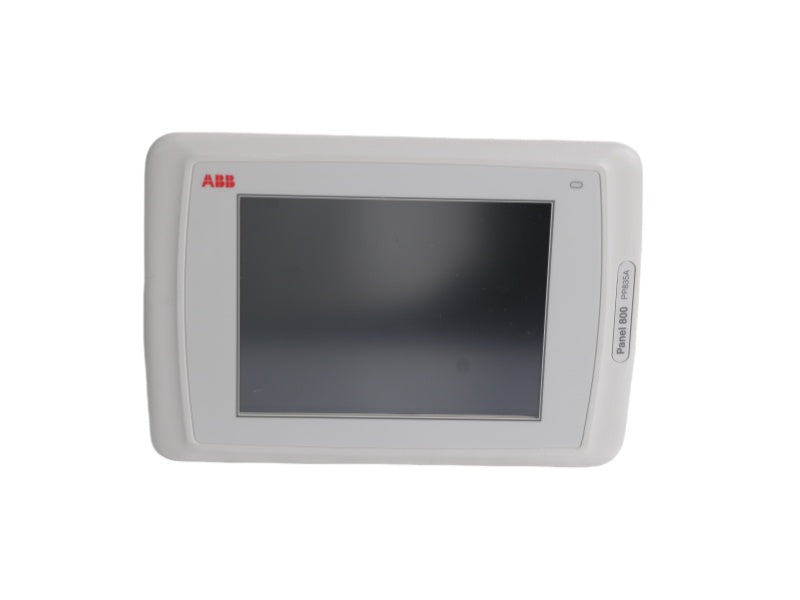

ABB 3BSE042234R2 PP835A Panel 800 Color Touch Operator Interface
- Regular price
- $5,899.00
- Sale price
- $5,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3BSE042234R2
Description
The ABB 3BSE042234R2 is a PP835A operator interface from the Panel 800 family, designed for local visualization and control of industrial processes. It uses a 6.5-inch color thin-film transistor resistive touch display with 640 × 480 pixel resolution for presenting process graphics, operating data, alarms, and control functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | HMI / MMI / OIT |
| Part Number | 3BSE042234R2 |
| Subcategory | Operator Interface |
| Model | PP835A |
| Series | Panel 800 |
| Product Type | Touch Operator Panel |
| Display Size | 6.5 Inches |
| Display Type | Color Thin-Film Transistor |
| Display Colors | 64,000 Colors |
| Resolution | 640 × 480 Pixels |
| Touch Technology | Resistive Touch |
| Power Supply | 24 Volts Direct Current, 20–30 Volts Direct Current |
| Power Consumption | 0.4 Amperes Normal, 0.9 Amperes Maximum |
| Communication Interfaces | RS-232, RS-422/485, Ethernet |
| Front Panel Protection | IP66 |
| Dimensions | 219 × 154 × 60 Millimeters |
| Panel Cutout | 189 × 138 Millimeters |
| Weight | 2.00 lbs |
Information About 3BSE042234R2
The 3BSE042234R2 is an ABB PP835A operator panel developed for the Panel 800 industrial human-machine interface platform. Its panel-mounted construction combines a color thin-film transistor display with resistive touch input and an aluminum-backed enclosure for control cabinet installation. The unit provides serial, Ethernet, and Universal Serial Bus connectivity for communication, programming, and peripheral integration. Configuration is performed with ABB Panel Builder 800, allowing the interface to provide graphical and text-based operator functions within compatible automation systems.
Key Features:
- 6.5-Inch Display: Provides a compact color screen for process visualization and operator interaction.
- Color Thin-Film Transistor Technology: Displays graphics and text using up to 64,000 colors.
- Resistive Touch Interface: Allows operators to execute commands and navigate application screens directly from the display.
- 640 × 480 Resolution: Provides clear presentation of equipment status, process values, alarms, and control objects.
- Industrial Communications: Includes RS-232, RS-422/485, and Ethernet interfaces for connection with automation equipment.
- Universal Serial Bus Connectivity: Provides host and device interfaces for programming and compatible peripheral equipment.
- 24 Volt Power Supply: Operates from a 20 to 30 volt direct current input range.
- Panel-Mount Construction: Uses a compact enclosure with an IP66-rated front panel and IP20 rear protection.
The 3BSE042234R2 delivers the reliability and precision required for local process visualization, equipment monitoring, and operator control in industrial automation systems.
