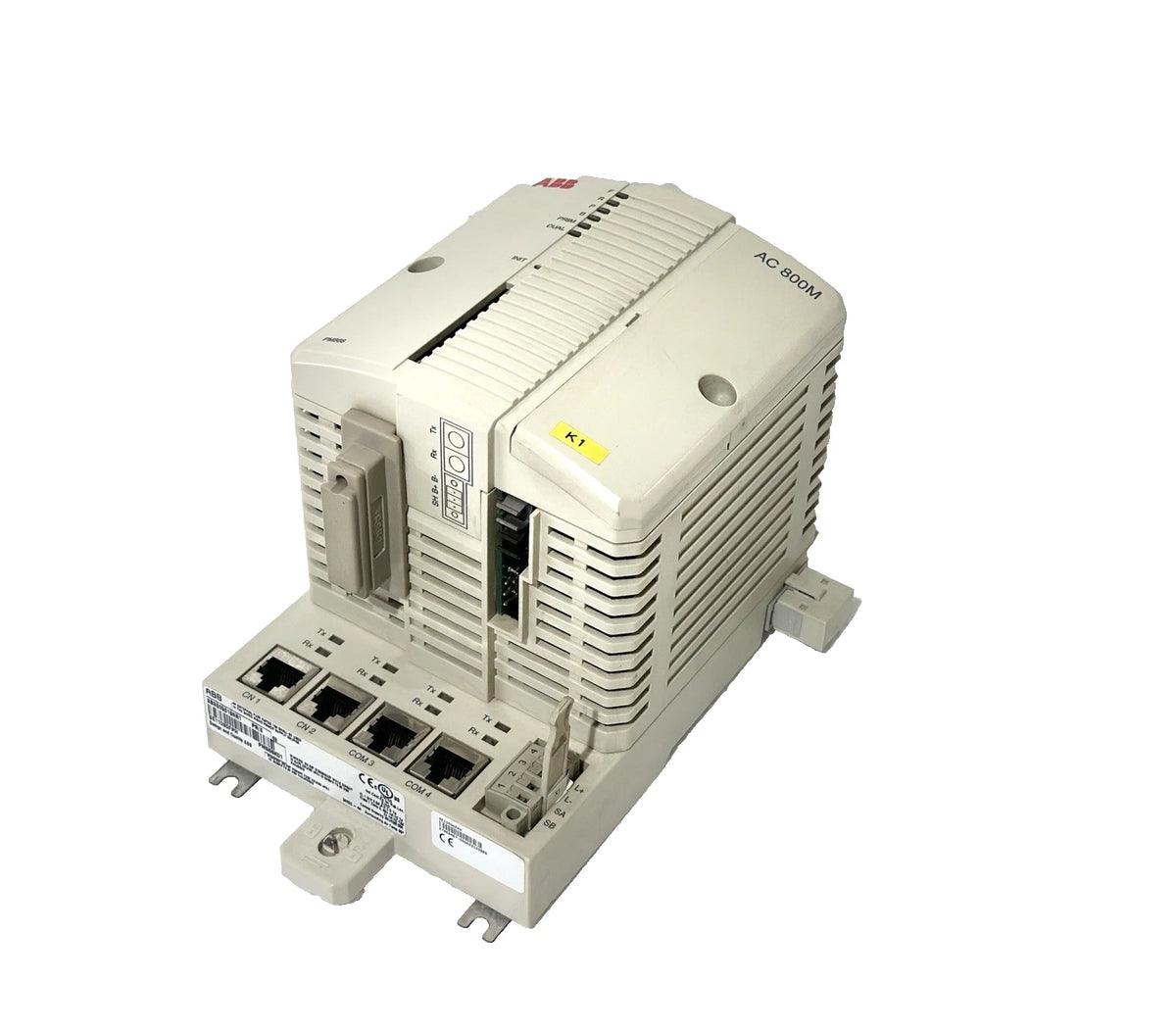

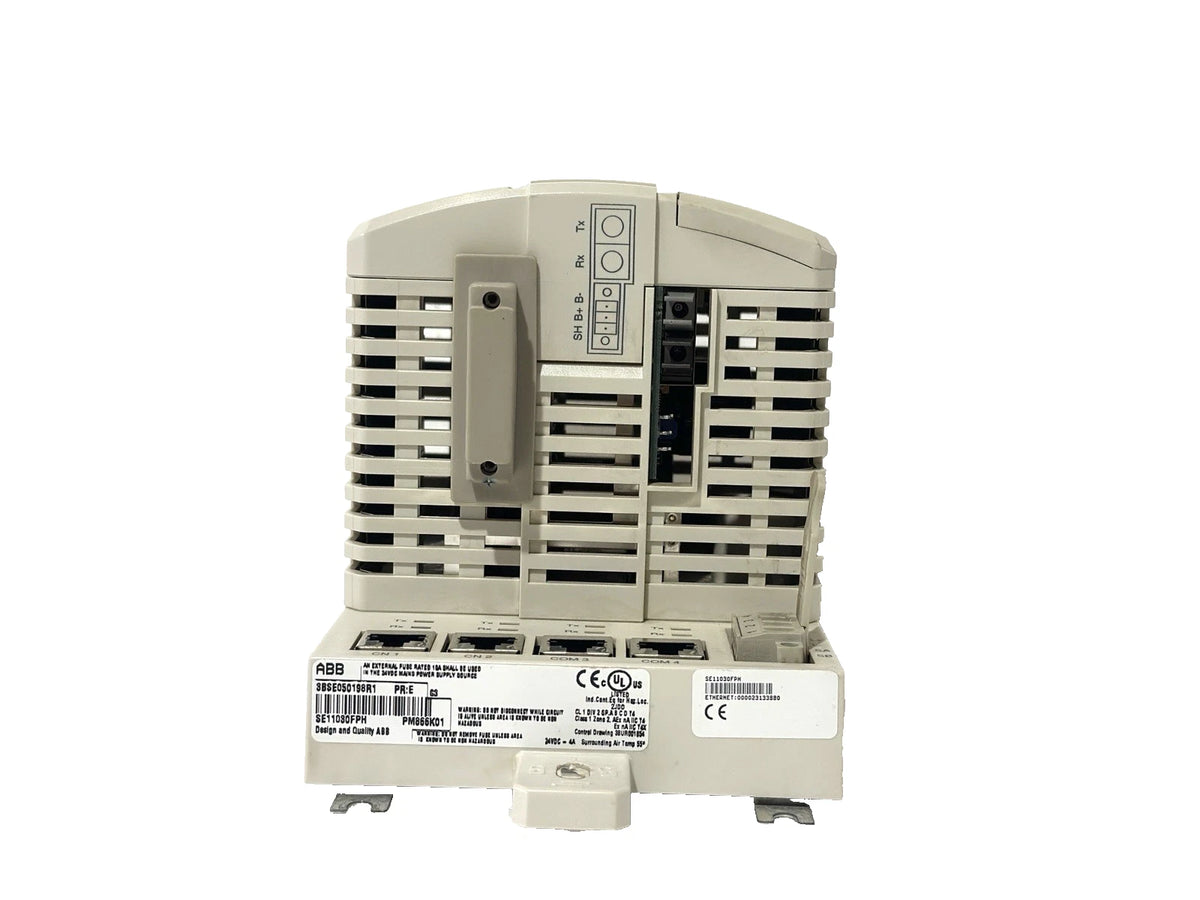

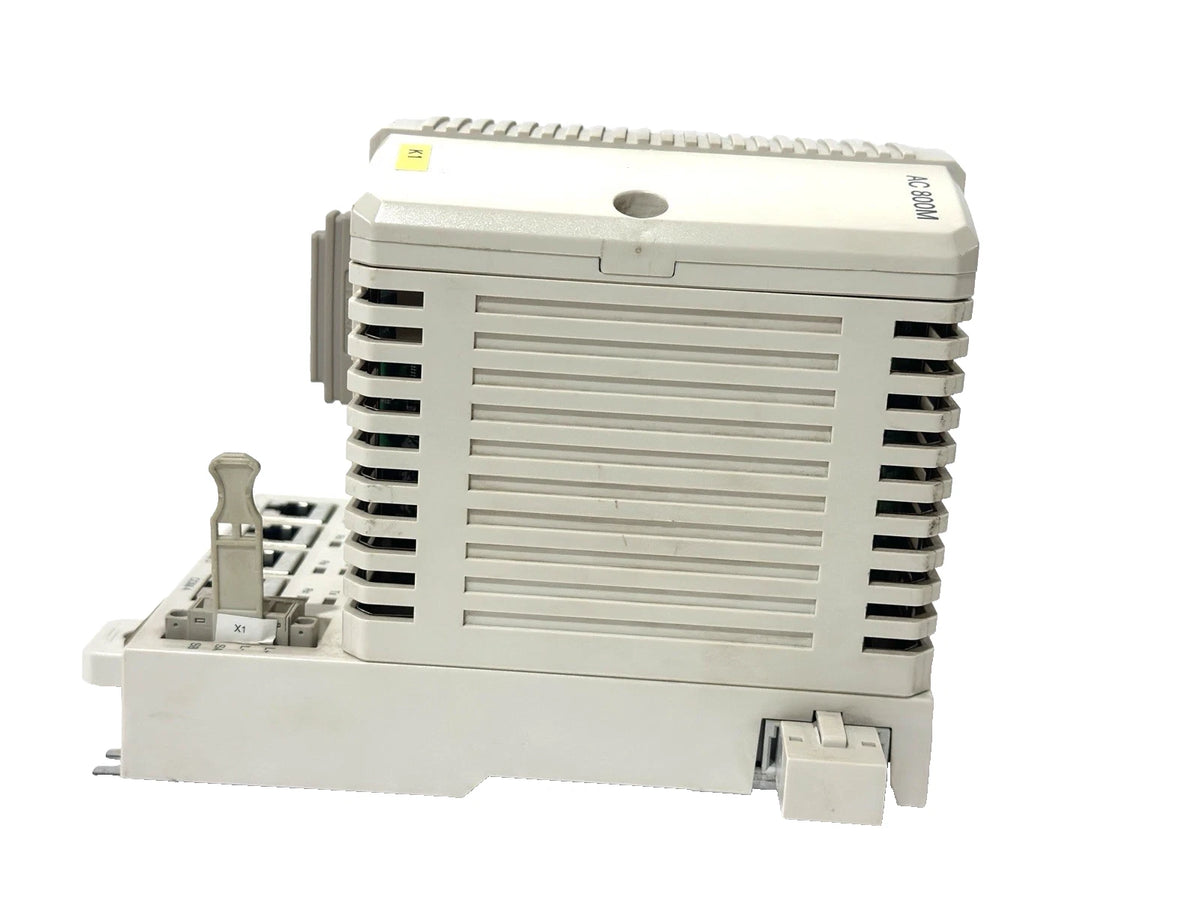

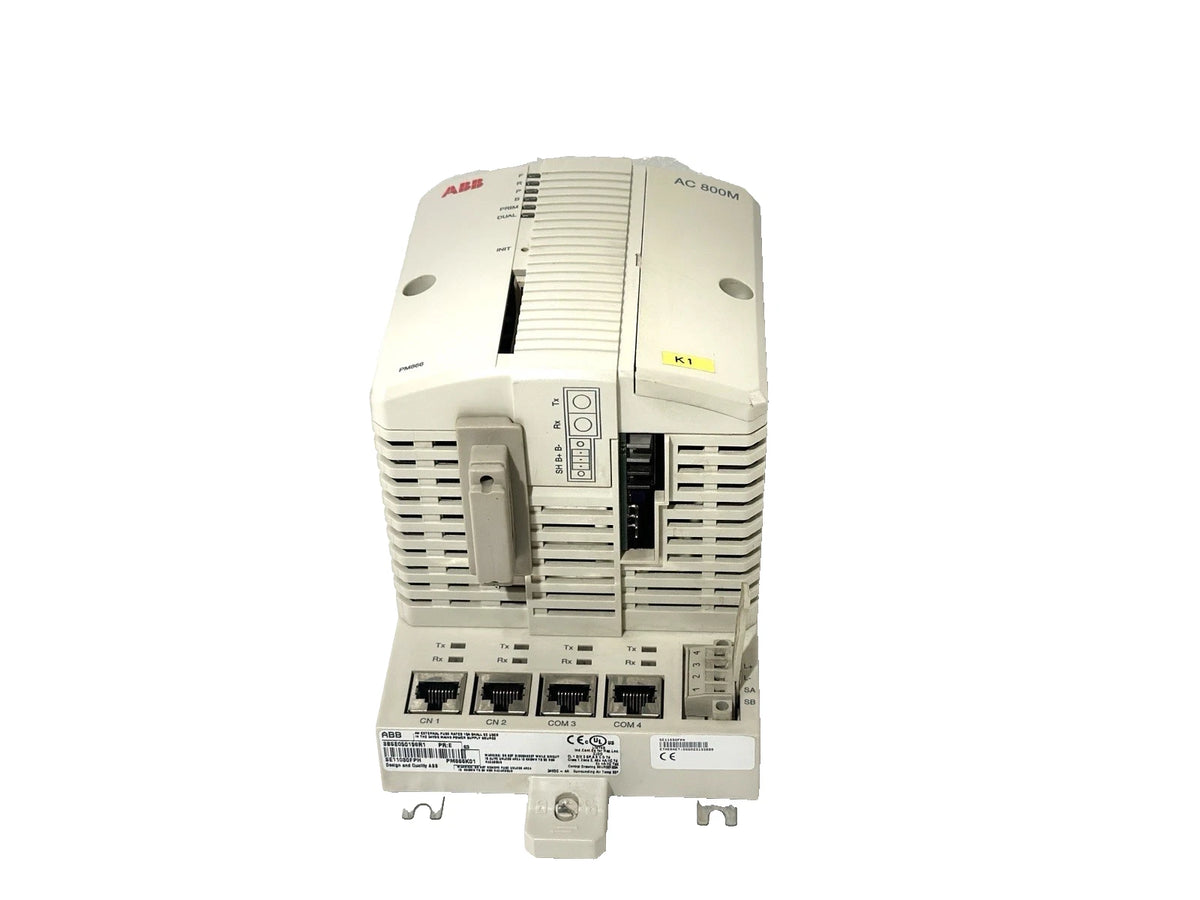

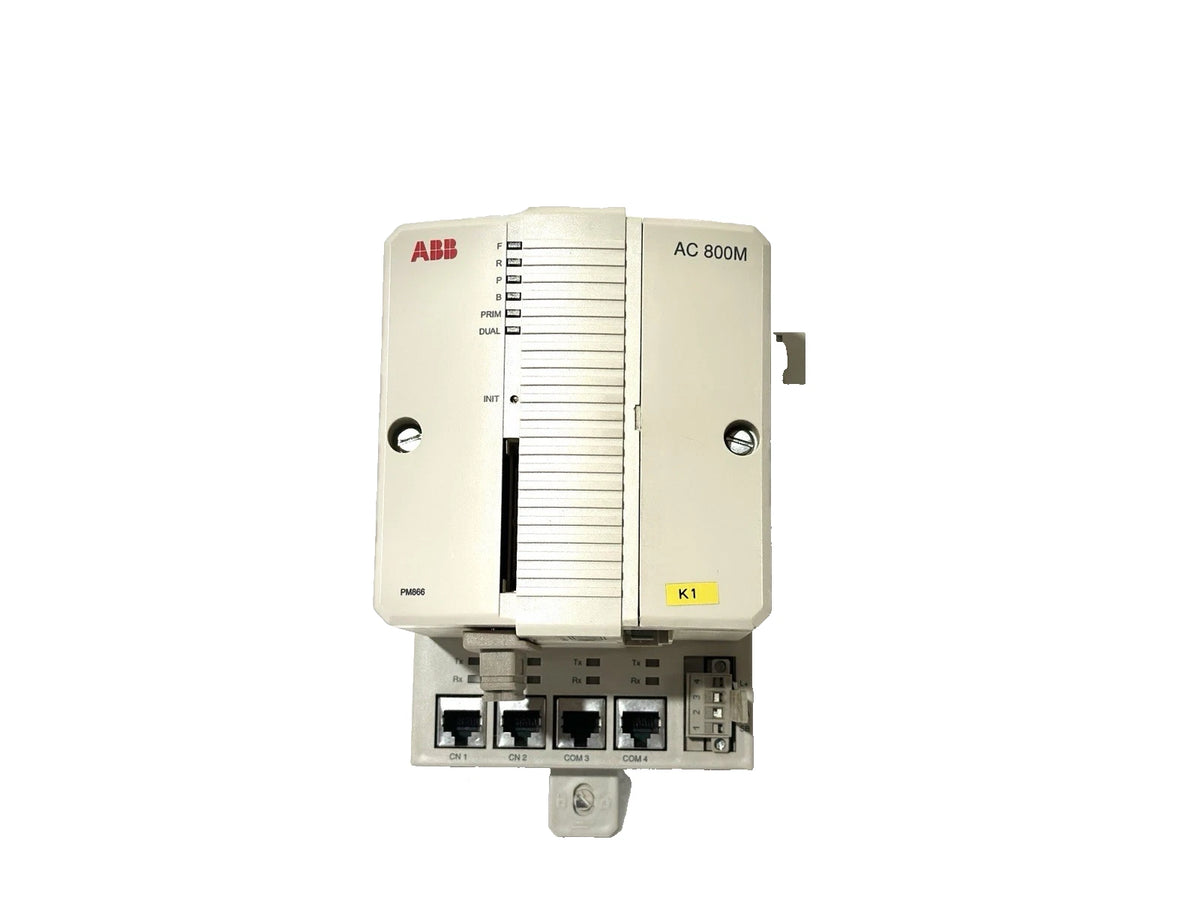

ABB 3BSE050198R1 PM866K01 AC 800M Processor Unit
- Regular price
- $14,999.00
- Sale price
- $14,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 3BSE050198R1
Description
The ABB 3BSE050198R1 is a PM866K01 processor unit for AC 800M industrial control systems. Its 133 MHz processor and 64 MB RAM execute control applications and manage communication with connected automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | PLCs/Machine Control |
| Part Number | 3BSE050198R1 |
| Subcategory | Processor Units |
| Model | PM866K01 |
| Controller Family | AC 800M |
| CPU Type | MPC866 |
| Processor Clock Frequency | 133 MHz |
| RAM | 64 MB |
| Nominal Supply Voltage | 24 VDC |
| Supply Voltage Range | 19.2–30 VDC |
| CPU Current Consumption | 210 mA typical; 360 mA maximum, excluding ModuleBus and CEX-Bus loads |
| Power Input Connector | Four-position screw connector: L+, L−, SA, SB |
| Ethernet Ports | 2 |
| Serial Ports | 2 RS-232C |
| Expansion Interfaces | CEX-Bus and ModuleBus |
| Baseplate | TP830 |
| Dimensions (H × W × D) | 186 × 119 × 135 mm |
| Weight | 1.2 kg (2.65 lb) |
Information About 3BSE050198R1
The 3BSE050198R1 is an AC 800M package built around the PM866 CPU and TP830 baseplate. ABB’s standard package includes CEX-Bus, ModuleBus, and RCU-Link terminators, together with a memory backup battery. The modular assembly connects to compatible communication interfaces and S800 I/O equipment. It supports single-processor installations and appropriately configured redundant CPU systems.
Key Features:
- Processor Performance: Uses an MPC866 microprocessor operating at 133 MHz.
- Application Memory: Provides 64 MB RAM for system and application functions.
- Ethernet Connections: Includes two Ethernet ports for control network communication.
- Serial Interfaces: Provides RS-232C ports for modem communication and service access.
- Communication Expansion: Supports additional interfaces through the CEX-Bus.
- I/O Connectivity: Connects compatible S800 I/O through the ModuleBus.
- Redundancy Capability: Supports a paired CPU arrangement with the required interconnection hardware.
- Memory Backup: Supports battery backup to retain memory during power interruptions.
The 3BSE050198R1 delivers the reliability and precision required for control application execution and communication in industrial automation systems.
