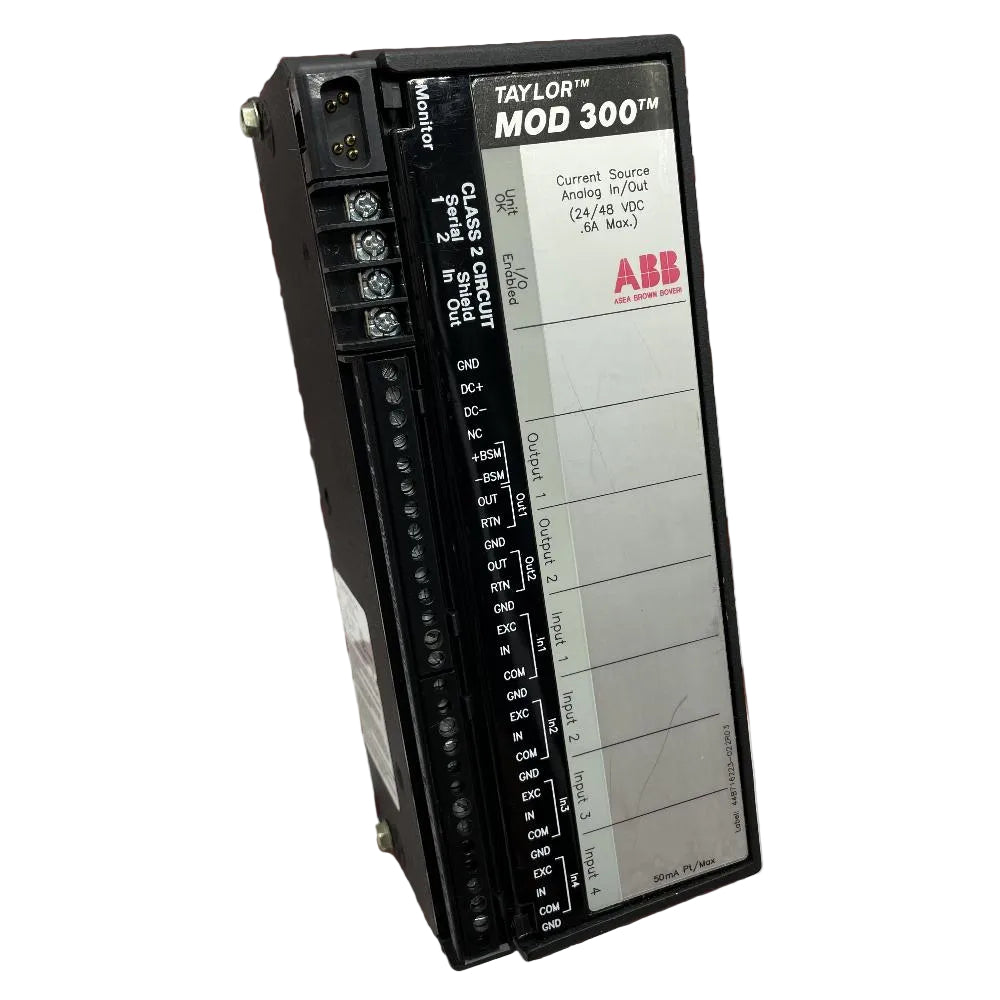

ABB 6231BP10810 24/48VDC Analog Current I/O Block 4 Input 2 Output
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6231BP10810
Description
The ABB 6231BP10810 is a 24/48 VDC analog current source I/O block from the ABB MOD 300 TRIO control system. It provides four analog current inputs and two analog current outputs for industrial process measurement and control. The complete unit includes both the electronic assembly and termination assembly.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Automation |
| Part Number | 6231BP10810 |
| Subcategory | Analog I/O Modules |
| Product Family | ABB MOD 300 TRIO |
| Module Type | Analog I/O Block |
| Power Supply | 24/48 VDC |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Input Range | 4–20 mA |
| Output Range | 4–20 mA |
| Input Overrange Capacity | 0–25 mA |
| Output Overrange Capacity | 0–24 mA |
| Channel-to-Channel Isolation | 300 V RMS |
| Input Conversion Time | 16.6–400 ms, selectable |
| Maximum Output Load | 850 ohms |
| Input Excitation | 24 VDC |
| Weight | Approx. 4 lb |
Information About 6231BP10810
The 6231BP10810 is part of the ABB MOD 300 TRIO 6231B analog I/O block family. Its four input channels accept 4–20 mA signals and provide 24 VDC excitation for connected current-loop devices. The two output channels provide 4–20 mA signals with a specified load capability of up to 850 ohms. Channel-to-channel isolation is rated at 300 V RMS, with diagnostics for open-wire, overrange, underrange, and output feedback errors.
Key Features:
- Four Analog Inputs: Provides four current-input channels for 4–20 mA process signals.
- Two Analog Outputs: Provides two 4–20 mA current outputs for connected control devices.
- 24/48 VDC Operation: Designed for 24/48 VDC system power.
- Current-Loop Support: Handles standard 4–20 mA industrial analog signals.
- Channel Isolation: Provides 300 V RMS channel-to-channel isolation.
- Input Diagnostics: Detects open-wire, overrange, and underrange conditions.
- Output Diagnostics: Supports overrange, underrange, and feedback-error detection.

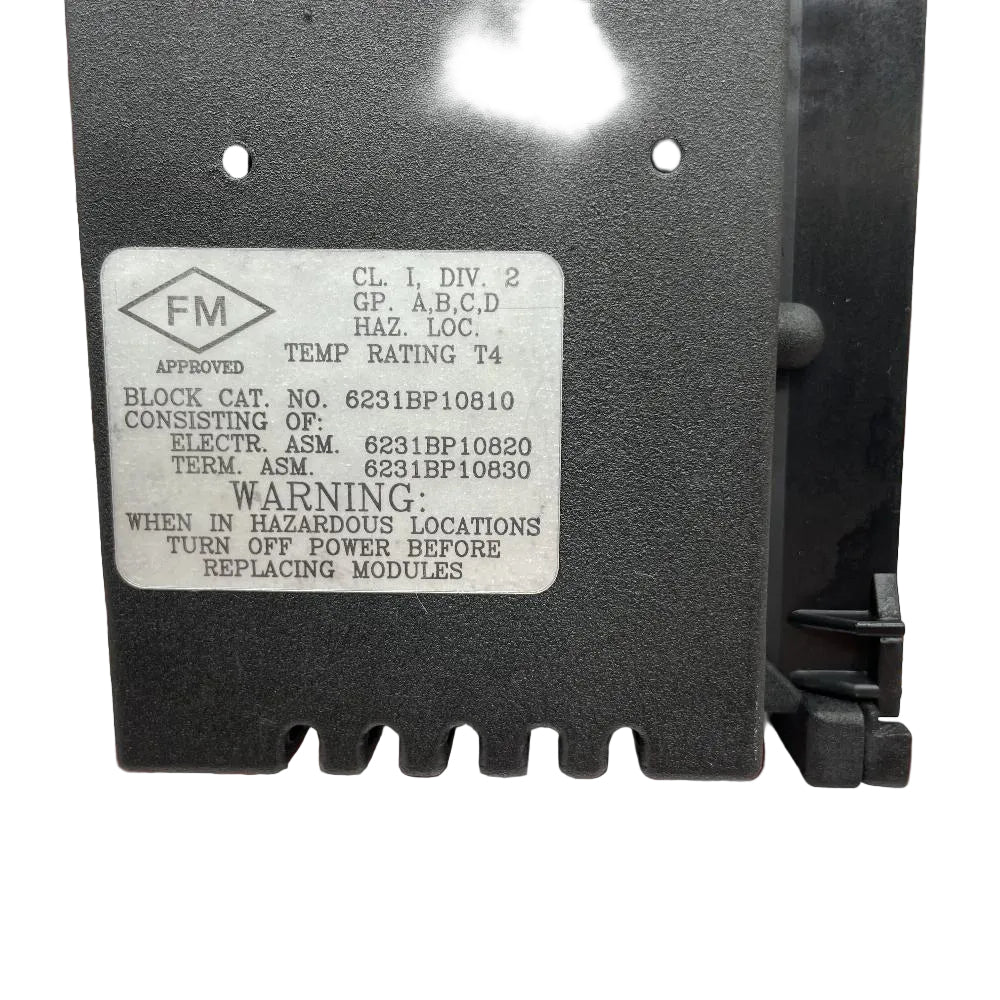

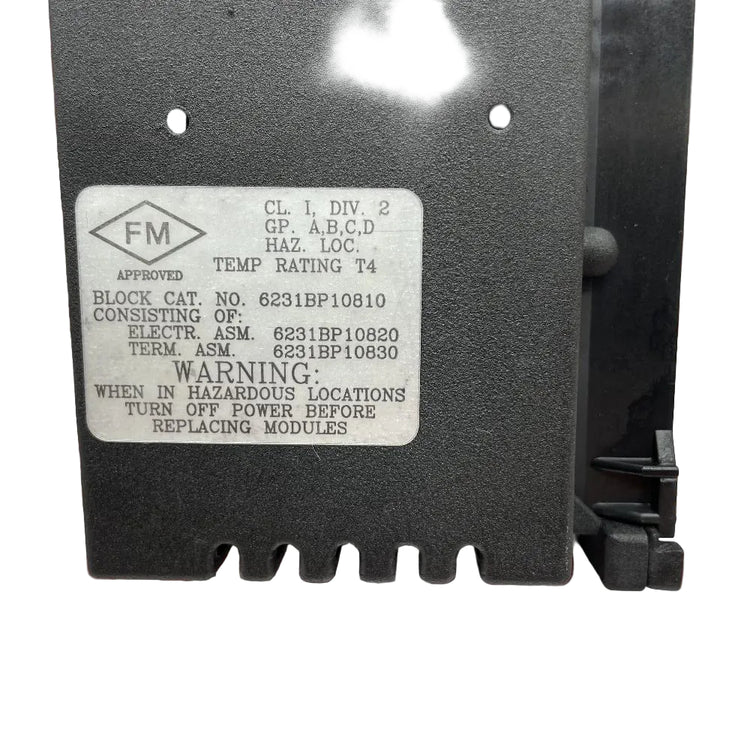

- Complete Unit: Includes both the electronic assembly and termination assembly.
The 6231BP10810 delivers the reliability and precision required for industrial process measurement, analog signal conditioning, and automated control applications.
