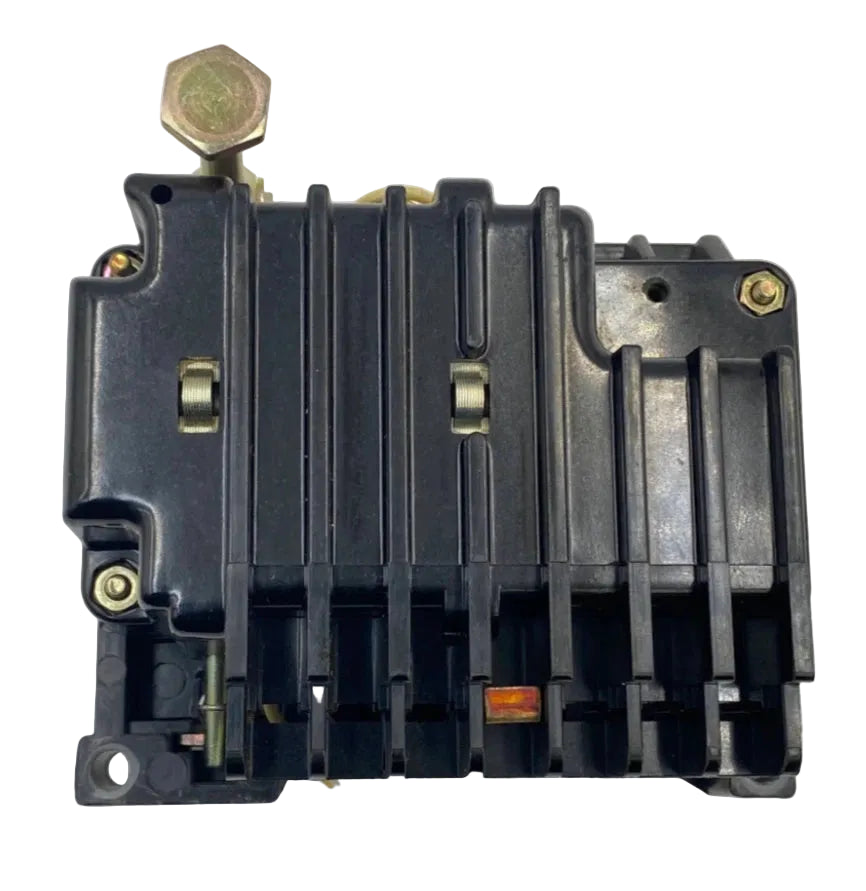

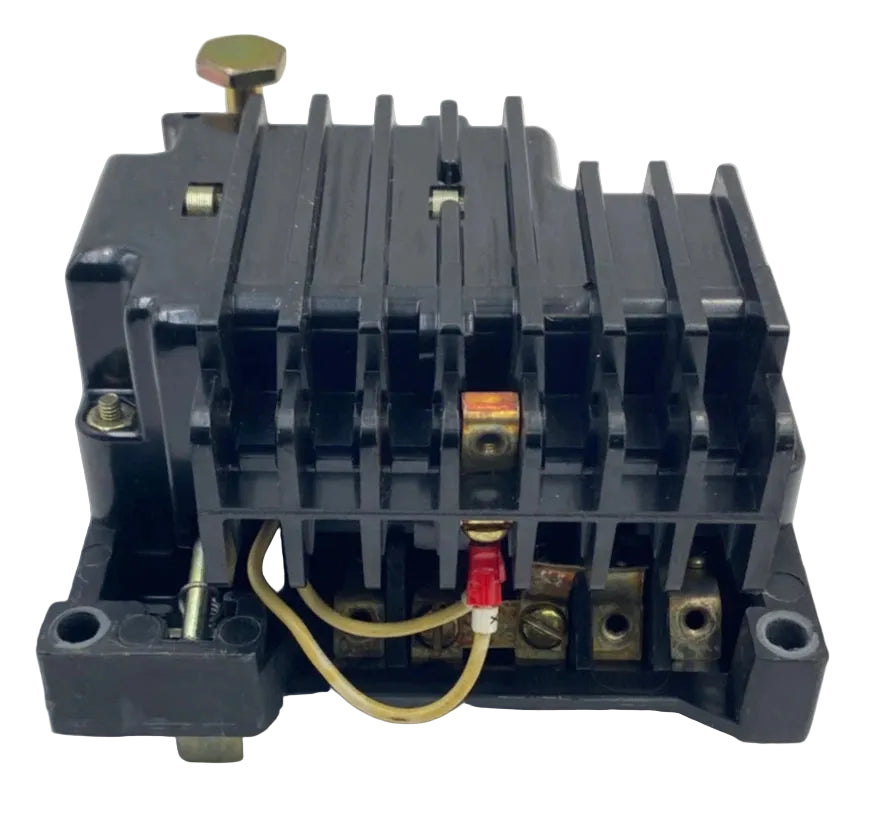

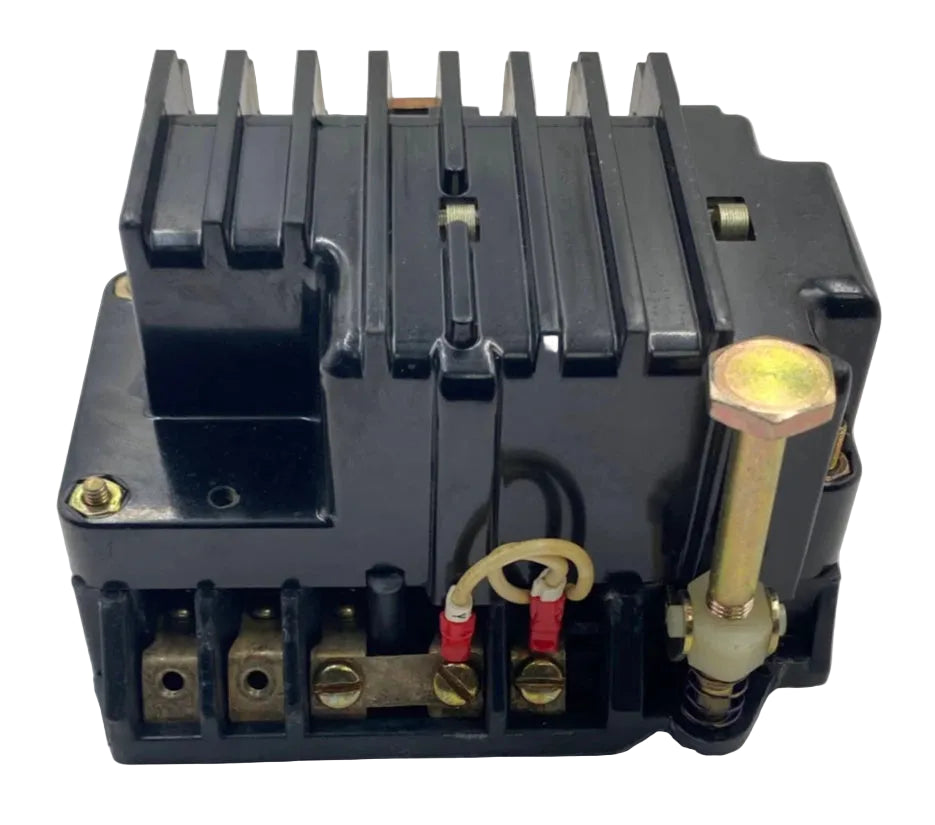

ABB 708392-T07 125 Volt Direct Current Control Relay Assembly for K-Line Circuit Breakers
- Regular price
- $5,065.00
- Sale price
- $5,065.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 708392-T07
Description
The ABB 708392-T07 is a 125 volt direct current control device relay assembly designed for the operating mechanism of ABB, ITE, and Brown Boveri K-Line circuit breakers. It provides the control relay function required within electrically operated breaker closing and control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Controls & Indicators |
| Part Number | 708392-T07 |
| Subcategory | Control |
| Product Type | Control Device Relay Assembly |
| Control Voltage | 125 Volts Direct Current |
| Equipment Family | K-Line |
| Compatible Equipment | Electrically Operated Circuit Breakers |
| Compatible Breaker Frames | K-225, K-600, K-800, K-1600, K-2000 |
| Additional Compatibility | K-DON Breaker Types |
| Mechanism Type | Electric Operator |
| Installation | Internal Circuit Breaker Control Mechanism |
| Application | Circuit Breaker Control and Operating Circuit |
| Component Classification | Renewal and Maintenance Part |
| Lifecycle Status | Discontinued by Manufacturer |
| Weight | 2.10 lbs |
Information About 708392-T07
The 708392-T07 is an ABB control device assembly associated with legacy K-Line and K-DON circuit breaker platforms. Its electromechanical construction is configured specifically for 125 volt direct current breaker control systems. ABB renewal-parts documentation lists the assembly among the charging and closing components used across K-Line breaker frame sizes from K-225 through K-2000. The assembly is intended for maintenance and replacement in compatible electrically operated circuit breakers where the original 125 volt direct current control configuration must be retained.
Key Features:
- Control Device Assembly: Provides an electromechanical control function within compatible circuit breaker operating mechanisms.
- 125 Volt Operation: Specifically configured for 125 volt direct current control power.
- K-Line Compatibility: Documented for ABB and legacy ITE K-Line circuit breaker equipment.
- Multiple Frame Support: Listed in renewal documentation covering K-225, K-600, K-800, K-1600, and K-2000 circuit breakers.
- Electrically Operated Breakers: Intended for breaker mechanisms using electrical charging, closing, and control components.
- Renewal Part Application: Designed as a service replacement component for maintaining legacy circuit breaker equipment.
- Legacy ABB Hardware: Associated with ABB, ITE, and Brown Boveri breaker product lineage.
- Breaker Control Integration: Installs within the breaker control mechanism rather than functioning as a standalone general-purpose relay.
The 708392-T07 delivers the reliability and precision required for control sequencing in compatible electrically operated circuit breakers.
