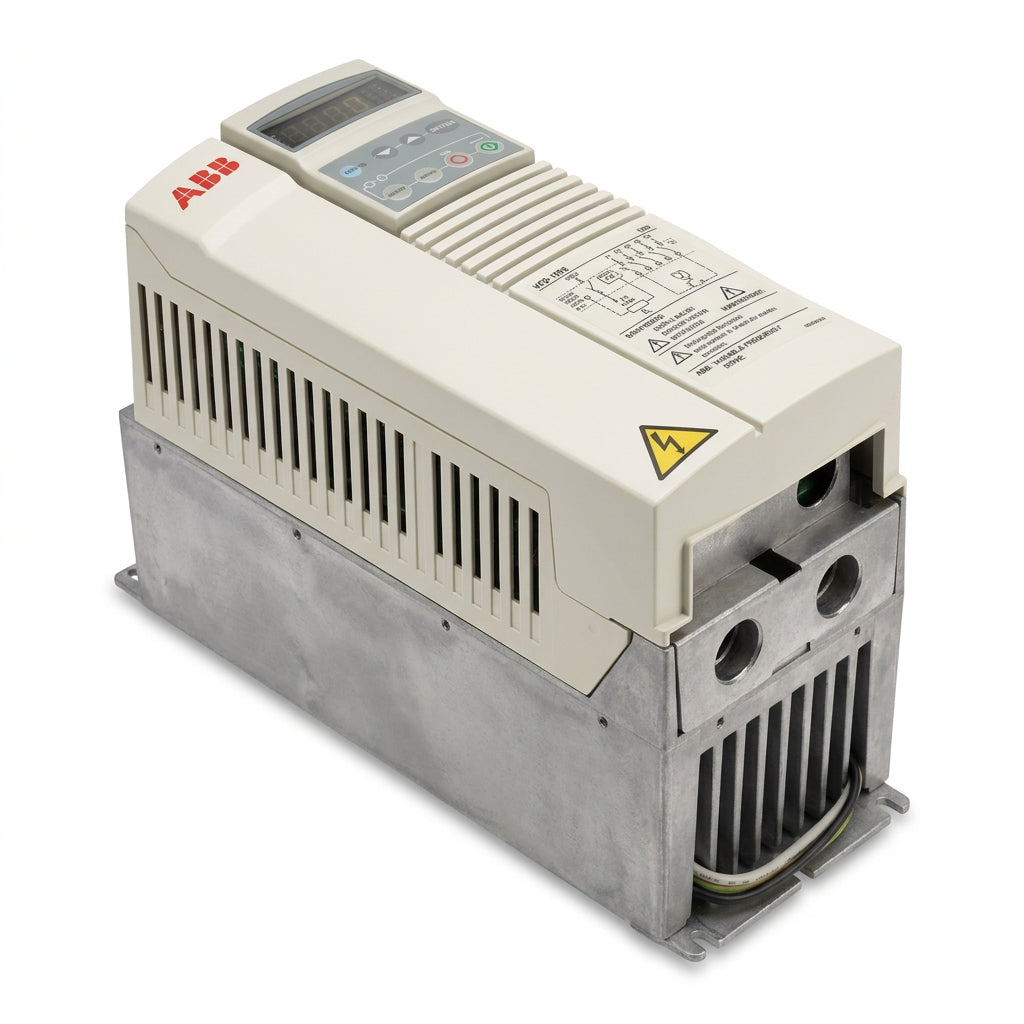

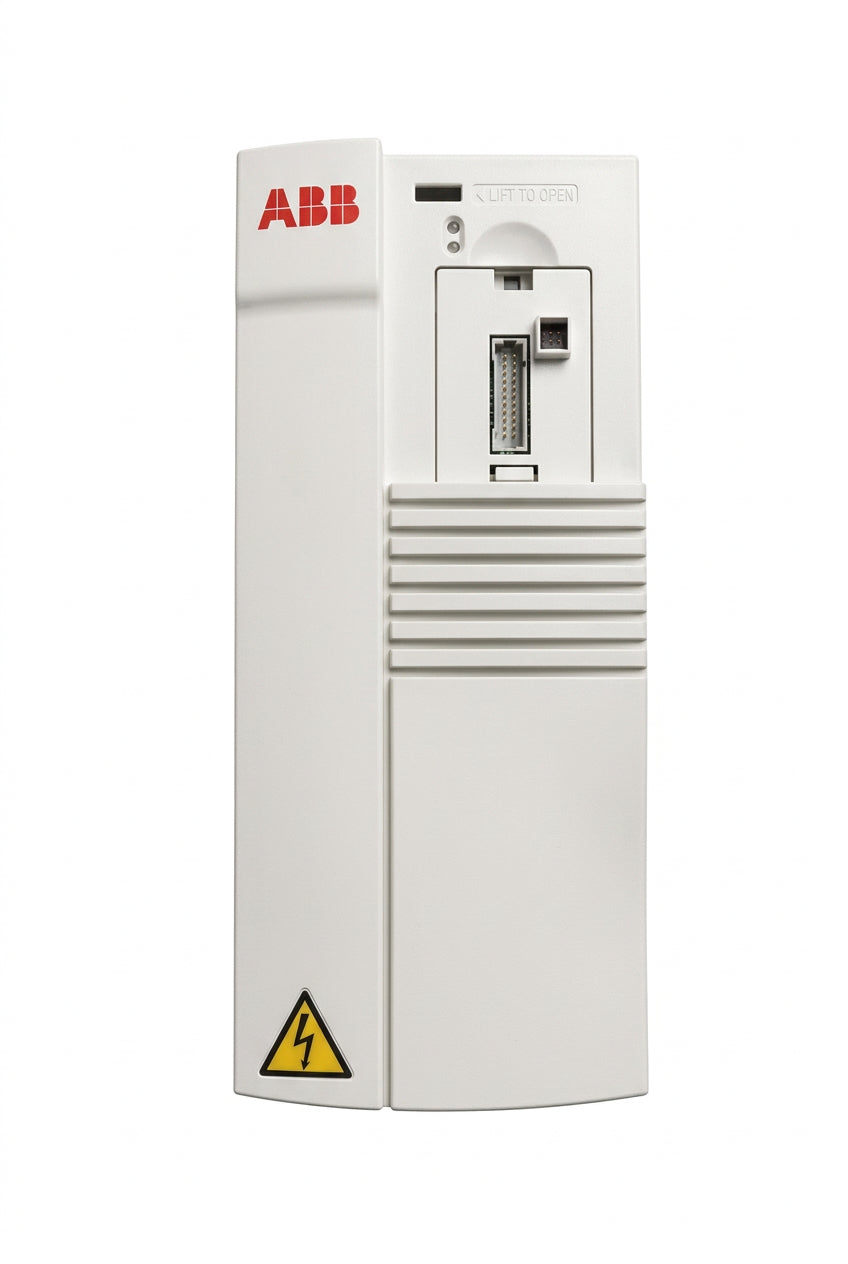

ABB ACH401600632 Variable Frequency Drive for HVAC Fan and Pump Motor Control
- Regular price
- $1,535.00
- Sale price
- $1,535.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACH401600632
Description
The ABB ACH401600632 is a variable frequency drive rated for 7.5 HP motors operating from a 380–480 VAC three-phase supply. It adjusts motor voltage and frequency to regulate speed in HVAC applications such as ventilation fans, air-handling units, and pumps. Its rated output current is 11.6 A.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Motor Drives |
| Part Number | ACH401600632 |
| Subcategory | Variable Frequency Drives |
| Series | ACH 400 |
| Motor Power Rating | 7.5 HP |
| Input Voltage | 380–480 VAC |
| Input Phase | Three-phase |
| Rated Input Current | 11.1 A |
| Input Frequency | 48–63 Hz |
| Output Voltage | 0 to input supply voltage |
| Output Phase | Three-phase |
| Rated Output Current | 11.6 A |
| Output Frequency | 0–250 Hz |
| Process Control | Internal PID controller |
| Primary Applications | HVAC fans, pumps, and air-handling equipment |
| Approximate Dimensions | 34 × 15 × 11 in |
| Weight | 12.5 lb (5.7 kg) |
Information About ACH401600632
The EPCO-16-50-3P-ST-E is a size 16 actuator from Festo’s EPCO series, identified by article number 1476415. Its ball screw has a 3 mm lead, and a plain-bearing guide supports the piston rod. The optical encoder communicates through RS422 TTL A/B channels with a zero index. An M6 male rod thread and threaded housing mounting points support mechanical integration.
Key Features:
- Motor Rating: Supports a 7.5 HP motor within the drive’s voltage and current ratings.
- Three-Phase Supply: Accepts 380–480 VAC input for compatible commercial and industrial electrical systems.
- Rated Output Current: Provides an 11.6 A nominal output for the connected motor.
- Adjustable Frequency: Offers a specified output frequency range of 0–250 Hz, subject to motor and application limits.
- Variable Output Voltage: Supplies three-phase output voltage adjustable from zero up to the input voltage.
- Internal PID Control: Uses process feedback to adjust motor operation toward a configured setpoint.
- HVAC Application Macros: Provides predefined control configurations for building mechanical equipment.
The ACH401600632 delivers the reliability and precision required for controlled motor operation in HVAC fan and pump systems.
