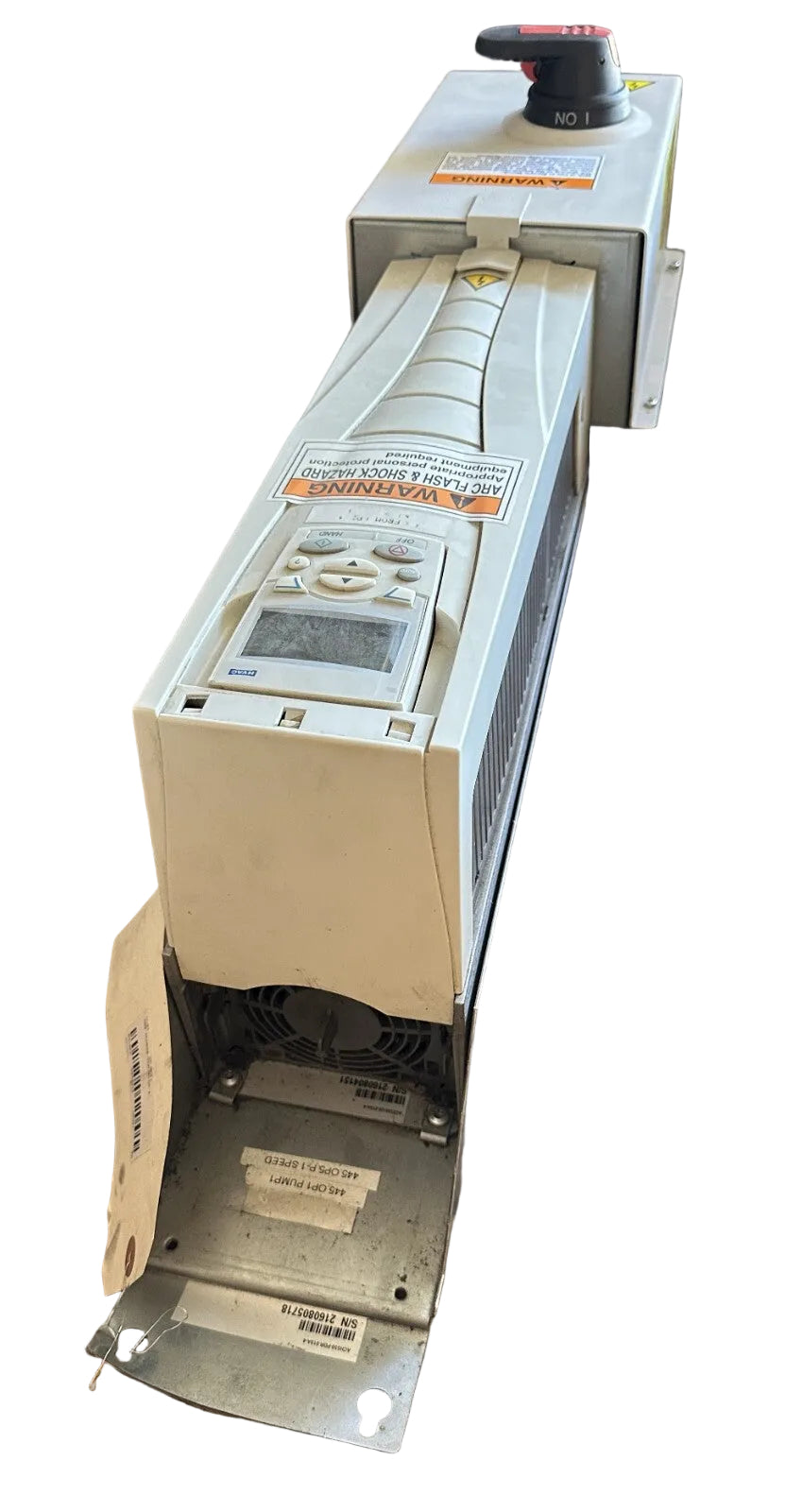

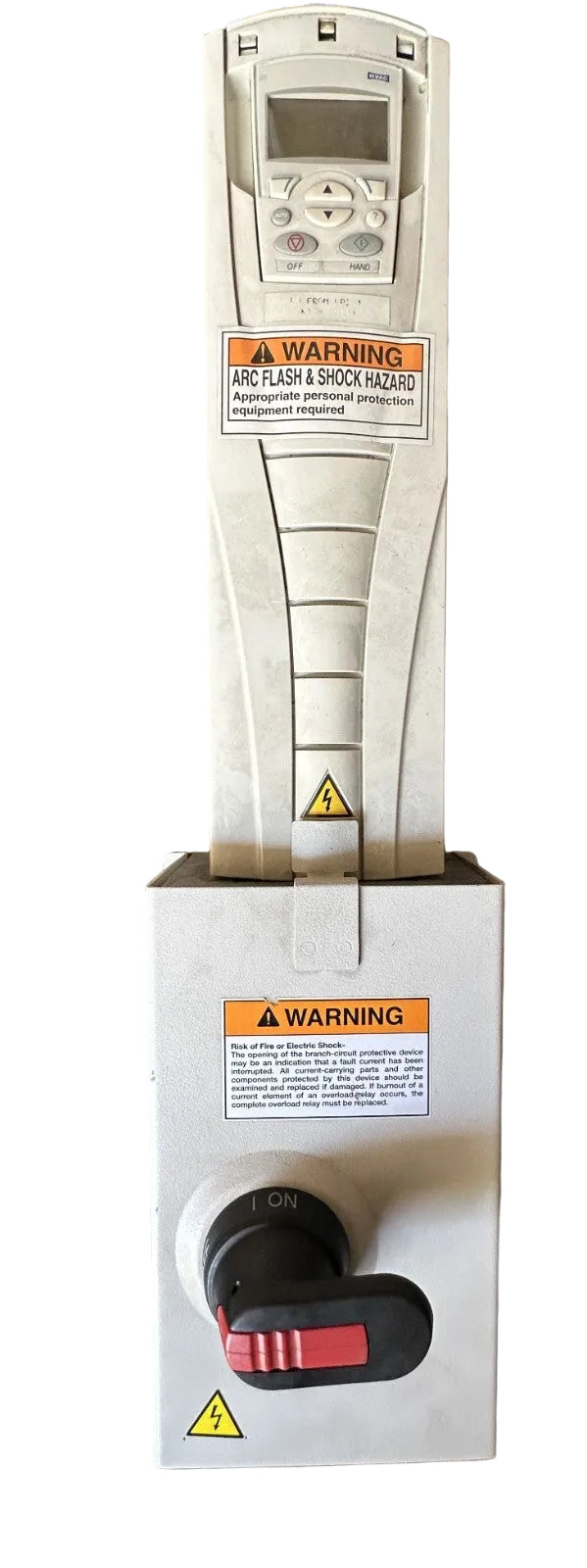

ABB ACH550-PDR-015A-4 Packaged Alternating Current Drive with Disconnect Switch
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACH550-PDR-015A-4
Description
The ABB ACH550-PDR-015A-4 is an ACH550 series packaged alternating current drive designed for variable-speed control of heating, ventilation, and air-conditioning motors. It combines the drive with an integral input disconnect switch, providing a centralized arrangement for motor speed control and incoming power isolation in pumps, fans, air handlers, and related building systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Drives |
| Part Number | ACH550-PDR-015A-4 |
| Subcategory | Drive |
| Series | ACH550 |
| Product Type | Packaged Alternating Current Drive |
| Drive Configuration | Drive with Integral Input Disconnect |
| Input Voltage | 380–480 Volts Alternating Current |
| Input Phase | Three-Phase |
| Input Frequency | 50/60 Hertz |
| Rated Current | 15.4 Amperes |
| Motor Rating | 10 Horsepower |
| Frame Size | R2 |
| Enclosure Type | UL Type / NEMA 1 |
| Disconnect | Integrated Input Disconnect Switch |
| Specified Input Fuse Rating | 30 Amperes |
| Typical Application | Heating, Ventilation, and Air-Conditioning Motor Control |
| Lifecycle Status | Discontinued by Manufacturer |
| Weight | 24.00 lbs |
Information About ACH550-PDR-015A-4
The ACH550-PDR-015A-4 is an ABB packaged drive with disconnect from the ACH550 heating, ventilation, and air-conditioning drive family. Its R2 frame configuration is designed for three-phase 380 to 480 volt applications and is rated for a 10 horsepower motor at 480 volts. The packaged construction incorporates an input disconnect with an externally operated, door-interlocked handle for isolation during servicing. It uses the ACH550 control platform for adjustable-frequency motor operation and is intended for installation in commercial and industrial heating, ventilation, and air-conditioning systems.
Key Features:
- Packaged Drive Design: Combines an ACH550 adjustable-frequency drive and input disconnect in one integrated assembly.
- Integral Disconnect Switch: Provides local isolation of incoming power through an externally operated disconnect mechanism.
- ACH550 Series: Uses ABB heating, ventilation, and air-conditioning drive technology for variable-speed motor control.
- R2 Frame Construction: This specific 480 volt configuration uses ABB frame size R2.
- Three-Phase Operation: Designed for three-phase alternating current motor applications.
- Heating and Ventilation Applications: Suitable for pumps, fans, air handlers, and other variable-torque building equipment.
- Input Protection: ABB specifies a 30 ampere input fuse rating for this particular packaged drive configuration.
- Enclosed Installation: Supplied in a UL Type / NEMA 1 configuration for protected indoor installation.
The ACH550-PDR-015A-4 delivers the reliability and precision required for variable-speed motor control in heating, ventilation, and air-conditioning equipment.
