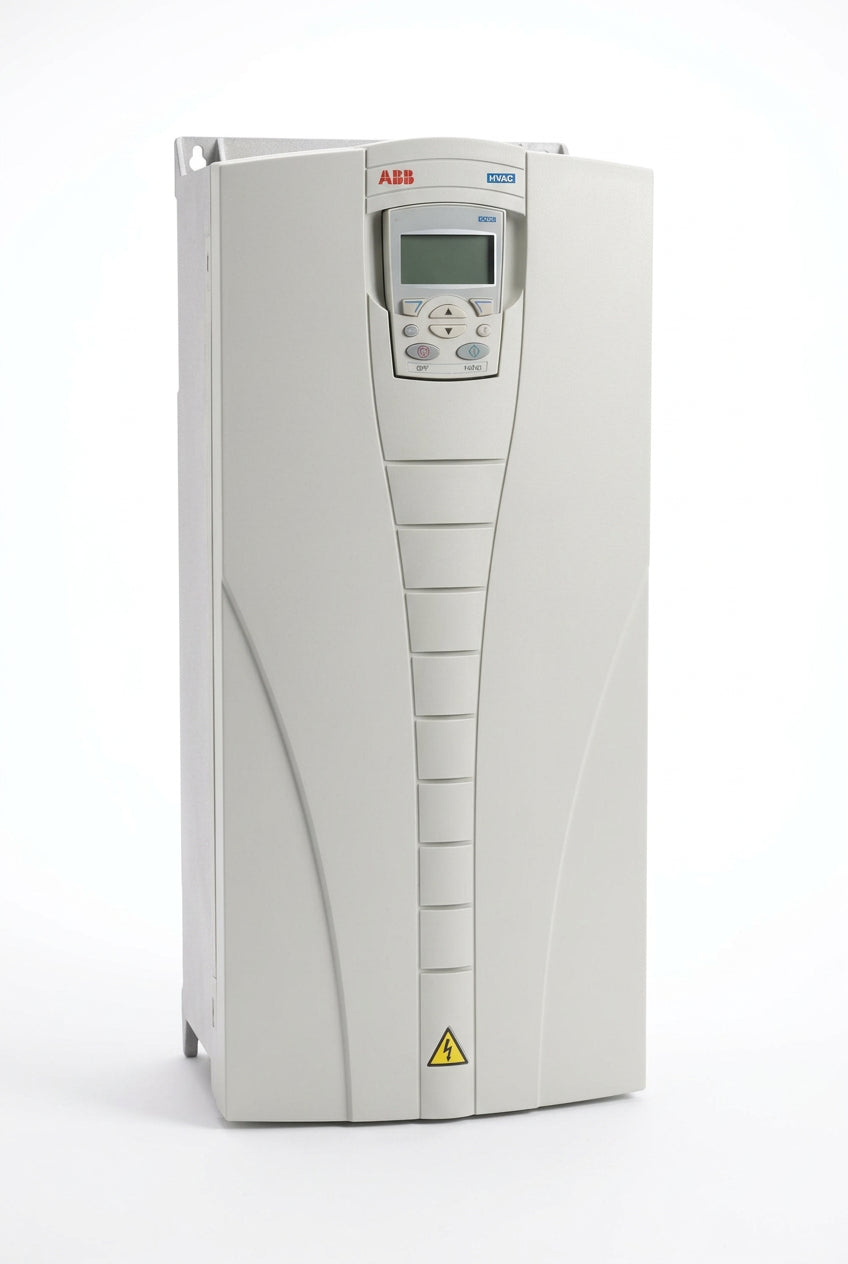

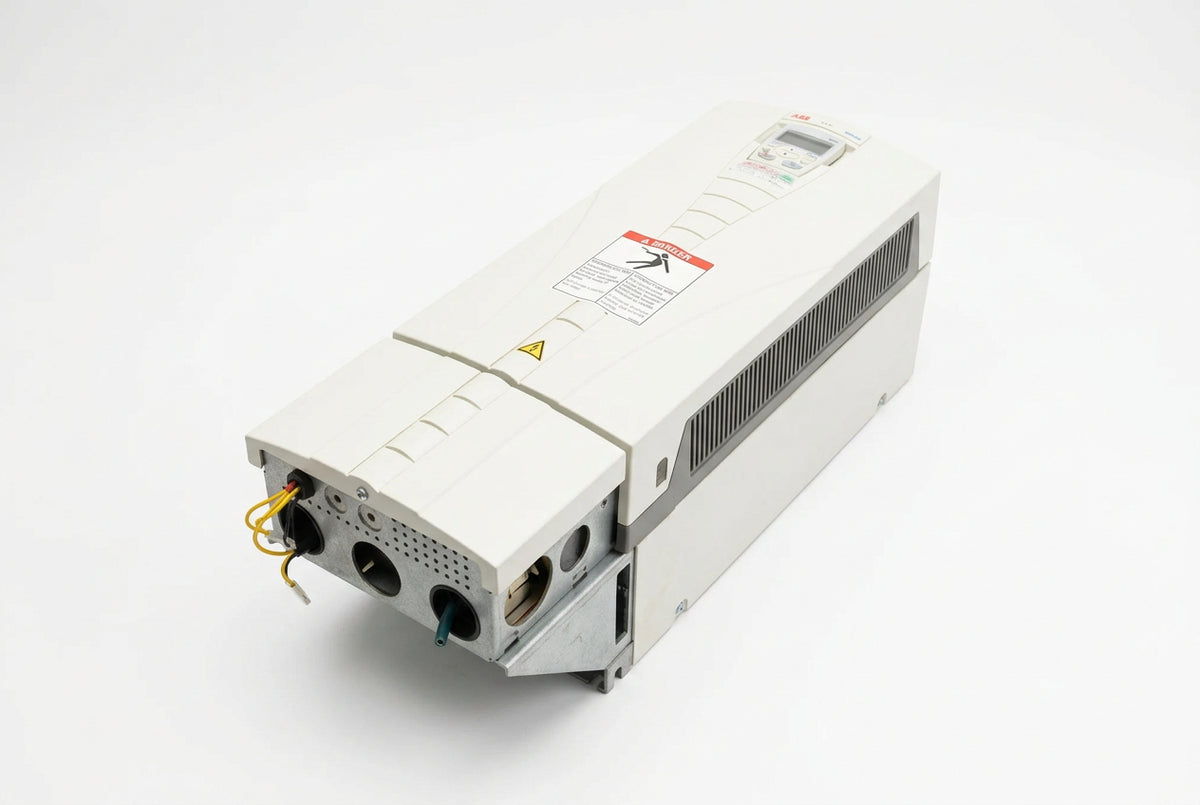

ABB ACH550-UH-096A-4 HVAC Variable Frequency Drive with Keypad
- Regular price
- $4,299.00
- Sale price
- $4,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACH550-UH-096A-4
Description
The ABB ACH550-UH-096A-4 is a variable frequency drive rated for 75 HP three-phase motors on a 380–480 VAC supply. It regulates motor speed to match changing demand in HVAC equipment such as fans, pumps, and air-handling systems. Its rated output current is 96 A, and the supplied configuration includes a keypad and NEMA 1 enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Motor Drives |
| Part Number | ACH550-UH-096A-4 |
| Subcategory | Variable Frequency Drives |
| Series | ACH550 |
| Drive Configuration | UH base drive |
| Rated Motor Power | 75 HP; approximately 55 kW |
| Nominal Input Voltage | 480 VAC |
| Input Voltage Range | 380–480 VAC |
| Input Phase | Three-phase |
| Rated Output Current | 96 A |
| Frame Size | R5 |
| Enclosure | NEMA 1 / UL Type 1 |
| Operator Interface | Keypad |
| Primary Applications | HVAC fans, pumps, and air-handling equipment |
| Enclosure Width | 265 mm (10.4 in) |
| Overall Height | 736 mm (29.0 in), including conduit box |
| Enclosure Depth | 286 mm (11.3 in) |
| Weight | 34 kg (75 lb) |
Information About ACH550-UH-096A-4
The ACH550-UH-096A-4 is part of ABB’s ACH550 HVAC drive family and uses the R5 frame size. The UH designation identifies the base-drive configuration. Built-in application macros provide predefined control arrangements for building mechanical equipment. The operator panel supports parameter setup, local operation, and access to diagnostic information.
Key Features:
- Motor Capacity: Supports a rated motor load of 75 HP in compatible HVAC applications.
- Three-Phase Input: Operates from a 380–480 VAC three-phase supply.
- Rated Output Current: Provides 96 A under ABB’s specified rating conditions.
- Variable Speed Control: Adjusts motor operation to suit fan, pump, or air-handling demand.
- Keypad Interface: Provides local access to drive settings, operating data, and diagnostics.
- HVAC Application Macros: Offers predefined configurations for common building-control applications.
- NEMA 1 Enclosure: Provides an enclosed construction for suitable indoor installations.
- R5 Frame Construction: Uses the frame size specified for the 096A model.
The ACH550-UH-096A-4 delivers the reliability and precision required for adjustable motor-speed control in HVAC fan and pump installations.
