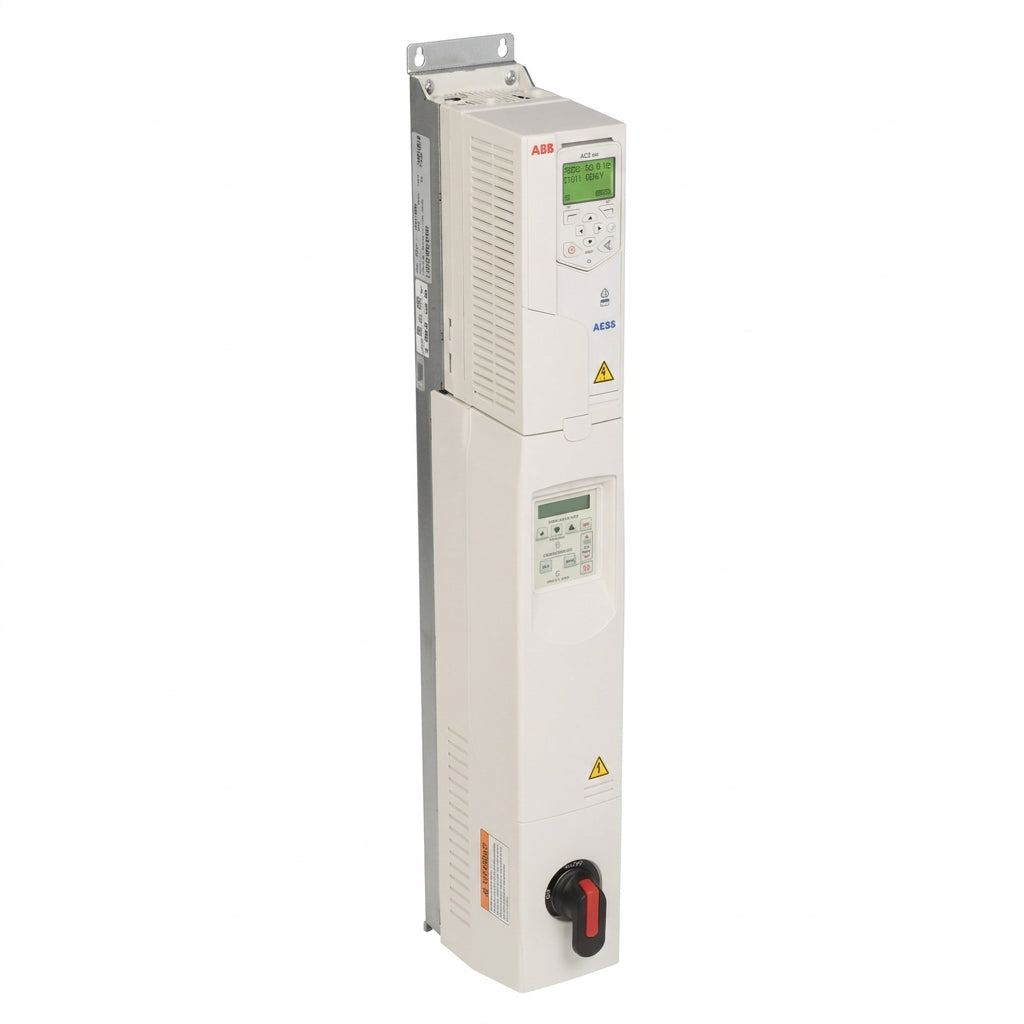

ABB ACH550-VCR-012A-4+F267 HVAC Drive 380-480V 7.5HP 12A Bypass
- Regular price
- $3,799.00
- Sale price
- $3,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACH550-VCR-012A-4+F267
Description
The ABB ACH550-VCR-012A-4+F267 AC HVAC drive combines precise motor control with an integrated vertical E-clipse bypass and circuit breaker. Designed for 380–480 VAC electrical systems at 50/60 Hz, it delivers 7.5 HP of output power for a 12 A constant current rating. Built on a compact R1 frame size, this drive is engineered for reliable commercial heating, ventilation, and air conditioning operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Drives |
| Part Number | ACH550-VCR-012A-4+F267 |
| Subcategory | Variable Frequency Drives |
| Product Series | ACH550 Series |
| Input Voltage | 380–480 VAC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Current | 12 A |
| Horsepower Rating | 7.5 HP |
| Enclosure Configuration | Vertical E-clipse Bypass with Circuit Breaker |
| Frame Size | Frame Size R1 |
| Replacement Status | Replaced by ACH580-VCR-012A-4+F267 |
| Weight | 22.68 kgs |
Information About ACH550-VCR-012A-4+F267
The ACH550-VCR-012A-4+F267 is a specialized model within the ABB ACH550 550 series of enclosed HVAC drives.It features a vertical bypass configuration equipped with a circuit breaker to ensure continuous mechanical operation and circuit protection during maintenance. The unit is optimized for building automation tasks and is officially noted as replaced by the ACH580-VCR-012A-4+F267 model. It utilizes robust internal processing architecture to maintain stable fan and pump regulation under varying commercial loads.
Key Features:
-
Control Architecture: Engineered specifically for HVAC applications to optimize energy efficiency and reduce motor noise.
-
Input Voltage Range: Operates on standard 380–480 VAC three-phase power supply networks at 50 or 60 Hz.
-
Power Capacity: Delivers 7.5 HP continuous output power for demanding commercial mechanical systems.
-
Current Rating: Handles a 12 A continuous current output suitable for standard HVAC blower and pump motors.
-
Integrated Bypass: Features a vertical E-clipse bypass configuration with a built-in circuit breaker for seamless failover.
-
Frame Design: Built within a compact R1 enclosure size designed for wall or panel installation.
-
System Transition: Recognized legacy model with a direct upgrade pathway to the ACH580-VCR-012A-4+F267 unit.
-
Enclosure Protection: Built with robust industrial housing to withstand standard mechanical equipment room conditions.
The ACH550-VCR-012A-4+F267 delivers the reliability and precision required for commercial HVAC motor control and automated building systems.
