ABB ACS143-1K6-3-U ACS140 Variable Frequency AC Motor Drive
- Regular price
- $842.00
- Sale price
- $842.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACS143-1K6-3-U
Description

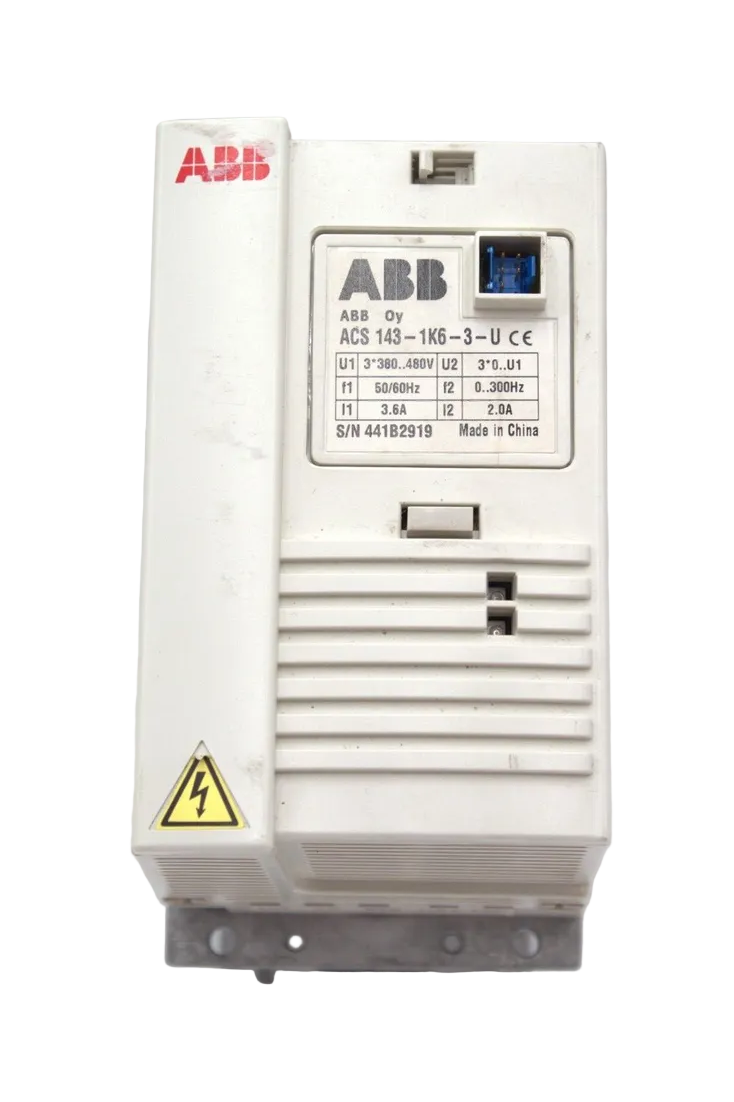

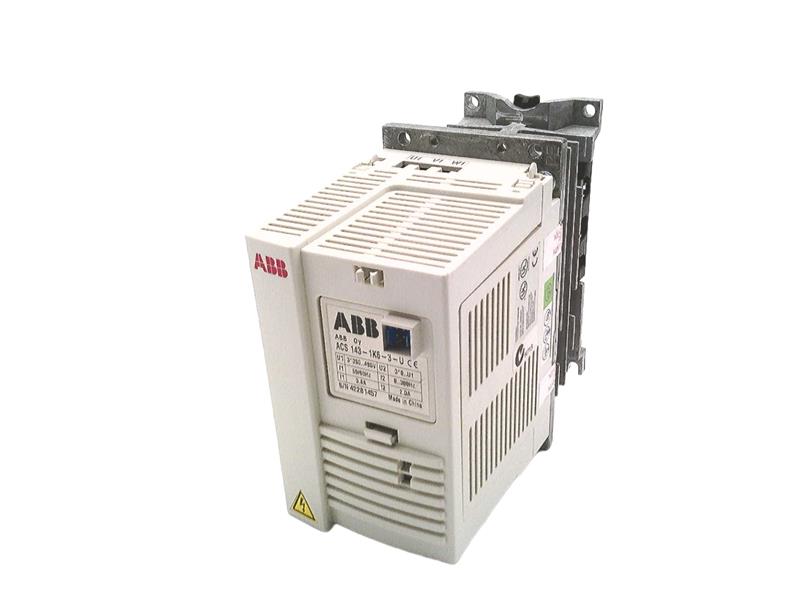

The ABB ACS143-1K6-3-U is an ACS140 series variable frequency drive for controlling three-phase AC motors rated at 0.75 kW or 1 hp. It accepts a 380–480 V AC three-phase supply and provides adjustable output frequency for motor speed control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Drives |
| Part Number | ACS143-1K6-3-U |
| Subcategory | Drive |
| Series | ACS140 |
| Drive Type | AC variable frequency drive |
| Frame Size | B |
| Nominal Motor Power | 0.75 kW / 1 hp |
| Input Phase | Three-phase |
| Nominal Input Voltage | 380–480 V AC |
| Input Voltage Tolerance | ±10% |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 3.6 A |
| Continuous Output Current | 2.0 A at 4 kHz switching frequency |
| Maximum Output Current | 3.0 A at 4 kHz, subject to overload limits |
| Output Voltage | 0 V to input supply voltage |
| Output Frequency Range | 0–300 Hz |
| Standard Switching Frequency | 4 kHz |
| Control Panel Type | Detachable |
| Weight | 1.22 kg |
Information About ACS143-1K6-3-U
The ACS143-1K6-3-U is a frame-size B frequency converter from ABB’s ACS140 product family. Its continuous output rating is 2.0 A at the standard 4 kHz switching frequency. Programmable acceleration and deceleration ramps allow motor speed changes to be configured for the connected equipment. A detachable control panel supports local parameter adjustment, while external control connections allow integration into machine control systems.
Key Features:
- Variable Frequency Control: Adjusts motor speed through a configurable output frequency range of 0–300 Hz.
- Three-Phase Input: Operates from a nominal 380–480 V AC supply at 50/60 Hz.
- Motor Power Rating: Supports a nominal motor rating of 0.75 kW or 1 hp.
- Continuous Output: Delivers 2.0 A at the standard 4 kHz switching frequency.
- Adjustable Ramps: Provides programmable acceleration and deceleration times for controlled speed transitions.
- Detachable Control Panel: Supports local setup and operating parameter access.
- External Control: Allows start, stop, and speed-reference commands through the drive’s control terminals.
- Frame B Construction: Uses the ACS140 frame-size B format for installation planning.
The ACS143-1K6-3-U delivers the reliability and precision required for adjustable-speed motor operation in industrial machinery and automation equipment.
Description
The ABB ACS143-1K6-3-U is an ACS140 series variable frequency drive for controlling three-phase AC motors rated at 0.75 kW or 1 hp. It accepts a 380–480 V AC three-phase supply and provides adjustable output frequency for motor speed control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Drives |
| Part Number | ACS143-1K6-3-U |
| Subcategory | Drive |
| Series | ACS140 |
| Drive Type | AC variable frequency drive |
| Frame Size | B |
| Nominal Motor Power | 0.75 kW / 1 hp |
| Input Phase | Three-phase |
| Nominal Input Voltage | 380–480 V AC |
| Input Voltage Tolerance | ±10% |
| Input Frequency | 50/60 Hz |
| Rated Input Current | 3.6 A |
| Continuous Output Current | 2.0 A at 4 kHz switching frequency |
| Maximum Output Current | 3.0 A at 4 kHz, subject to overload limits |
| Output Voltage | 0 V to input supply voltage |
| Output Frequency Range | 0–300 Hz |
| Standard Switching Frequency | 4 kHz |
| Control Panel Type | Detachable |
| Weight | 1.22 kg |
Information About ACS143-1K6-3-U
The ACS143-1K6-3-U is a frame-size B frequency converter from ABB’s ACS140 product family. Its continuous output rating is 2.0 A at the standard 4 kHz switching frequency. Programmable acceleration and deceleration ramps allow motor speed changes to be configured for the connected equipment. A detachable control panel supports local parameter adjustment, while external control connections allow integration into machine control systems.
Key Features:
- Variable Frequency Control: Adjusts motor speed through a configurable output frequency range of 0–300 Hz.
- Three-Phase Input: Operates from a nominal 380–480 V AC supply at 50/60 Hz.
- Motor Power Rating: Supports a nominal motor rating of 0.75 kW or 1 hp.
- Continuous Output: Delivers 2.0 A at the standard 4 kHz switching frequency.
- Adjustable Ramps: Provides programmable acceleration and deceleration times for controlled speed transitions.
- Detachable Control Panel: Supports local setup and operating parameter access.
- External Control: Allows start, stop, and speed-reference commands through the drive’s control terminals.
- Frame B Construction: Uses the ACS140 frame-size B format for installation planning.
The ACS143-1K6-3-U delivers the reliability and precision required for adjustable-speed motor operation in industrial machinery and automation equipment.
