ABB ACS150-01U-02A4-2 Micro Variable Frequency Drive with Integrated Controls
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACS150-01U-02A4-2
Description
The ABB ACS150-01U-02A4-2 is a compact variable frequency drive that operates a three-phase motor from a 200–240 VAC single-phase supply. Rated at 0.37 kW / 0.5 HP with a 2.4 A output, it provides adjustable motor speed for equipment such as conveyors, mixers, fans, and pumps. Its integrated controls support local setup and operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Motor Drives |
| Part Number | ACS150-01U-02A4-2 |
| Subcategory | Variable Frequency Drives |
| Series | ACS150 |
| Frame Size | R0 |
| Input Voltage Range | 200–240 VAC |
| Input Phase | Single-phase |
| Nominal Input Frequency | 50/60 Hz |
| Rated Input Current | 6.1 A without an external input choke |
| Rated Motor Power | 0.37 kW / 0.5 HP |
| Rated Output Current | 2.4 A |
| Output Phase | Three-phase |
| Output Voltage | Adjustable from 0 V up to the input supply voltage |
| Output Frequency Range | 0–500 Hz |
| Protection Rating | IP20 / UL open |

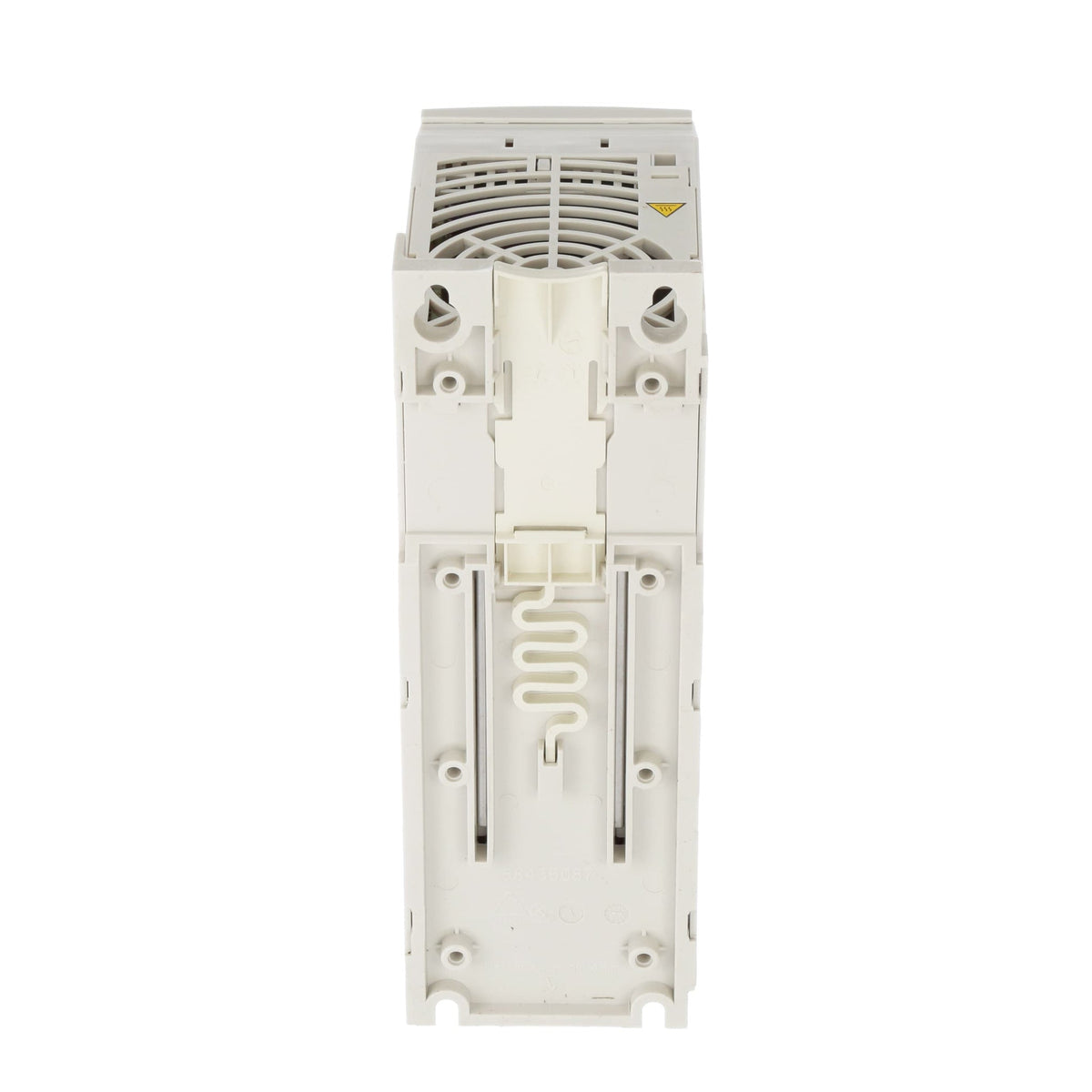

| Mounting Options | Screw mounting or DIN rail |
| Operator Interface | Integrated LCD control panel and speed potentiometer |
| Weight | 1.1 kg (2.4 lb) |
Information About ACS150-01U-02A4-2

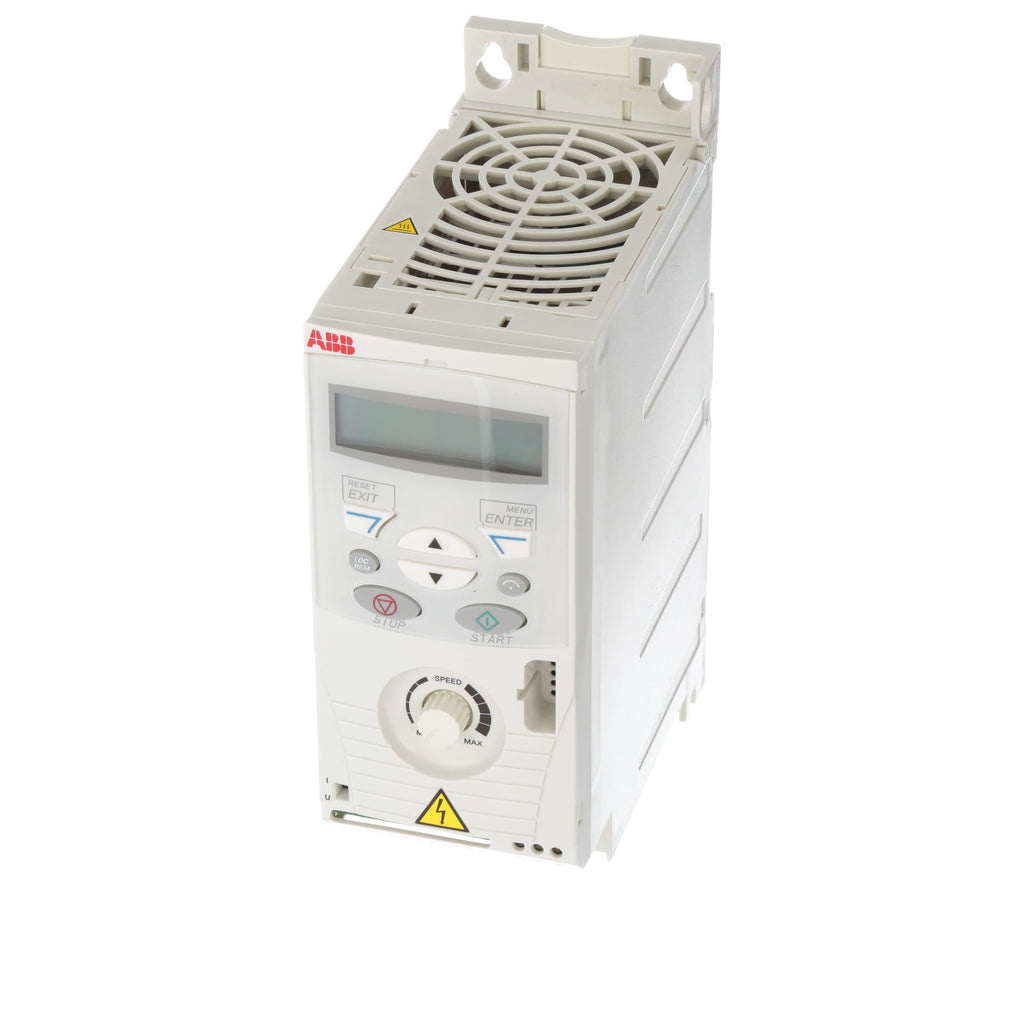

The ACS150-01U-02A4-2 is part of ABB’s ACS150 micro-drive range and uses the compact R0 frame. A fixed control panel with an LCD provides access to parameters and operating information. The built-in potentiometer allows local speed-reference adjustment, while application macros provide predefined control configurations. The drive also incorporates a brake chopper for applications using a suitably selected external braking resistor.
Key Features:
- Single-Phase Supply: Accepts 200–240 VAC input for installations without a three-phase supply connection.
- Three-Phase Motor Output: Supplies variable-voltage, variable-frequency power to a compatible three-phase motor.
- Motor Power Rating: Supports a nominal motor rating of 0.37 kW / 0.5 HP.
- Rated Output Current: Provides 2.4 A continuous nominal output.
- Adjustable Frequency: Offers an output frequency range of 0–500 Hz, subject to motor and application limits.
- Integrated Control Panel: Provides an LCD and keypad for configuration and operating checks.
- Local Speed Adjustment: Includes a built-in potentiometer for setting the speed reference.
- Built-In Brake Chopper: Supports resistor braking with a compatible external braking resistor.
The ACS150-01U-02A4-2 delivers the reliability and precision required for variable-speed operation of small motors in automated machinery and auxiliary equipment.
