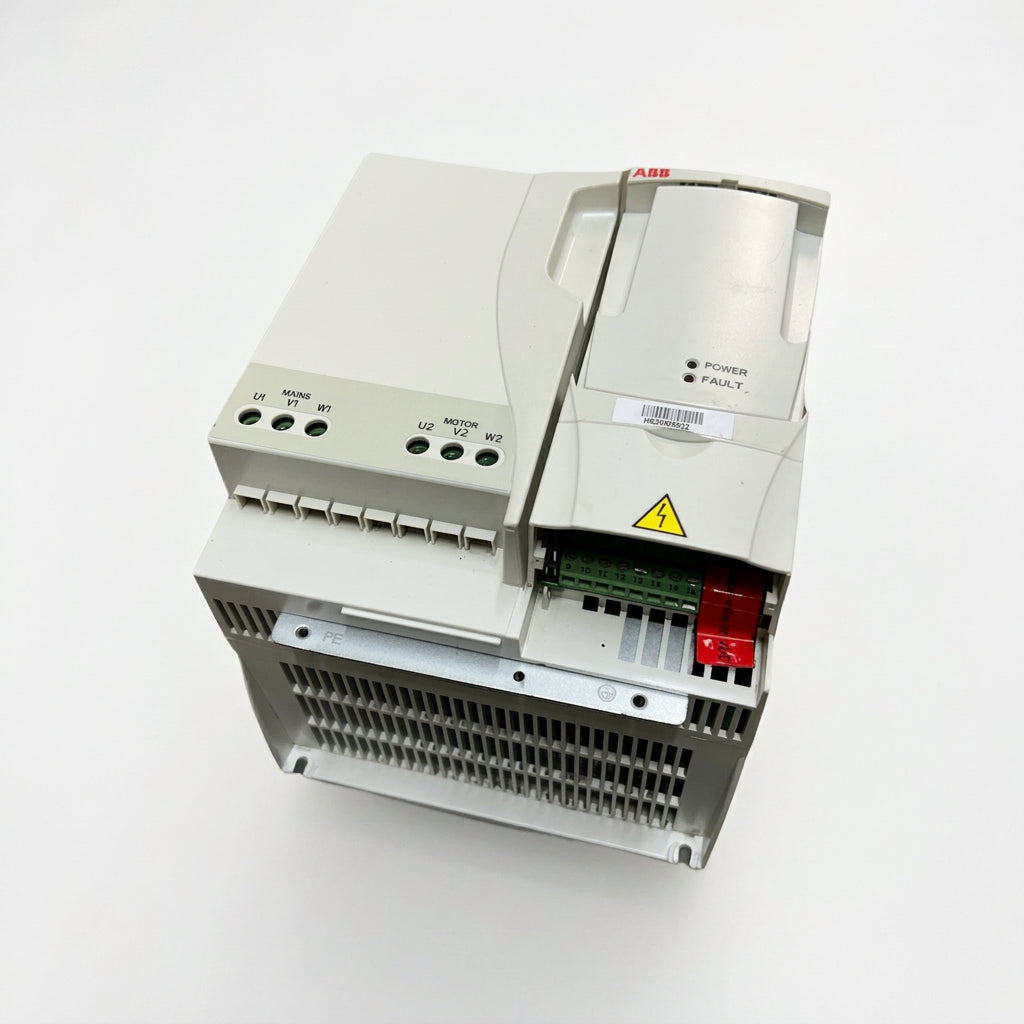

ABB ACS320-03U-12A5-4 HVAC Pump and Fan Variable Frequency Drive
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACS320-03U-12A5-4
Description
The ABB ACS320-03U-12A5-4 is a variable frequency drive designed to regulate motor speed in HVAC pump and fan systems. Rated for 5.5 kW / 7.5 HP applications, it operates from a three-phase 380–480 VAC supply and adjusts motor output to match ventilation or fluid circulation demand.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Motor Drives |
| Part Number | ACS320-03U-12A5-4 |
| Subcategory | HVAC Variable Frequency Drives |
| Series | ACS320 |
| Rated Motor Power | 5.5 kW / 7.5 HP |
| Input Voltage | 380–480 VAC, three-phase |
| Input Frequency | 48–63 Hz |
| Continuous Output Current | 12.5 A at 40°C; 11.4 A at 50°C |
| Output Voltage | Three-phase, 0 to supply voltage |
| Output Frequency | 0–500 Hz |
| Control Method | Scalar V/Hz; vector control is not supported |
| Protection Rating | IP20 / UL Open; optional NEMA 1 enclosure kit |
| Frame Size | R3 |
| Brake Chopper | Not included |
| EMC Filter | Internal filter supplied disconnected on U variants |
| Mounting | Screw mounting or DIN rail |
| Compatible Control Panels | ACS-CP-C basic panel; ACH-CP-B HVAC assistant panel |
| Dimensions (H × W × D) | 236 × 169 × 169 mm, including fastenings and clamping plate |
| Weight | 2.5 kg (5.5 lb) |
Information About ACS320-03U-12A5-4
The ACS320-03U-12A5-4 is an ACS320 series microdrive developed for HVAC equipment manufacturers and building services installations. Its R3 frame incorporates an IP20 enclosure for installation within a suitable control cabinet. Compatible operator interfaces include the optional ACS-CP-C basic panel and ACH-CP-B HVAC assistant panel. Embedded building automation protocols and dedicated pump and fan functions support integration into coordinated mechanical systems.
Key Features:
- Scalar Motor Control: Uses V/Hz regulation with selectable linear, squared, and user-defined voltage-to-frequency curves.
- Pump and Fan Coordination: Built-in control functions support applications operating multiple pumps or fans.
- Building Automation Connectivity: Embedded communication supports Modbus RTU, BACnet MS/TP, Johnson Controls N2, and Siemens FLN.
- Process Regulation: Two PID controllers support feedback-based adjustment of pressure, flow, or temperature.
- Energy Monitoring: Internal counters track energy consumption and calculate estimated savings.
- Pump Protection: Configurable monitoring can generate alarms or faults when abnormal operating conditions occur.
- Flexible Installation: Supports screw mounting or DIN rail installation within an appropriate enclosure.
- Optional Operator Panels: Supports basic parameter access or an HVAC assistant interface using compatible ABB panels.
The ACS320-03U-12A5-4 delivers the reliability and precision required for controlled HVAC pumping and ventilation.
