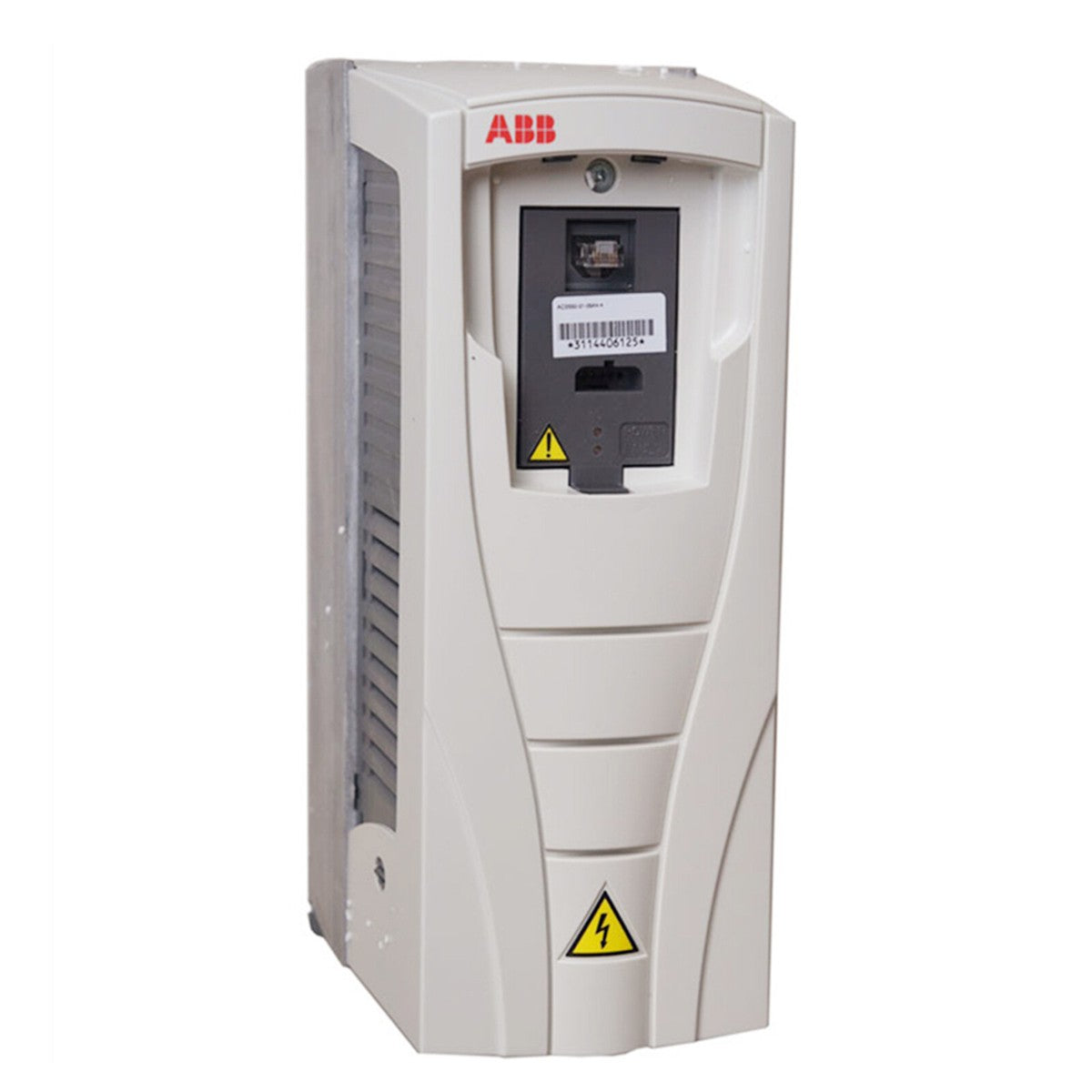

ABB ACS550-01-072A-4 General-Purpose Variable Frequency Drive
- Regular price
- $2,399.00
- Sale price
- $2,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACS550-01-072A-4
Description
The ABB ACS550-01-072A-4 is a variable frequency drive for controlling three-phase AC motors supplied from 380–480 VAC. It provides a normal-duty rating of 37 kW with 72 A output, or a heavy-duty rating of 30 kW with 59 A output. Applications include pumps, fans, conveyors, and machinery requiring adjustable motor speed.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Motor Drives |
| Part Number | ACS550-01-072A-4 |
| Subcategory | Variable Frequency Drives |
| Series | ACS550 |
| Nominal Input Voltage Range | 380–480 VAC |
| Input Phase | Three-phase |
| Nominal Supply Frequency | 50/60 Hz |
| Permitted Input Frequency Range | 48–63 Hz |
| Normal-Duty Motor Power | 37 kW / 50 HP |
| Normal-Duty Output Current | 72 A |
| Heavy-Duty Motor Power | 30 kW / 40 HP |
| Heavy-Duty Output Current | 59 A |
| Frame Size | R4 |
| Mounting Type | Wall mounting |
| Enclosure Protection | IP21 / UL Type 1 |
| Motor Control Technology | Vector control |
| Input Harmonic Reduction | Integrated swinging choke |
| Weight | 24 kg (53 lb) |
Information About ACS550-01-072A-4
The ACS550-01-072A-4 is part of ABB’s general-purpose ACS550 drive range and uses an R4 wall-mounted construction. Its vector-control capability supports motor regulation across different industrial load requirements. An integrated swinging choke reduces input-current harmonics, while built-in EMC filtering supports electromagnetic compatibility. Separate normal-duty and heavy-duty ratings allow selection according to the application’s continuous load and overload requirements.
Key Features:
- Normal-Duty Capacity: Provides 37 kW / 50 HP motor power with a rated output current of 72 A.
- Heavy-Duty Capacity: Provides 30 kW / 40 HP motor power with a rated output current of 59 A.
- Three-Phase Supply: Accepts nominal supply voltages from 380 to 480 VAC.
- Variable Speed Operation: Adjusts motor output to match the connected equipment’s operating requirements.
- Vector Control: Supports motor-control performance for general industrial applications.
- Integrated Choke: Uses ABB’s swinging-choke design to reduce supply-current harmonics.
- EMC Filtering: Incorporates filtering to support electromagnetic compatibility within the specified installation conditions.
- Wall-Mounted Enclosure: Combines an R4 frame with IP21 / UL Type 1 protection.
The ACS550-01-072A-4 delivers the reliability and precision required for adjustable motor operation in industrial machinery and fluid-handling systems.
