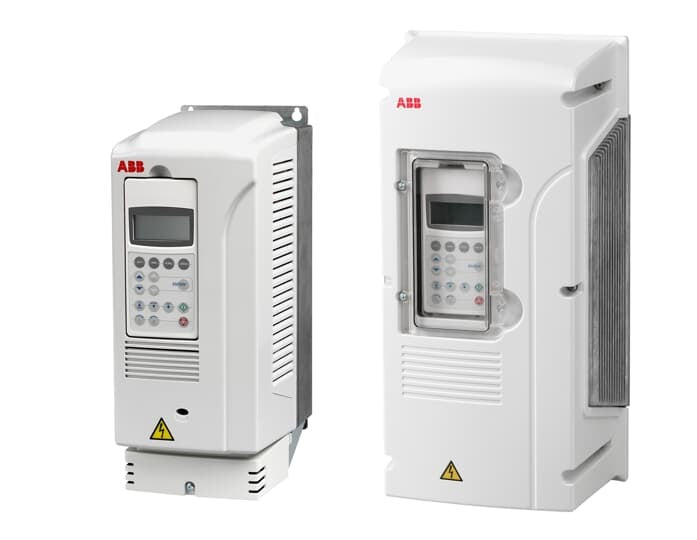

ABB ACS800-U1-0030-5+D150+P901 30 HP 480V Variable Frequency Drive
- Regular price
- $7,999.00
- Sale price
- $7,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACS800-U1-0030-5+D150+P901
Description
ABB ACS800-U1-0030-5+D150+P901 is a 30 HP ACS800 series variable frequency drive designed for three-phase motor control in industrial applications. This configuration is rated for 480 V-class operation and 42 A light-duty current, with an R4 frame and integrated D150 brake chopper option; P901 identifies an additional configuration option.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Automation |
| Part Number | ACS800-U1-0030-5+D150+P901 |
| Subcategory | Variable Frequency Drives |
| Product Series | ACS800-U1 |
| Drive Type | AC Adjustable Speed Drive / VFD |
| Input Voltage | 380–500 VAC |
| Nominal Voltage | 480 VAC |
| Input Phase | 3-Phase |
| Normal-Duty Power | 30 HP / approximately 22 kW |
| Normal-Duty Current | 42 A |
| Heavy-Duty Rating | 25 HP / 34 A |
| Frame Size | R4 |
| Enclosure | IP20 / NEMA 1 configuration |
| Brake Chopper | +D150 |
| Configuration Option | +P901 |
| Mounting | Wall Mount |
| Weight | Approx. 90 lb |
Information About ACS800-U1-0030-5+D150+P901
The ACS800-U1-0030-5+D150+P901 belongs to ABB's ACS800-U1 family of general-purpose adjustable speed drives. The base ACS800-U1-0030-5 model has a maximum continuous power rating of 30 kW and a nominal continuous current rating of 42 A, while ABB's documentation identifies the unit as an R4 frame drive. The +D150 option is the brake chopper configuration, allowing the drive to support dynamic braking applications when used with the appropriate braking equipment. The +P901 designation is an available configuration option within the ACS800 product family, and the complete suffix combination should be retained when identifying or replacing this specific drive.
Key Features:
- Variable Frequency Drive: Provides adjustable-speed control for three-phase AC motors in industrial applications.
- 30 HP Rating: Designed for 30 HP normal-duty motor applications at the specified operating conditions.
- 480 V-Class Operation: Designed for 380–500 VAC three-phase input applications, with 480 VAC commonly specified for this configuration.
- 42 A Current Rating: Provides a light-duty/normal-duty continuous current rating of approximately 42 A.
- R4 Frame: Uses ABB's R4 mechanical frame size for this 30 HP configuration.
- D150 Brake Chopper: Includes the +D150 brake chopper option for applications requiring dynamic braking capability.
- P901 Configuration: Includes the +P901 factory configuration option as part of the complete ABB ordering code.
- Wall-Mount Design: The ACS800-U1 configuration is designed for wall-mounted installation in industrial control environments.
The ACS800-U1-0030-5+D150+P901 delivers the reliability and precision required for industrial motor control, speed regulation, and applications requiring dynamic braking.
