ABB AF370-30-11-13 3-Pole 600A IEC Contactor 100-250V AC/DC
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AF370-30-11-13
Description

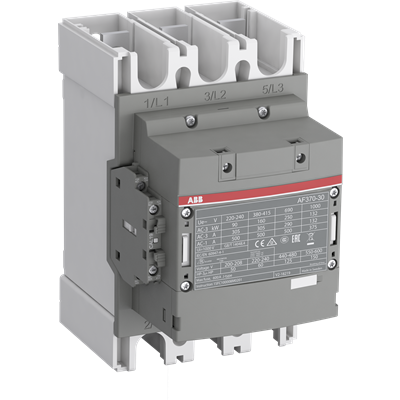

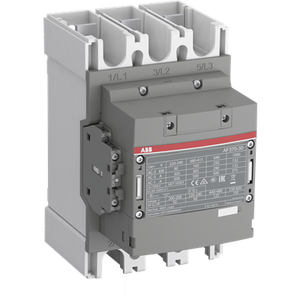

The ABB AF370-30-11-13 is a three-pole AF Series IEC contactor designed for switching and controlling three-phase motors and other industrial power circuits. It has a 100–250 V AC/DC control coil and supports main-circuit operation up to 1000 V, with a 600 A AC-1 rating under specified conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Electrical Controls |
| Part Number | AF370-30-11-13 |
| Subcategory | Contactors |
| Series | AF Series |
| Product Type | IEC Contactor |
| Number of Poles | 3 |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control Voltage | 100–250 V AC/DC |
| Rated Operational Voltage | Up to 1000 V AC |
| AC-1 Rated Current | Up to 600 A |
| AC-3 Rated Current | Up to 370 A at specified voltage/temperature conditions |
| AC-3 Motor Power | Up to 200 kW at 380/400 V |
| Mounting | Panel / Industrial Mounting |
| Terminal Type | Main Circuit: Bars |
| Dimensions | 140 × 225 × 180 mm |
| Weight | 10.23 lb |
Information About AF370-30-11-13
The AF370-30-11-13 belongs to ABB's AF Series of electronically controlled contactors for industrial motor and power-circuit applications. The contactor has three normally open main contacts and one normally open plus one normally closed auxiliary contact. Its electronic coil interface accepts a wide 100–250 V control-voltage range for both AC and DC operation. The design includes built-in surge suppression and is intended for applications such as motor starting, isolation, bypass, and power distribution.
Key Features:
- Three-Pole Configuration: Provides three main poles for controlling three-phase electrical loads.
- Wide Control Voltage: Accepts 100–250 V AC or DC control voltage.
- High Current Rating: Provides up to 600 A AC-1 under specified operating conditions.
- High Voltage Capability: Supports main-circuit operation up to 1000 V.
- Auxiliary Contacts: Includes one NO and one NC auxiliary contact for control and signaling functions.
- Electronic Coil Interface: Allows the same coil range to accommodate multiple AC and DC control voltages.
- Surge Suppression: Includes built-in suppression to reduce electrical transients during coil operation.
- Industrial Applications: Designed for motor starting, isolation, bypass, and power-distribution applications.
The AF370-30-11-13 delivers the reliability and precision required for industrial motor control, power switching, isolation, and three-phase electrical distribution applications.
