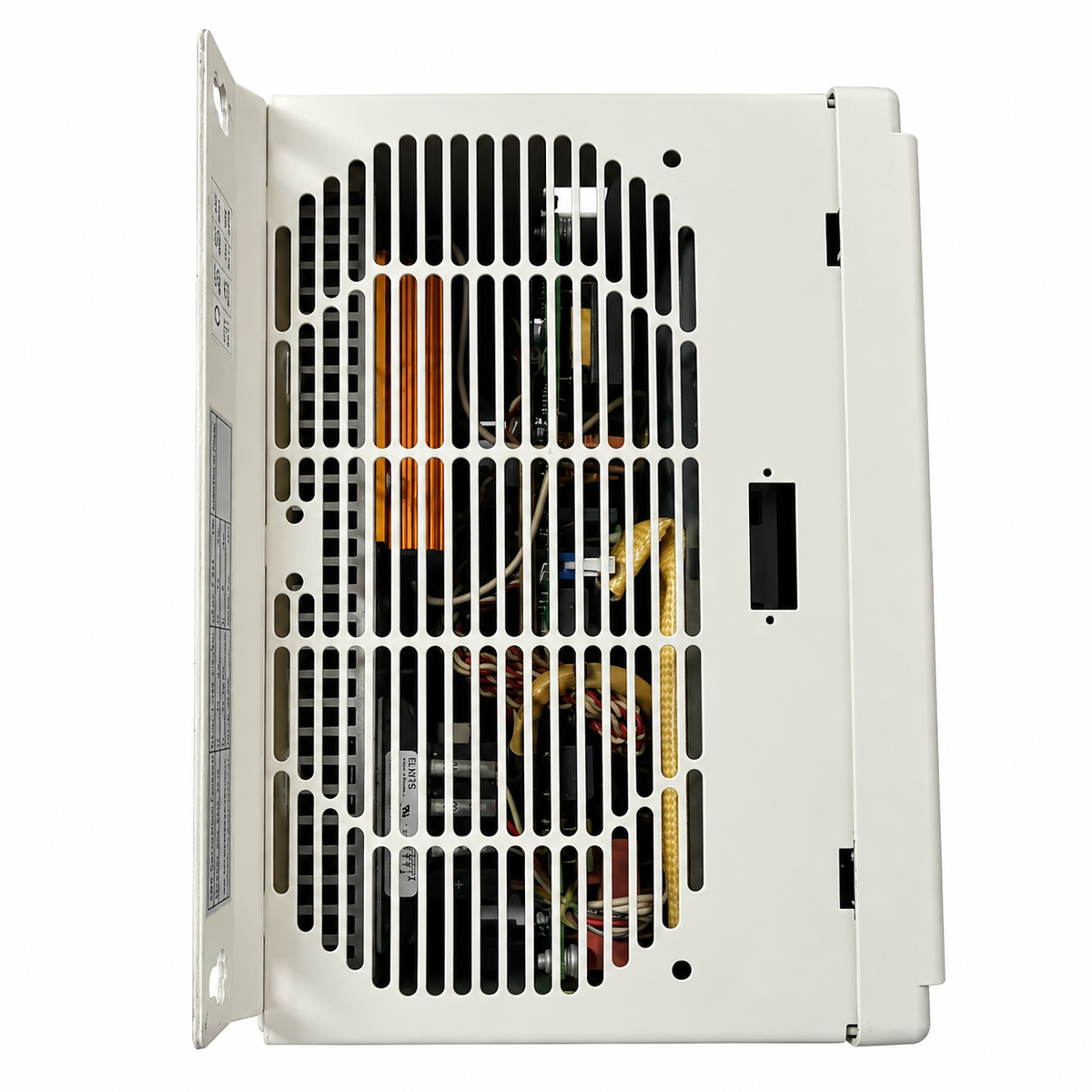

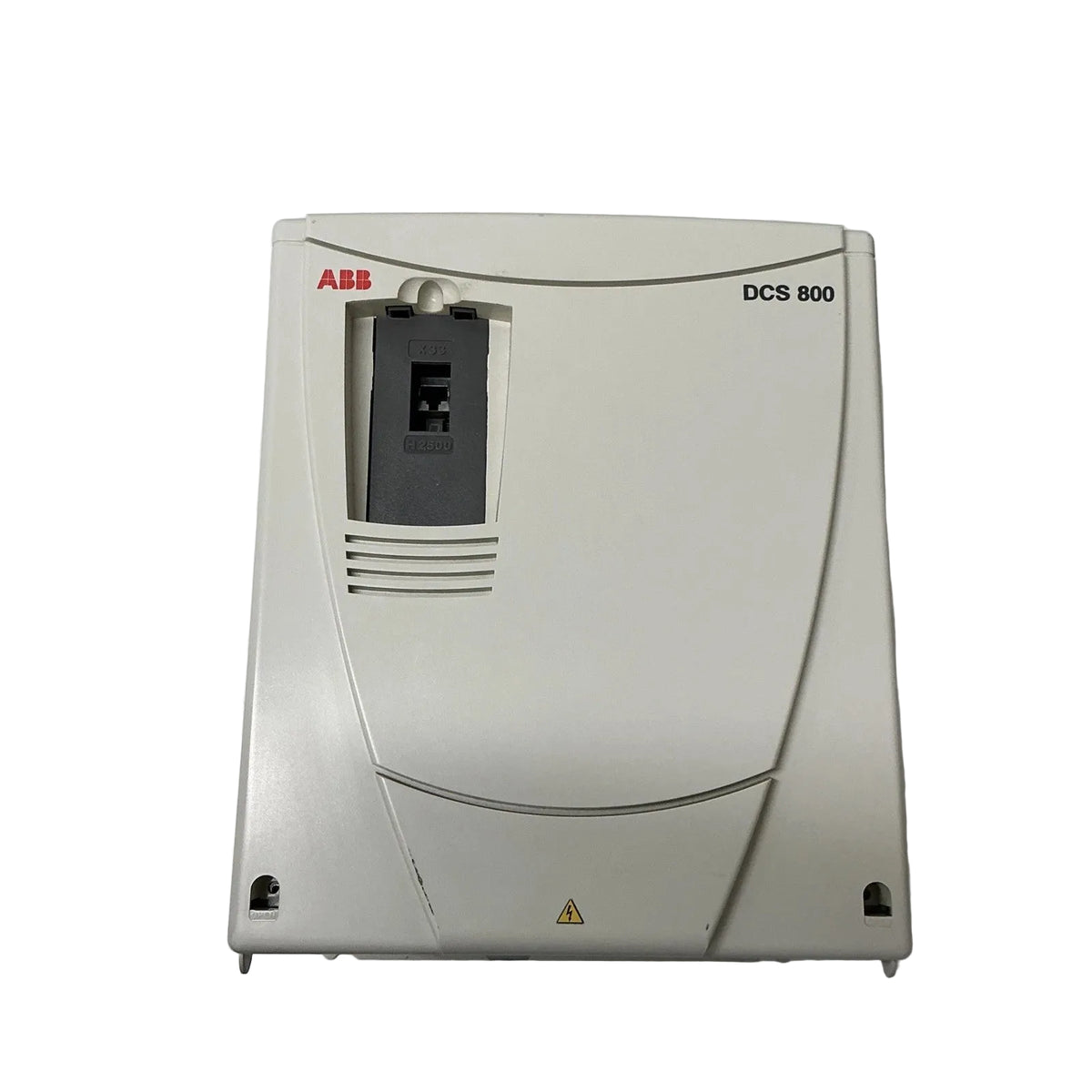

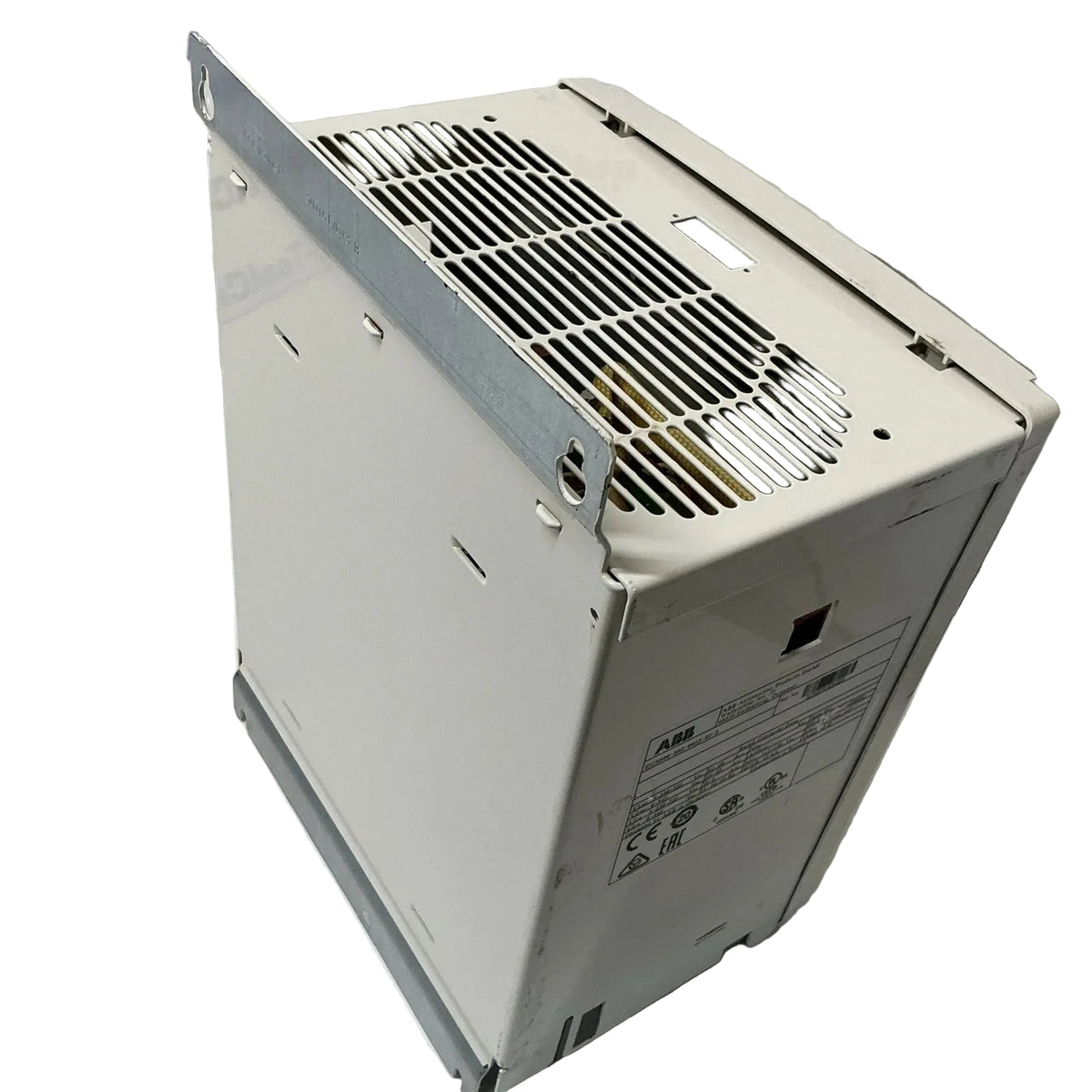

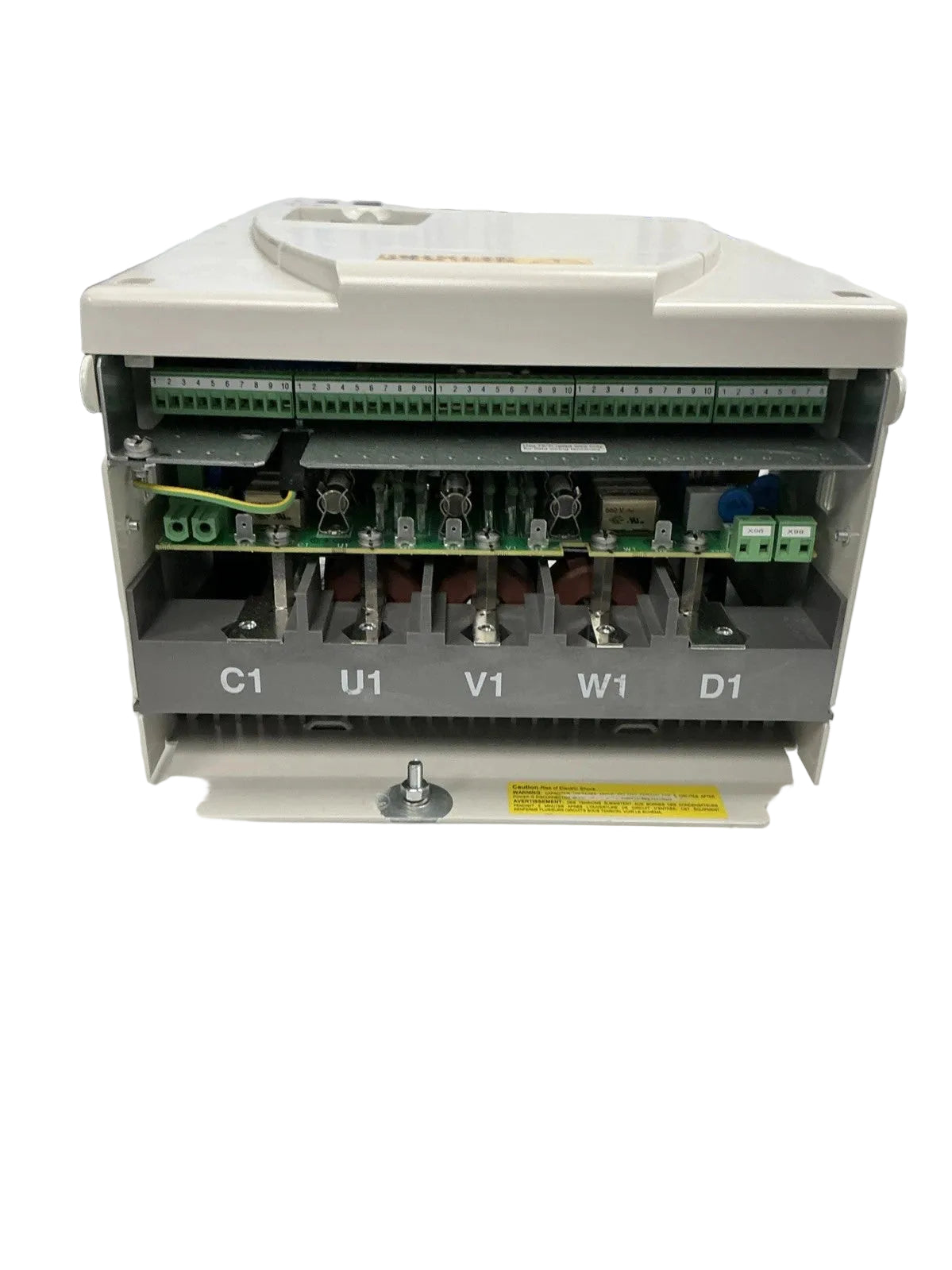

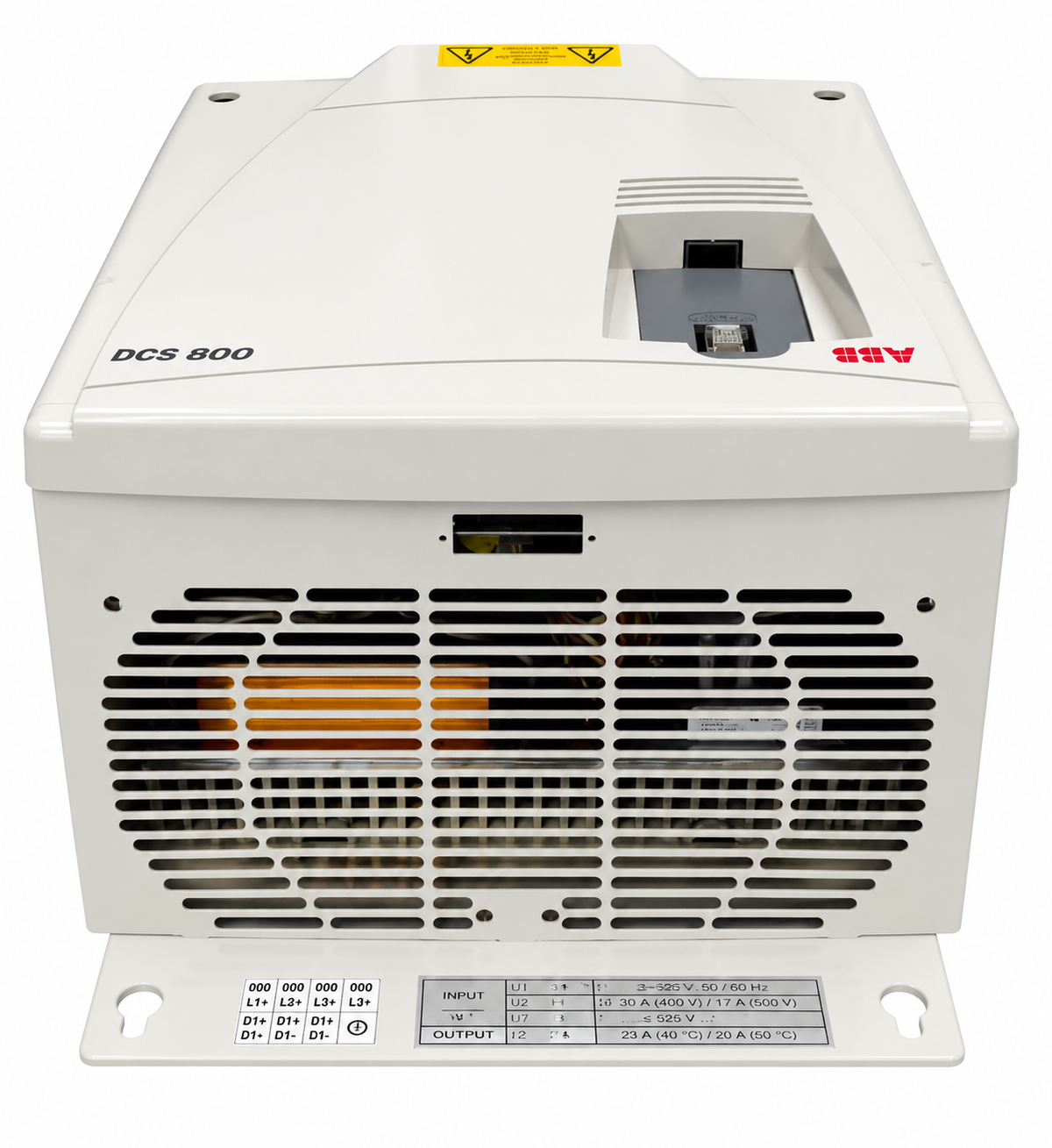

ABB DCS800-S02-0025-05-0 23A Regenerative DC Drive

ABB DCS800-S02-0025-05-0 23A Regenerative DC Drive

Part #: DCS800-S02-0025-05-0 Manufactured by: ABB

Regular price: $7,999.00
Sale price: $7,999.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The ABB DCS800-S02-0025-05-0 is a four-quadrant DC drive for industrial motor-control systems requiring speed regulation a... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: DCS800-S02-0025-05-0

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for ABB

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: DCS800-S02-0025-05-0

Description / Specifications

Description

The ABB DCS800-S02-0025-05-0 is a four-quadrant regenerative DC drive designed for precise control of industrial DC motors. It supports forward and reverse operation, with regenerative capability for compatible motor systems. This drive is suitable for industrial motor-control and replacement applications where the electrical ratings and configuration match the existing equipment.

Technical Specifications

Condition	New/Never Used Surplus
Brand	ABB
Category	Industrial Automation
Part Number	DCS800-S02-0025-05-0
Subcategory	DC Drives
Product Series	DCS800
Product Type	Regenerative DC Drive
Bridge Type	Four-quadrant (reversing)
Input Voltage	230–525 V AC, depending on configuration
Input Phases	3-phase
Input Current	20 A RMS
Rated DC Armature Current	23 A
Armature Voltage	240 V DC / 500 V DC, configuration dependent
Field Current	6 A
Enclosure Rating	IP00 / UL Open Type
Weight	10.14 kg

Information About DCS800-S02-0025-05-0

The DCS800-S02-0025-05-0 belongs to ABB’s DCS800 series of industrial DC drives. It uses a three-phase AC input and provides controlled DC armature power for compatible motors, with regenerative four-quadrant operation for applications requiring forward and reverse rotation. The drive supports armature voltages of approximately 240 V DC or 500 V DC, depending on the supply configuration. Verify the exact nameplate ratings and option codes before installation.

Key Features:

Four-Quadrant Operation: Supports forward and reverse motor operation with regenerative capability.
DC Motor Control: Provides adjustable-speed control for compatible industrial DC motors.
23 A DC Output Rating: Supports armature currents up to the specified rating.
Three-Phase AC Input: Designed for compatible industrial power supplies.
Replacement Support: Useful for maintaining existing DCS800 installations.
Legacy Drive Series: Discontinued product; verify availability and compatibility before ordering.

The DCS800-S02-0025-05-0 provides regenerative DC motor control for compatible industrial applications.
