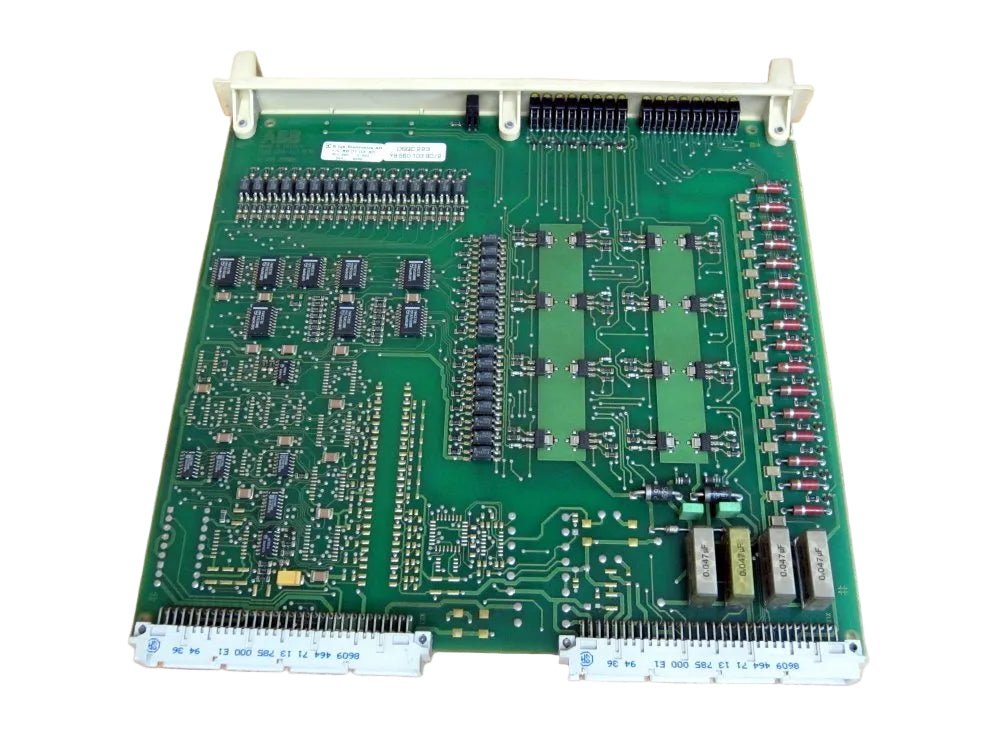

ABB DSQC-223 16-Input 16-Output Digital I/O Board for Robotics
- Regular price
- $6,499.00
- Sale price
- $6,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DSQC-223
Description
The ABB DSQC-223 is a digital I/O board used in ABB industrial robotic control systems, including the IRB-6400 and related S3/S4 robot platforms. It provides 16 opto-isolated digital inputs and 16 opto-isolated digital outputs, operating with a nominal 24 VDC supply. The board is designed to interface external sensors, switches, actuators, and other discrete field devices with the robot controller.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Automation |
| Part Number | DSQC-223 |
| Subcategory | Digital I/O Modules |
| Product Type | Digital I/O Board |
| System Application | ABB Robotics |
| Compatible Systems | ABB S3/S4 and IRB-6400 systems |
| Digital Inputs | 16 |
| Digital Outputs | 16 |
| Input Isolation | Opto-Isolated |
| Output Isolation | Opto-Isolated |
| Nominal Supply Voltage | 24 VDC |
| Input Voltage Range | 19–35 VDC |
| Maximum Output Current | 200 mA per output |
| Maximum Group Output Current | 1 A per group of 8 outputs |
| Output Protection | Short-Circuit Protected |
| Channel Indicators | Individual Yellow LEDs |
| Alternate Identification | YB560103-BD / YB560103-BD/4 |
| Weight | 0.88 lb |
Information About DSQC-223
The DSQC-223 is an ABB digital input/output board developed for ABB robot controller I/O systems. It contains 16 digital inputs and 16 digital outputs, with individual yellow LEDs providing visual indication of the status of each input and output channel. The inputs and outputs are opto-isolated, and the board normally operates from a 24 VDC supply that can be provided through customer connections or internally within the robot system. The DSQC-223 can be installed in available I/O slots of compatible ABB robot controllers and is identified in ABB documentation as a Digital I/O Board.
Key Features:
- 16 Digital Inputs: Provides sixteen discrete input channels for receiving signals from sensors, switches, and other external devices.
- 16 Digital Outputs: Provides sixteen discrete output channels for controlling compatible external devices and actuators.
- 24 VDC Operation: Designed for digital I/O circuits using a nominal 24 VDC supply.
- Opto-Isolated Inputs and Outputs: Provides electrical isolation between the I/O circuits and associated control electronics.
- Individual Status LEDs: Each input and output channel has a dedicated yellow LED for convenient visual monitoring of signal activity.
- Short-Circuit Protection: The digital outputs incorporate protection against short-circuit conditions.
- ABB Robot Compatibility: Designed for use in compatible ABB robotic control systems, including IRB-6400 configurations.
- Flexible I/O Slot Installation: The board can be installed in available I/O slots within supported ABB robot controller configurations.
The DSQC-223 delivers the digital signal interfacing required for ABB robotic control, machine I/O, sensor monitoring, and actuator control applications.
