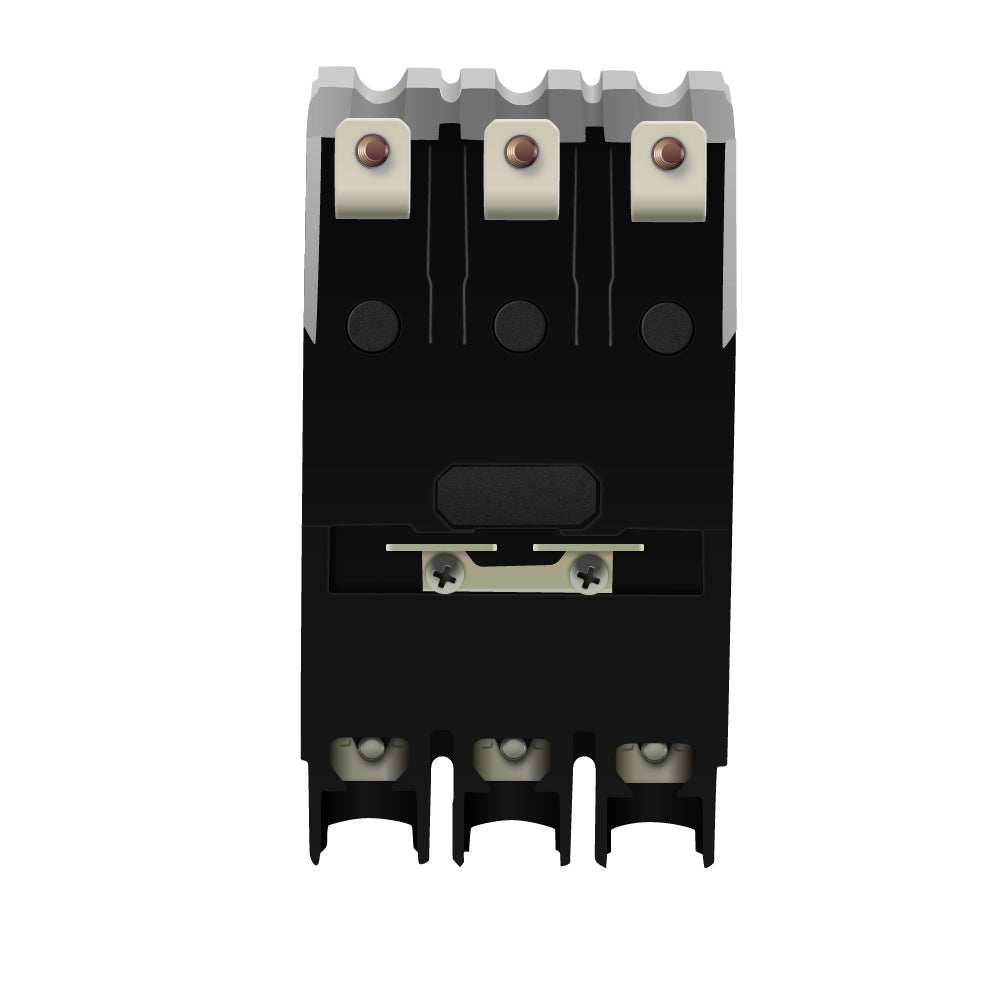

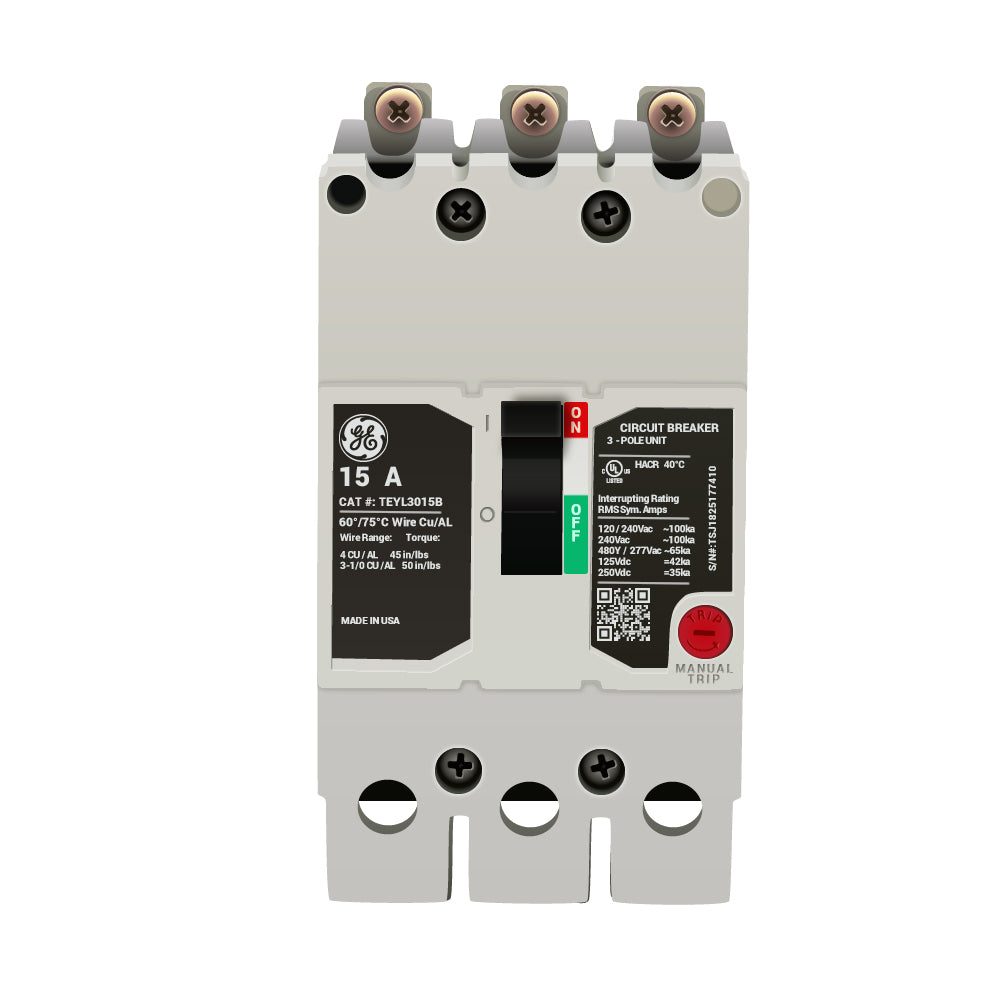

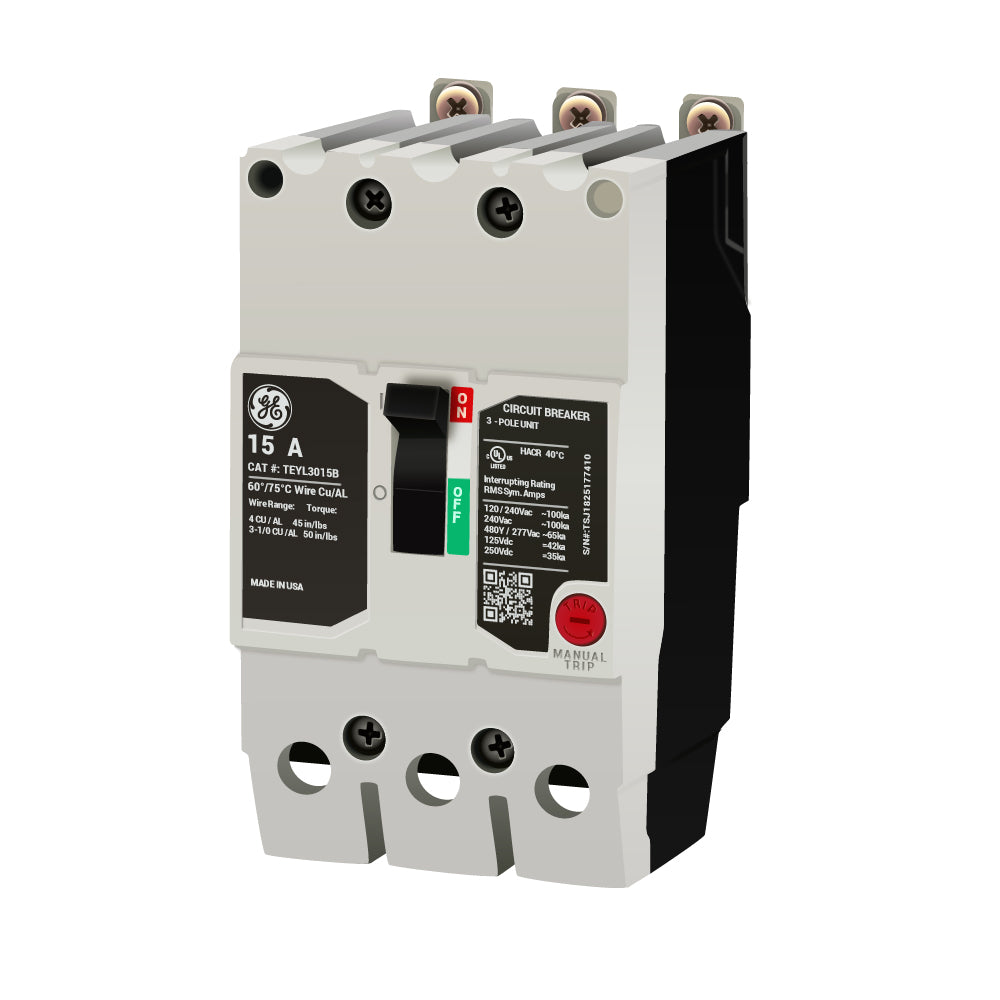

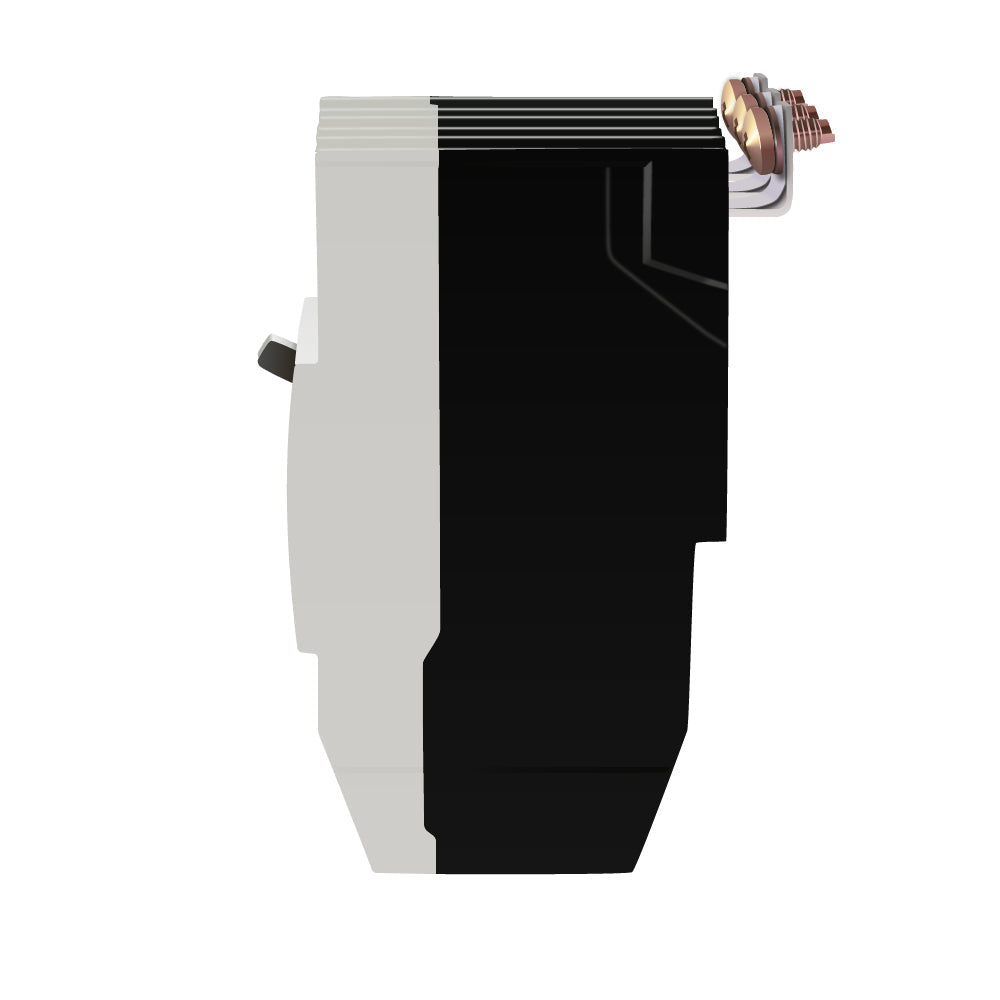

ABB GE TEYL3015B TEYL 3-Pole 15A Molded Case Circuit Breaker
Part #:
TEYL3015B
Manufactured by:
ABB
- Regular price
- $609.00
- Sale price
- $609.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ABB / General Electric TEYL3015B is a 15 A, 3-pole TEYL Series molded case circuit breaker with fixed thermal-magnetic...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: TEYL3015B
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: TEYL3015B
Description / Specifications
Description
ABB / General Electric TEYL3015B is a 15 A, 3-pole molded case circuit breaker designed for GE A-Series panelboards and commercial power distribution systems. It features thermal-magnetic protection with fixed long-time and instantaneous trip functions, a bolt-on mounting configuration, and load lug terminals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB / General Electric |
| Category | Circuit Protection |
| Part Number | TEYL3015B |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Lighting Panel Circuit Breaker |
| Series | TEYL |
| Product Line | TEY / Q-Line (Bolt-On) |
| Amperage | 15 A |
| Number of Poles | 3 |
| Phase | 3-Phase |
| AC Voltage Rating | 120/240 VAC, 240 VAC, 480Y/277 VAC |
| DC Voltage Rating | 125/250 VDC |
| Trip Technology | Thermal Magnetic |
| Trip Function | LI – Long-Time & Instantaneous |
| Long-Time Trip | Fixed |
| Instantaneous Trip | Fixed |
| Mounting Style | Bolt-On |
| Terminal Type | Load Lugs |
| Wire Range | #14–#10 AWG Cu/Al |
| 120/240 VAC Interrupt Rating | 100 kAIC |
| 240 VAC Interrupt Rating | 100 kAIC |
| 480Y/277 VAC Interrupt Rating | 65 kAIC |
| 125 VDC Interrupt Rating | 42 kAIC |
| 250 VDC Interrupt Rating | 35 kAIC |
| Compatible Equipment | GE A-Series Panelboards |
| Reverse Feed | Suitable |
| Standards | UL 489, CSA C22.2 No. 5 |
| UL File | E11592 |
| Country of Origin | United States |
| Weight | 1 lbs |
Information About TEYL3015B
Key Features:
- 15 Amp Rating: Provides a 15 A continuous current rating for compatible branch circuits.
- 3-Pole Configuration: Designed for three-pole electrical distribution applications.
- Thermal-Magnetic Protection: Combines thermal and magnetic trip mechanisms for circuit protection.
- LI Trip Function: Provides fixed long-time and instantaneous protection functions.
- Bolt-On Mounting: Designed for secure installation in compatible GE A-Series panelboards.
- High Interrupting Capacity: Rated up to 100 kAIC at 120/240 VAC and 240 VAC.
- AC and DC Compatibility: Supports multiple AC system voltages as well as 125/250 VDC applications.
- Load Lug Terminals: Accepts #14–#10 AWG copper/aluminum conductors.
The TEYL3015B delivers the circuit protection and switching functionality required for compatible commercial and industrial power distribution systems.
