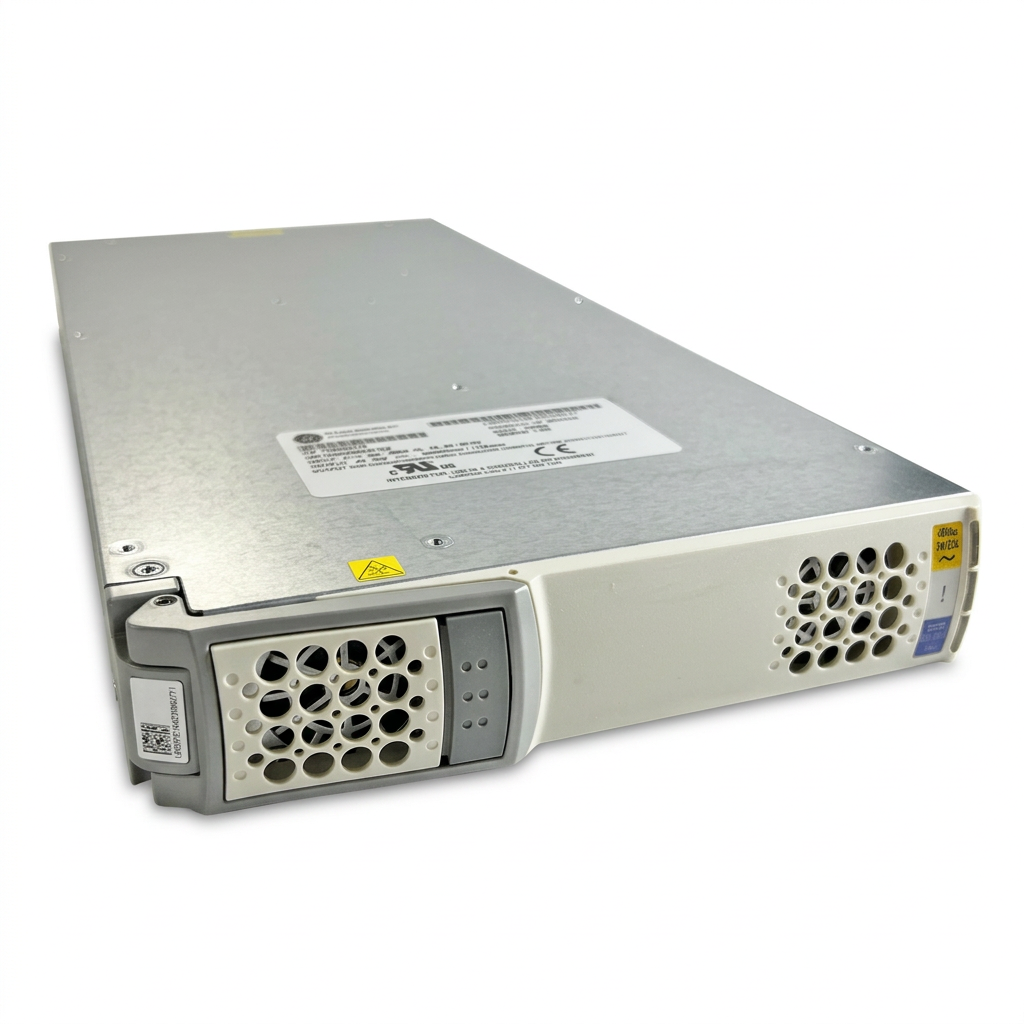

ABB GP100H3M54TEZ Front-End AC/DC Rectifier Power Supply
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GP100H3M54TEZ
Description
The ABB GP100H3M54TEZ is a front-end AC/DC rectifier that converts three-phase 320–530 VAC input into a nominal 54 VDC output. It supplies up to 6000 W and 111 A at 54 VDC for distributed power systems in telecommunications, networking, and industrial equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Power Supplies |
| Part Number | GP100H3M54TEZ |
| Subcategory | AC/DC Rectifiers |
| Series | GP100 Global Platform |
| Alternate Part Number | 150039274 |
| Converter Type | Front-end AC/DC rectifier |
| Input Voltage | 320–530 VAC, three-phase |
| Input Frequency | 47–63 Hz |
| Rated Output Power | 6000 W at 0–45°C ambient |
| Nominal Main Output Voltage | 54 VDC |
| Main Output Adjustment Range | 42–58 VDC |
| Output Current | Up to 111 A at 54 VDC and 45°C ambient |
| Output Configuration | One main output plus a 5 VDC, 2 A auxiliary output |
| Mounting | Compatible rack power shelf; 1RU format |
| Communication | Dual redundant PMBus-compatible I2C interfaces |
| Dimensions (H × W × D) | Approximately 1.61 × 7.97 × 17.53 in |
| Weight | 4.3 kg (9.5 lb) |
Information About GP100H3M54TEZ
The GP100H3M54TEZ is part of the GP100 Global Platform rectifier series, currently documented by OmniOn Power. Its compact 1RU construction uses front-to-back airflow for installation in compatible power shelves. Hot-plug capability and parallel load sharing support modular system configurations. Dual redundant PMBus-compatible I2C interfaces provide digital monitoring and control.
Key Features:
- Three-Phase Input: Operates from a 320–530 VAC supply.
- Main DC Output: Provides a factory-set output of 54 VDC.
- Power Capacity: Delivers up to 6000 W within the specified operating limits.
- Adjustable Voltage: Supports a programmable main output range of 42–58 VDC.
- Hot-Plug Capability: Allows insertion and removal in a compatible system.
- Parallel Operation: Supports active load sharing between multiple rectifiers.
- Digital Interface: Uses PMBus-compatible I2C communication for monitoring and control.
- Auxiliary Supply: Includes a separate 5 VDC output rated up to 2 A.
The GP100H3M54TEZ delivers the reliability and precision required for modular DC power conversion in distributed power equipment.
