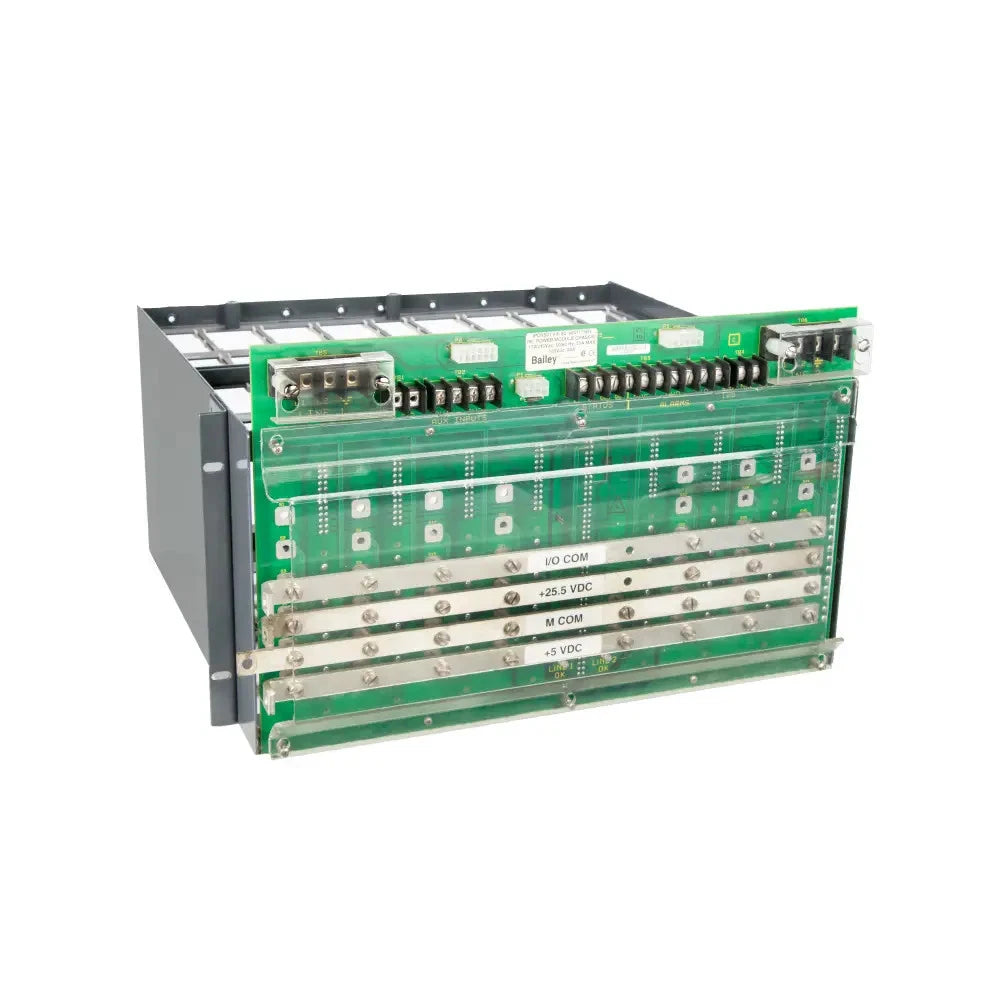

ABB IPCHS01 INFI 90 Power Module Chassis Board
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IPCHS01
Description
The ABB IPCHS01 is an INFI 90 power module chassis assembly that provides connections for power input, distribution, and monitoring within the Modular Power System II. The chassis board serves as the electrical interconnection platform for compatible power modules and the power monitor.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Power Supplies |
| Part Number | IPCHS01 |
| Subcategory | Power Module Chassis Boards |
| System Family | INFI 90 / Harmony |
| Power Platform | Modular Power System II / MPS II |
| Assembly Function | Power input, output distribution, and monitoring connections |
| Supported System Inputs | 120/240 VAC or 125 VDC, with appropriate power entry equipment |
| Complete Chassis Capacity | Up to 8 power modules and 1 power monitor |
| Weight | 4.99 lb (2.26 kg) |
Information About IPCHS01
The IPCHS01 is part of ABB Bailey’s MPS II power architecture for rack-based control equipment. The complete chassis accommodates eight power modules and one centrally positioned IPMON01 monitor. Its backplane distributes module outputs through common buses and terminal connections. Supported input configurations use 120/240 VAC or 125 VDC through the appropriate power entry equipment.
Key Features:
- Power Interconnection: Provides input and output connections within the IPCHS01 power chassis.
- Modular Architecture: Supports the MPS II arrangement of replaceable power modules.
- Monitor Interface: Provides connections associated with the IPMON01 power monitor.
- Output Distribution: Routes power module outputs through shared buses.
- Status Terminations: Includes connection points for power system status inputs and outputs.
- Rack System Compatibility: Supports the Harmony rack I/O power arrangement.
The IPCHS01 delivers the reliability and precision required for organized power distribution within compatible INFI 90 control cabinets.
