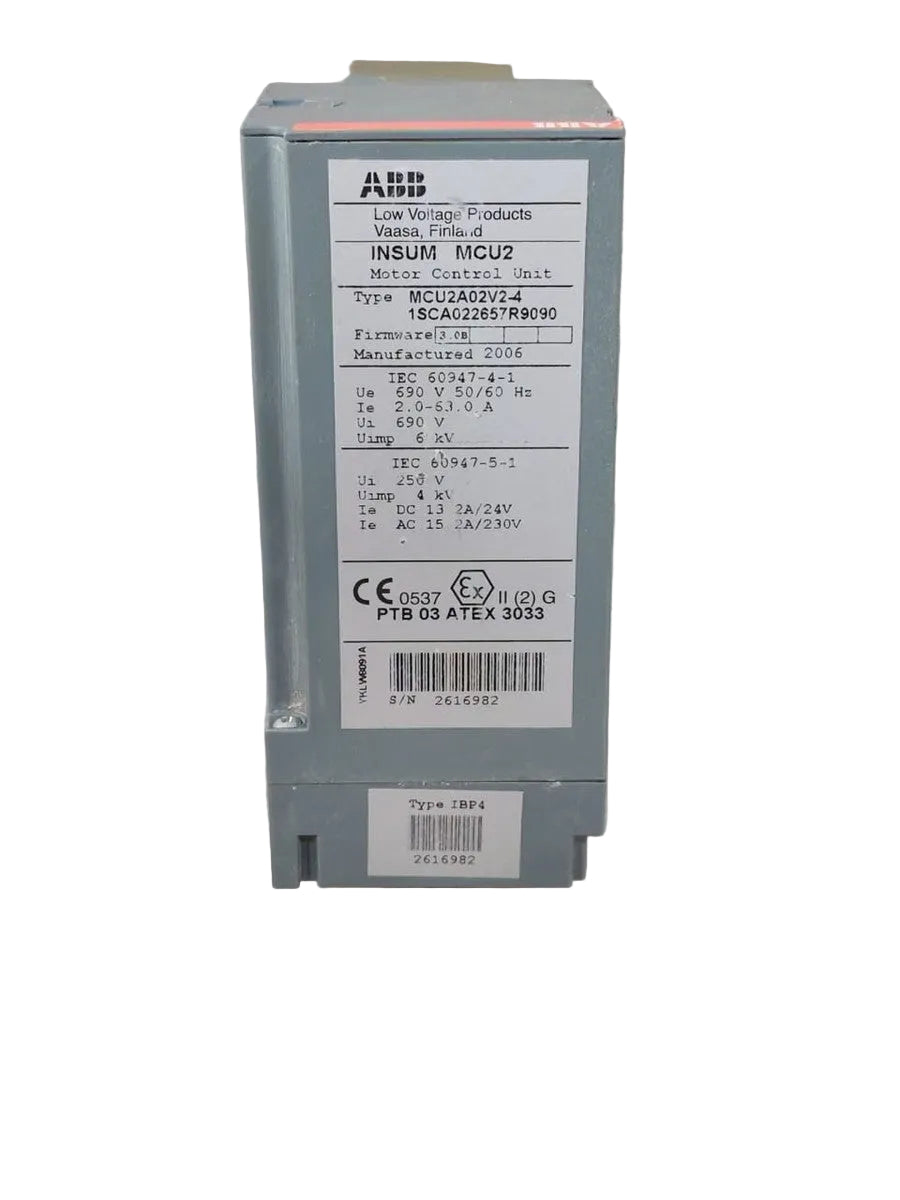

ABB MCU2A02V2-4 INSUM 2 Intelligent Motor Control Unit with Voltage Monitoring
- Regular price
- $1,802.00
- Sale price
- $1,802.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MCU2A02V2-4
Description
The ABB MCU2A02V2-4 is an INSUM 2 intelligent motor control unit designed for protection, measurement, control, and supervision of low-voltage motor feeders. Identified by ABB order number 1SCA022657R9090, it provides a 2 to 63 ampere current measurement range, three-phase voltage monitoring from 380 to 690 volts alternating current, and integration with the INSUM motor management architecture.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Controls & Indicators |
| Part Number | MCU2A02V2-4 |
| Subcategory | Motor Control Unit |
| Alternate Part Number | 1SCA022657R9090 |
| Product Family | INSUM 2 |
| Controller Type | Intelligent Motor Control Unit |
| Hardware Version | Hardware -4 |
| Current Measurement Range | 2 to 63 amperes |
| Voltage Measurement Range | 380 to 690 volts alternating current |
| Auxiliary Power Supply | 24 volts direct current |
| Voltage Monitoring | Three-phase voltage measurement |
| Construction | Baseplate, Main Unit, Current Measurement Unit, and Voltage Unit |
| Enclosure Material | Polycarbonate with 10 percent glass fiber |
| Flammability Rating | UL 94 V-0 |
| Enclosure Color | RAL 7012 |
| Weight | 1.50 lbs |
Information About MCU2A02V2-4
The MCU2A02V2-4 is an ABB INSUM 2 motor control unit built around the MCU2 hardware platform for intelligent motor management in low-voltage switchgear. Its modular construction consists of a baseplate, main electronic unit, current measurement unit, and voltage measurement unit, with the enclosure manufactured from glass-fiber-reinforced polycarbonate. The A02 current measurement configuration covers primary currents from 2 to 63 amperes, while the V2 voltage unit measures three-phase voltages from 380 to 690 volts alternating current. The unit operates from a 24-volt direct-current auxiliary supply and combines motor protection, control, electrical measurement, status monitoring, and system communication functions within compatible INSUM installations.
Key Features:
- Intelligent Motor Management: Combines motor protection, control, measurement, supervision, and communication functions in an INSUM 2 motor feeder.
- 2 to 63 Ampere Measurement Range: The A02 current measurement unit incorporates current transformers covering primary motor currents from 2 to 63 amperes.
- Three-Phase Voltage Monitoring: The V2 voltage unit measures three-phase supply voltage over a range of 380 to 690 volts alternating current.
- 24-Volt Auxiliary Supply: Operates from a 24-volt direct-current auxiliary power source as specified for this MCU2 configuration.
- Modular Construction: Uses separate baseplate, main unit, current measurement unit, and voltage unit assemblies to perform its control and measurement functions.
- Integrated Voltage Unit: The voltage module contains three-phase voltage measurement transformers and connects to the MCU baseplate through a flat cable.
- Industrial Enclosure: The housing is made from polycarbonate reinforced with 10 percent glass fiber, is halogen-free, and carries a UL 94 V-0 flammability classification.
- Legacy System Compatibility: ABB documentation identifies 1SCA022657R9090 MCU2A02V2-4 as the voltage-monitoring replacement for the earlier 1SCA022657R8950 MCU2A02C0-4.
The MCU2A02V2-4 delivers the reliability and precision required for intelligent motor protection, electrical measurement, and feeder control in ABB INSUM low-voltage motor management systems.
