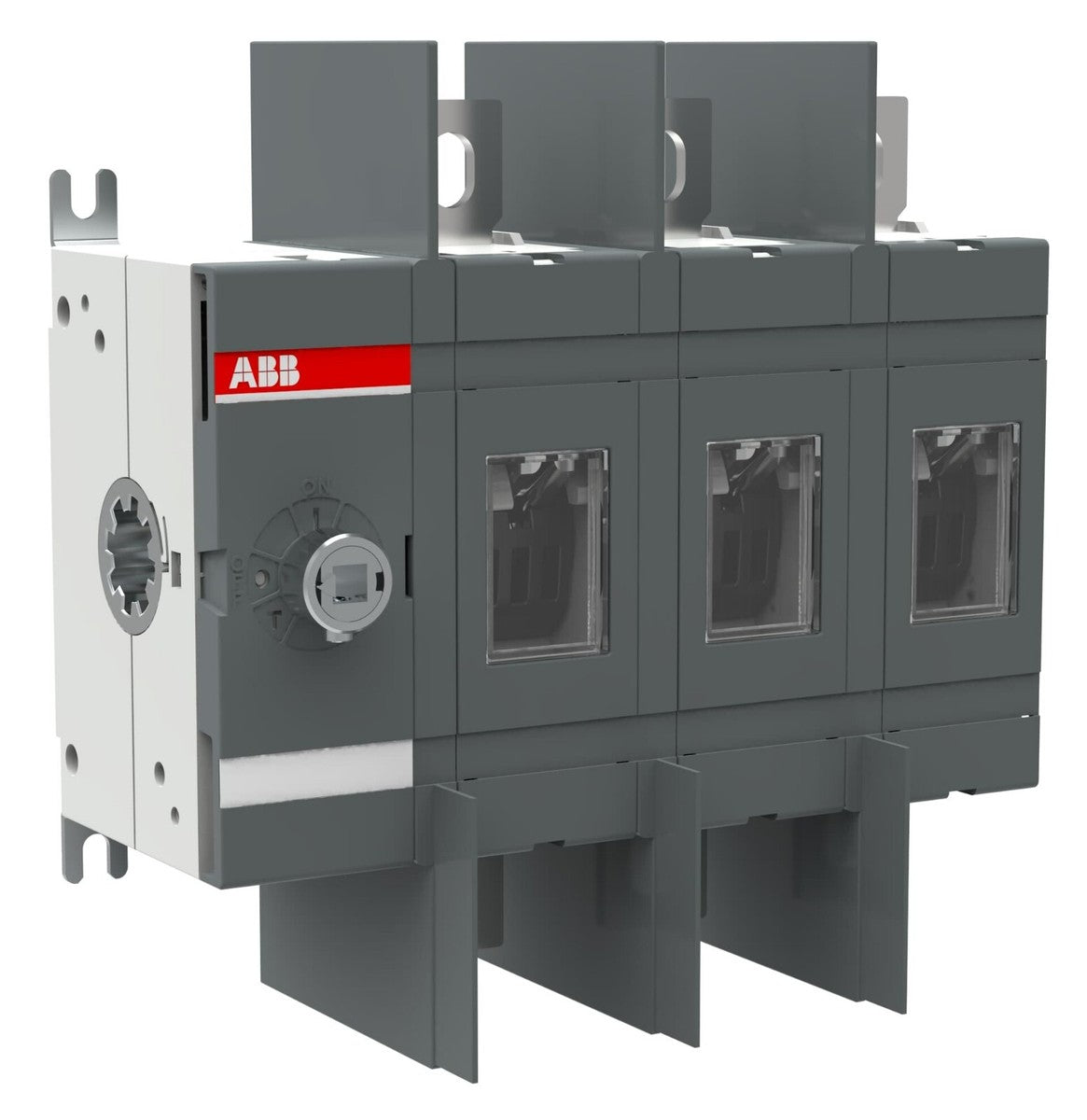

ABB OT200U03 Three-Pole Non-Fusible Switch-Disconnector
- Regular price
- $647.00
- Sale price
- $647.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: OT200U03
Description
The ABB OT200U03 is a three-pole, non-fusible switch-disconnector rated at 200 A and up to 600 VAC under UL/CSA requirements. It provides manual load switching and electrical isolation for machinery, motor circuits, and power-distribution equipment. Its base-mounted construction supports installation within a suitable electrical enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Power Switching |
| Part Number | OT200U03 |
| Subcategory | Non-Fusible Switch-Disconnectors |
| Series | OT |
| Number of Poles | 3 |
| UL/CSA Ampere Rating | 200 A |
| Maximum Operating Voltage, UL/CSA | 600 VAC |
| IEC Operational Current, AC-22A / AC-23A | 250 A at 380–415, 500, and 690 VAC |
| IEC Motor Power, AC-23A | 110 kW at 380–415 V; 132 kW at 500 V; 200 kW at 690 V |
| Three-Phase Motor Ratings, UL/CSA | 60 HP at 200/208 V; 75 HP at 240 V; 150 HP at 480 V; 200 HP at 600 V |
| Mounting Type | Base mounting / panel mounting |
| Operating Arrangement | Front operated; mechanism at left end |
| Supply Connection Direction | Top-in/bottom-out or bottom-in/top-out |
| Operating Accessories | Handle and shaft ordered separately; terminal bolt kit included |
| Standards | IEC 60947-3; UL 98; CSA C22.2 No. 4 |
| Dimensions (W × H × D) | 169.5 × 170 × 82.5 mm |
| Weight | 1.5 kg (3.31 lb) |
Information About OT200U03
The OT200U03 is part of ABB’s OT switch-disconnector range and uses a front-operated mechanism positioned at the left end of the switch. The design permits supply connections from either the top or bottom terminals. ABB supplies the switch with a terminal bolt kit, while the operating handle and shaft are ordered separately. This configuration supports assembly into compatible panelboards, switchboards, and industrial control panels.
Key Features:
- Three-Pole Switching: Connects or isolates three power conductors through a common operating mechanism.
- UL/CSA Current Rating: Provides a 200 A rating for applications up to 600 VAC.
- Non-Fusible Construction: Provides switching and isolation, with circuit protection supplied by separate devices.
- Front Operation: Uses an operating mechanism located at the left end of the switch.
- Base Mounting: Supports installation on a panel or mounting plate within suitable equipment.
- Reversible Supply Direction: Permits top-in/bottom-out or bottom-in/top-out connections.
- Motor Switching Ratings: Rated for 75 HP at 240 VAC, 150 HP at 480 VAC, and 200 HP at 600 VAC.
- Separate Operating Accessories: Allows selection of a compatible handle and shaft for the installation.
The OT200U03 delivers the reliability and precision required for manual load switching and circuit isolation in industrial electrical installations.
