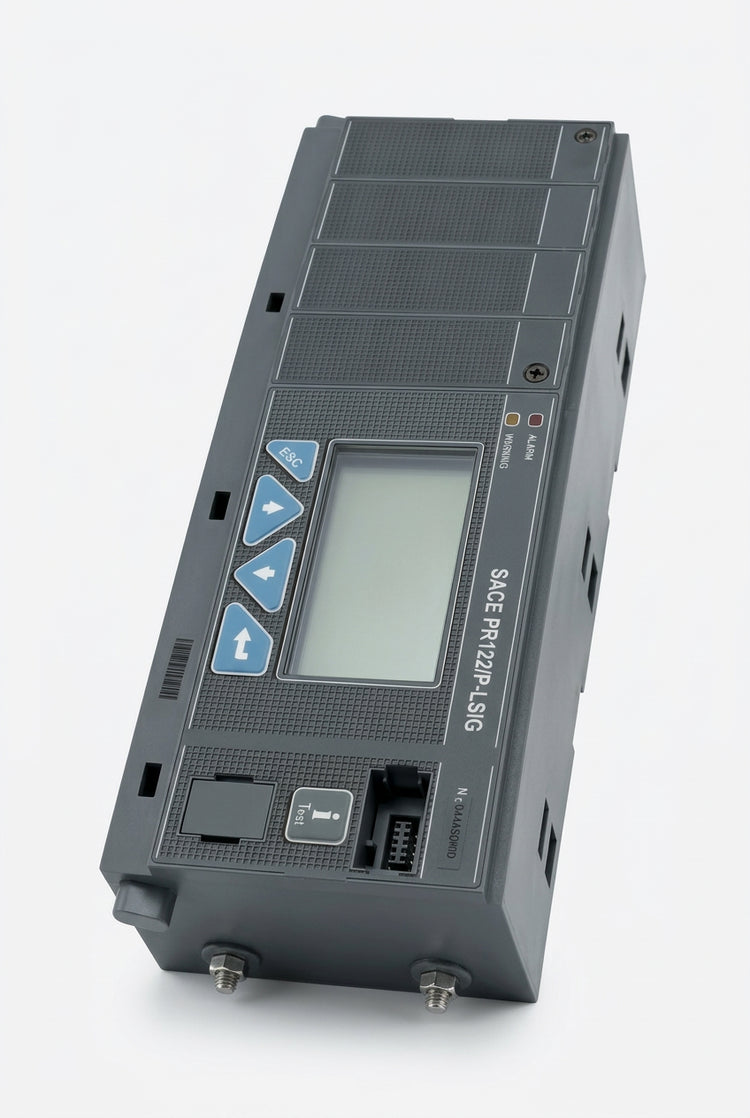

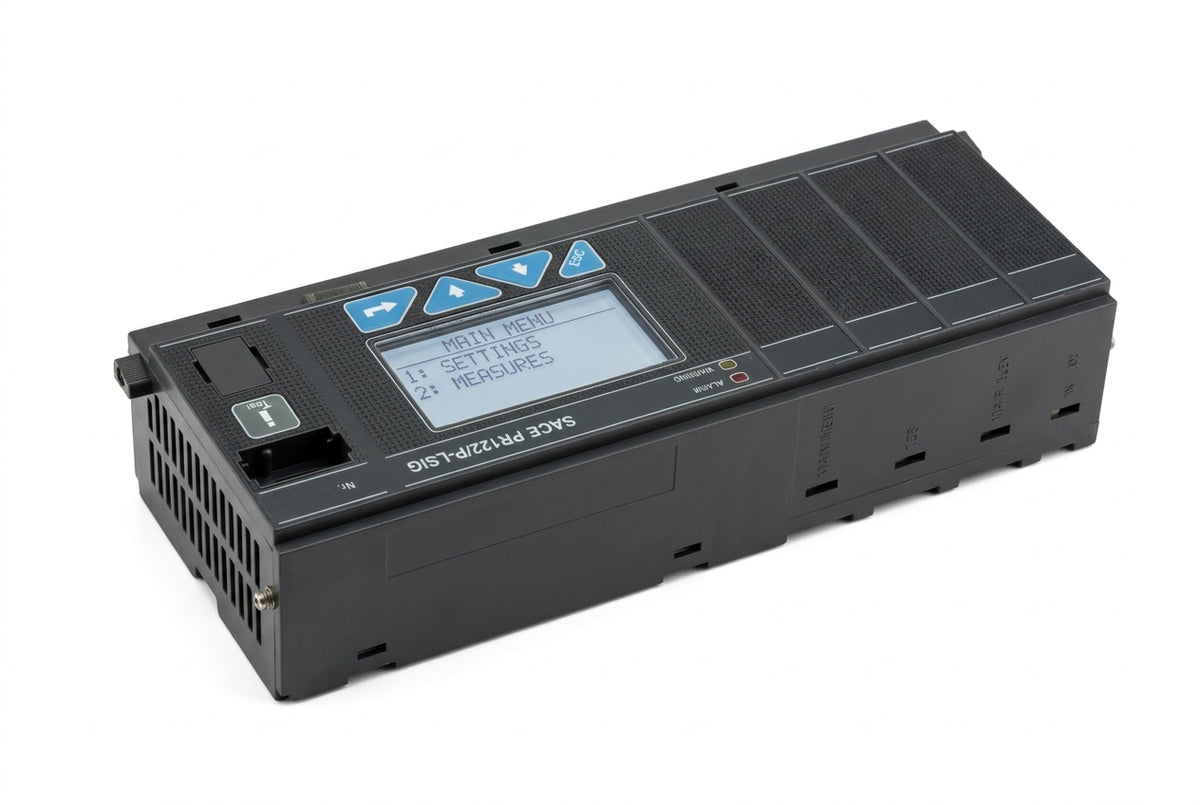

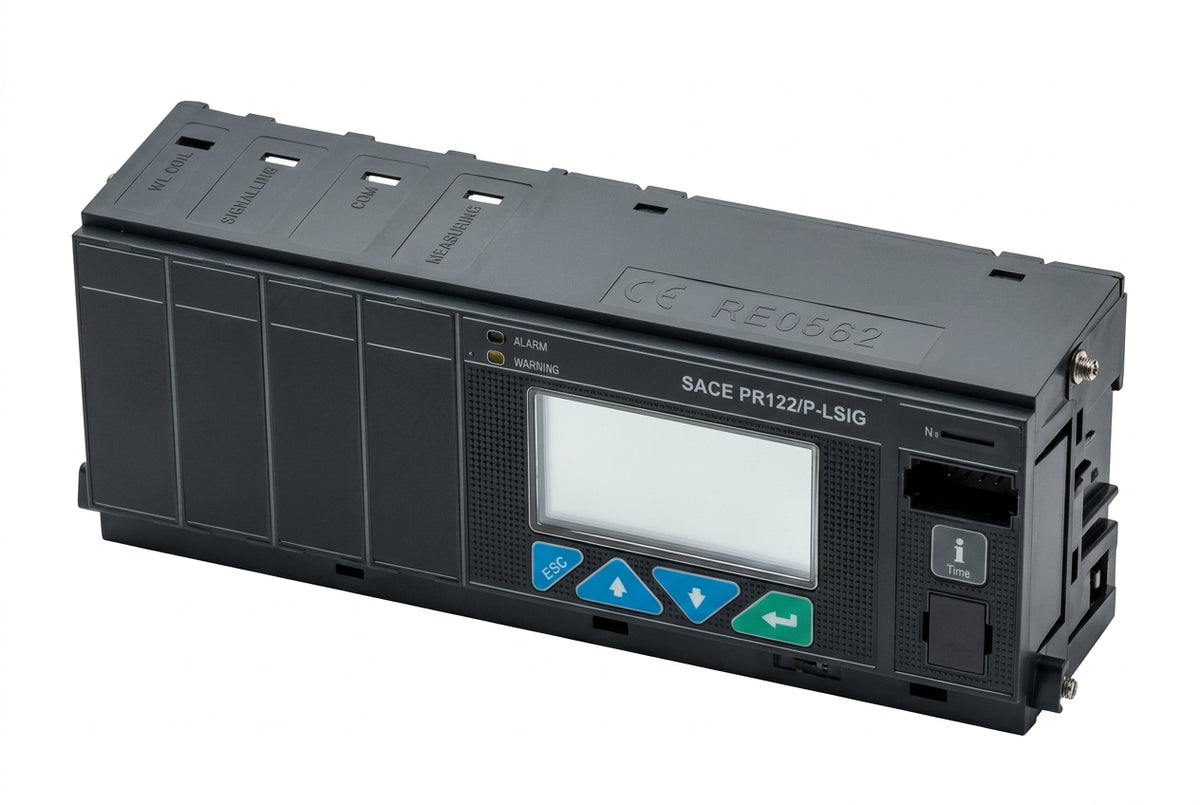

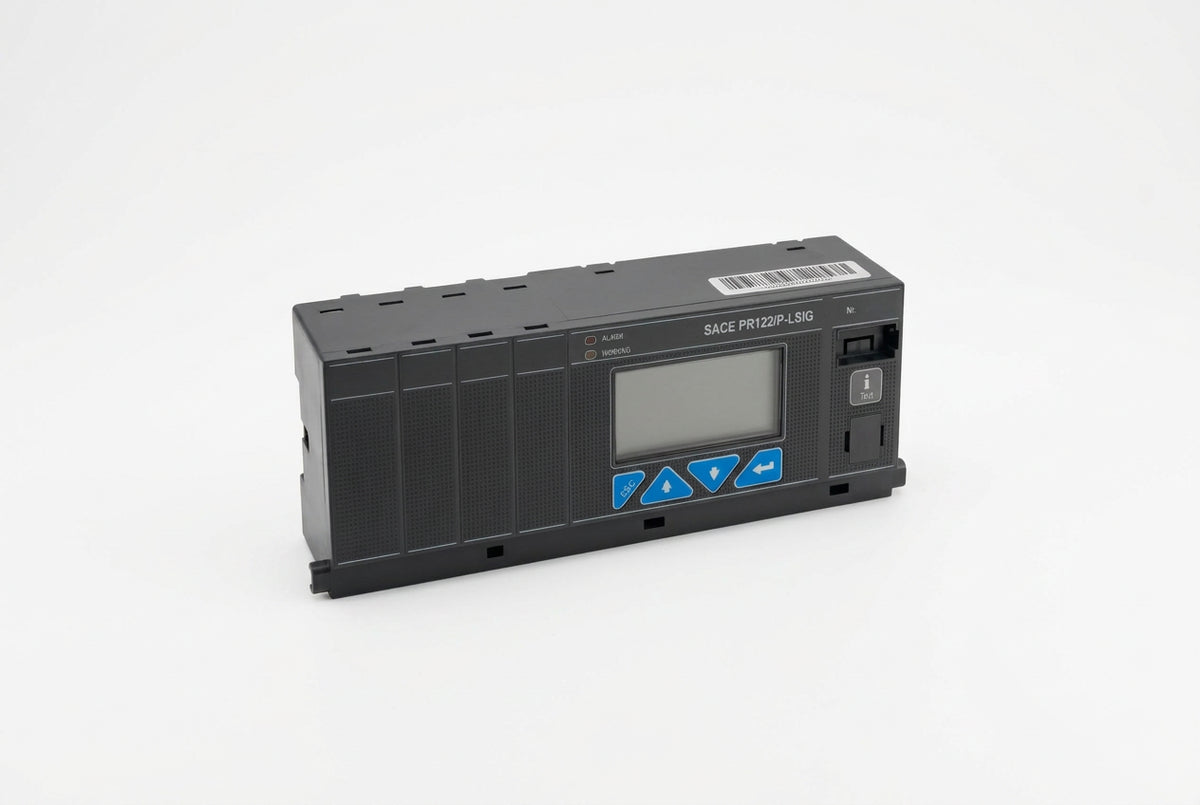

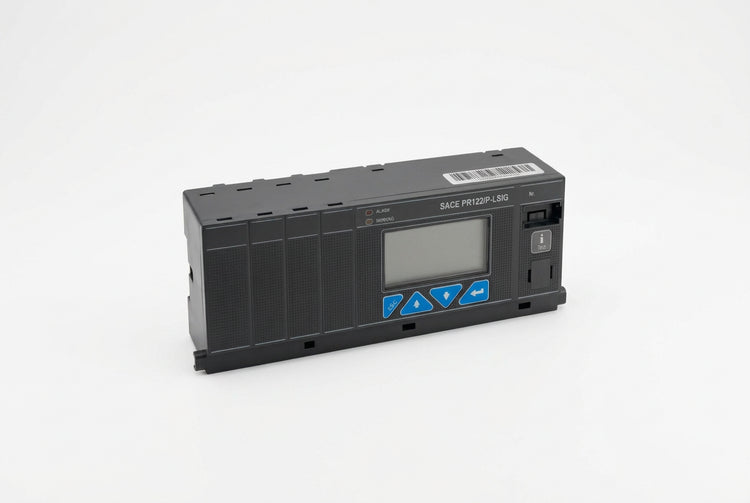

ABB PR122/P-LSIG SACE Emax Electronic Trip Unit
- Regular price
- $4,997.00
- Sale price
- $4,997.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PR122/P-LSIG
Description
The ABB PR122/P-LSIG is an electronic protection trip unit designed for compatible ABB SACE Emax low-voltage air circuit breakers. It provides advanced protection against overloads, short circuits, and earth faults, helping safeguard electrical distribution systems and connected equipment. Its microprocessor-based design also supports measurement, event monitoring, self-diagnostics, and selective coordination of circuit breakers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Electrical Equipment |
| Part Number | PR122/P-LSIG |
| Subcategory | Electronic Circuit Breaker Trip Units |
| Product Family | SACE Emax |
| Product Type | Electronic Protection Trip Unit |
| Protection Functions | LSIG: Long-time, Short-time, Instantaneous, Ground Fault |
| Compatible Breaker Type | ABB SACE Emax low-voltage air circuit breakers |
| Breaker Configuration | Compatible 3-pole and 4-pole models |
| Trip Technology | Microprocessor-based electronic protection |
| Long-Time Current Setting | 0.4–1.0 × In |
| Short-Time Current Setting | 0.6–10 × In |
| Instantaneous Current Setting | 1.5–15 × In |
| Ground-Fault Current Setting | 0.2–1.0 × In |
| Communication / Expansion | Optional modules, depending on configuration |
| Weight | 2.2 lb |
Information About PR122/P-LSIG
The PR122/P-LSIG belongs to ABB's SACE Emax electronic trip-unit family and is designed for compatible three-pole and four-pole air circuit breakers. Its LSIG protection functions include long-time overload, short-time short-circuit, instantaneous short-circuit, and ground-fault protection. Adjustable trip thresholds and time delays allow protection settings to be coordinated with the electrical installation. Depending on the configuration, additional modules can provide communication, voltage measurement, and expanded monitoring functions.
Key Features:
-
Electronic Trip Technology: Microprocessor-based protection for compatible ABB Emax circuit breakers.
-
LSIG Protection: Combines long-time, short-time, instantaneous, and ground-fault protection.
-
Adjustable Overload Protection: Configurable long-time current thresholds and delay settings.
-
Short-Circuit Protection: Provides adjustable short-time and instantaneous trip functions.
-
Ground-Fault Protection: Supports adjustable earth-fault protection.
-
Selective Coordination: Supports coordination between upstream and downstream breakers.
-
Measurement and Monitoring: Provides operating information through the trip unit's user interface.
-
Optional Expansion Modules: Compatible configurations can support additional measurement and communication functions.
The PR122/P-LSIG delivers configurable electronic protection and monitoring capabilities for compatible ABB SACE Emax power distribution systems.
