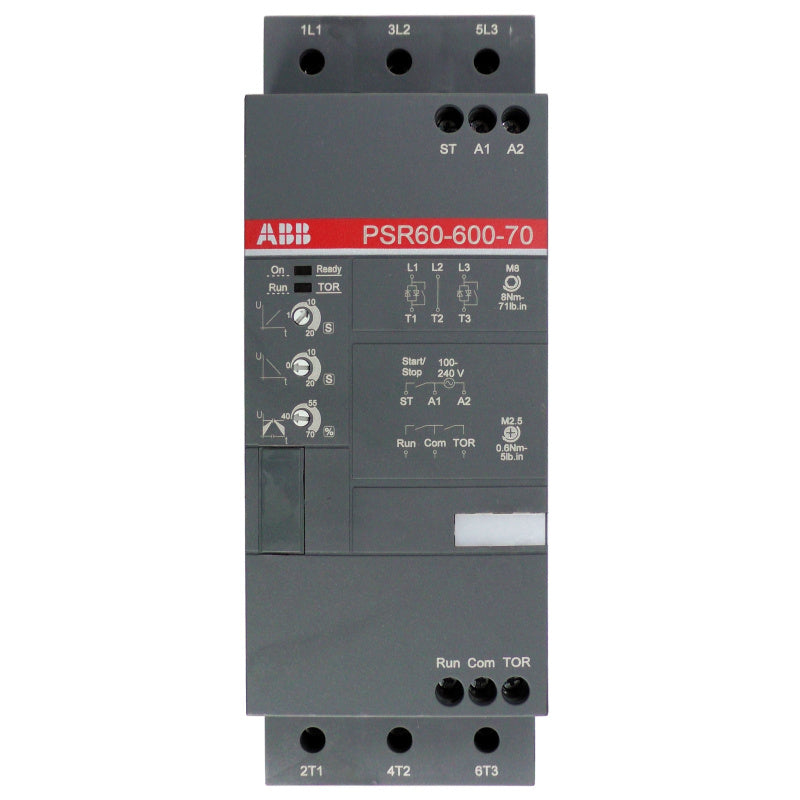

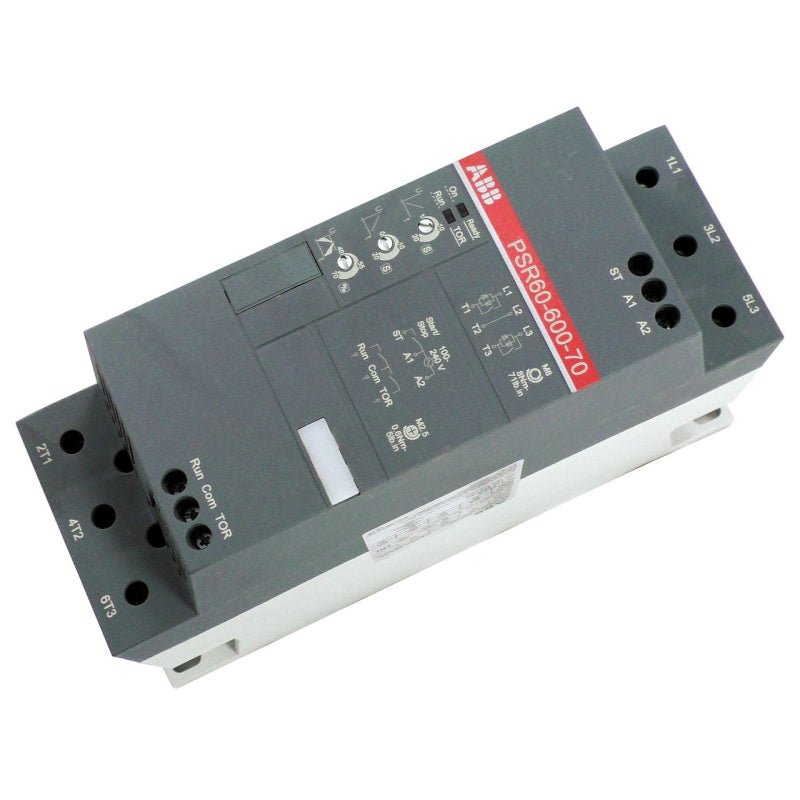

ABB PSR60-600-70 Motor Softstarter with Integrated Bypass
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PSR60-600-70
Description
The ABB PSR60-600-70 is a softstarter for three-phase motors operating on 208–600 VAC power circuits. It controls motor starting and stopping through voltage ramps, reducing abrupt mechanical loading in applications such as pumps, fans, compressors, and conveyors. The unit has a maximum rated operational current of 60 A and requires a 100–240 VAC control supply.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Motor Control |
| Part Number | PSR60-600-70 |
| Subcategory | Softstarters |
| Series | PSR |
| Motor Supply Voltage | 208–600 VAC |
| Motor Supply Phase | Three-phase |
| Maximum Rated Operational Current | 60 A |
| Normal-Duty Output Current, UL | 59.4 A |
| Control Supply Voltage | 100–240 VAC |
| Control Supply Frequency | 50/60 Hz |
| Starting and Stopping Method | Two-phase control through voltage ramps |
| Bypass | Built-in |
| Adjustment Interface | Three front-mounted potentiometers |
| Motor Overload Protection | Requires a suitable external protective device |
| Protection Rating | IP10; open unit |
| Dimensions (H × W × D) | 220 × 70 × 180 mm (8.66 × 2.76 × 7.09 in) |
| Weight | 2.1 kg (4.6 lb) |
Information About PSR60-600-70
The PSR60-600-70 is part of ABB’s compact PSR softstarter range and uses two-phase voltage control. Its built-in bypass carries motor current after starting, reducing heat generation during normal operation. Three front-mounted potentiometers provide adjustment of starting and stopping characteristics. RUN and top-of-ramp relay signals support integration with external control circuits, while optional fieldbus connectivity requires additional accessories.
Key Features:
- Soft Starting: Progressively increases applied motor voltage to reduce abrupt acceleration.
- Soft Stopping: Provides an adjustable voltage ramp for controlled motor deceleration.
- Three-Phase Motor Application: Supports compatible motors supplied at 208–600 VAC.
- Operational Current Rating: Provides a maximum rated current of 60 A.
- Integrated Bypass: Bypasses the power semiconductors after starting to reduce operating losses.
- Front Adjustment: Uses three potentiometers to configure ramp settings.
- Status Relay Outputs: Provides RUN and top-of-ramp signals for external monitoring.
- Optional Fieldbus Connection: Supports communication through a compatible external adapter and fieldbus plug.
The PSR60-600-70 delivers the reliability and precision required for controlled motor starting and stopping in industrial machinery and building-service equipment.
