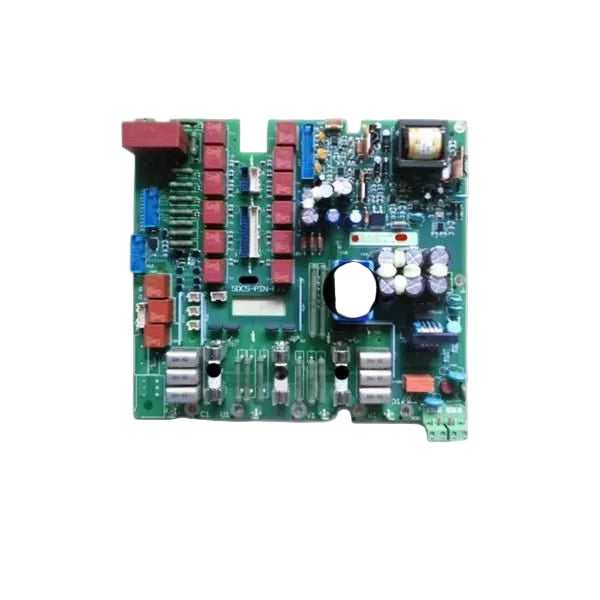

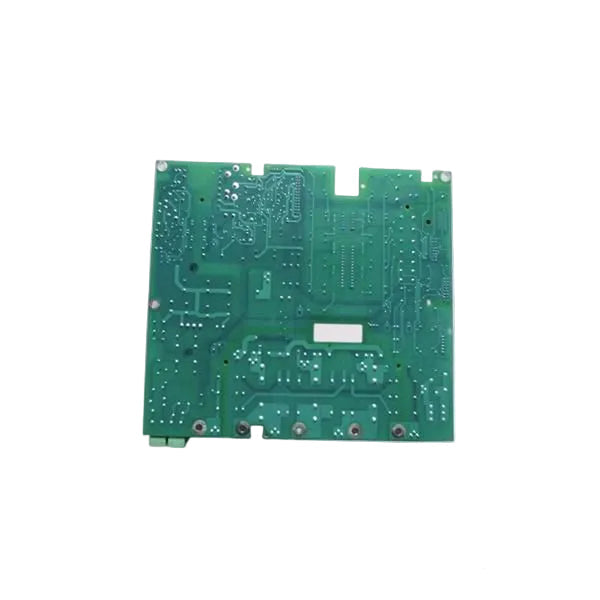

ABB SDCS-PIN-F01A 3ADT316300R1502 Power Interface Board for DCS550 Direct Current Drives
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SDCS-PIN-F01A
Description
The ABB SDCS-PIN-F01A is a power interface board designed for internal use in ABB DCS550 direct current drive systems. Identified by ABB product number 3ADT316300R1502, it interfaces the drive power section with associated control hardware to support power distribution, signal handling, and controlled motor operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Drives |
| Part Number | SDCS-PIN-F01A |
| Subcategory | Drive Board |
| ABB Product Number | 3ADT316300R1502 |
| Product Type | Power Interface Board |
| Compatible Drive Series | DCS550 |
| Primary Function | Power and Signal Interface |
| Application | Direct Current Drive Control |
| Component Type | Printed Circuit Board Assembly |
| Installation Type | Internal Drive Component |
| Compatible Control Board | SDCS-CON-F01 |
| Associated Bridge Hardware | SDCS-BAB-F01 / SDCS-BAB-F02 |
| Typical Drive Architecture | Direct Current Converter |
| Approximate Dimensions | 240 × 170 × 50 Millimeters |
| Weight | 1.54 lbs |
Information About SDCS-PIN-F01A
The SDCS-PIN-F01A is an ABB power interface board developed as part of the DCS550 direct current drive architecture. Its printed circuit board assembly operates with the SDCS-CON-F01 control board and associated bridge adaptation hardware inside compatible converter configurations. ABB documentation lists 3ADT316300R1502 across multiple DCS550 drive ratings, confirming its role as an internal power-interface component. The board is intended for drive servicing and replacement where the installed hardware requires the SDCS-PIN-F01A configuration.
Key Features:
- Power Interface Function: Provides the electrical interface between the power section and associated control hardware in compatible ABB direct current drives.
- DCS550 Compatibility: ABB documentation identifies the board as an internal component across multiple DCS550 converter configurations.
- ABB Product Identification: Manufacturer product number is 3ADT316300R1502.
- Control Board Integration: Operates within systems using the SDCS-CON-F01 control board.
- Bridge Hardware Integration: Works with associated SDCS-BAB-F01 or SDCS-BAB-F02 bridge adaptation hardware depending on drive configuration.
- Internal Drive Installation: Designed for installation inside the converter rather than independent operation.
- Serviceable Assembly: Functions as a replaceable printed circuit board within the DCS550 drive hardware architecture.
- Industrial Motor Control: Supports the internal power and signal interface required for regulated direct current motor operation.
The SDCS-PIN-F01A delivers the reliability and precision required for power interfacing and signal coordination within compatible ABB direct current drive systems.
