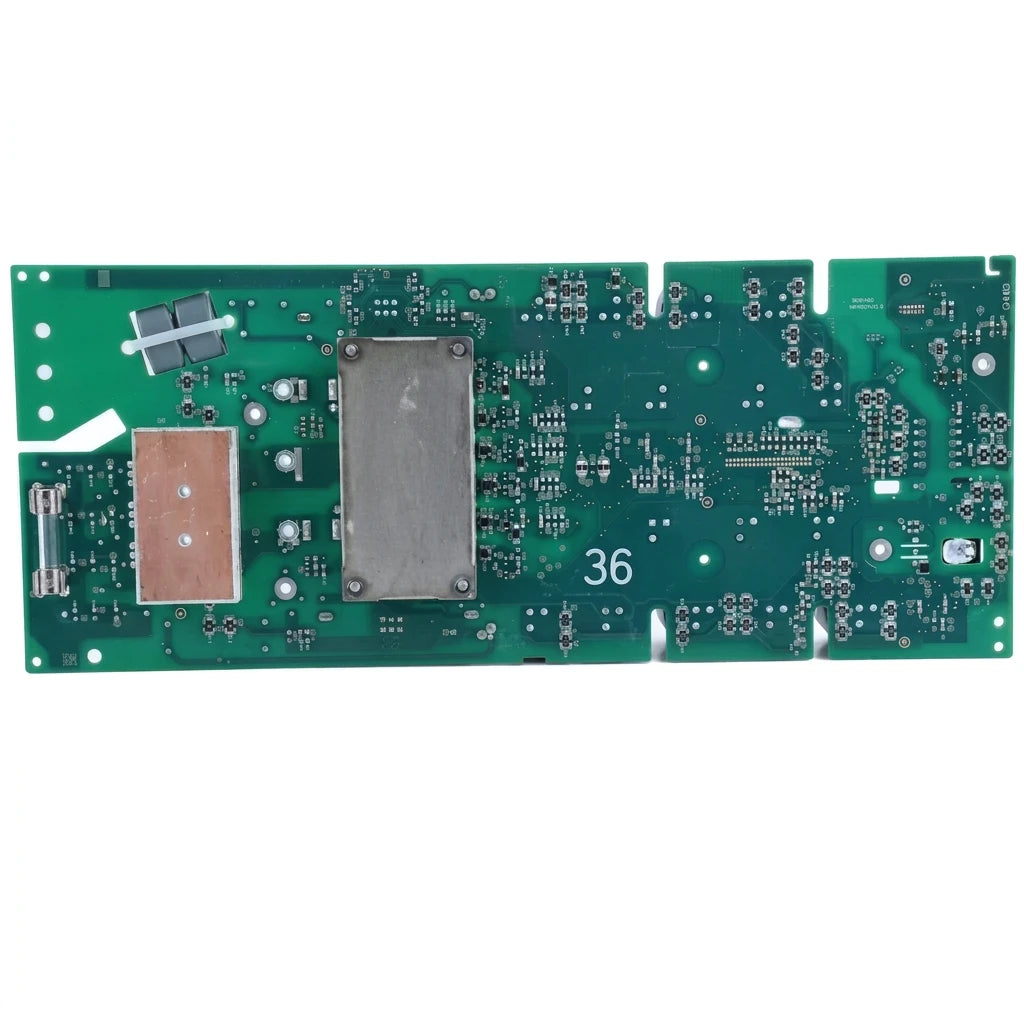

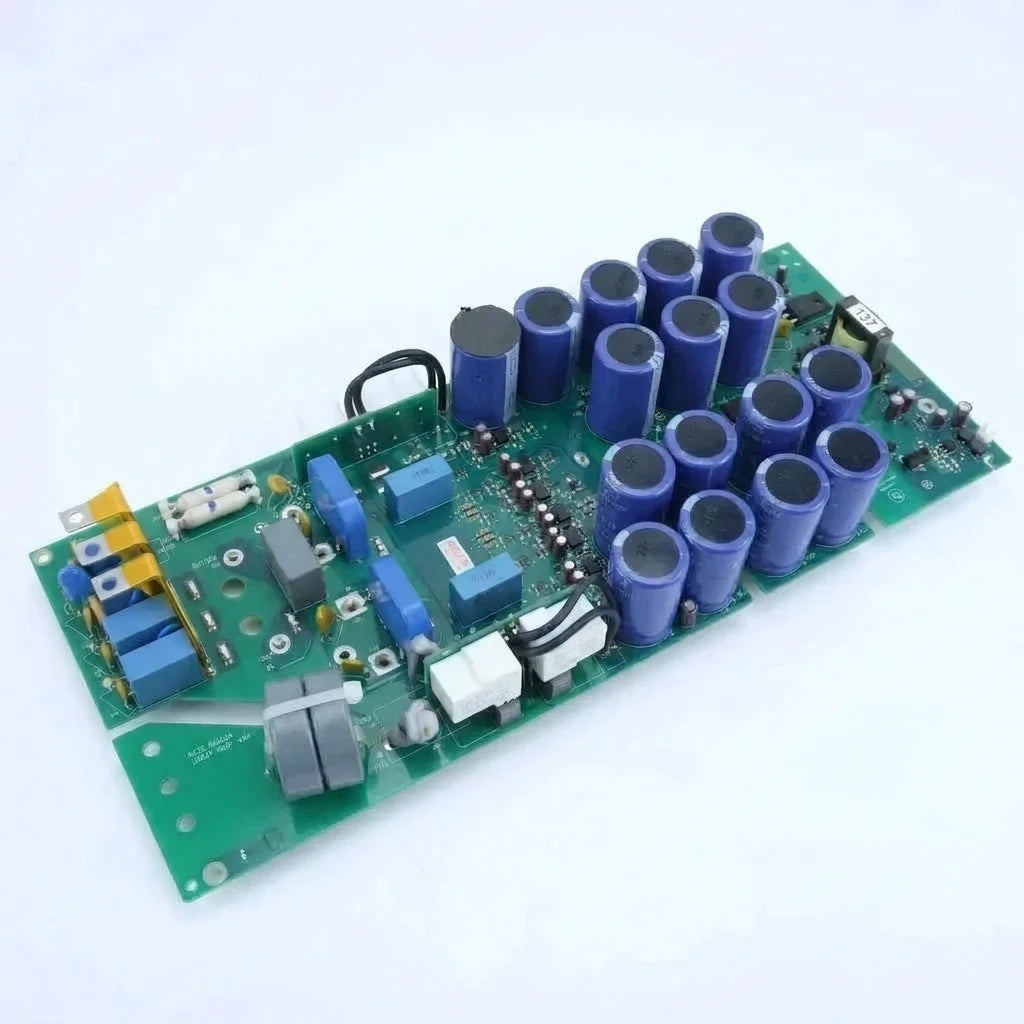

ABB SINT4420C ACS510 Inverter Drive Power Board 30 kW
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SINT4420C
Description
The ABB SINT4420C is a high-performance main power circuit board (inverter drive board) engineered specifically for the ABB ACS510 series AC variable frequency drives rated at 30 kW. As an integral internal power component, it houses the essential gate control circuitry and intermediate power stage interfaces required for efficient variable speed motor control. Constructed to strict industrial standards and weighing 2.93 kg, this board delivers stable voltage regulation and reliable signal switching for heavy-duty industrial drive applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Drives |
| Part Number | SINT4420C |
| Subcategory | Drive Board / Power Inverter Board |
| Drive Compatibility | ABB ACS510 Series |
| Power Rating | 30 kW |
| Board Type | Inverter / Power Driver Circuit Board |
| Weight | 2.93 kg |
Information About SINT4420C
The SINT4420C power board acts as the central power interface within 30 kW ACS510 VFD units, receiving commands from the drive's main control card (JINT / RMIO) to precise-fire internal IGBT power modules. Compatibility covers the ABB ACS510-01-060A-4 frame and related 30 kW 400V-class drive chassis, as well as integrated cooling fan assemblies and main DC bus connections. It is extensively utilized in HVAC supply/return fans, centrifugal water pumps, industrial blowers, and general automation equipment running on ACS510 drive platforms.
Key Features:
- Application Specificity: Designed for ABB ACS510 series 30 kW variable frequency drives
-
Board Functionality: Main inverter power card / IGBT gate driver circuit board
-
Power Capability: Handles power switching and signal isolation for 30 kW drive ratings
-
Circuit Construction: Multi-layer heavy-duty industrial PCB with reinforced trace layouts
-
Physical Footprint: Industrial internal assembly weighing 2.93 kg
-
Operational Stability: Provides accurate gate triggering and overcurrent detection feedback
The SINT4420C ensures long service life, low electrical noise, and optimal power conversion efficiency for industrial motor drives.
