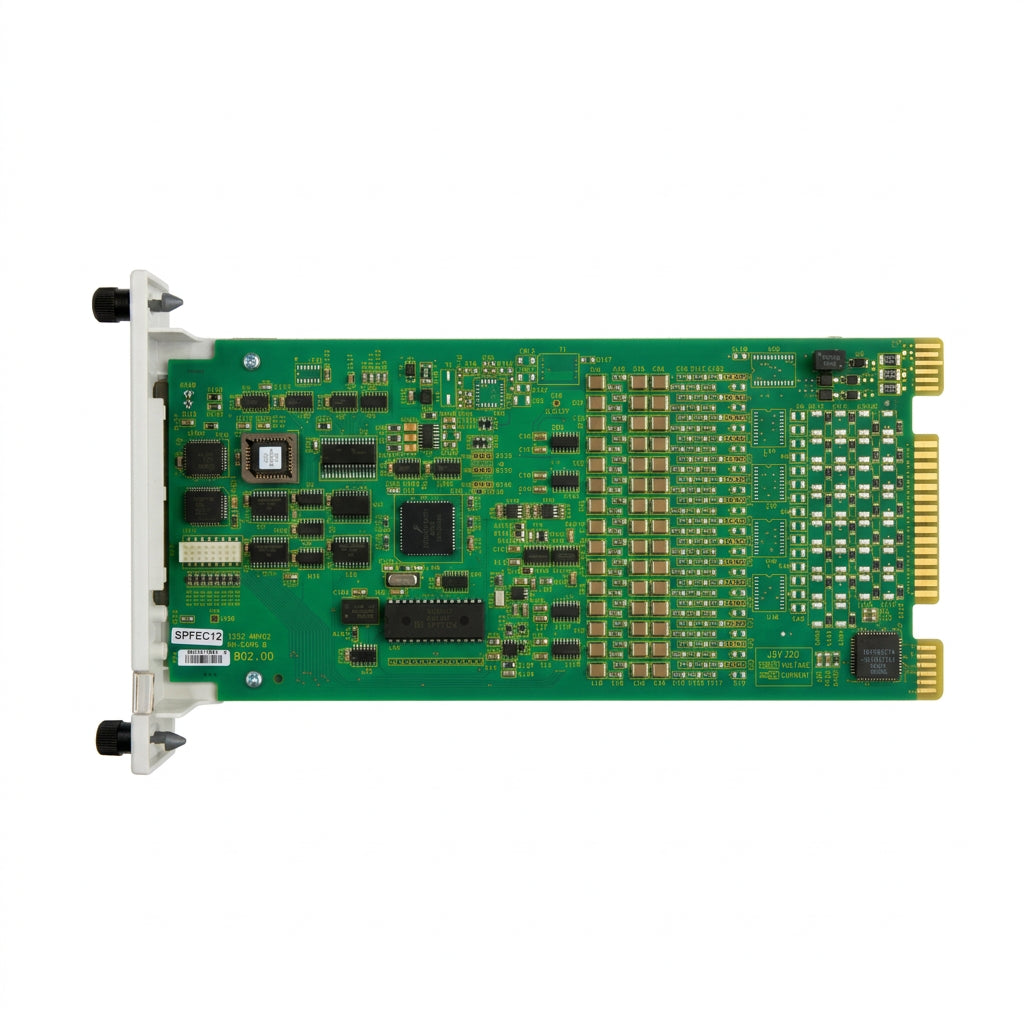

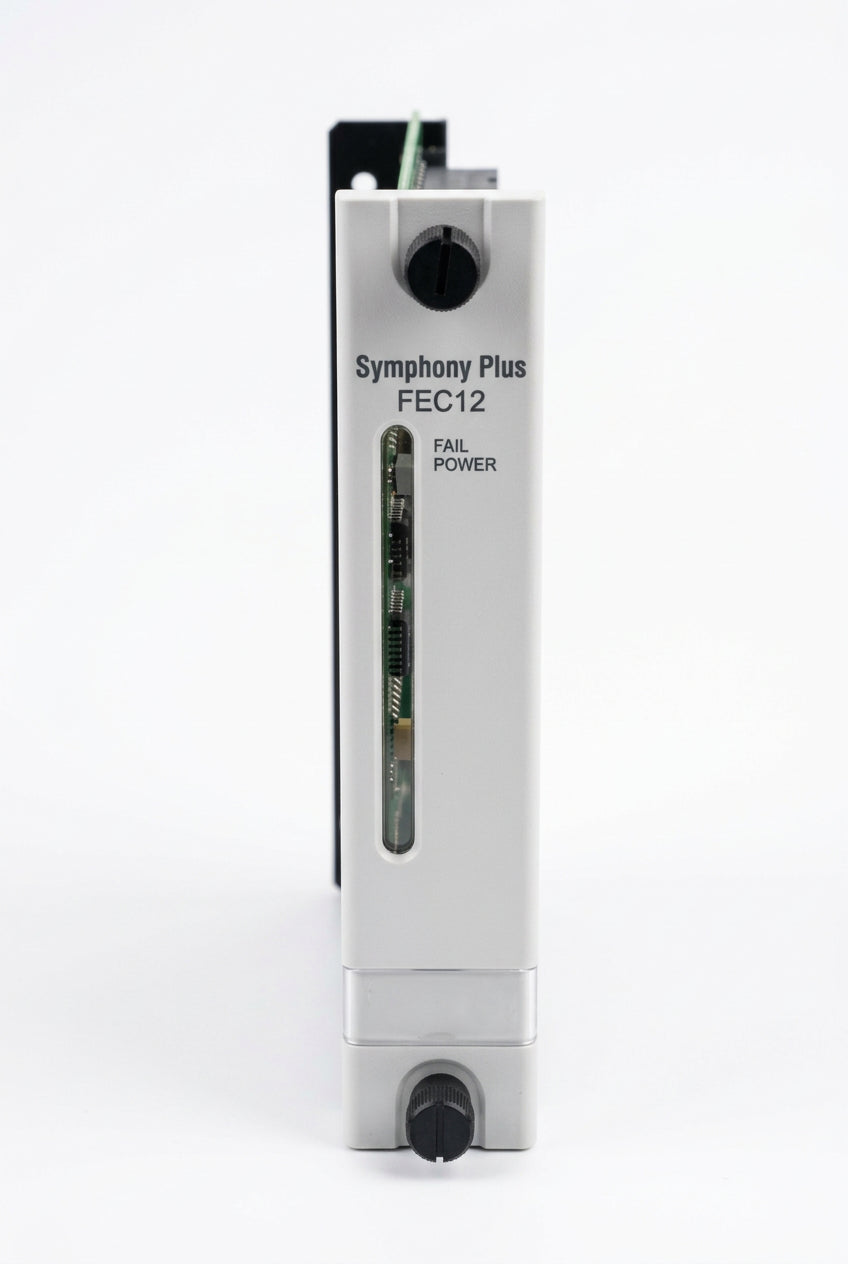

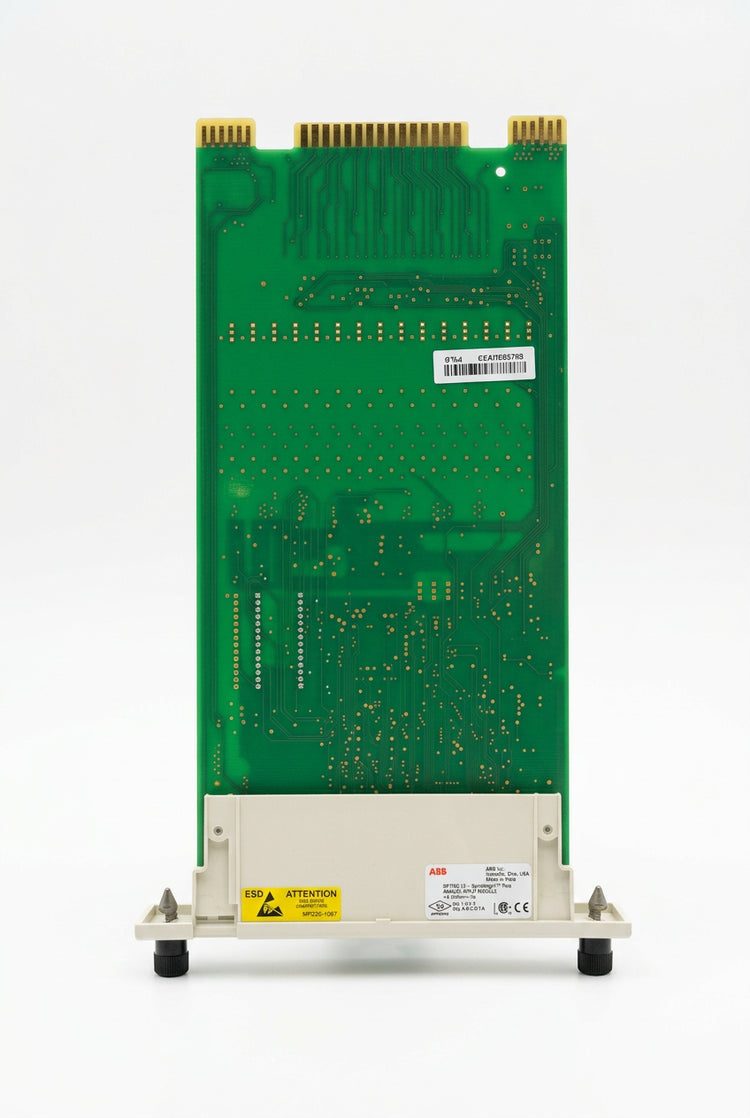

ABB SPFEC12 15-Channel Analog Input Module
- Regular price
- $1,632.00
- Sale price
- $1,632.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SPFEC12
Description
The ABB SPFEC12 is an analog input module designed to interface field-device signals with an industrial control system. Its 15 configurable channels support common analog current and voltage signals, enabling process measurements to be acquired for monitoring and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Industrial Automation |
| Part Number | SPFEC12 |
| Subcategory | Analog Input Modules |
| Product Family | Symphony Plus HR Series |
| Product Type | Analog input module |
| Number of Input Channels | 15 |
| Resolution | 14 bit |
| Current Input Range | 4–20 mA |
| Voltage Input Ranges | 0–1 V, 1–5 V, 0–5 V, 0–10 V, −10 to +10 V |
| Power Requirements | +5 V DC at 85 mA; +15 V DC at 25 mA; −15 V DC at 20 mA, typical |
| Typical Power Consumption | 1.1 W |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Weight | 0.66 lb |
Information About SPFEC12
The SPFEC12 belongs to ABB’s Symphony Plus HR Series I/O hardware, also associated with the Bailey Infi 90 control-system family. Each of its 15 input channels can be configured individually and provides 14-bit resolution for analog signal acquisition. Supported inputs include 4–20 mA current and multiple voltage ranges, including bipolar signals. The module requires dedicated 5 V DC and positive and negative 15 V DC power rails, so compatibility with the target rack and system configuration should be checked before installation.
Key Features:
-
15 Analog Input Channels: Acquires multiple process signals through one module.
-
14-Bit Resolution: Provides digital resolution for analog input measurements.
-
4–20 mA Input Support: Interfaces with compatible industrial current transmitters.
-
Configurable Voltage Inputs: Supports several voltage ranges for different field devices.
-
Individual Channel Configuration: Allows input channels to be programmed independently.
-
Symphony Plus Integration: Designed for compatible ABB HR Series control-system installations.
-
Multiple DC Power Rails: Uses +5 V DC and ±15 V DC supplies.
-
Industrial Temperature Range: Specified for ambient operation from 0°C to 70°C.
The SPFEC12 delivers flexible analog signal acquisition for industrial process monitoring, instrumentation, and distributed control applications.
