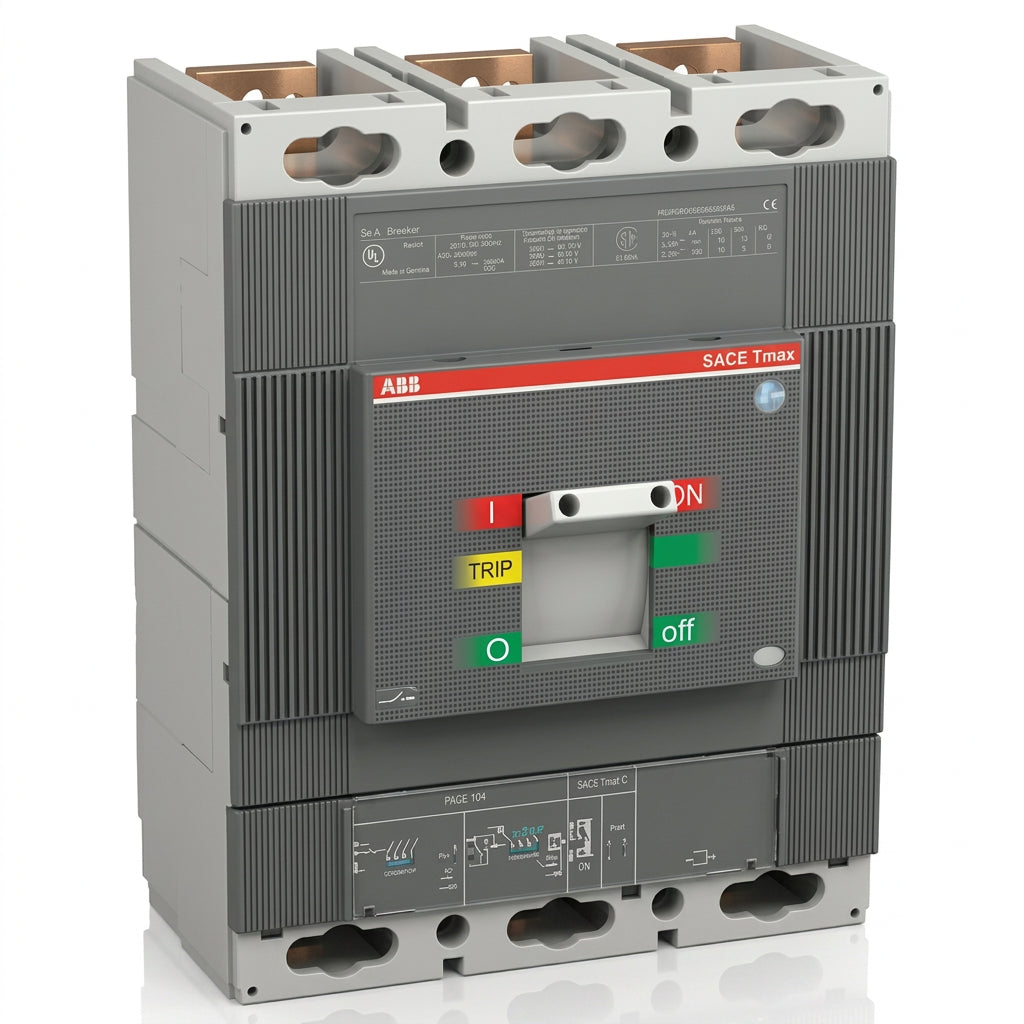

ABB T6H800BW 800A 3-Pole Electronic Trip Circuit Breaker
- Regular price
- $8,999.00
- Sale price
- $8,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: T6H800BW
Description
The ABB T6H800BW is an 800 A, three-pole molded case circuit breaker designed to protect high-current electrical distribution systems against overloads and short circuits. It belongs to ABB's SACE Tmax T6 range and uses a PR221DS LS/I electronic trip unit for adjustable long-time and instantaneous protection. The breaker is designed for compatible industrial and commercial power distribution installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Electrical Equipment |
| Part Number | T6H800BW |
| Subcategory | Molded Case Circuit Breakers |
| Product Family | SACE Tmax T6 |
| Rated Current | 800 A |
| Number of Poles | 3 |
| Rated Voltage | Up to 600 V AC |
| Trip Unit | PR221DS LS/I electronic |
| Long-Time Current Adjustment | 320–800 A |
| Instantaneous Trip Adjustment | 800–8,000 A |
| Interrupting Rating | 65 kA at 480 V AC; verify rating at other voltages |
| Weight | 19.42 lb |
Information About T6H800BW
The T6H800BW is part of ABB's Tmax T6 molded case circuit breaker family, intended for low-voltage power distribution and circuit protection. Its 800 A frame rating and three-pole configuration make it suitable for compatible three-phase electrical systems. The PR221DS LS/I electronic trip unit provides adjustable long-time and instantaneous protection settings. ABB's catalog lists a high-interrupting-capacity rating for the T6H version, but the applicable value depends on the system voltage and should be checked against the relevant ABB rating table.
Key Features:
-
800 A Current Rating: Designed for high-current power distribution applications.
-
Three-Pole Configuration: Suitable for compatible three-phase electrical systems.
-
Electronic Trip Unit: Uses the PR221DS LS/I electronic protection unit.
-
Adjustable Long-Time Protection: Long-time current adjustment range of 320–800 A.
-
Instantaneous Protection: Adjustable instantaneous trip range of 800–8,000 A.
-
High Interrupting Capacity: The T6H version is listed at 65 kA at 480 V AC; confirm the rating for the actual operating voltage.
-
600 V AC Class: Designed for compatible low-voltage distribution systems.
-
Industrial Construction: Suitable for electrical distribution equipment and industrial installations.
The T6H800BW delivers the adjustable circuit protection and high-current capacity required for compatible industrial power distribution systems.
