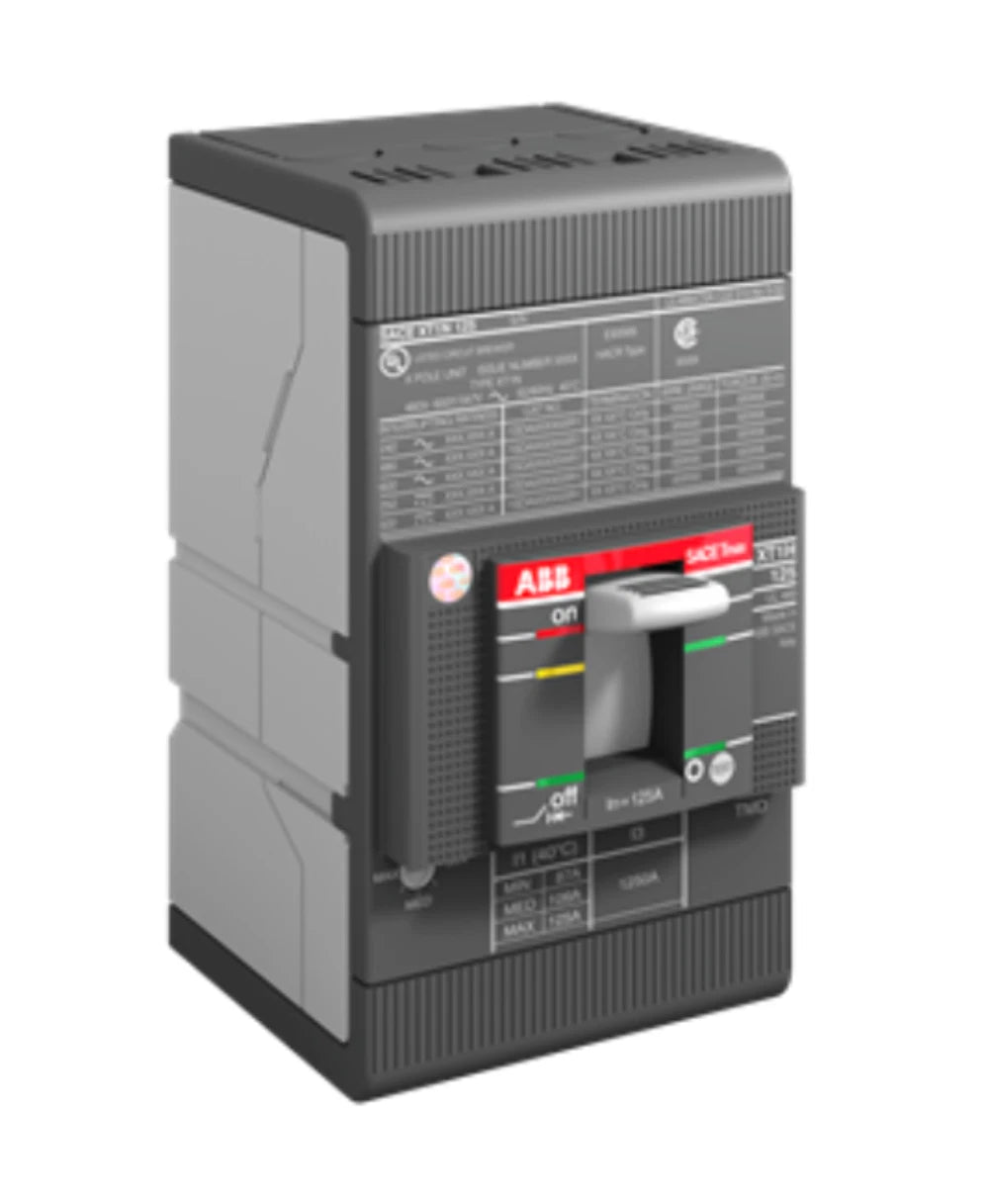

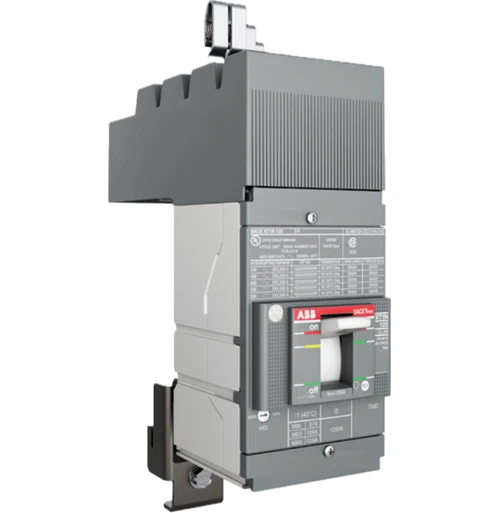

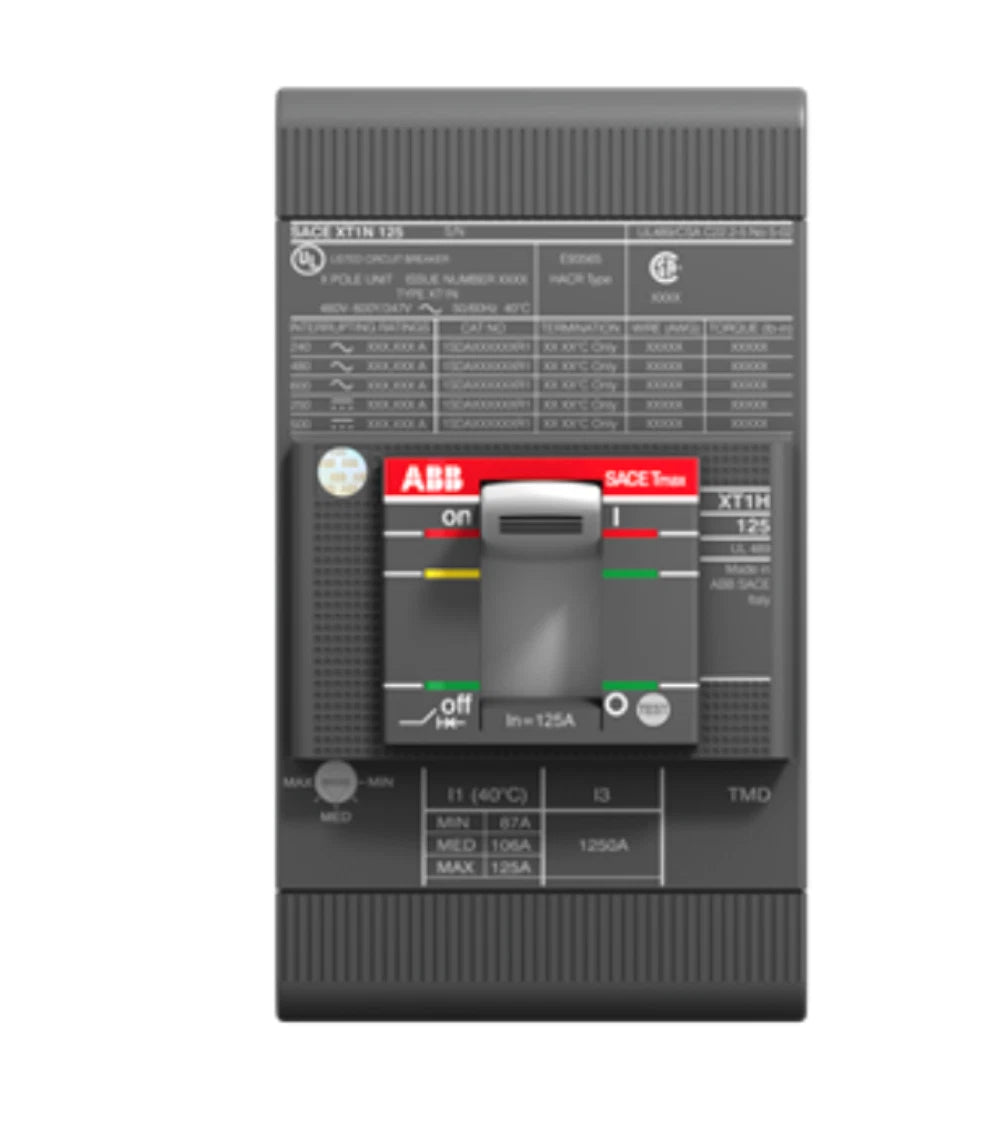

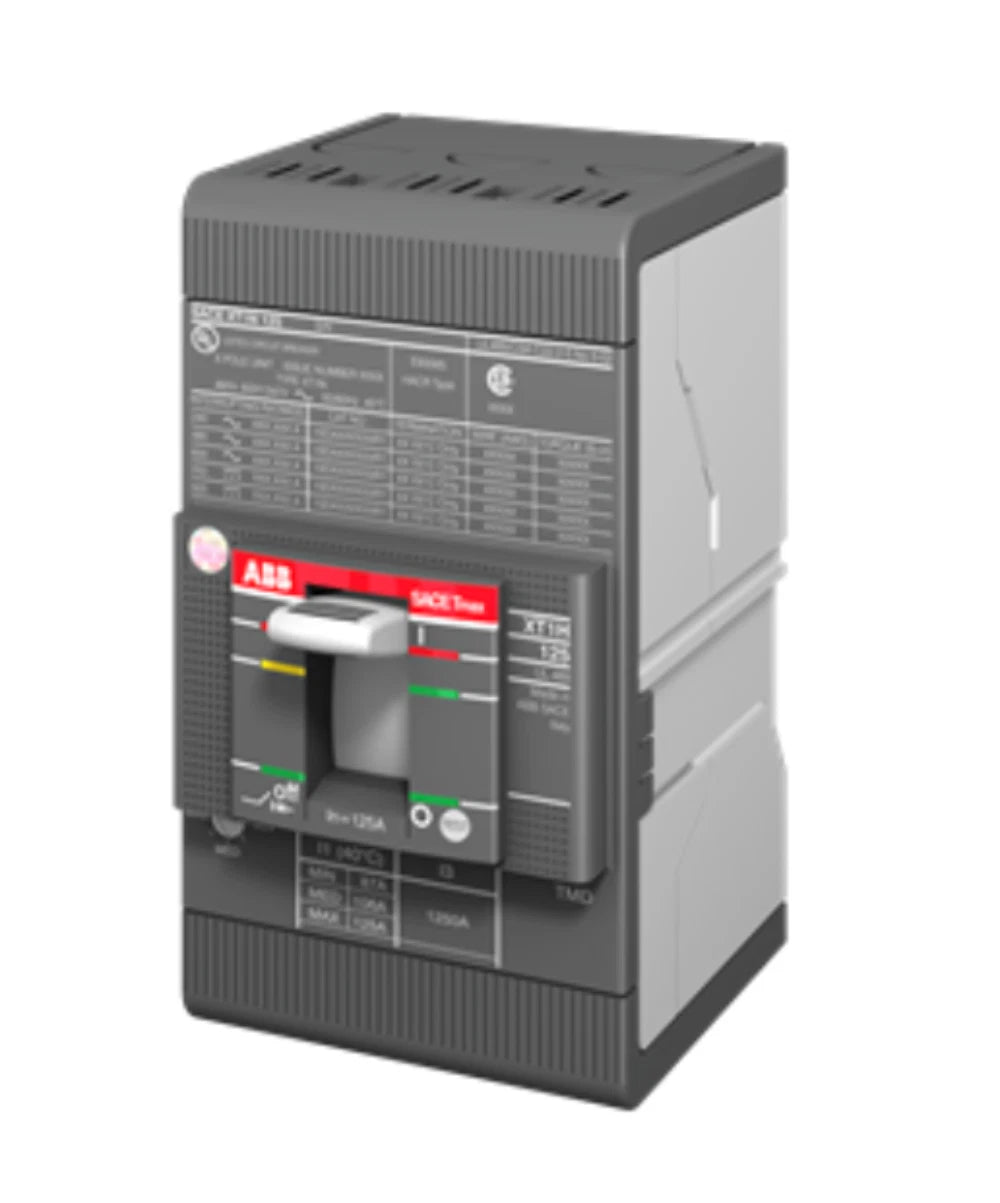

ABB XT1HU3125AYD000XXX 125 Ampere Three-Pole SACE Tmax XT Molded Case Circuit Breaker
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XT1HU3125AYD000XXX
Description
The ABB XT1HU3125AYD000XXX is a three-pole molded case circuit breaker from the SACE Tmax XT family, rated at 125 amperes for low-voltage power distribution protection. Its H-level short-circuit performance provides an interrupting rating of 65 kiloamperes at 480 volts alternating current, while fixed thermal-magnetic protection responds to overload and short-circuit conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Circuit Breaker |
| Part Number | XT1HU3125AYD000XXX |
| Subcategory | Molded Case Circuit Breaker |
| Product Family | SACE Tmax XT |
| Frame | XT1, 125-ampere frame |
| Rated Current | 125 amperes |
| Number of Poles | 3 |
| Trip Unit | Fixed thermal-magnetic |
| Short-Circuit Performance Level | H |
| Interrupting Rating at 240 Volts | 100 kiloamperes |
| Interrupting Rating at 480 Volts | 65 kiloamperes |
| Interrupting Rating at 600Y/347 Volts | 25 kiloamperes |
| Continuous Current Rating | 80 percent |
| Connection | ReliaGear neXT panelboard connection |
| Conductor Range | 10 American Wire Gauge through 2/0 American Wire Gauge, copper or aluminum |
| Weight | 8.00 lbs |
Information About XT1HU3125AYD000XXX
The XT1HU3125AYD000XXX is an ABB SACE Tmax XT1 circuit breaker built on the compact 125-ampere XT1 frame for commercial and industrial distribution systems. It uses a fixed thermal-magnetic trip unit with thermal overload and magnetic instantaneous protection and is configured as a three-pole device. The exact ordering code is listed by ABB for ReliaGear neXT panelboard applications and accepts one copper or aluminum conductor from 10 American Wire Gauge through 2/0 American Wire Gauge. Its H short-circuit performance level provides interrupting ratings of 100 kiloamperes at 240 volts, 65 kiloamperes at 480 volts, and 25 kiloamperes at 600Y/347 volts alternating current.
Key Features:
- 125-Ampere Rating: Provides a fixed 125-ampere current rating for feeder and branch-circuit protection.
- Three-Pole Construction: Simultaneously protects three conductors in compatible three-phase distribution circuits.
- Thermal-Magnetic Trip Unit: Uses fixed thermal and magnetic protection for overload and instantaneous short-circuit response.
- High Interrupting Capacity: Provides 65 kiloamperes of interrupting capacity at 480 volts alternating current.
- XT1 Frame: Uses ABB's 125-ampere SACE Tmax XT1 molded case circuit breaker platform.
- ReliaGear neXT Application: ABB lists the exact ordering code for use in compatible ReliaGear neXT panelboard configurations.
- Copper and Aluminum Conductors: Supports one 10 American Wire Gauge through 2/0 American Wire Gauge copper or aluminum conductor.
- North American Configuration: The XT1H platform is available to Underwriters Laboratories and Canadian Standards Association requirements for North American installations.
The XT1HU3125AYD000XXX delivers the reliability and precision required for overload and short-circuit protection in commercial and industrial electrical distribution systems.
