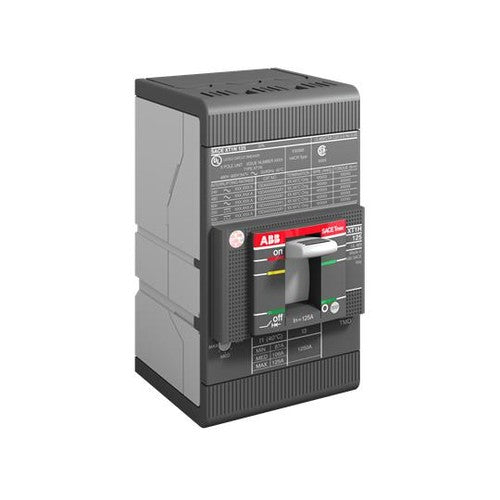

ABB XT1NU3035AAA000XXX Tmax XT1N 35A 3Pole MCCB UL/CSA
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XT1NU3035AAA000XXX
Description
The ABB XT1NU3035AAA000XXX (SACE Tmax XT1N 125) is a compact, high-performance molded case circuit breaker (MCCB) engineered for reliable thermal-magnetic protection and electrical switching in modern low-voltage distribution systems. Rated for 35 A continuous current across 3 poles, it features a TMF (Thermal-Magnetic Fixed) trip unit with a 500 A fixed magnetic threshold. Certified to UL/CSA standards, this lightweight 0.55 kg breaker offers fixed mounting with front terminals (F F), providing essential overload and short-circuit protection for commercial and industrial electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Circuit Breaker |
| Part Number | XT1NU3035AAA000XXX |
| Subcategory | Molded Case Circuit Breaker (MCCB) |
| Series / Frame | SACE Tmax XT1N 125 |
| Amperage Rating | 35 A |
| Number of Poles | 3-Pole (3P) |
| Trip Unit | TMF (Thermal-Magnetic Fixed, 35 A thermal / 500 A magnetic) |
| Mounting / Terminals | Fixed / Front Terminals (F F) |
| Standards / Approvals | UL489 / CSA / IEC |
| Weight | 0.55 kg |
Information About XT1NU3035AAA000XXX
The XT1NU3035AAA000XXX is part of ABB’s advanced SACE Tmax XT series, recognized for delivering high breaking capacity in an extremely compact frame size. Designed for seamless integration into distribution panels and machine control cabinets, it ensures accurate thermal overload response along with instantaneous magnetic protection during short-circuit events. Compatibility covers standard 3-phase busbars, UL489/CSA control cabinets, motor control centers (MCCs), and auxiliary contact/shunt trip accessories within the Tmax XT family. It is widely used in commercial buildings, industrial automation panels, OEM equipment, and renewable energy control systems.
Key Features:
-
Frame & Series: ABB SACE Tmax XT1N 125 frame size
-
Amperage Rating: 35 A continuous current rating
-
Trip Unit Type: TMF (Thermal-Magnetic Fixed) with 500 A fixed magnetic protection
-
Pole Configuration: 3-Pole (3P) configuration for 3-phase circuits
-
Mounting & Connection: Fixed installation with Front terminals (F F)
-
Standards Compliance: Certified to UL/CSA and IEC standards
-
Compact Footprint: Ultra-compact, space-saving design weighing just 0.55 kg
The XT1NU3035AAA000XXX combines safety, high breaking capacity, and effortless installation for low-voltage power distribution networks.
