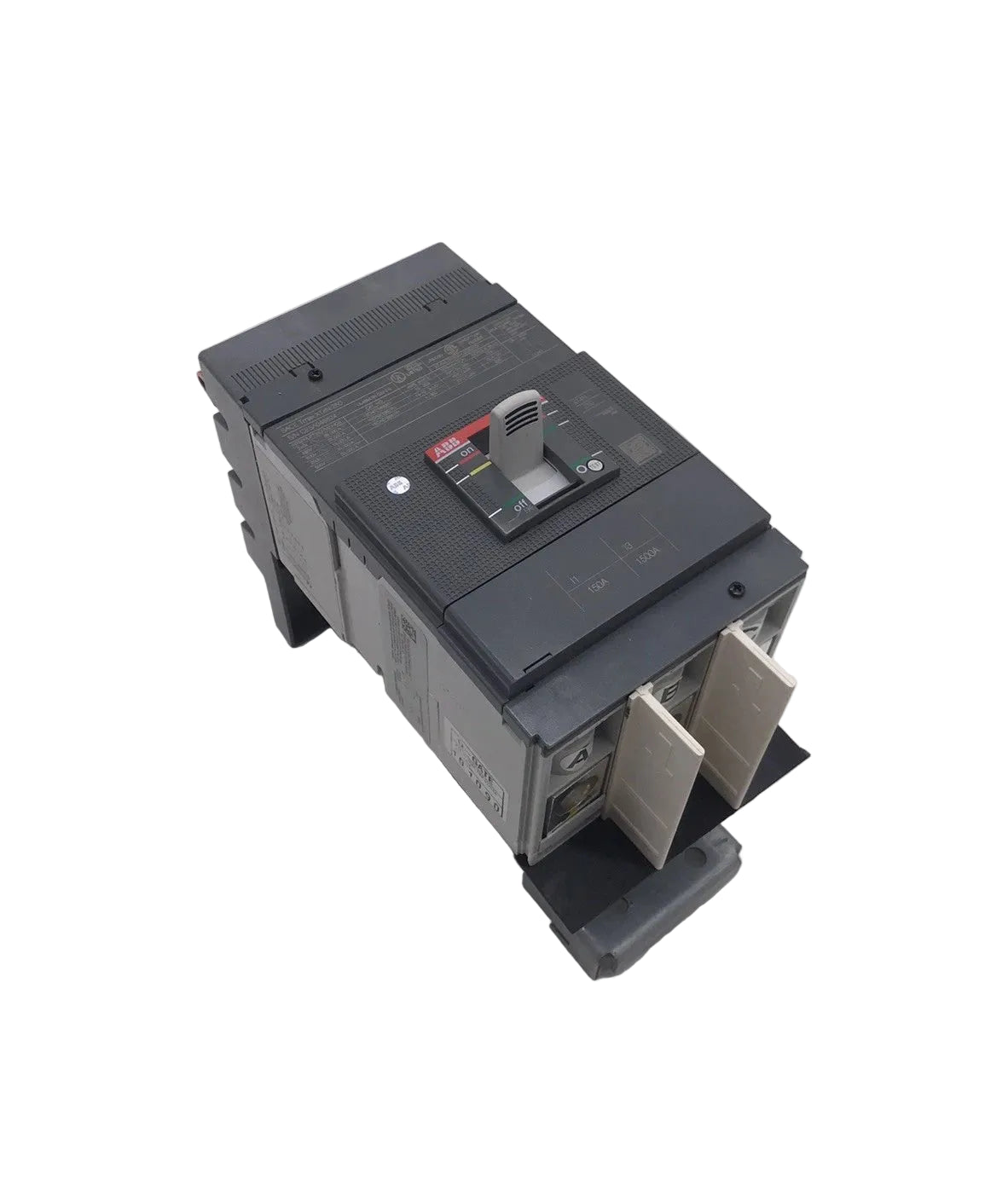

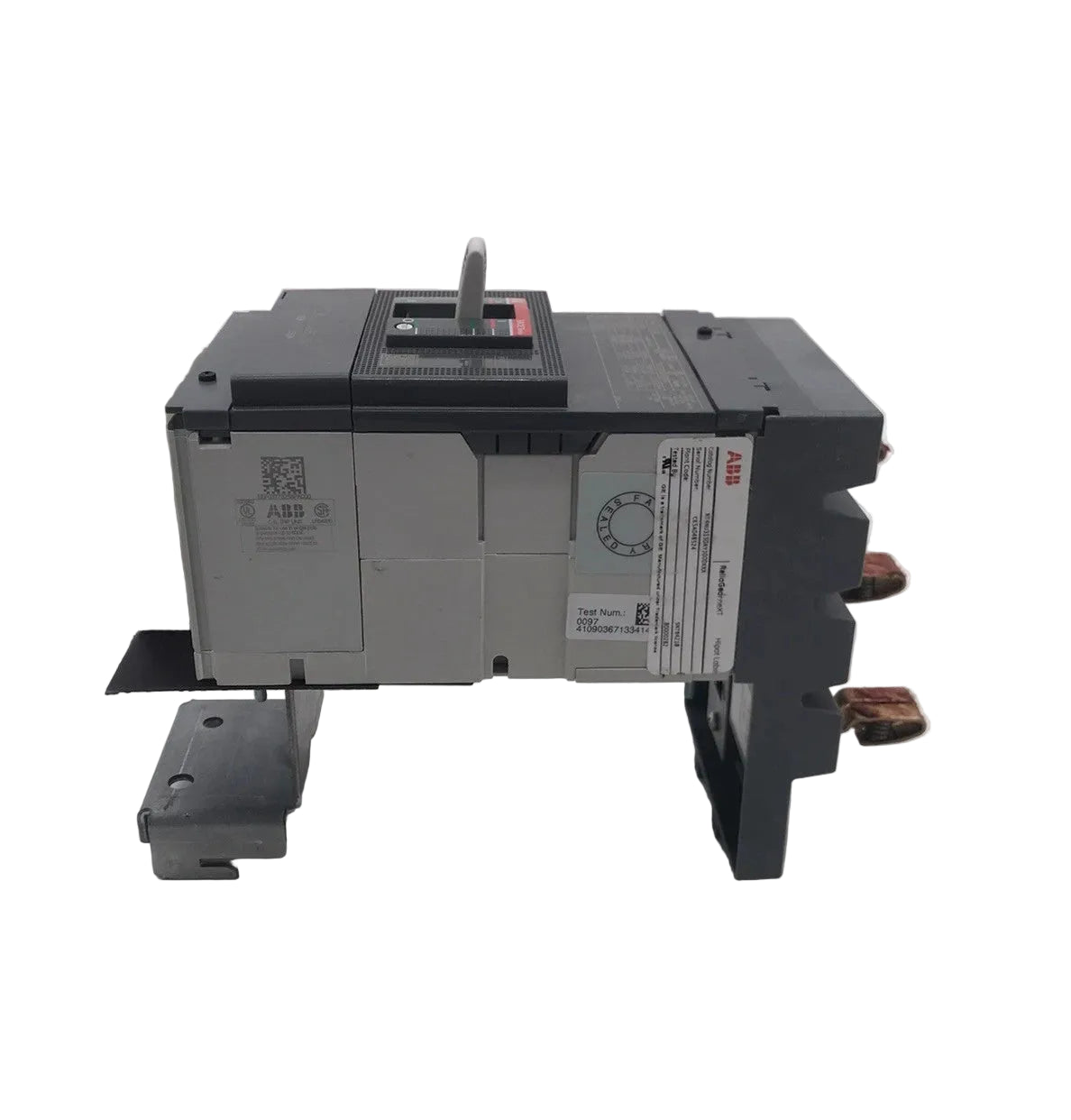

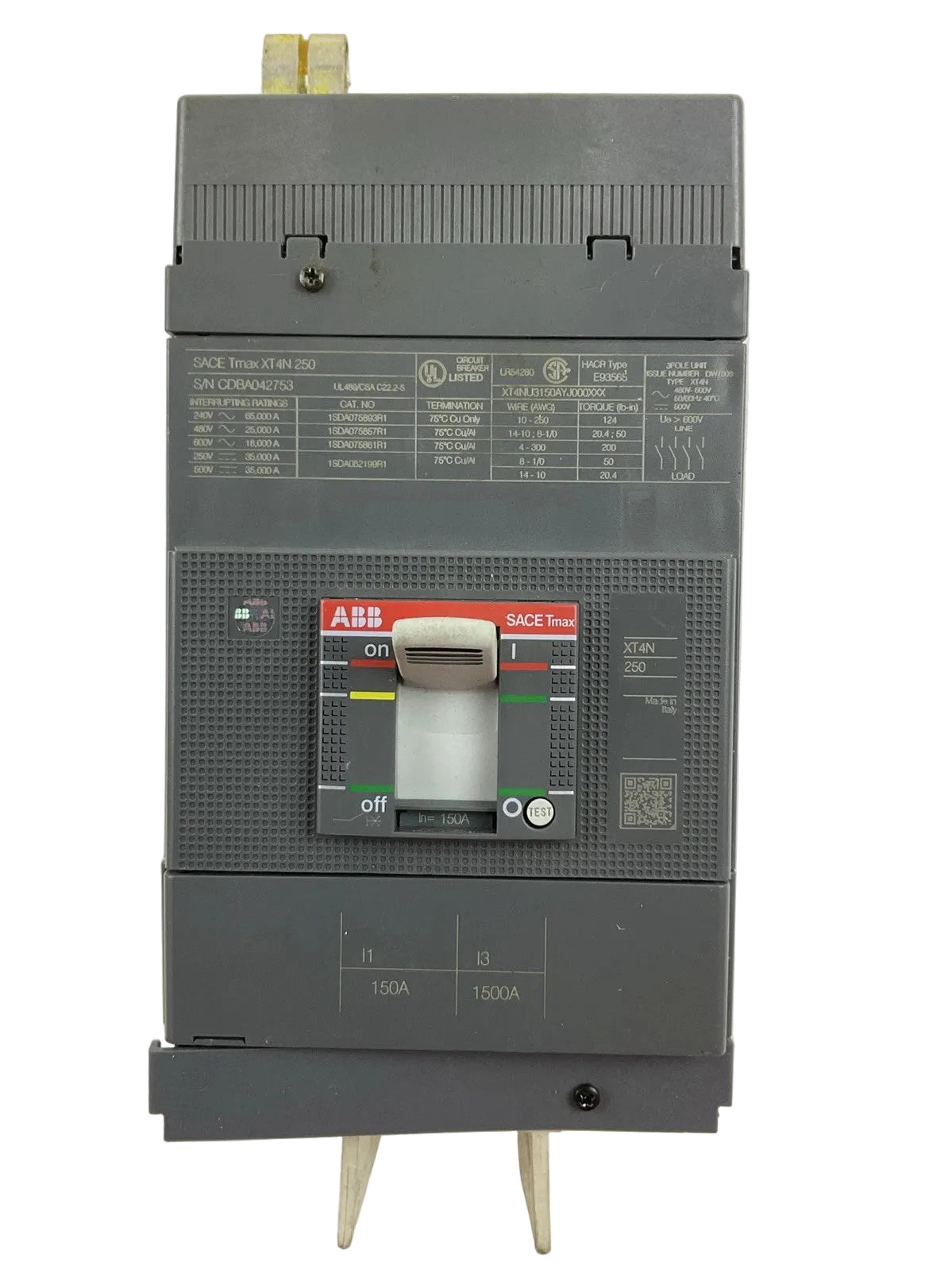

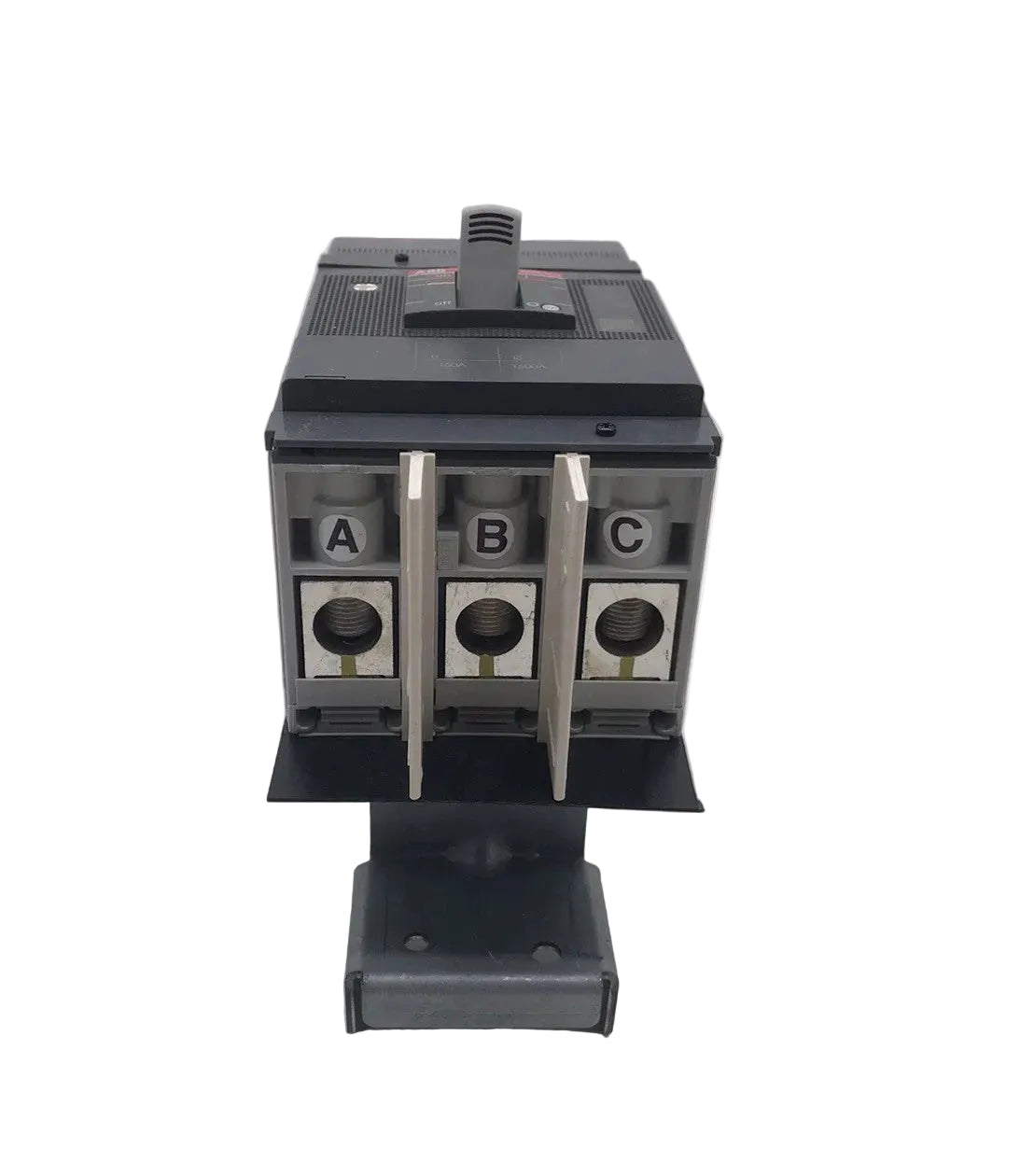

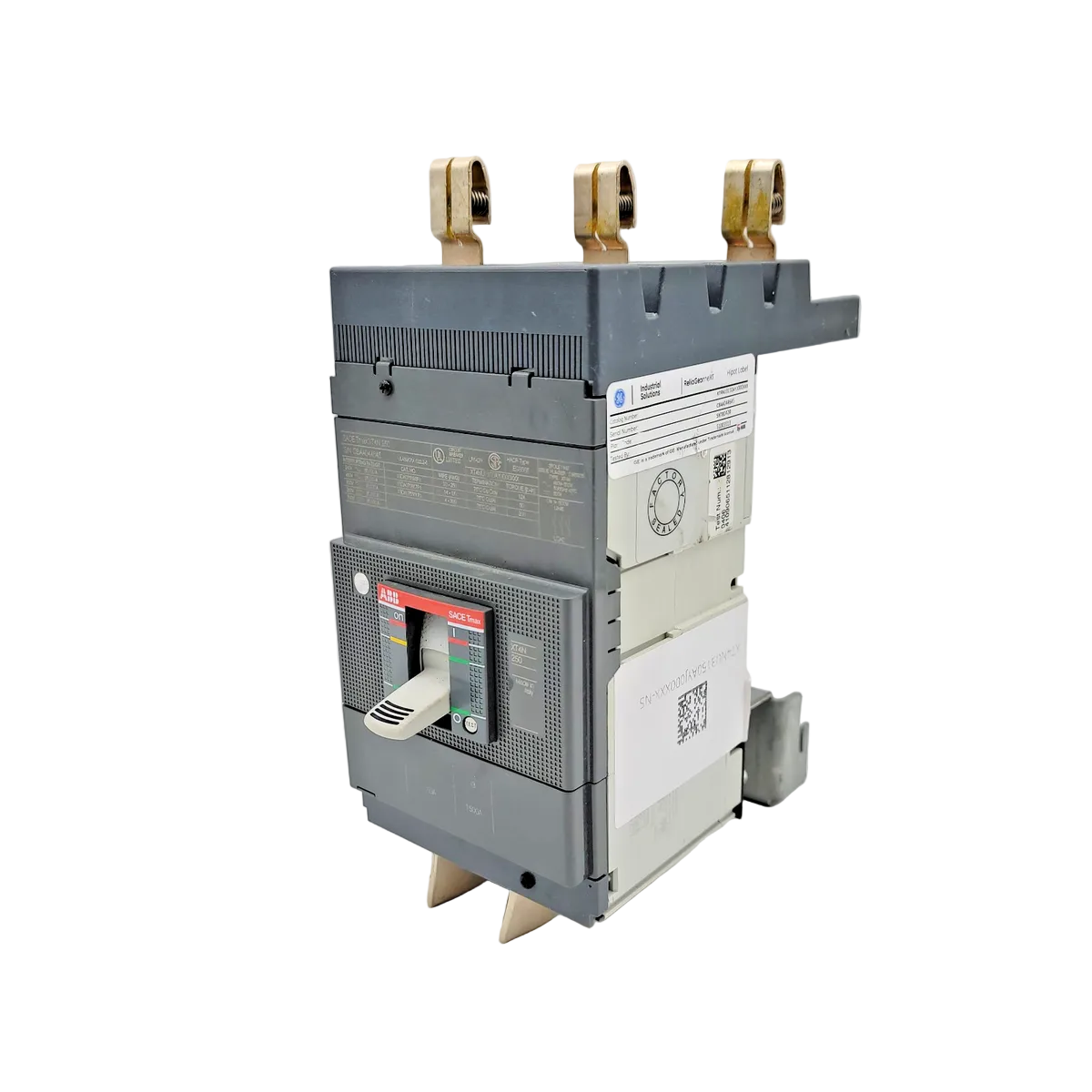

ABB XT4NU3150AYJ000XXX 150A Molded Case Circuit Breaker
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XT4NU3150AYJ000XXX
Description
The ABB XT4NU3150AYJ000XXX is a three-pole molded case circuit breaker from the SACE Tmax XT series, designed to provide overcurrent protection in electrical distribution systems. Rated at 150 A with a voltage rating of up to 600 VAC, it features a thermal-magnetic trip mechanism to protect compatible circuits against overloads and short circuits in commercial and industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ABB |
| Category | Electrical Distribution |
| Part Number | XT4NU3150AYJ000XXX |
| Subcategory | Molded Case Circuit Breaker |
| Product Family | SACE Tmax XT |
| Frame Size | XT4N |
| Rated Current | 150 A |
| Rated Voltage | 600 VAC |
| Number of Poles | 3 |
| Trip Unit | Fixed Thermal-Magnetic (TMF) |
| Interrupting Capacity | 25 kA at 480 VAC; 18 kA at 600 VAC |
| Connection Type | Bolt-on / fixed mounting |
| Terminal Compatibility | Copper and aluminum; verify terminal kit |
| Weight | 2.27 kg |
Information About XT4NU3150AYJ000XXX
The ABB XT4NU3150AYJ000XXX is a three-pole molded case circuit breaker from the SACE Tmax XT series. It features a 150 A rated current and a fixed thermal-magnetic trip unit designed to protect electrical circuits against overloads and short circuits. The breaker supports installations rated up to 600 VAC, with an interrupting capacity of 25 kA at 480 VAC and 18 kA at 600 VAC according to product listings. It is intended for compatible panelboards, switchboards, and industrial power distribution systems.
Key Features:
- 150 A Rated Current: Designed for electrical distribution applications requiring a 150 amp circuit breaker.
- 600 VAC Voltage Rating: Suitable for compatible low-voltage AC power distribution systems.
- Three-Pole Configuration: Provides protection for three-phase electrical circuits.
- Thermal-Magnetic Protection: Uses fixed thermal and magnetic trip elements to respond to overload and short-circuit conditions.
- High Interrupting Capacity: Rated at 25 kA at 480 VAC and 18 kA at 600 VAC according to product listings.
- SACE Tmax XT Series: Part of ABB's molded case circuit breaker product family.
- Bolt-On Installation: Designed for compatible panelboard and switchboard mounting arrangements.
- Cu/Al Terminal Compatibility: Listed terminal kits support compatible copper and aluminum conductors; verify the supplied terminal configuration.
The ABB XT4NU3150AYJ000XXX provides thermal-magnetic circuit protection for compatible industrial and commercial electrical distribution applications.
