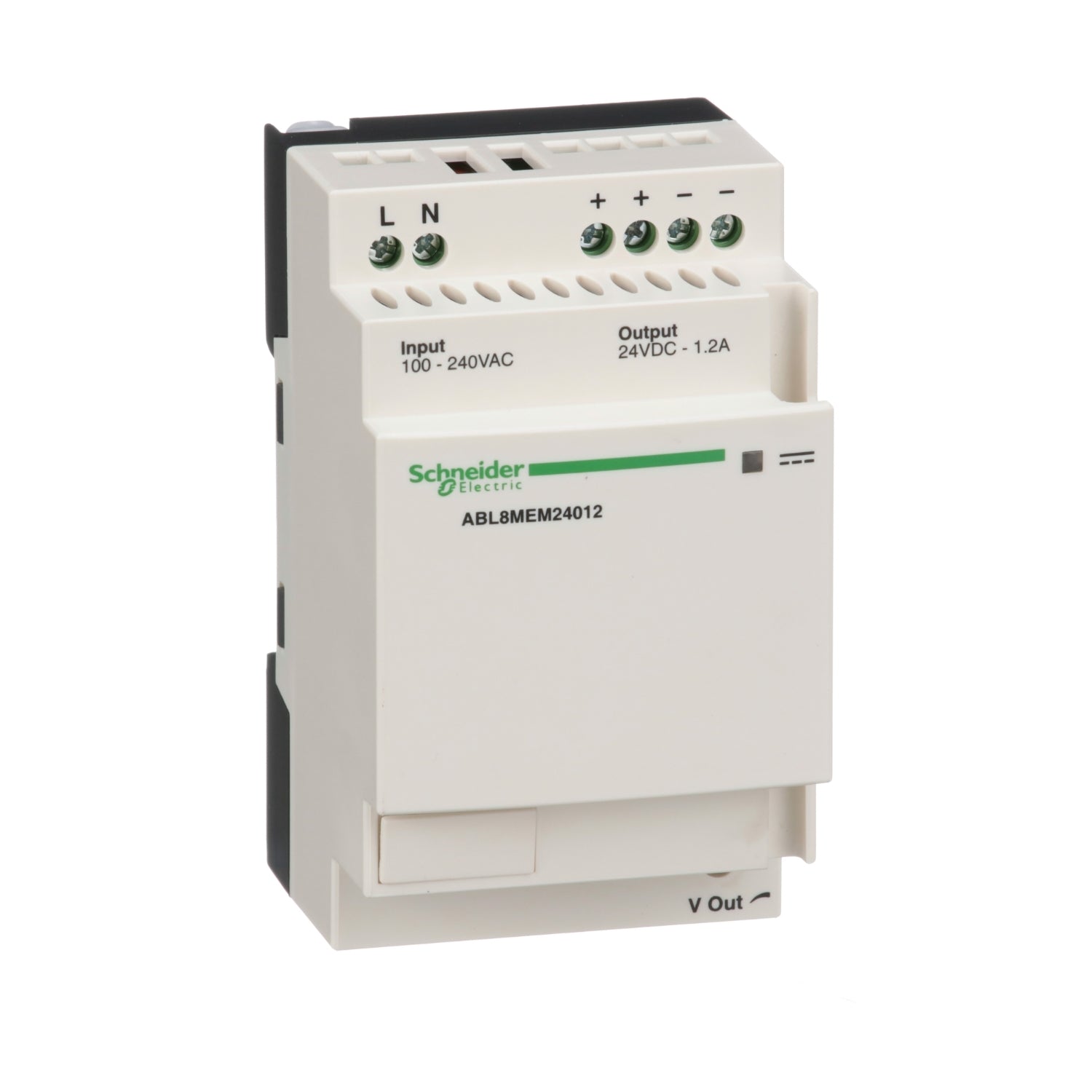

ABL8MEM24012 | Schneider Electric | Regulated Switch Power Supply
- Regular price
- $164.00
- Sale price
- $164.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ABL8MEM24012
Description
The ABL8MEM24012 is a regulated switch mode power supply (SMPS) designed for the Phaseo ABL7 ABL8 series. It provides direct current voltage, with a rated input ranging from 100V to 240V AC. The rated output current is 1.2A at 24V DC, generating a power output of 30W.
This power supply is suitable for various applications in industrial, commercial, and residential settings, including conveying, packaging, control, food & beverage, mining, oil & gas, and water management. It installs conveniently on DIN rail and measures 54mm in width.
Featuring automatic reset functionality, it clears short-term faults without disturbing ongoing operations, enabling system restarts seamlessly. Additionally, its power reserve capability allows it to deliver a current of 150% its nominal rating for a short time, facilitating the handling of simultaneous inrush current during process startup.
With a weight of 0.195kg, this industrial-grade power supply conforms to UL 508, CSA C22.2 No60950-1 standards and is certified by KC, TUV60950-1, RCM, EAC, CCSAus, CSA22-2 No 950, and CULus 508. For protection, the GB2CB07, GB2CD07, GB2DB07, and GB2CS07 miniature circuit breakers are recommended.
Technical Specifications
|
Part # |
ABL8MEM24012 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply |
|
Range of Product |
Modicon Power Supply |
|
Product or Component Type |
Power supply |
|
Power supply type |
Regulated switch mode |
|
Nominal input voltage |
100...240 V AC phase to phase, terminal(s): L1-L2 |
|
Input voltage limits |
85...264 V AC |
|
Rated power in W |
30 W |
|
Output voltage |
24 V DC |
|
Power supply output current |
1.2 A |
|
Input protection type |
Integrated fuse (not interchangeable) |
|
Inrush current |
20 A |
|
Power Factor |
0.50 |
|
Efficiency |
82 % |
|
Output voltage adjustment |
22.2...28.8 V adjustable |
|
Power dissipation in W |
6.6 W |
|
Current consumption |
0.4 A at 240 V |
|
Residual ripple |
250 mV |
|
Output protection type |
Against short-circuits |
|
Status LED |
1 LED (green) output voltage |
|
Depth |
59 mm |
|
Height |
100 mm |
|
Width |
54 mm |
|
Net weight |
0.195 kg |
|
Output coupling |
Parallel |
|
Marking |
CE |
|
Operating altitude |
2000 m |
|
IP degree of protection |
IP20 conforming to EN/IEC 60529 |
|
Ambient air temperature for operation |
-25…55 °C (without) |
|
Ambient air temperature for storage |
-40…70 °C |
|
Relative humidity |
0…90 % during operation |
|
Overvoltage category |
Class II conforming to VDE 0106-1 |
|
Dielectric strength |
3000 V between input and output |
Information About ABL8MEM24012
The ABL8MEM24012 is a regulated switch mode power supply (SMPS) designed for the Phaseo ABL7 ABL8 series. It delivers direct current voltage and features a rated input ranging from 100V to 240V AC, with a rated output current of 1.2A at 24V DC, providing a rated power output of 30W.
This power supply is well-suited for supplying DC voltage essential for various automation equipment utilized across industrial, commercial, and residential applications. Its versatility makes it suitable for applications including conveying, packaging, control, food & beverage, mining, oil & gas, and water management.
With a width of 54mm, the ABL8MEM24012 installs conveniently on DIN rail systems. It incorporates an automatic reset feature, enabling the clearing of short-term faults without disrupting ongoing operations, allowing systems to restart seamlessly without the intervention of maintenance engineers.
Moreover, it offers a power reserve feature, capable of delivering a current up to 150% of its nominal rating for a short duration, facilitating the handling of simultaneous inrush currents during process startup.
Weighing 0.195kg, this power supply is specifically designed for industrial use and is intended for rail mounting applications. It complies with UL 508, CSA C22.2 No60950-1 standards, and holds certifications from KC, TUV60950-1, RCM, EAC, CCSAus, CSA22-2 No 950, and CULus 508.
For protection, the GB2CB07, GB2CD07, GB2DB07, and GB2CS07 miniature circuit breakers are recommended. Additionally, it features LED diagnostics indicators on the front panel, facilitating instant troubleshooting.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
