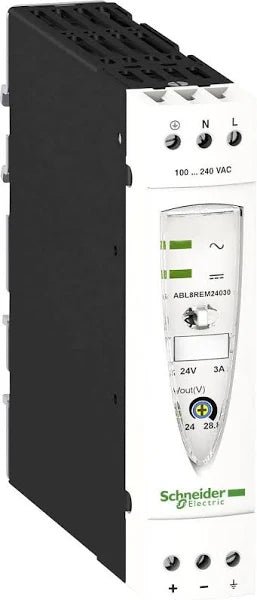

ABL8REM24030 | Schneider Electric | Regulated switch power supply
- Regular price
- $437.00
- Sale price
- $437.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ABL8REM24030
Description
The regulated switch power supply, designated for Modicon applications, operates with either one or two phases, accepting input voltages ranging from 100 to 240V AC. It outputs 24V with a current capacity of 3A. This new generation of wide-operating-range universal power supplies boasts enhanced functionality and user services through ingenious function modules. Primarily intended for simple machines and applications, these modular and optimal power supplies are highly valued for their extreme compactness.
Technical Specifications
Specifications
|
Part # |
ABL8REM24030 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply |
|
Power supply type |
Regulated switch mode |
|
Input voltage |
100-240 V AC phase to phase (L1-L2) |
|
Output voltage |
24 V DC |
|
Rated power in W |
72 W |
|
Input protection type |
Integrated fuse (not interchangeable) |
|
Power supply output current |
3 A |
|
Ambient air temperature for |
0-60 °C without derating |
|
Input voltage limits |
100-250 V |
|
Network frequency |
47-63 Hz |
|
Inrush current |
<= 30 A |
|
Cos phi |
0.65 |
|
Efficiency |
> 85 % |
|
Output voltage limits |
100-120 % adjustable |
|
Power dissipation in W |
12.7 W |
|
Current consumption |
0.83 A at 240 V |
|
Line and load regulation |
+/- 3 % |
|
Residual ripple |
<= 200 mV |
|
Holding time |
>= 10 ms at 100 V |
Information About ABL8REM24030
The regulated switch power supply, specifically designed as a Modicon power supply, is engineered to operate seamlessly with 1 or 2 phases, accepting input voltages ranging from 100 to 240 volts AC. The output voltage is consistently maintained at 24 volts with a maximum output current capacity of 3 amperes (3A).
This new generation of wide operating range universal power supplies showcases a myriad of innovative functions and user services facilitated by ingenious function modules. Engineered for the purpose of serving simple machines and applications, these power supplies are characterized by their modular design and optimal performance, greatly valued for their exceptional compactness.
These power supplies are adept at catering to a broad spectrum of applications, from industrial settings to commercial environments, where reliability, efficiency, and compactness are paramount considerations. They serve as crucial components in diverse systems, ensuring stable and reliable power distribution to various equipment and machinery.
With their versatile design, these power supplies can accommodate both single-phase and two-phase electrical systems, providing flexibility in installation and usage across different environments and operational requirements. The wide input voltage range of 100 to 240 volts AC enables compatibility with various power sources commonly found in industrial and commercial settings, ensuring seamless integration and operation.
Moreover, the output voltage of 24 volts DC is well-suited for powering a wide range of devices and equipment commonly used in industrial automation and control systems. The maximum output current rating of 3 amperes ensures sufficient power delivery to meet the demands of connected loads while maintaining stable voltage levels.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
