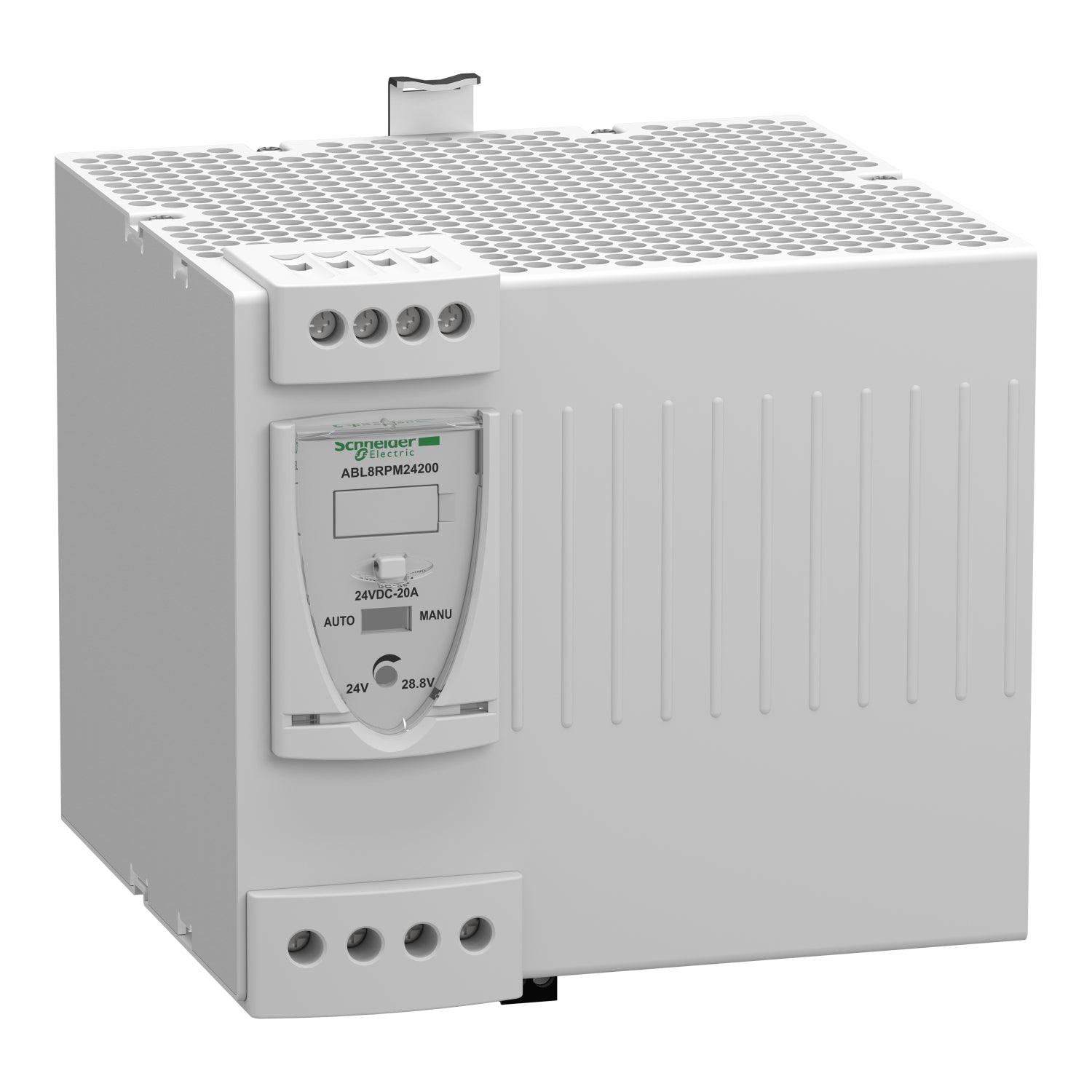

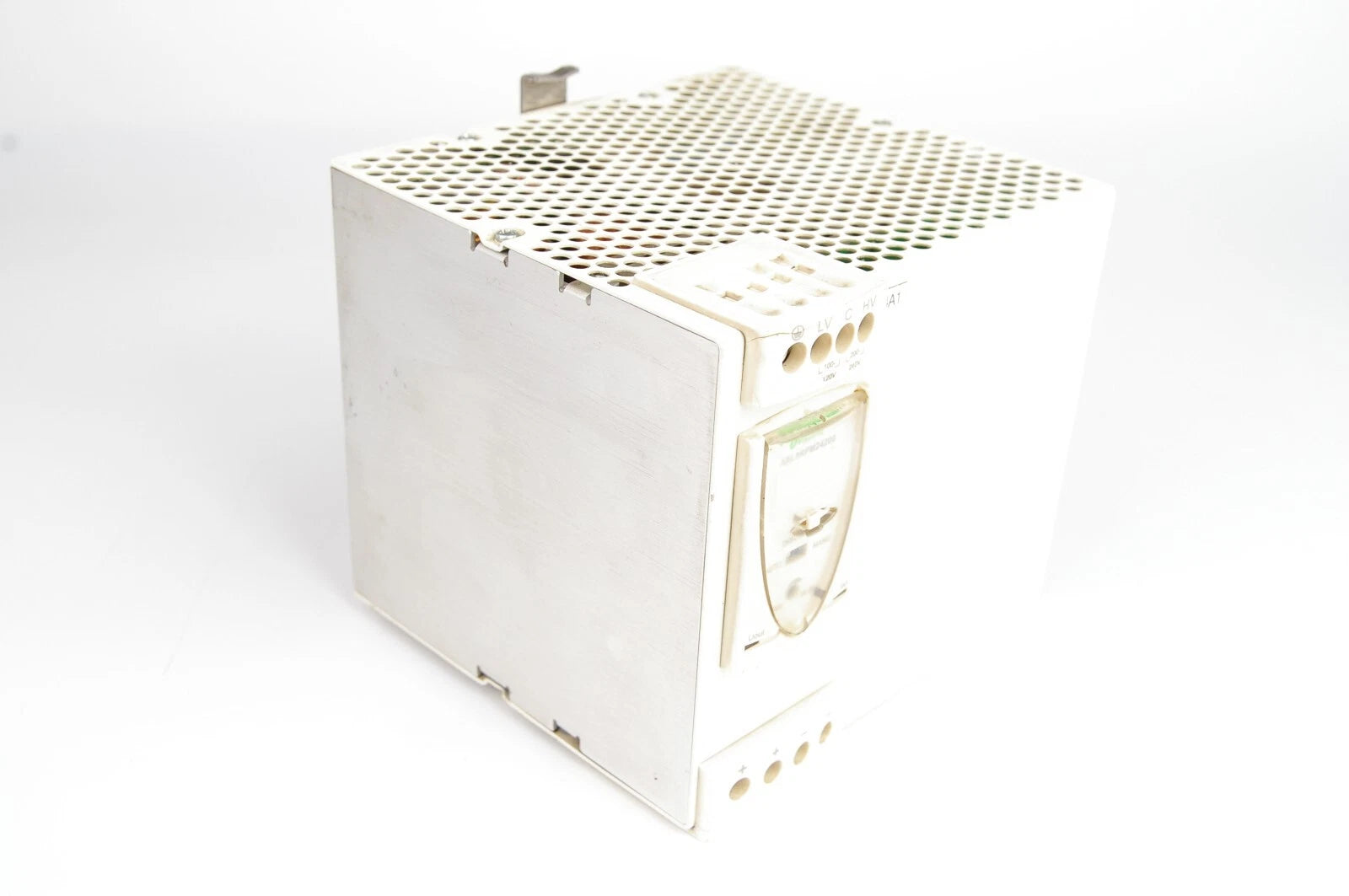

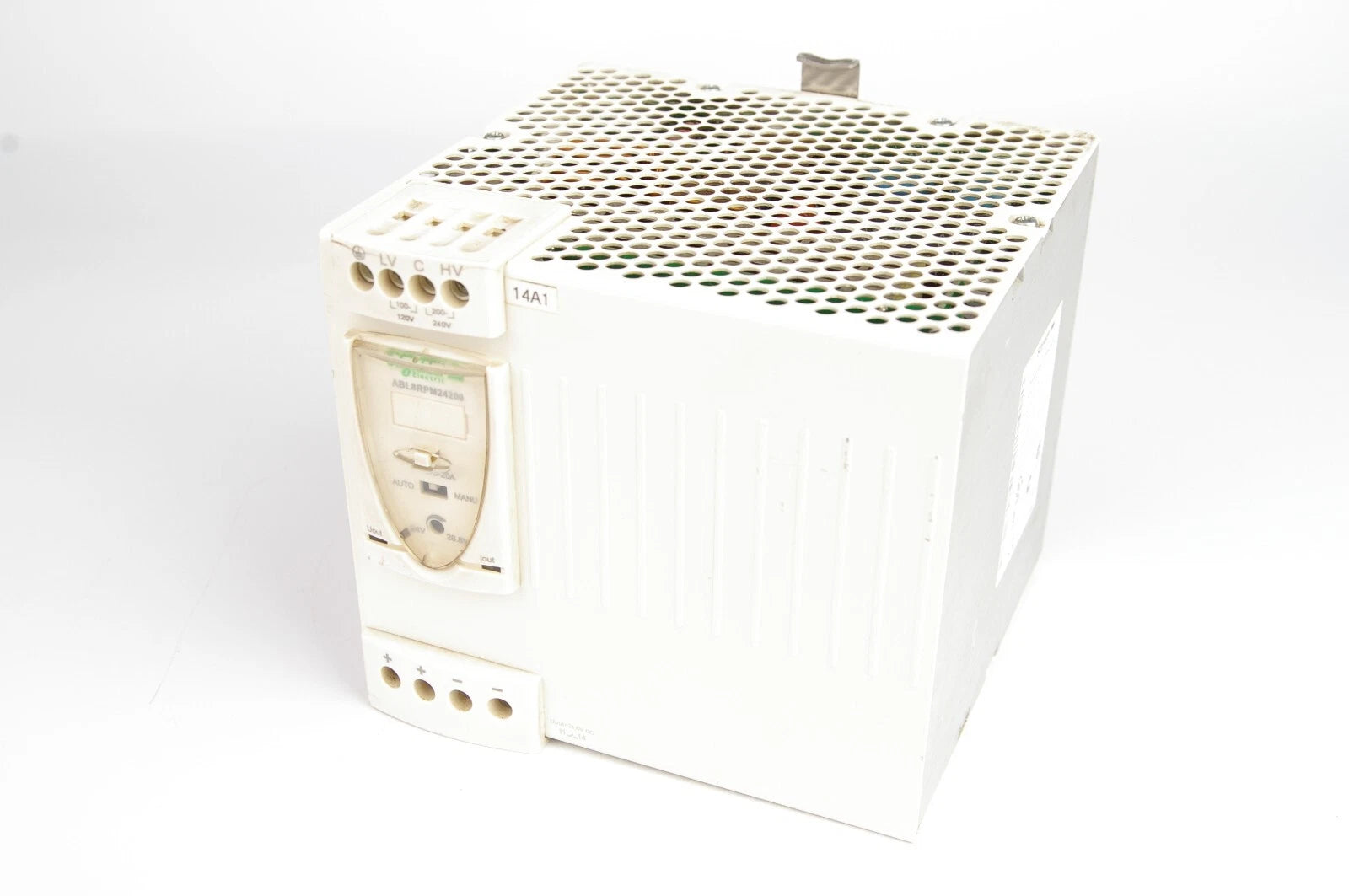

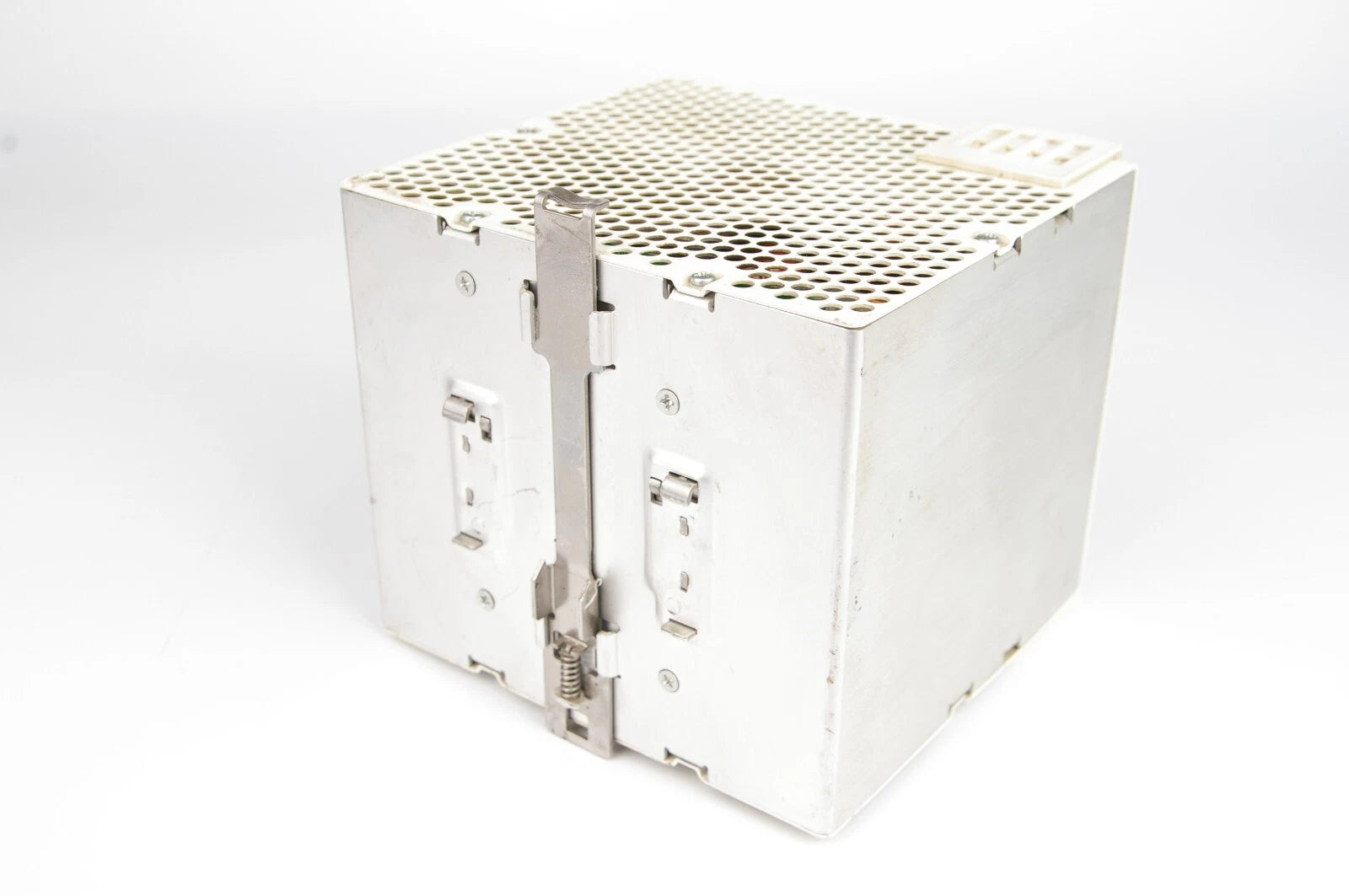

ABL8RPM24200 | Schneider Electric Regulated switch power supply, modicon power supply, 1 or 2 phase, 100 to 240V, 24V, 20A
- Regular price
- $365.00
- Sale price
- $365.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ABL8RPM24200
Description
Regulated switch mode power supply unit (SMPS PSU) - Schneider Electric (Phaseo ABL8) - Input voltage (AC; L-N) 100-120V / (AC L-L) 200-240V - Output voltage 24Vdc - Rated current 20A - Rated power 480W
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ABL8RPM24200 |
| Category | Power Supplies |
| Subcategory | Power Supply |
| Main function | Power supply unit |
| Product series / family name | Phaseo |
| Sub-range name | ABL8 |
| Functions | Regulated switch mode power supply unit (SMPS PSU) |
| Type of network | Single phase Three phase |
| Protection settings | (Short-circuits) manual or automatic reset (Overload) manual or automatic reset (Thermal) automatic reset (Overvoltage) 30-32V - manual reset |
| Efficiency | 88-100% |
| Degree of protection | IP20 |
| Ambient air temperature for operation | (without derating) -25-60 °C |
| Rated Voltage (DC) | 24 V |
| Supply voltage | (AC; L-N) 100-120 V (AC L-L) 200-240 V |
| Rated current | 20 A |
| Rated power | 480 W |
| Power factor (cos phi) | 0.68 (240Vac) |
| Mounting mode | DIN rail |
| Minimum temperature | -25 °C |
| Maximum temperature | +60 °C |
Information About ABL8RPM24200
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,600kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD16 and GB2CD12 thermal magnetic circuit breakers The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
Regulated switch mode power supply unit (SMPS PSU) - Schneider Electric (Phaseo ABL8) - Input voltage (AC; L-N) 100-120V / (AC L-L) 200-240V - Output voltage 24Vdc - Rated current 20A - Rated power 480W
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ABL8RPM24200 |
| Category | Power Supplies |
| Subcategory | Power Supply |
| Main function | Power supply unit |
| Product series / family name | Phaseo |
| Sub-range name | ABL8 |
| Functions | Regulated switch mode power supply unit (SMPS PSU) |
| Type of network | Single phase Three phase |
| Protection settings | (Short-circuits) manual or automatic reset (Overload) manual or automatic reset (Thermal) automatic reset (Overvoltage) 30-32V - manual reset |
| Efficiency | 88-100% |
| Degree of protection | IP20 |
| Ambient air temperature for operation | (without derating) -25-60 °C |
| Rated Voltage (DC) | 24 V |
| Supply voltage | (AC; L-N) 100-120 V (AC L-L) 200-240 V |
| Rated current | 20 A |
| Rated power | 480 W |
| Power factor (cos phi) | 0.68 (240Vac) |
| Mounting mode | DIN rail |
| Minimum temperature | -25 °C |
| Maximum temperature | +60 °C |
Information About ABL8RPM24200
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,600kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD16 and GB2CD12 thermal magnetic circuit breakers The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
