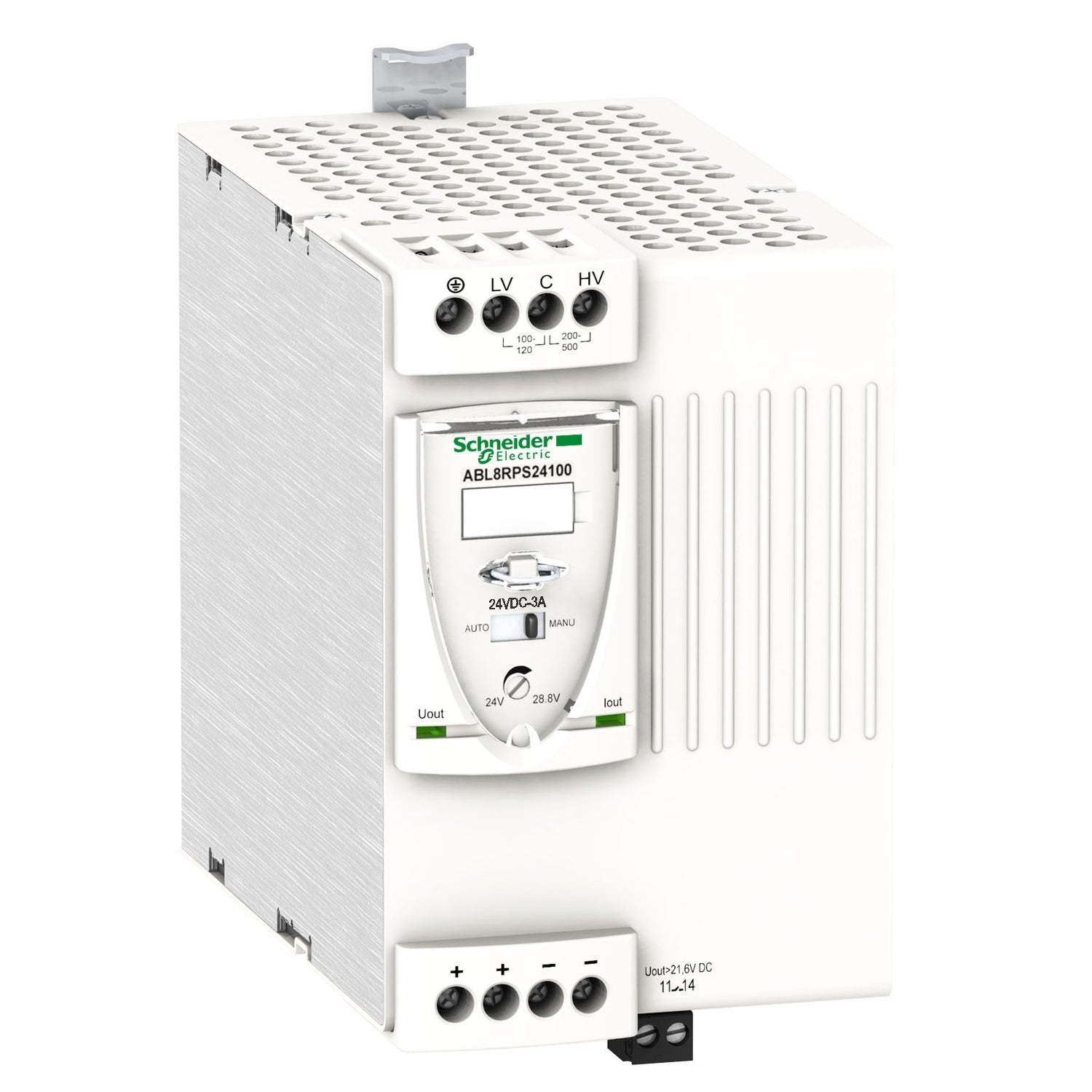

Part #: ABL8RPS24100 Manufactured by: Schneider Electric

ABL8RPS24100 | Schneider Electric Universal power supply

Regular price
$262.00
Sale price
$262.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The ABL8RPS24100 is a Phaseo universal power supply capable of operating with 1 or 2 phases. It is a regulated switch mode...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ABL8RPS24100
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ABL8RPS24100 | Schneider Electric Universal power supply
    ABL8RPS24100 | Schneider Electric Universal power supply
ABL8RPS24100 | Schneider Electric Universal power supply
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ABL8RPS24100

Description / Specifications

Description

The ABL8RPS24100 is a universal power supply belonging to the Phaseo series, functioning with either 1 or 2 phases. It operates within a voltage range of 100 to 500 volts, providing a consistent output of 24 volts at a maximum current of 10 amperes. With a rated power output of 240 watts, this regulated switch mode power supply (SMPS) delivers direct current voltage.

Equipped with auto protection reset, it ensures seamless operation and system restart in case of short-term faults, without requiring manual intervention. Some units offer both auto and manual protection reset options. The power supply features a Power Factor Correction (PFC) filter for efficient energy utilization.

Designed for industrial use, particularly for rail mounting, this power supply conforms to UL 508 and CSA C22.2 No 60950-1 standards. Recommended thermal magnetic circuit breakers for its protection include the GB2CD08, GB2CD12, GV2RT07, and GV2ME07 models.



Technical Specifications



Part #

ABL8RPS24100

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Power Supplies

Subcategory

Power Supply

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Nominal input voltage

100-120V AC single phase (N-L1)

Nominal input voltage

200-500V AC phase to phase (L1-L2)

Rated power in W

240 W

Output voltage

24 V DC

Power supply output current

10 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

Low frequency harmonic currents

Inrush current

30 A

Power factor

0.68 at 240 V AC

Power factor

0.69 at 120 V AC

Efficiency

87%

Output voltage adjustment

24-28.8 V adjustable

Power dissipation in W

31 W

Provided equipment

Power factor correction filter conforming to IEC 61000-3-2

Operating altitude

2000 m

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

50-60°C with derating factor

Ambient air temperature for operation

mounting position A < 2000 m



Information About ABL8RPS24100

The ABL8RPS24100 is a universal power supply from the Phaseo series, capable of operating with either 1 or 2 phases. It delivers direct current voltage through regulated switch mode power supply (SMPS) technology. With a rated input voltage ranging from 100V to 500V AC, it generates a rated output current of 10A at 24V DC, resulting in a maximum power output of 240W.

Most units of this power supply feature auto protection reset functionality, while a select few offer auto/manual protection reset options. Some models are designed for direct panel mounting. Equipped with a Power Factor Correction (PFC) filter, it enhances energy efficiency.

For immediate troubleshooting, the power supply includes LED diagnostics indicators on the front panel. Automatic reset capability enables the clearing of short-term faults and system restart without the need for manual intervention, ensuring uninterrupted operation.

With a width of 85mm, it is designed for DIN rail installation. Weighing 1,000kg, it is suitable for industrial applications and conforms to UL 508 and CSA C22.2 No 60950-1 standards. For protection, recommended thermal magnetic circuit breakers include GB2CD08, GB2CD12, GV2RT07, and GV2ME07 models.
