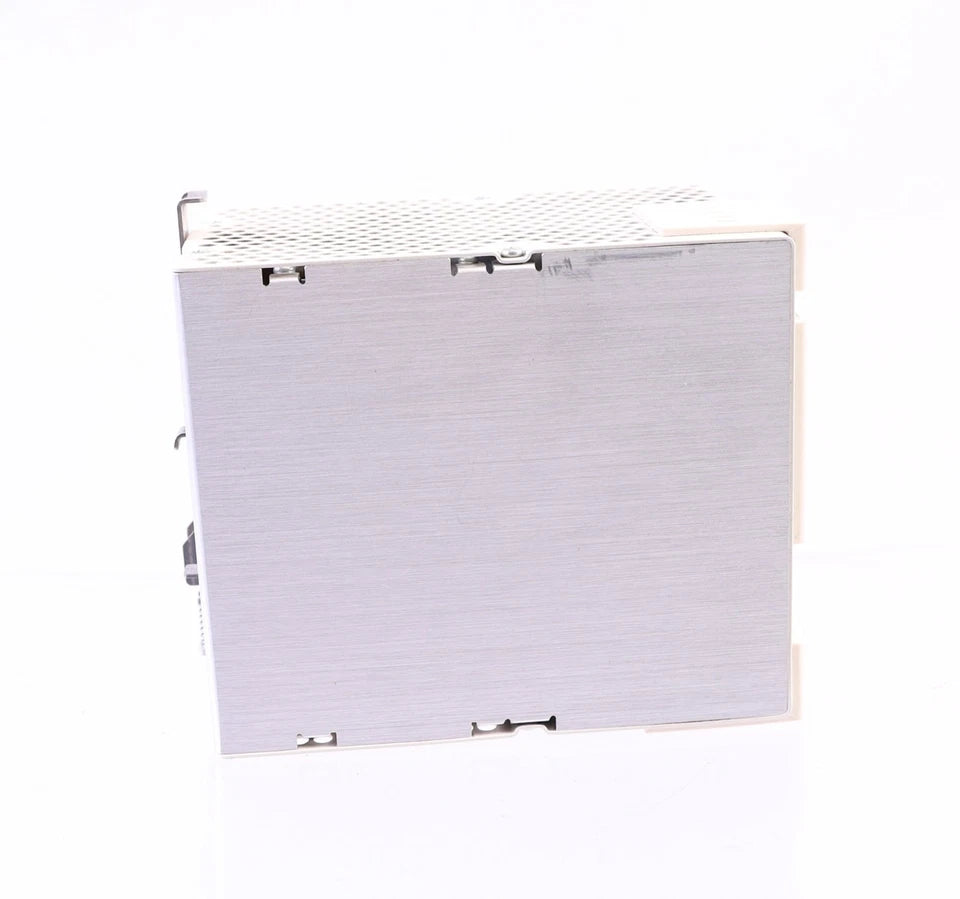

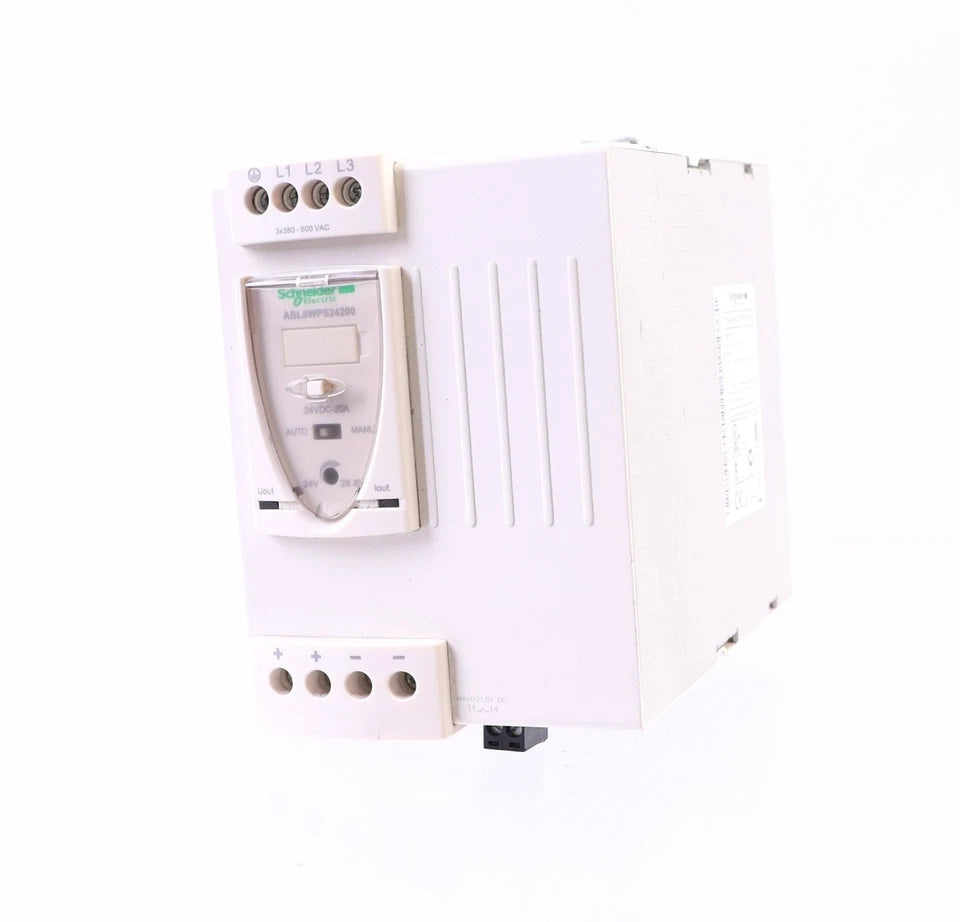

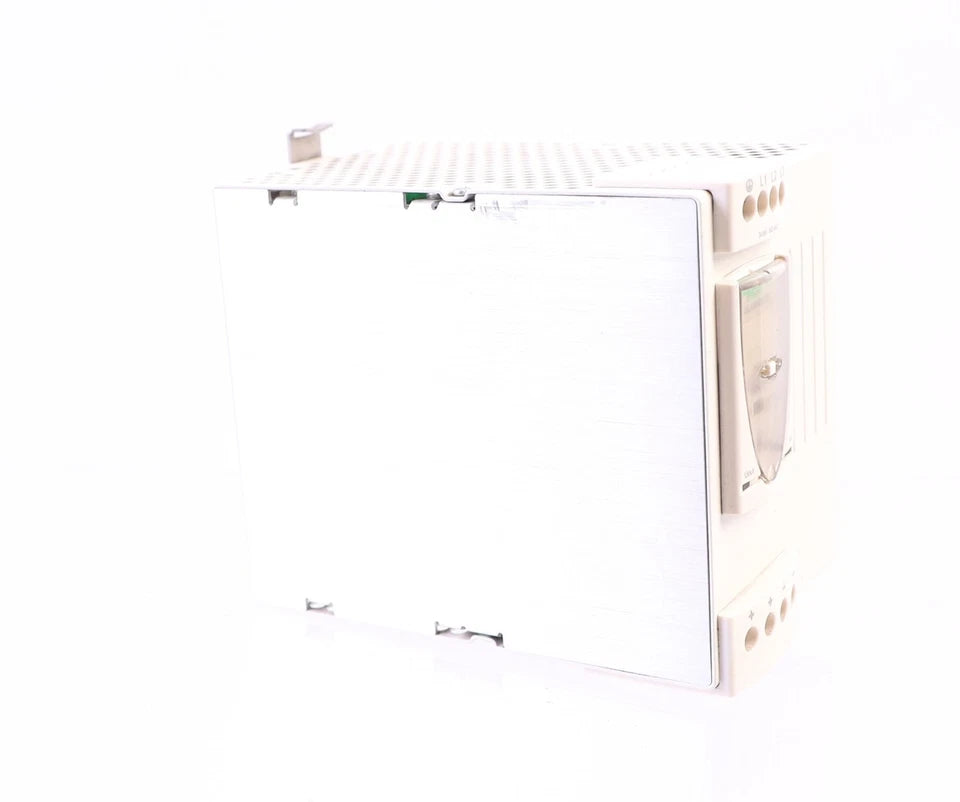

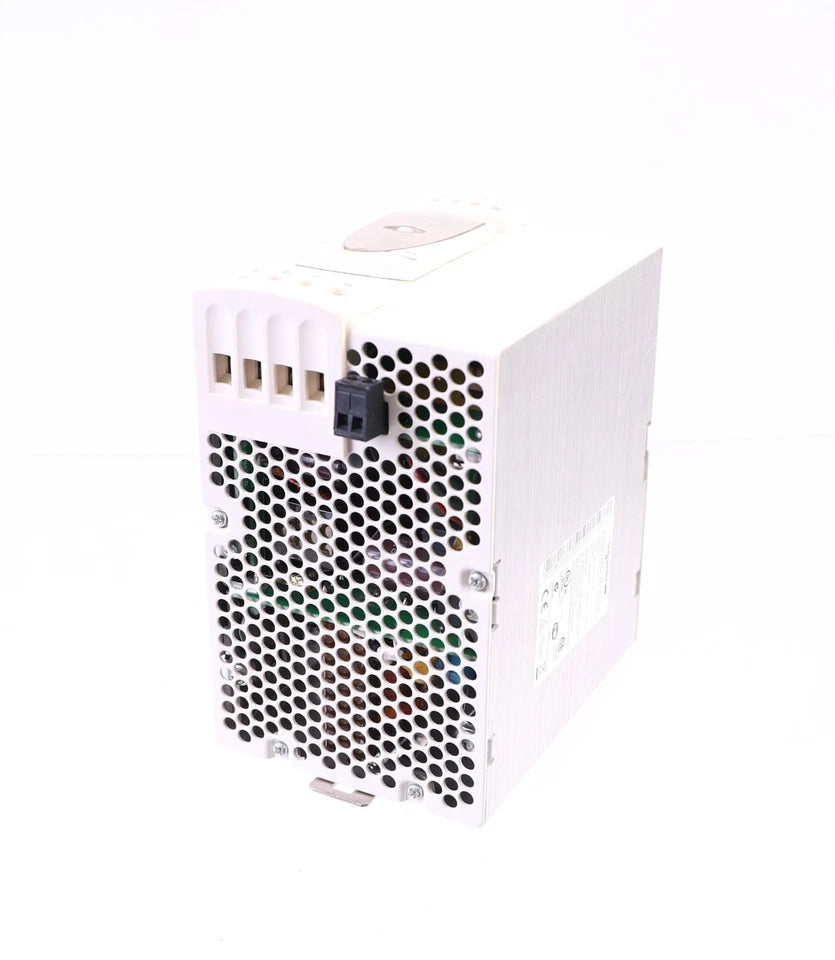

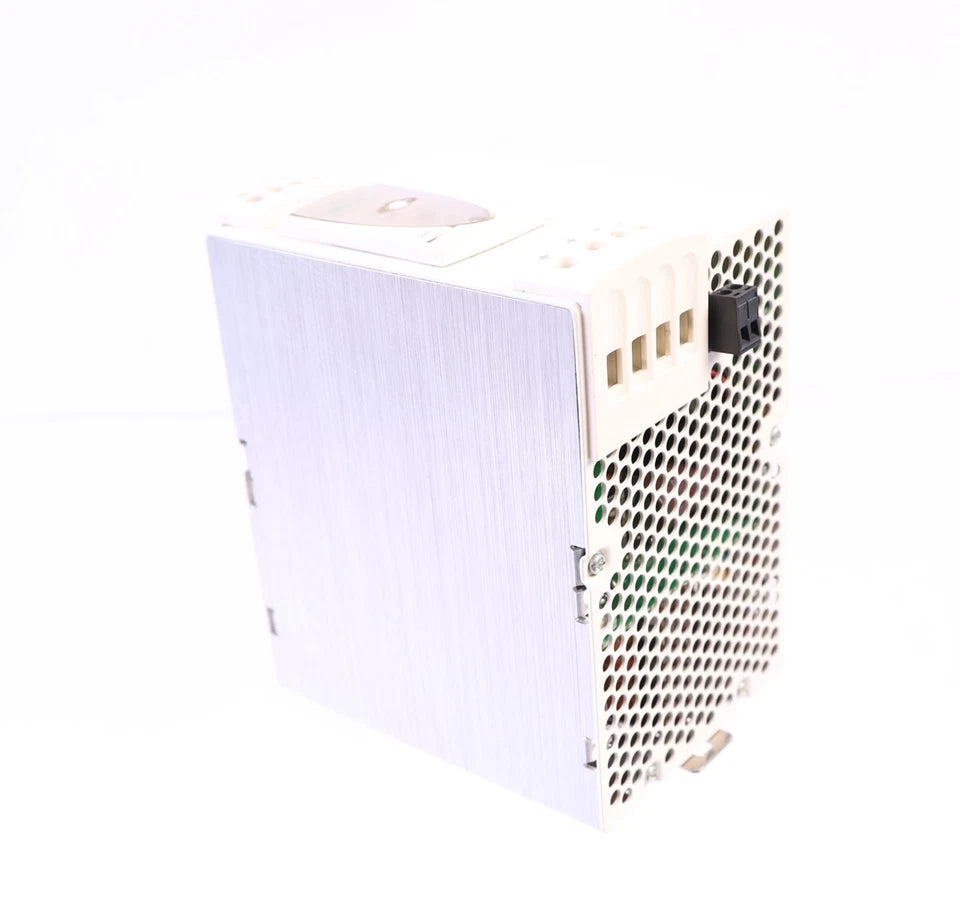

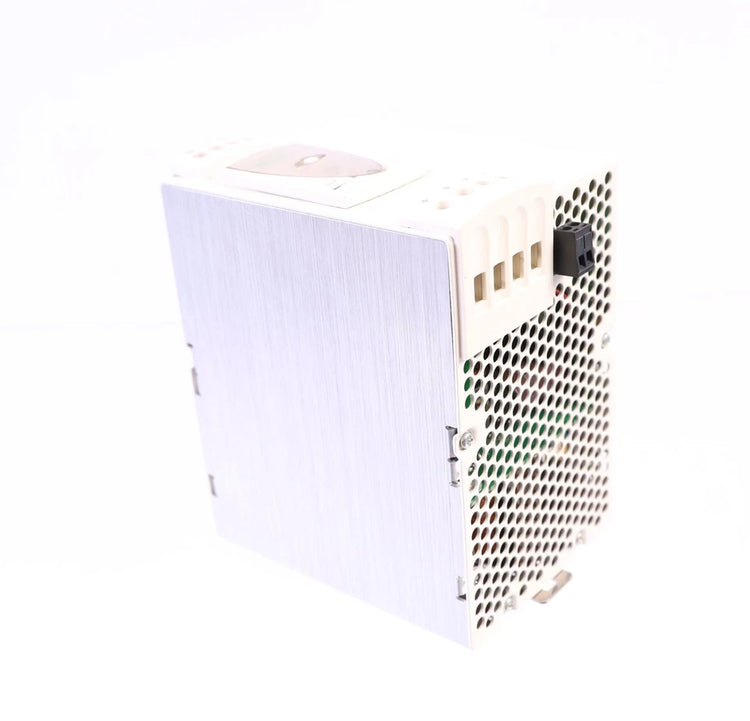

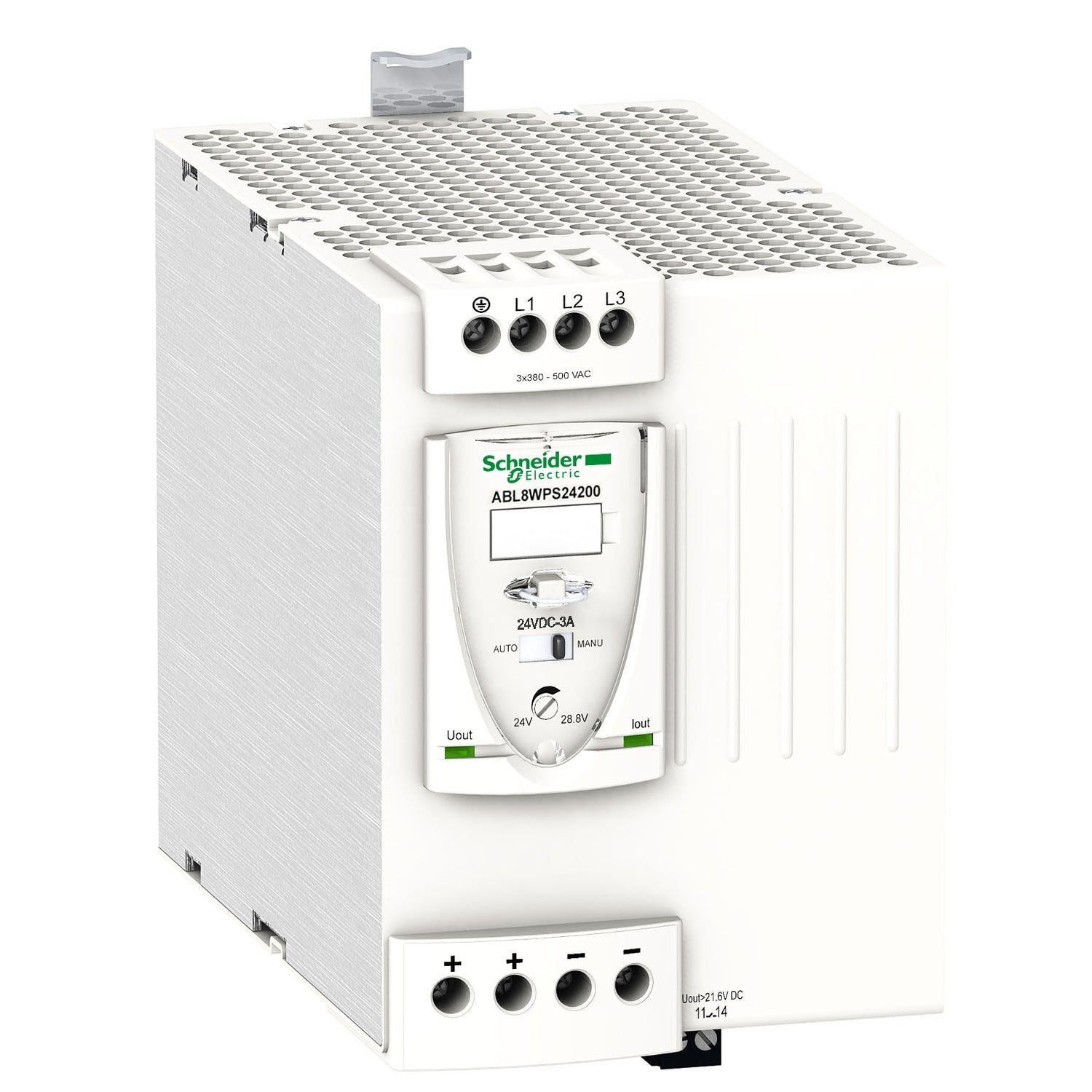

ABL8WPS24200 | Schneider Electric Regulated switch power supply
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ABL8WPS24200
Description
The ABL8WPS24200 is a regulated switch mode power supply (SMPS) designed for industrial applications. It operates on three phases, accepting input voltages ranging from 380V to 500V AC and providing a stable output voltage of 24V DC at a maximum current of 20A. With a rated power output of 480W, this power supply is suitable for various automation equipment used in industrial, commercial, and residential settings, including conveying, packaging, control, food & beverage, mining, oil & gas, and water applications.

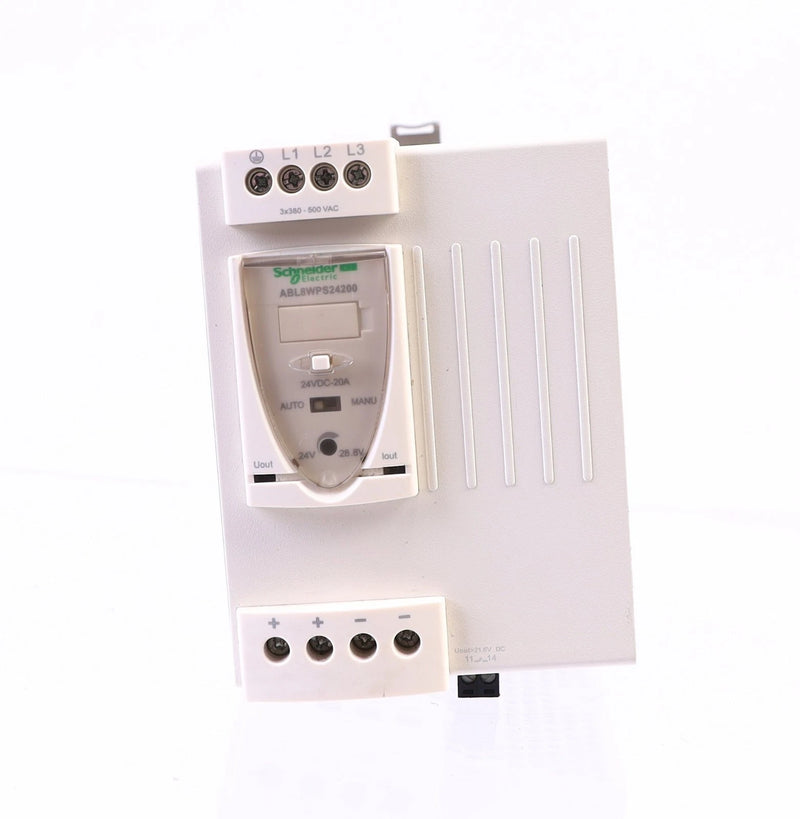

Featuring automatic reset functionality, the ABL8WPS24200 clears short-term faults automatically, allowing systems to restart without manual intervention, thus minimizing downtime. LED diagnostic indicators on the front panel enable quick troubleshooting, enhancing operational efficiency.
Technical Specifications
|
Part # |
ABL8 WPS24200 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply Range of produc |
|
Product or component type |
Power supply |
|
Power supply type |
Regulated switch mode |
|
Nominal input voltage |
380...500 V AC three phase, terminal(s): L1, L2, L3 |
|
Rated power in W |
480 W |
|
Output voltage |
24 V DC |
|
Power supply output current |
20 A |
|
Permissible temporary current boost |
1.5 x In (for 4 s) |
|
Anti-harmonic filter |
Low frequency harmonic currents |
|
Input voltage limits |
320...550 V AC |
|
Inrush current |
25 A |
|
Power factor |
0.65 at 24 V DC |
|
Efficiency |
92 % |
|
Output voltage adjustment |
24...28.8 V adjustable |
|
Power dissipation in W |
38.4 W |
|
Provided equipment |
Power factor correction filter conforming to IEC 61000-3-2 |
|
Operating altitude |
2000 m |
|
IP degree of protection |
IP20 conforming to IEC 60529 |
|
Ambient air temperature for operation |
50…60 °C with derating factor mounting position A < 2000 m |
Information About ABL8WPS24200
The ABL8WPS24200 is a regulated switch mode power supply (SMPS) designed to provide direct current voltage. It features a rated input voltage range of 380V to 500V AC, with a rated output current of 20A at 24V DC, resulting in a rated power output of 480W. This power supply is well-suited for delivering the necessary DC voltage to automation equipment across a range of industrial, commercial, and residential applications, including conveying, packaging, control, food & beverage, mining, oil & gas, and water systems.
One of its key features is its automatic reset capability, which clears short-term faults and allows systems to restart without the need for manual intervention, minimizing downtime and disruption to maintenance engineers on duty. Additionally, the power supply is equipped with LED diagnostics indicators on the front panel, enabling instant troubleshooting.

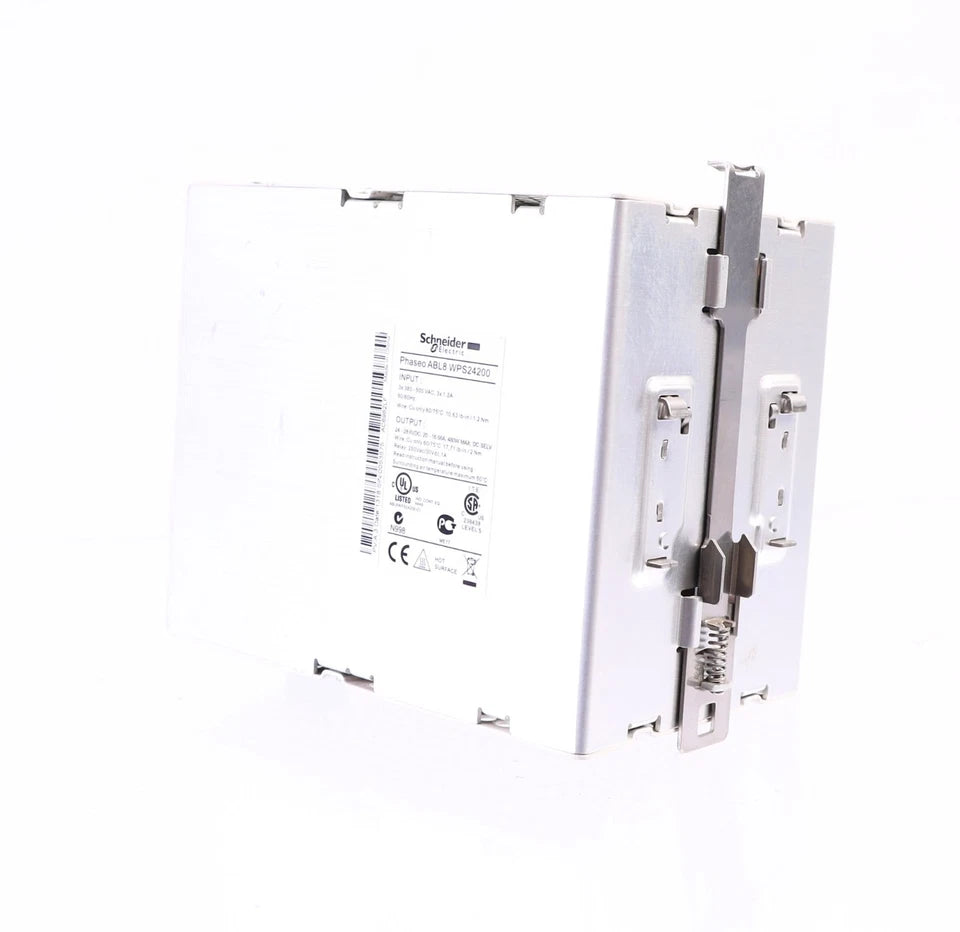

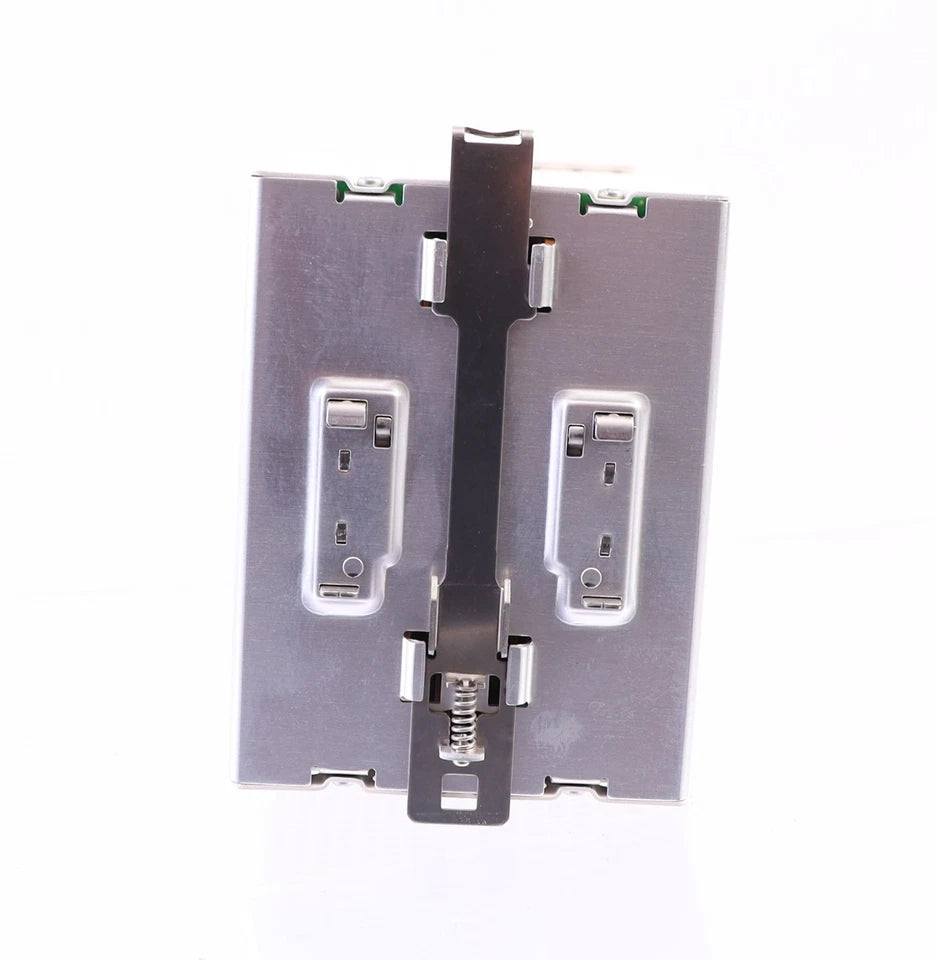

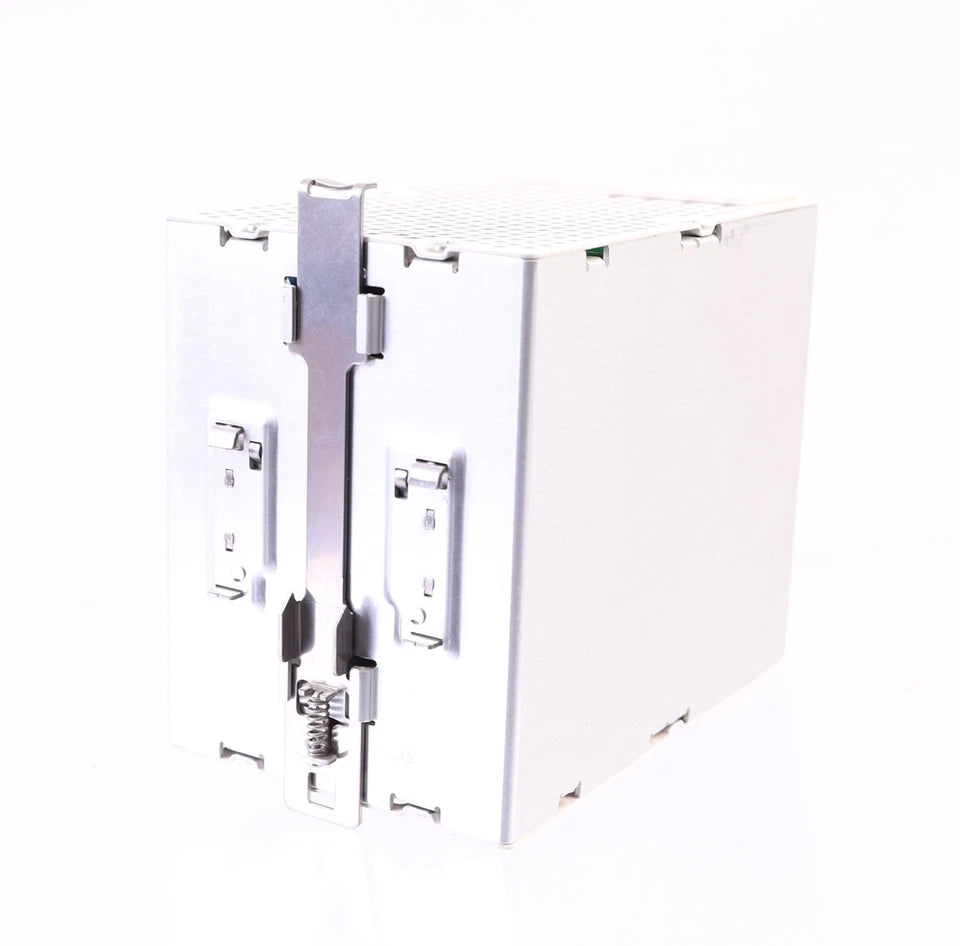

The ABL8WPS24200 provides a power reserve that allows it to deliver a current of up to 150% of its nominal rating for a short duration, facilitating the handling of simultaneous inrush currents during system startup. Its compact design and DIN rail mounting make installation straightforward, with a width of 95mm ensuring compatibility with standard mounting systems.
Designed for industrial use, the ABL8WPS24200 complies with standards such as CSA C22.2 No 60950-1 and UL 508, and it is certified by CCSAus, EAC, UL, and RCM. For added protection, the GV2ME06 thermal magnetic circuit breaker is recommended.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
