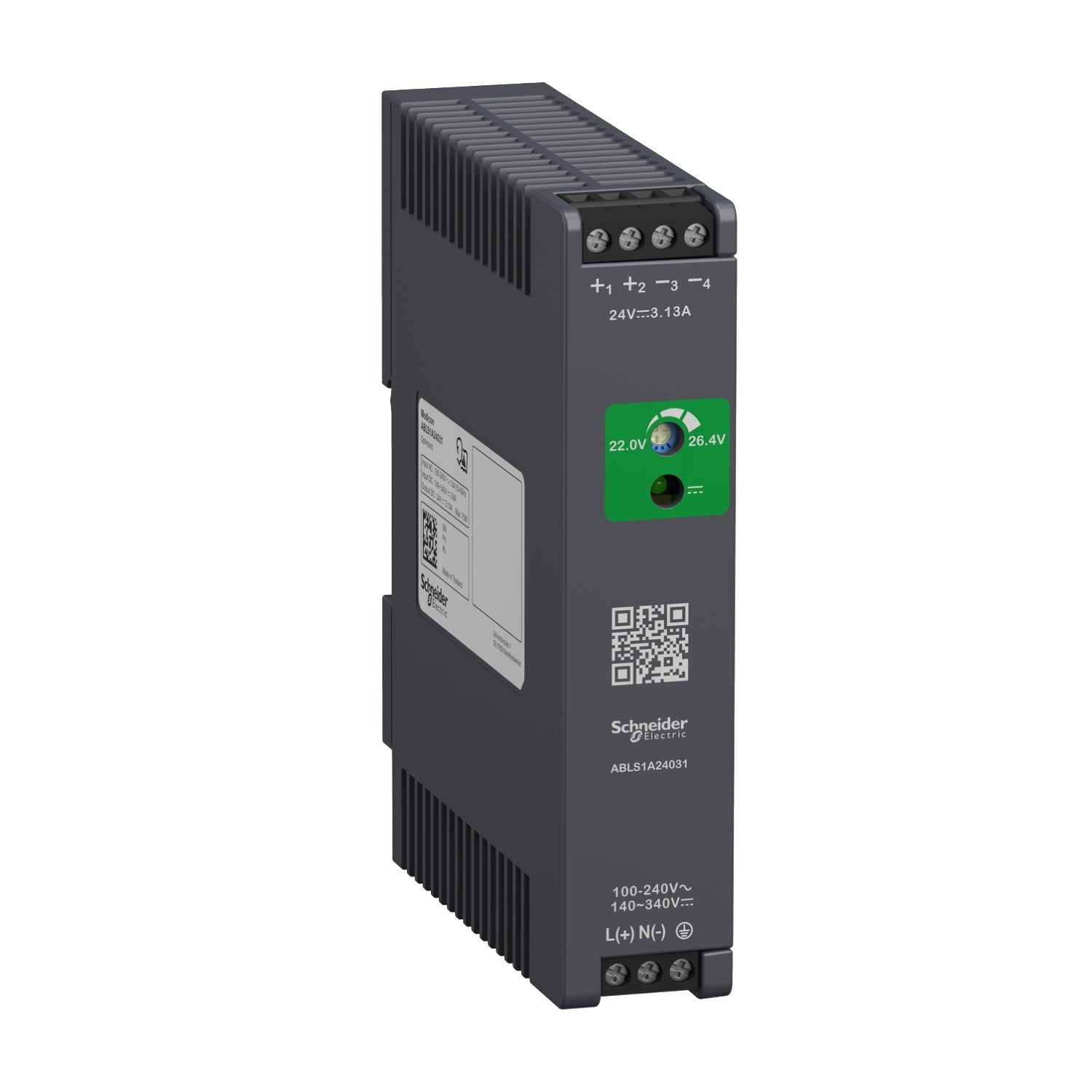

ABLS1A24031 | Schneider Electric Regulated Power Supply, 100 to 240V AC, 24V, 3.1A, single phase, Optimized
- Regular price
- $147.00
- Sale price
- $147.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ABLS1A24031
Description
The ABLS1A24031 by Schneider Electric is a single-phase regulated power supply, accepting 100-240V AC input and providing a stable 24V output at 3.1A, ensuring reliable power delivery for various industrial applications.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ABLS1A24031 |
| Category | Power Supplies |
| Subcategory | Power Supply |
| Range of product | Modicon Power Supply |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure material | Plastic |
| Input voltage | 100...240 V AC single phase100...240 V AC 2 phases140...340 V DC |
| Input voltage limits | 85...264 V AC120...375 V DC |
| Rated power in W | 75 W |
| Output voltage | 24 V DC |
| Power supply output current | 3.13 A |
| Maximum Operating Temperature | + 70 C |
| Minimum Operating Temperature | - 20 C |
Information About ABLS1A24031
This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 3,13A at 24V DC and a rated power output of 75W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 27mm, its height is 123,6mm, its depth is 102mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.220kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 10A, C curve or 13A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
