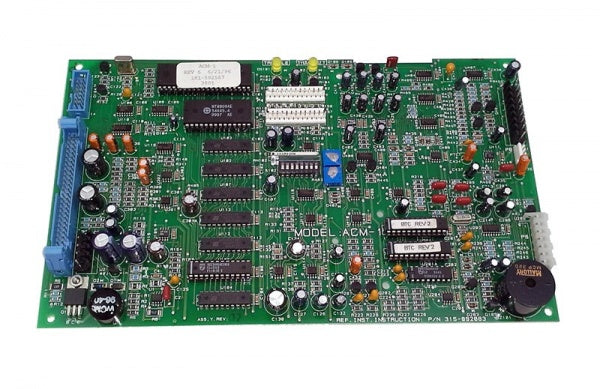

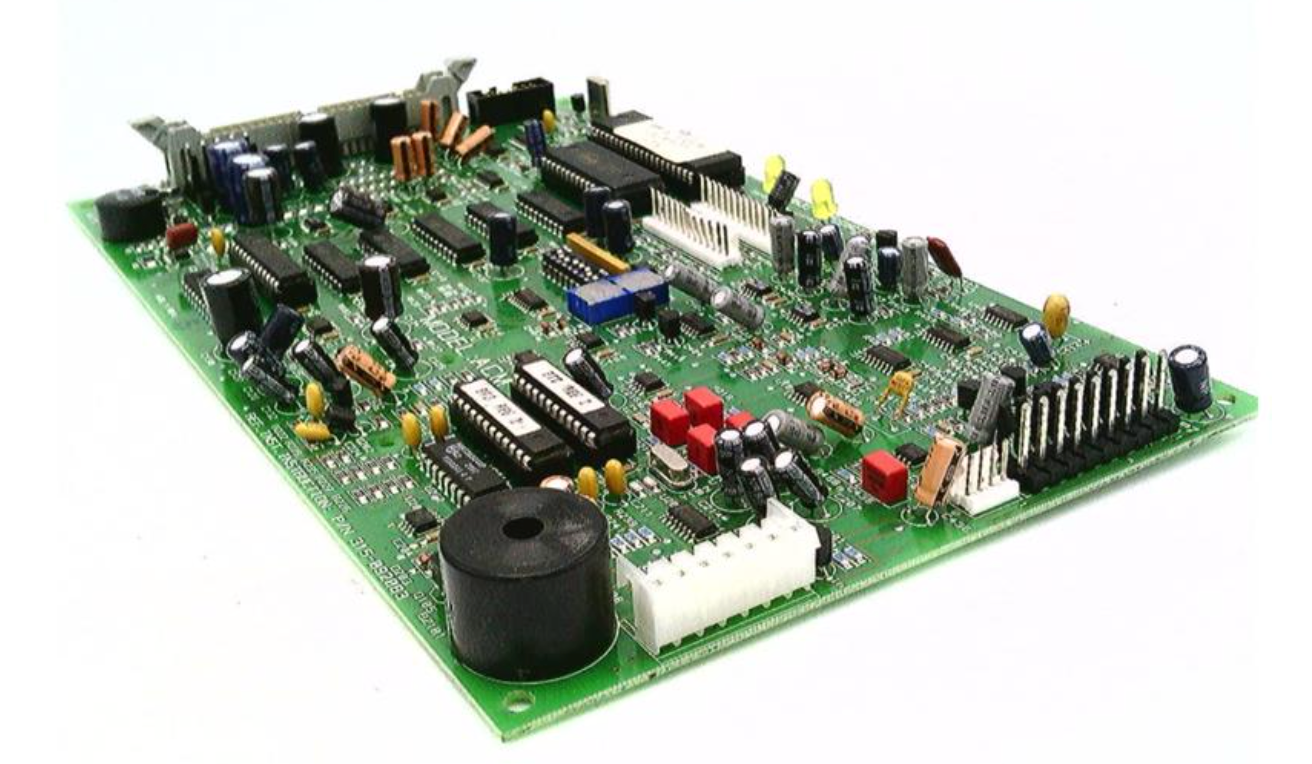

ACM-1 | Siemens Audio Control Module for MXLV Fire and Voice Systems
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: ACM-1
Description
The Siemens ACM-1 Audio Control Module serves as the master controller for MXLV audio systems, managing all voice and tone-related functions within the system. It integrates key monitoring features, including onboard LEDs for trouble indication and network polling supervision. Designed for reliability and precision, the ACM-1 ensures accurate audio signal management and supervision in fire and life safety communication systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Fire Alarm Equipment |
| Part Number | ACM-1 |
| Subcategory | Audio Control Module |
| System Compatibility | Siemens MXLV Series |
| Function | Master audio and tone control |
| Tone Generator | Supervised; supports two user-selected tones |
| Backup Support | Compatible with BTC-1 Backup Tone Card |
| Network Addressing | Occupies one network address |
| Indicators | TROUBLE LED and TRANSMIT LED |
| Monitoring | Audio and tone supervision; network polling indicator |
| Connection Port | P6 connector for tone backup |
| Operation Type | Voice and tone management controller |
| Dimensions | 14 × 14 × 3 in |
| Weight | 3 lbs |
Information About ACM-1
The ACM-1 is part of Siemens’ MXLV series, a line of advanced modules engineered for integrated fire alarm and voice evacuation systems. It functions as the main audio controller, providing tone generation, audio routing, and supervision across the MXLV network. Equipped with dedicated indicators for system trouble and transmission activity, it ensures quick visual diagnostics and dependable system operation. The ACM-1 occupies a single network address and connects seamlessly with Siemens’ MXLV control infrastructure for comprehensive voice control and tone management.
Key Features:
- Master Audio Controller: Manages all audio and voice-related operations within Siemens MXLV systems.
- Integrated Tone Generator: Provides two programmable tones, with supervised operation for critical signaling.
- LED Status Indicators: Includes a TROUBLE LED for fault detection and a TRANSMIT LED for network monitoring.
- Tone Backup Capability: Supports BTC-1 Backup Tone Card connection for redundant tone generation.
- Single Address Operation: Uses one network address, simplifying system setup and configuration.
- Supervised Audio Functions: Constantly monitors audio paths for integrity and reliability.
- Modular Integration: Easily mounts within MXLV systems and interfaces through standard connectors.
- Diagnostic Support: Trouble conditions also appear on the MKB-2 panel for centralized system supervision.
The ACM-1 delivers the reliability and precision required for dependable voice communication and control in safety-critical environments.
