Product Description P/N: ACM-16AT
Description

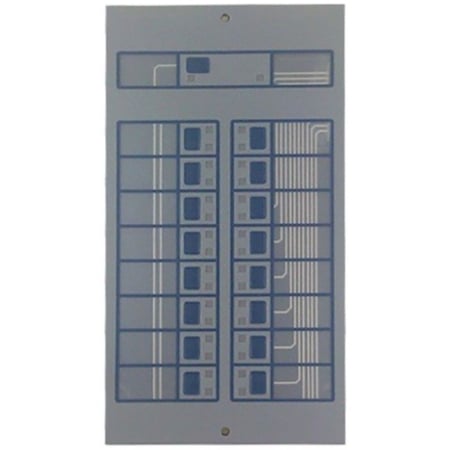

The Notifier ACM-16AT Annunciator Control Module is a 16-point alarm and trouble annunciator interface designed for use with compatible Notifier fire alarm control panels. It provides clear visual indication and control for up to sixteen system points, enhancing local monitoring and response capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | ACM-16AT |
| Subcategory | Annunciator Control Module |
| Module Type | 16-point alarm/trouble annunciator |
| Number of Points | 16 supervised inputs/outputs |
| Input Voltage | 24 VDC nominal |
| Communication Interface | Hardwired connection to compatible Notifier panels |
| Indicators | Individual LEDs for alarm, trouble, and normal states |
| Controls | Acknowledge, reset, and silence options (panel-dependent) |
| Supervision | Fully supervised wiring and signal integrity |
| Mounting Type | Panel, rack, or cabinet installation |
| Material | PCB with protective coating and labeled terminals |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Compliance | UL Listed; NFPA 72 compliant (legacy systems) |
| Dimensions | Approx. 8.5" L × 5.5" W × 1.5" D |
| Weight | 0.9 lb (0.41 kg) |
Information About ACM-16AT
The ACM-16AT is a modular annunciator control board developed by Notifier to display alarm, trouble, and supervisory status for up to sixteen zones or devices. Each point is equipped with dedicated LED indicators and control switches for acknowledgment, silence, or reset functions, depending on configuration. The module communicates directly with the control panel through supervised connections, ensuring accurate status reporting and operator interaction. Though discontinued by the manufacturer, the ACM-16AT remains a valuable component for maintaining and servicing existing Notifier annunciator installations.
Key Features:
- 16-Point Annunciation: Monitors up to sixteen alarm or trouble zones simultaneously.
- LED Status Indicators: Provides dedicated LEDs for each point to display alarm, trouble, or normal conditions.
- Notifier System Integration: Designed for use with compatible legacy Notifier fire alarm control panels.
- 24 VDC Operation: Low-voltage power ensures efficient and stable performance.
- Modular Design: Can be mounted within an annunciator enclosure or rack assembly.
- Operator Controls: Supports acknowledgment and reset functions for enhanced user interaction.
- Supervised Communication: Detects wiring faults to maintain system reliability.
- Legacy Support: Ideal for upgrading or replacing annunciator modules in existing systems.
The ACM-16AT delivers the reliability and precision required for annunciation and zone status indication in legacy fire alarm control systems.
