ACS150-03U-02A4-4 | ABB Ac Drive

Description

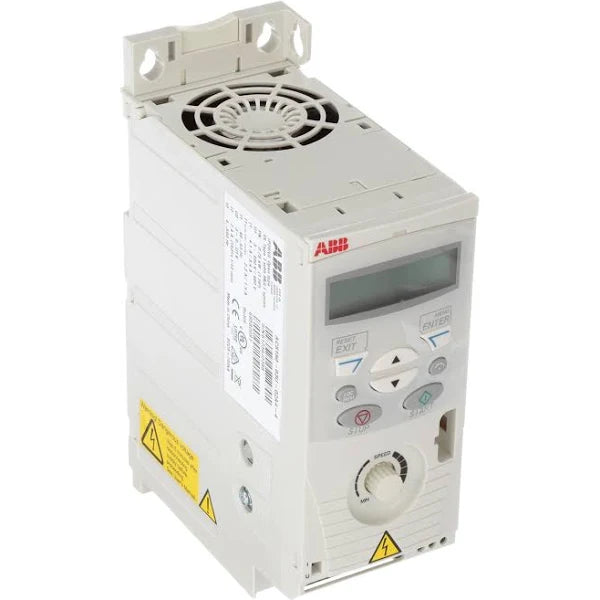

The ACS150-03U-02A4-4 is an ABB ACS150 Micro VFD, a type of AC drive with a frame size of R1. It operates on three-phase power with an input voltage range of 380-480 VAC and a frequency of 50/60 Hz. The drive has a rated input current of 4.1 Amps and an output frequency range of 0-500 Hz. It is capable of delivering an output current of 2.4 Amps and has a power rating of 0.75 kW (1 HP).

Technical Specifications

Information About ACS150-03U-02A4-4

The ACS150-03U-02A4-4, designated as an ABB ACS150 Micro VFD, operates as an AC drive with the capability to convert frequencies. Its frame size is specified as R1. The device is configured for use with three-phase systems and accepts input voltages ranging from 380 to 480 volts AC, with a frequency range of 50/60 Hz. It draws a current of 4.1 amperes and outputs frequencies in the range of 0 to 500 Hz, with an output current of 2.4 amperes. The power rating of the ACS150-03U-02A4-4 is 0.75 kilowatts or 1 horsepower.

This device is a part of the ACS150 series, designed to provide precise control over motor speeds in industrial applications. Its compact design and advanced features make it suitable for a variety of motor control tasks, offering flexibility and reliability. The ACS150-03U-02A4-4 is particularly well-suited for applications requiring moderate power outputs and variable motor speeds.

Equipped with a panel mount configuration, the ACS150-03U-02A4-4 is easily integrated into existing control systems, facilitating seamless operation. Its IP20 rating ensures protection against solid objects, making it suitable for installation in various industrial environments. The device operates within an ambient temperature range of -10 to 40 degrees Celsius, ensuring reliable performance even in challenging conditions.

The ACS150-03U-02A4-4 offers precise frequency control, allowing users to adjust motor speeds according to specific requirements. With its wide frequency output range, it accommodates a variety of motor types and applications. The device's ability to handle a range of input voltages and frequencies enhances its versatility and usability in diverse industrial settings.

Manufacturer information

ABB, a pioneering technology leader, specializes in electrification, robotics, automation, and industrial solutions. With a global presence, ABB delivers innovative products and services for various industries, ensuring sustainable and efficient operations.
