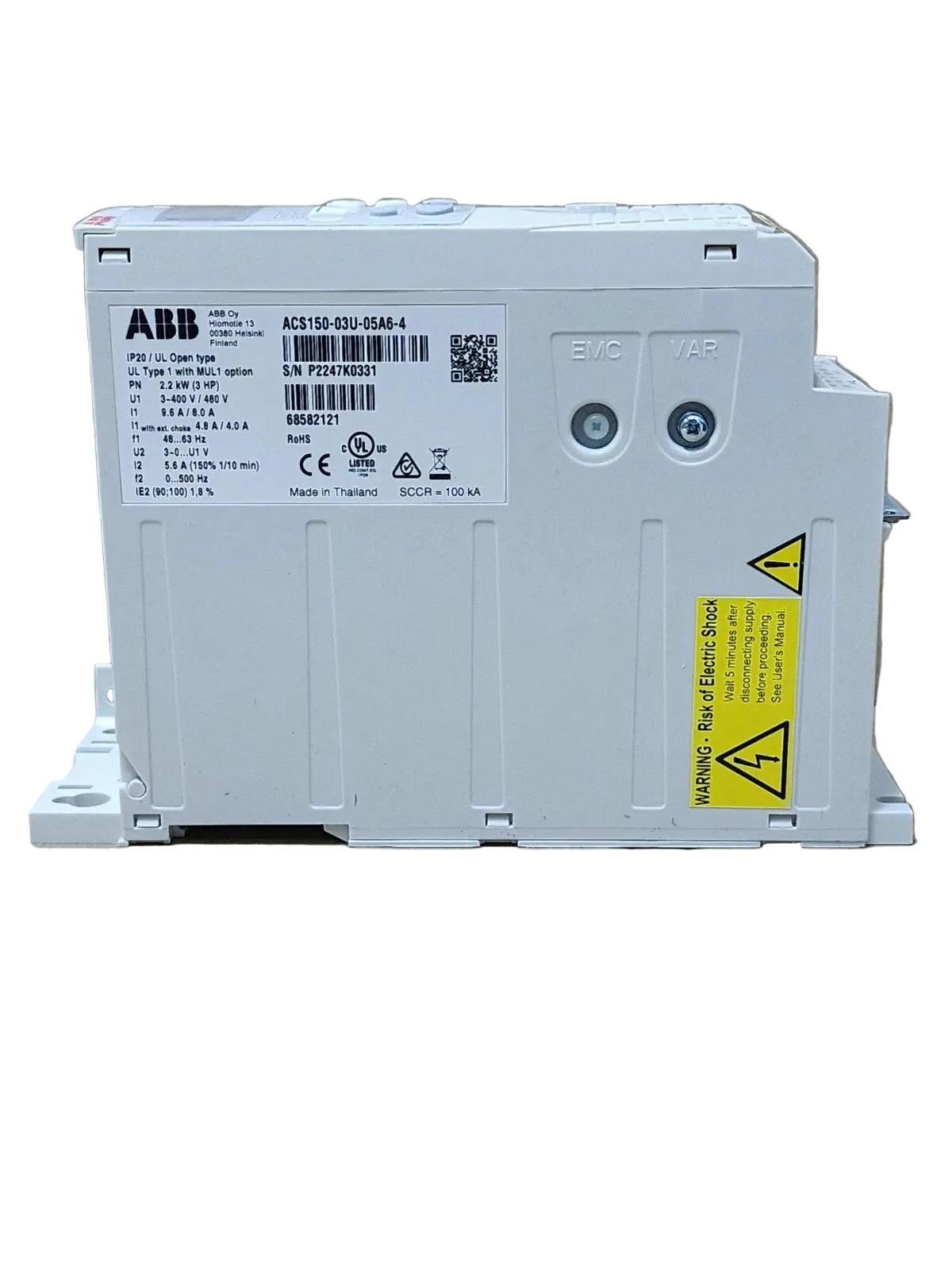

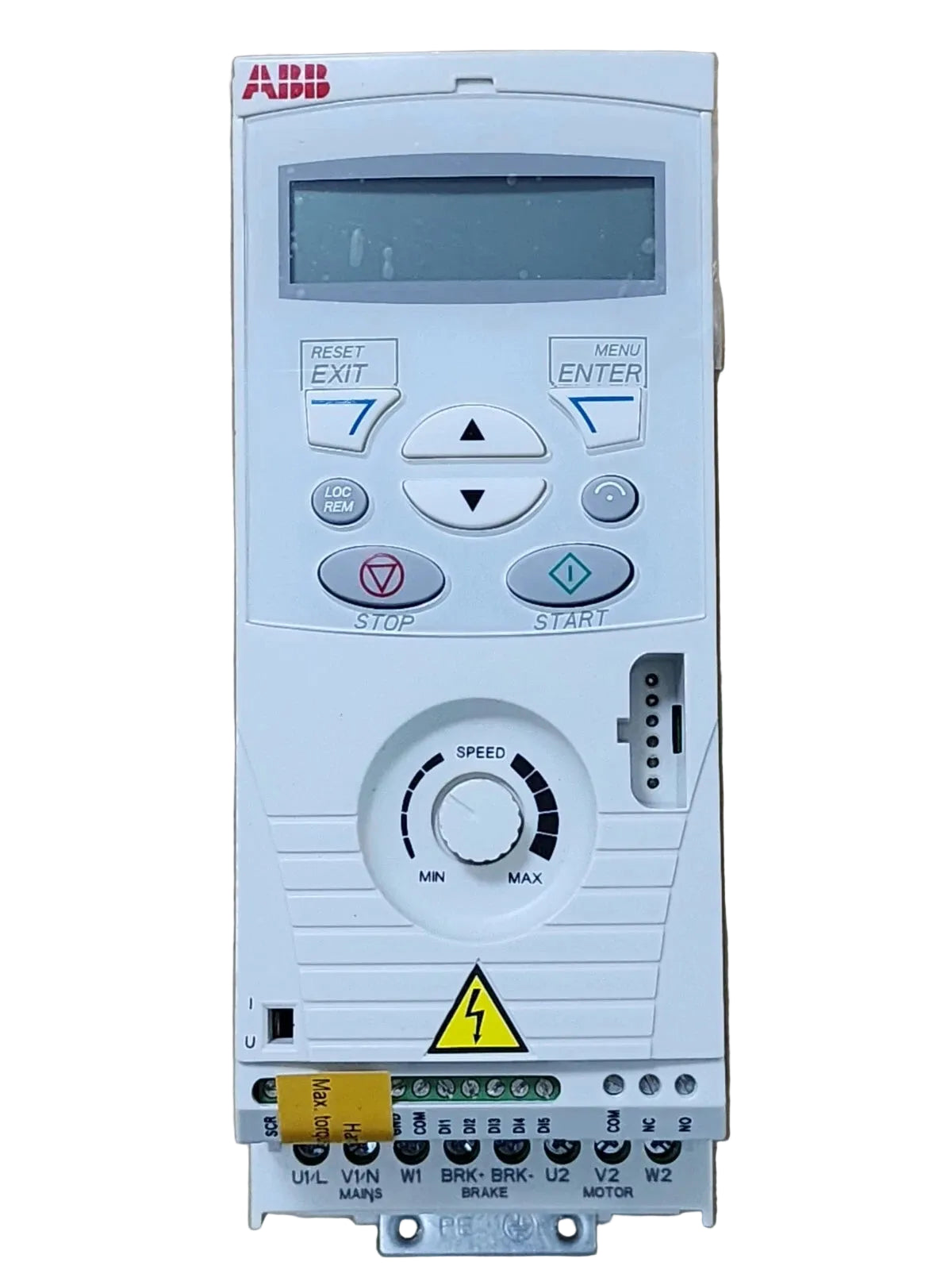

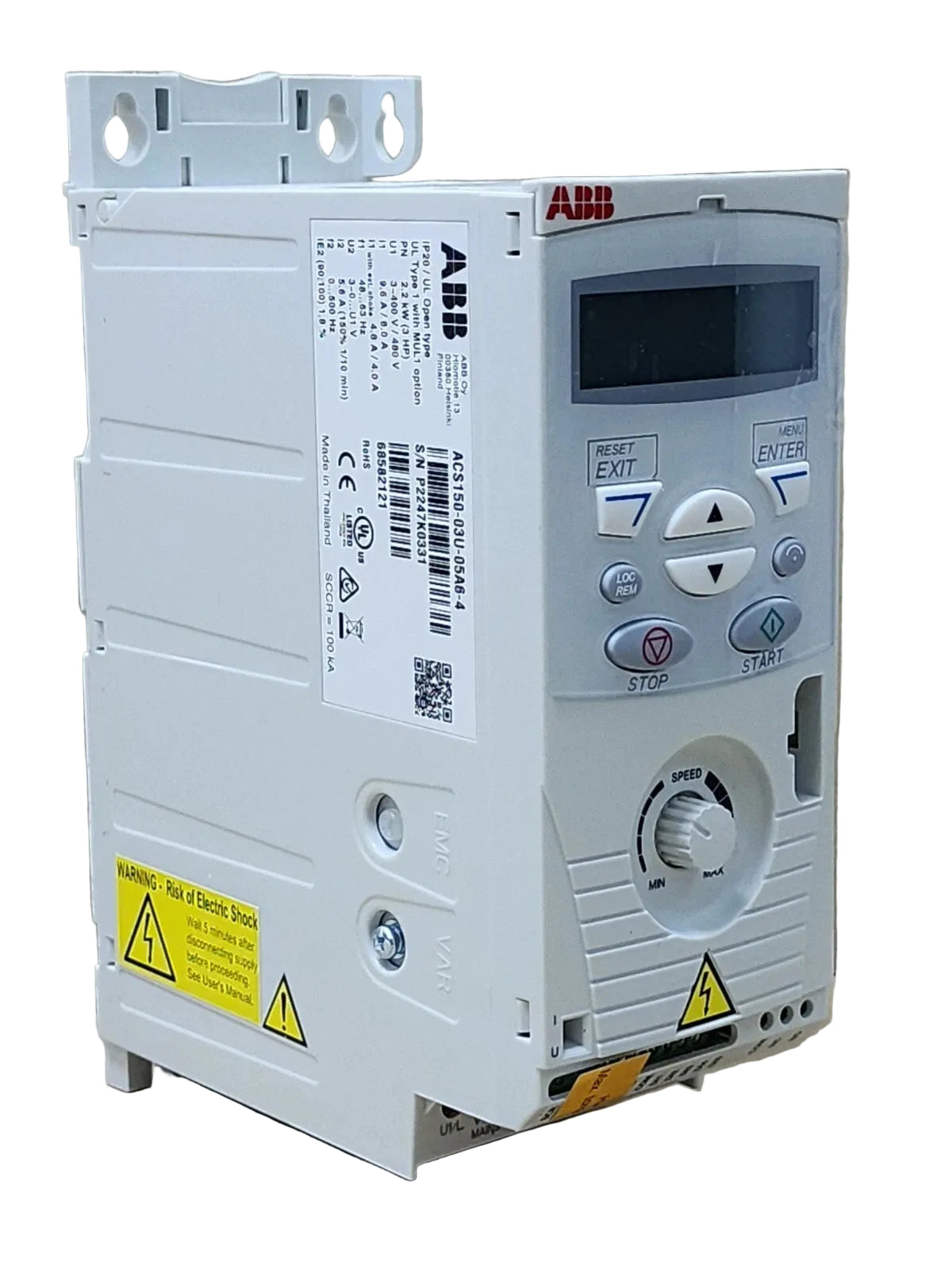

ACS150-03U-05A6-4 | ABB Micro Drive, 3-Phase, 480VAC, 3HP, 03U, N1/IP21, R1 Frame, ACS150 Series
- Regular price
- $574.00
- Sale price
- $574.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ACS150-03U-05A6-4
Description
Micro Variable Speed/Frequency Drive (VSD/VFD) / Inverter with EMC filter (disconnected) + built-in speed potentiometer + brk. chopper - ABB (ACS150 series) - Rated input voltage 380Vac-480Vac (3-phase / 3P) - Rated current 5.6A (nom.; 380-480Vac) - Rated power 2.2kW (nom.; 380-480Vac) / 3HP (nom.; 380-480Vac) - IP20 - Frame size R1 - Surface / wall / DIN rail mounting - compatible with input voltages 380Vac-480Vac (400Vac / 415Vac / 440Vac) (3-phase / 3P) - equivalent to ACS15003U05A64.
Technical Specifications
| Brand | ABB |
| Category | Drives |
| Part Number | ACS150-03U-05A6-4 |
| Subcategory | Drive |
| Amperage Rating | 5.6 A |
| Depth | 5.59 in |
| Display Type | LCD |
| Enclosure Type | Open/IP20 |
| Height | 9.41 in |
| Horsepower | 3 hp |
| Mounting type | Wall/DIN Rail |
| Series | ACS150 |
| Voltage Rating | 480 VAC |
| Width | 2.76 in |
| Ambient Temperature | -10 to 40 °C |
| Output Frequency | 0 to 500 Hz |
Information About ACS150-03U-05A6-4
ABB ACS150 Series — Micro Drives | 0.37 to 4 kW/0.5 to 5 hp:
Take smooth performance to the next level with the wide power range and functionality of ACS150. Available in both single and three phase supplies. Many functions are standard, such as PID control, a built-in brake chopper and EMC filter. An optional FlashDrop drive configuration tool makes configuring unpowered drives quick and easy. The ACS150 drives have an integrated user panel and potentiometer, and a variety of features such as macros, which are pre-defined I/O configurations like 3-wire, PID-control and motor potentiometer macro. These features enable even more convenient configuration and save time when setting up your system.
Features:
User-friendly LCD control panel and integrated potentiometer
Clear alphanumeric display
Easy setup and use
Time savings due to quick setup and simple configuration
Flexible mounting alternatives
One drive type can be used in various designs, saving installation costs and time
High electromagnetic compatibility
Low EMC emissions in selected environments
Built-in brake chopper as standard
FlashDrop tool
PID control varies the drives performance according to the need of the application
Coated boards protects the electronics from hazards including static discharge and airborne contaminates, including moisture
Integrated user interface and potentiometer
Built-in EMC filter for 2nd environment
3 ph input/output
R1 frame
14 to 104 deg F (-10 to 40 deg C) ambient temperature, no frost allowed, 122 deg F (50 deg C) with 10 PCT operating environmental conditions
Output current rated current available at 0 to 3281 ft (0 to 1000 M) reduced by 1 PCT per 328 ft
Integrated control panel display
Manufacturer information
ABB, a pioneering technology leader, specializes in electrification, robotics, automation, and industrial solutions. With a global presence, ABB delivers innovative products and services for various industries, ensuring sustainable and efficient operations.
