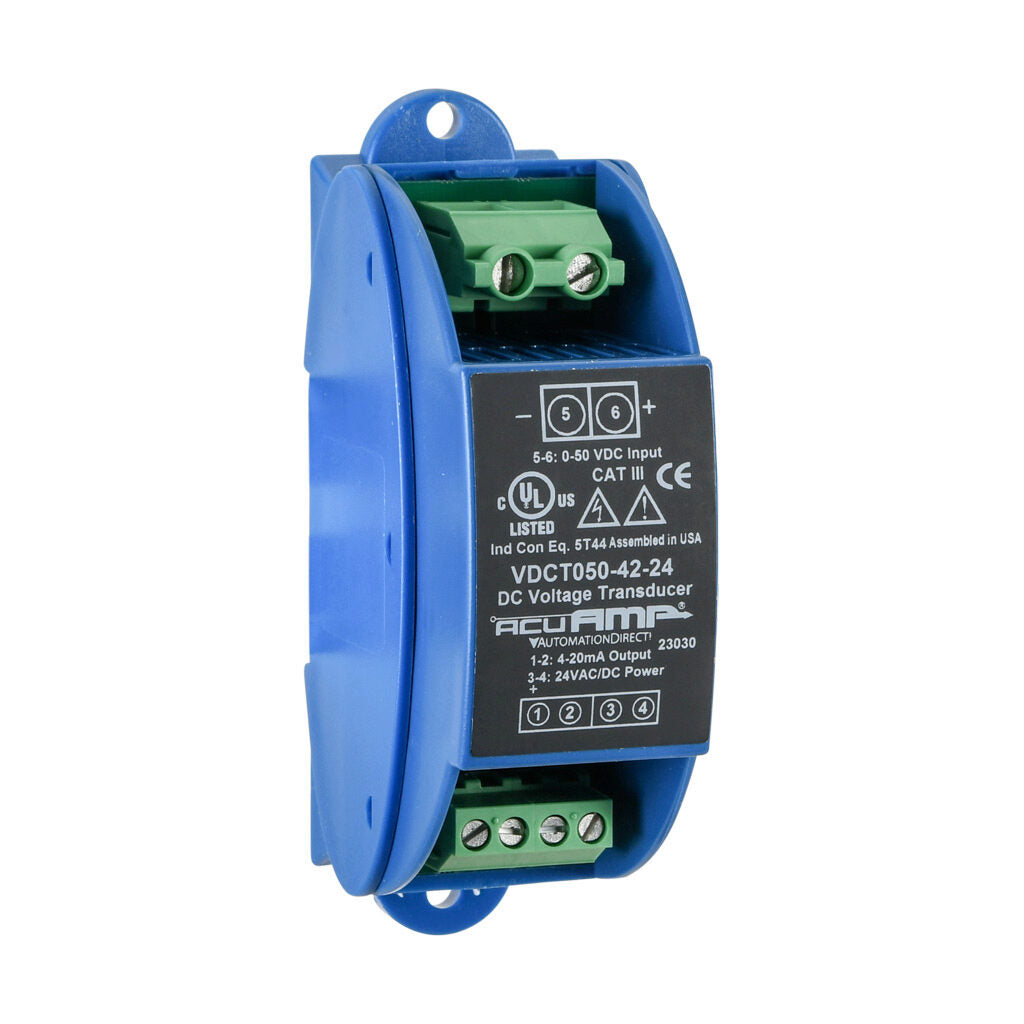

VDCT050-42-24 | AcuAMP 0–50 VDC Voltage Transducer 4–20 mA Output
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VDCT050-42-24
Description
The AcuAMP VDCT050-42-24 is a DC voltage transducer designed to convert a 0–50 VDC input signal into a proportional 4–20 mA output for monitoring and control systems. It operates on 24 VAC/VDC supply voltage and mounts directly to a 35 mm DIN rail for streamlined panel installation. This unit is suited for industrial and commercial applications requiring accurate DC voltage signal conditioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AcuAMP |
| Category | Sensors & Switches |
| Part Number | VDCT050-42-24 |
| Subcategory | Voltage/Current Transducer |
| Type | DC Voltage Transducer |
| Voltage Type | DC |
| Sensing Range | 0–50 VDC |
| Input Voltage | 0 to 50 V |
| Output | 4–20 mA |
| Output Current Range | 0.004 to 0.02 A |
| Operating Voltage | 24 VAC/VDC |
| Supply Voltage | 24 V |
| Accuracy | 0.01 |
| Isolation Voltage | 2500 V |
| Response Time | 250 ms |
| Operating Temperature Range | -20 to 50 °C |
| Mounting | 35 mm DIN rail |
| Electrical Connection | Screw terminals |
| UL Rating | UL 508 listed |
| Industry | Industrial, Commercial |
| Weight | 0.59 lbs |
Information About VDCT050-42-24
The VDCT050-42-24 is a DC voltage transducer manufactured by AutomationDirect under the AcuAMP brand for industrial signal conversion tasks. It accepts a 0 to 50 VDC input and provides a linear 4–20 mA analog output for integration with PLCs, controllers, and monitoring equipment. The device features screw terminal connections, DIN rail mounting, and a compact housing for control cabinet installations. With 2500 V isolation voltage, 250 ms response time, and an operating temperature range of -20 to 50 °C, it is designed for stable performance in industrial environments.
Key Features:
-
0–50 VDC Input Range: Measures and converts DC voltage signals within standard low-voltage ranges.
-
4–20 mA Output Signal: Provides industry-standard current output for reliable long-distance transmission.
-
24 VAC/VDC Supply: Compatible with common industrial control power systems.
-
DIN Rail Mounting: Designed for installation on 35 mm DIN rail in control panels.
-
2500 V Isolation: Electrically isolates input, output, and power circuits for system protection.
-
250 ms Response Time: Ensures timely signal conversion for monitoring applications.
-
Screw Terminal Connections: Allows secure and straightforward field wiring.
-
UL 508 Listed: Meets recognized safety standards for industrial control equipment.
The VDCT050-42-24 delivers the reliability and precision required for industrial voltage monitoring and analog signal conversion applications.
