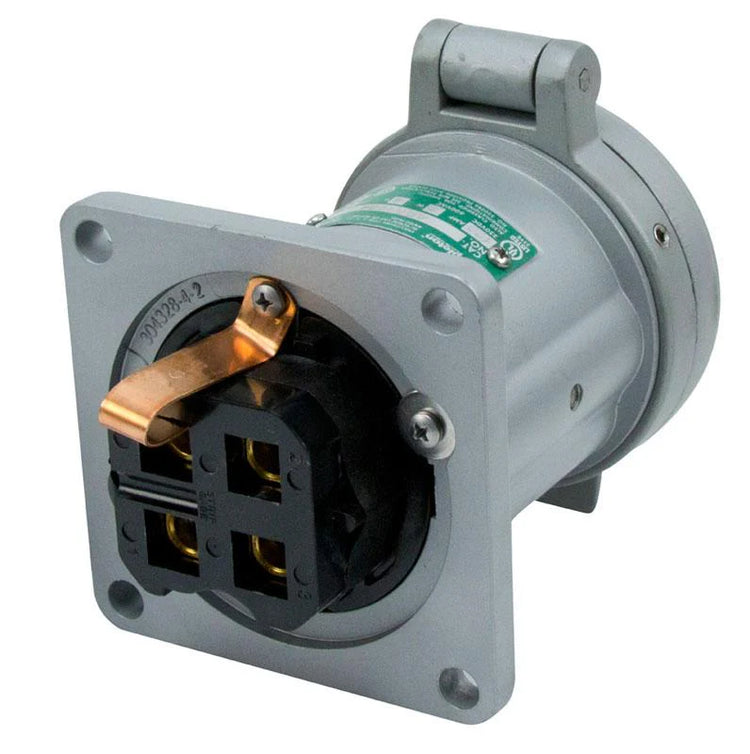

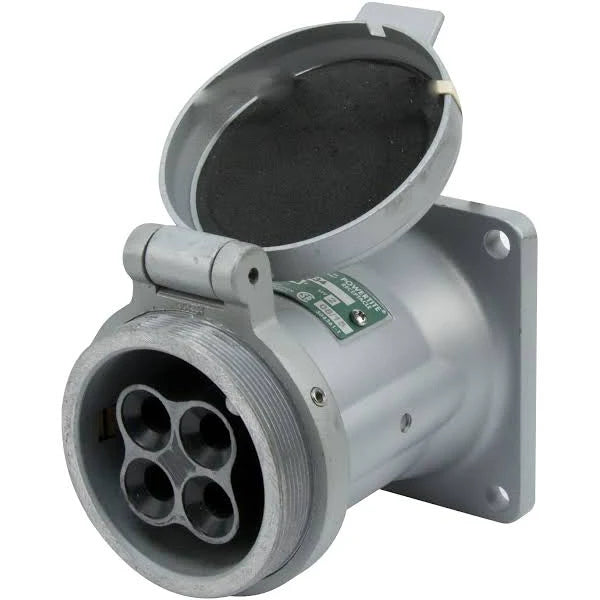

ADR1034 | Appleton Pin & Sleeve Receptacle
- Regular price
- $457.00
- Sale price
- $457.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ADR1034
Description
The Appleton ADR1034 is a Pin & Sleeve Receptacle from the Powertite Series, designed for 100A, 4P3W configurations. The Powertite Series employs a versatile pin and sleeve design, offering reliable power for both fixed and portable heavy-duty equipment. These receptacles are constructed from triple-coated, copper-free aluminum, providing resistance to harsh weather, corrosive environments, and rough working conditions.
Key safety features include widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, and positive polarization. Additionally, a durable neoprene bushing effectively seals out water and dust. The series offers both shell-only and shell-plus-extra-pole grounding designs to ensure safe "make first, break last" grounding.
Technical Specifications
|
Part Number |
ADR1034 |
|
Category |
Electrical Products |
|
Subcategory |
Plug/Receptacle |
|
Type |
Grounding Style-2 |
|
Voltage Rating |
600 VAC / 250 VDC |
|
Amperage Rating |
100 AMP |
|
Frequency Rating |
50 - 400 HZ |
|
Number of Poles |
3 |
|
Number of Wires |
3 |
|
Enclosure |
NEMA 3, 3R, 4, 4X |
|
Temperature Rating |
-40 to 107 DEG C |
|
Material |
Copper-Free Aluminum |
|
Color |
Metallic |
Information About ADR1034
The Appleton ADR1034 is a Pin & Sleeve Receptacle, rated for 100 amperes (100A) and configured for 4 poles and 3 wires (4P3W). This product is part of the Powertite Series, known for its versatile pin and sleeve design. The receptacle is designed to deliver safe and reliable power for heavy-duty equipment, whether fixed or portable.
Constructed from triple-coated, copper-free aluminum, the Appleton ADR1034 is engineered to withstand harsh weather conditions, corrosive atmospheres, and rough working environments. The robust construction ensures durability and long service life in demanding applications. The receptacle is metallic in color and meets the requirements for enclosures rated NEMA 3, 3R, 4, and 4X, offering protection against dust, water, and corrosion.
Key safety features of the Appleton ADR1034 include widely spaced contacts that are recessed within an internal arc snuffing chamber. This design helps to prevent electrical arcing and enhances safety during connection and disconnection. Insulating blocks are incorporated to provide additional protection, while positive polarization ensures correct alignment and mating of the contacts. The receptacle also features a durable neoprene bushing that effectively seals out water and dust, further protecting the internal components and ensuring reliable operation in adverse conditions.
Manufacturer information
For over 75 years Appleton Mfg. has been providing a variety of core cutters and core cutting solutions to the converting industry. Over that time our extensive experience and expertise have enabled us to produce safe, robust, dependable and easy-to-use core cutters.
