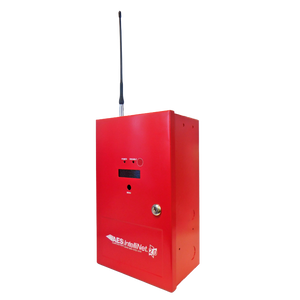

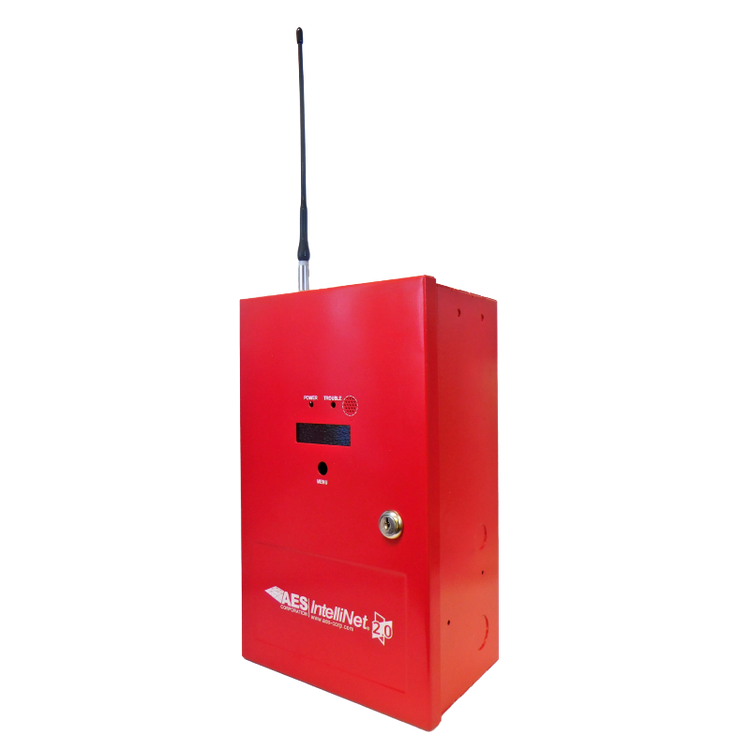

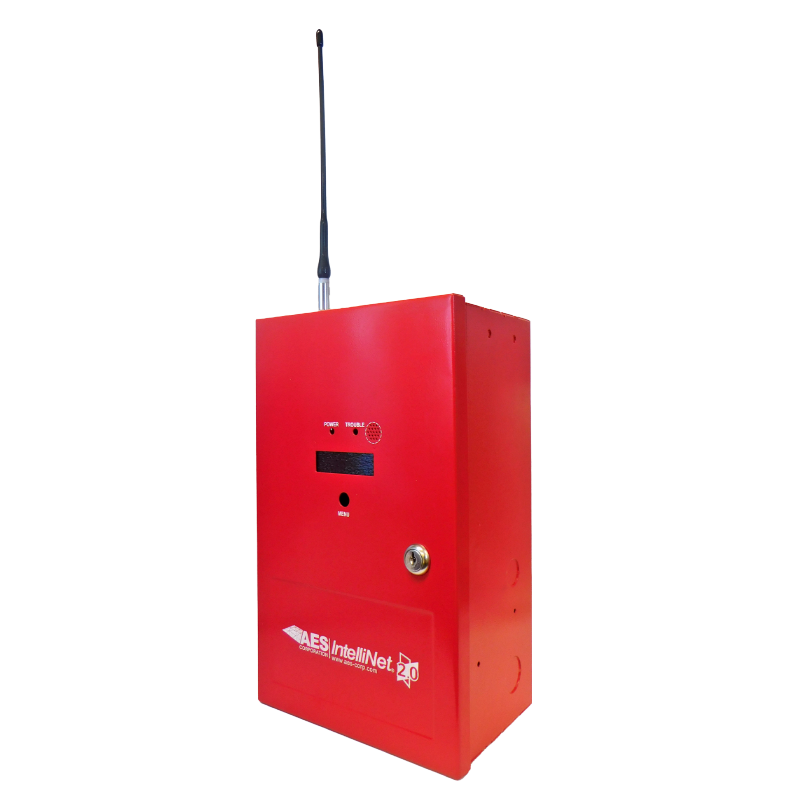

AES 7707P-88-ULP-M IntelliNet 2.0 Fire Subscriber Wireless Fire Alarm Communicator
- Regular price
- $450.00
- Sale price
- $450.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 7707P-88-ULP-M
Description
The AES 7707P-88-ULP-M IntelliNet 2.0 Fire Subscriber is a supervised fire alarm communication device designed for reliable RF signal transmission across AES wireless mesh networks. It provides eight programmable alarm input zones, integrated annunciation, and advanced fire alarm reporting capabilities for commercial and industrial life-safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | AES |
| Category | Fire Alarm Communication |
| Part Number | 7707P-88-ULP-M |
| Subcategory | Wireless Fire Alarm Communicators |
| Product Type | IntelliNet 2.0 Fire Subscriber Unit |
| Communication Method | RF Signaling Device |
| Supported Zones | 8 Supervised Programmable Fire Alarm Zones |
| Frequency Range | 450–470 MHz |
| Antenna Type | 2.5 dB Tamper Resistant Antenna Included |
| Power Input | 16.5 VAC Class 2 Transformer or 24 VDC Regulated Power Supply |
| Power Frequency | 60 Hz |
| Power Rating | 40 VA |
| RF Output Power | 2 W or 5 W |
| Ethernet Ports | 1 |
| USB Ports | 2 |
| Display Type | 2 x 20 Character Backlit LCD |
| Visual Indicators | LCD Display, ALM, Trouble, Tx, Rx, WA LEDs |
| Trouble Output | Form C Relay, 24 VDC, 1 A Resistive |
| Programming Interface | Web Browser Accessible via Smartphone, Tablet, Laptop, or PC |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Storage Temperature | 14°F to 140°F (-10°C to 60°C) |
| Relative Humidity | 0–93% Non-Condensing |
| Enclosure Material | Painted Steel |
| Enclosure Color | Red |
| Dimensions | 13 in H × 8.5 in W × 4.5 in D (33 × 21.5 × 11.4 cm) |
| Certifications | UL 864 Edition 10, ULC S559-04 |
| Weight | 16 lbs (7.2 kg) with 12 Ah Battery |
Information About 7707P-88-ULP-M
The 7707P-88-ULP-M is a member of the AES IntelliNet 2.0 series of wireless fire alarm communicators engineered for code-compliant fire signal transmission. Constructed within a durable steel enclosure with an integrated LCD display and local annunciator, it is designed for installation in fire alarm and life-safety systems requiring supervised radio communication. The unit supports multiple signaling formats through the IntelliPro Full Data module and can interface with compatible fire alarm control panels using programmable supervised inputs. Advanced networking capabilities, Ethernet connectivity, web-based configuration, and AES mesh radio technology provide flexible deployment and system management.
Key Features:
- IntelliNet 2.0 Technology: Utilizes AES wireless mesh network architecture for supervised alarm communication.
- Eight Programmable Zones: Supports 8 individually programmable E.O.L. supervised alarm input zones.
- Integrated LCD Annunciator: Features a backlit 2 x 20 alphanumeric display for local status monitoring.
- Full Data Communication: Supports Contact ID, Pulse, Modem II/IIe/IIIa2, and SIA Level 1 reporting with optional 7794A module.
- Flexible Power Options: Operates from 16.5 VAC transformer input or regulated 24 VDC power sources.
- Ethernet and USB Connectivity: Includes one Ethernet port and two USB ports for configuration and servicing.
- RF Communication Capability: Available in the 450–470 MHz frequency range with configurable output power options.
- UL Fire System Compliance: Listed to UL 864 and ULC S559 standards for fire alarm communication applications.
The 7707P-88-ULP-M delivers the reliability and precision required for supervised fire alarm communication and life-safety monitoring systems.
