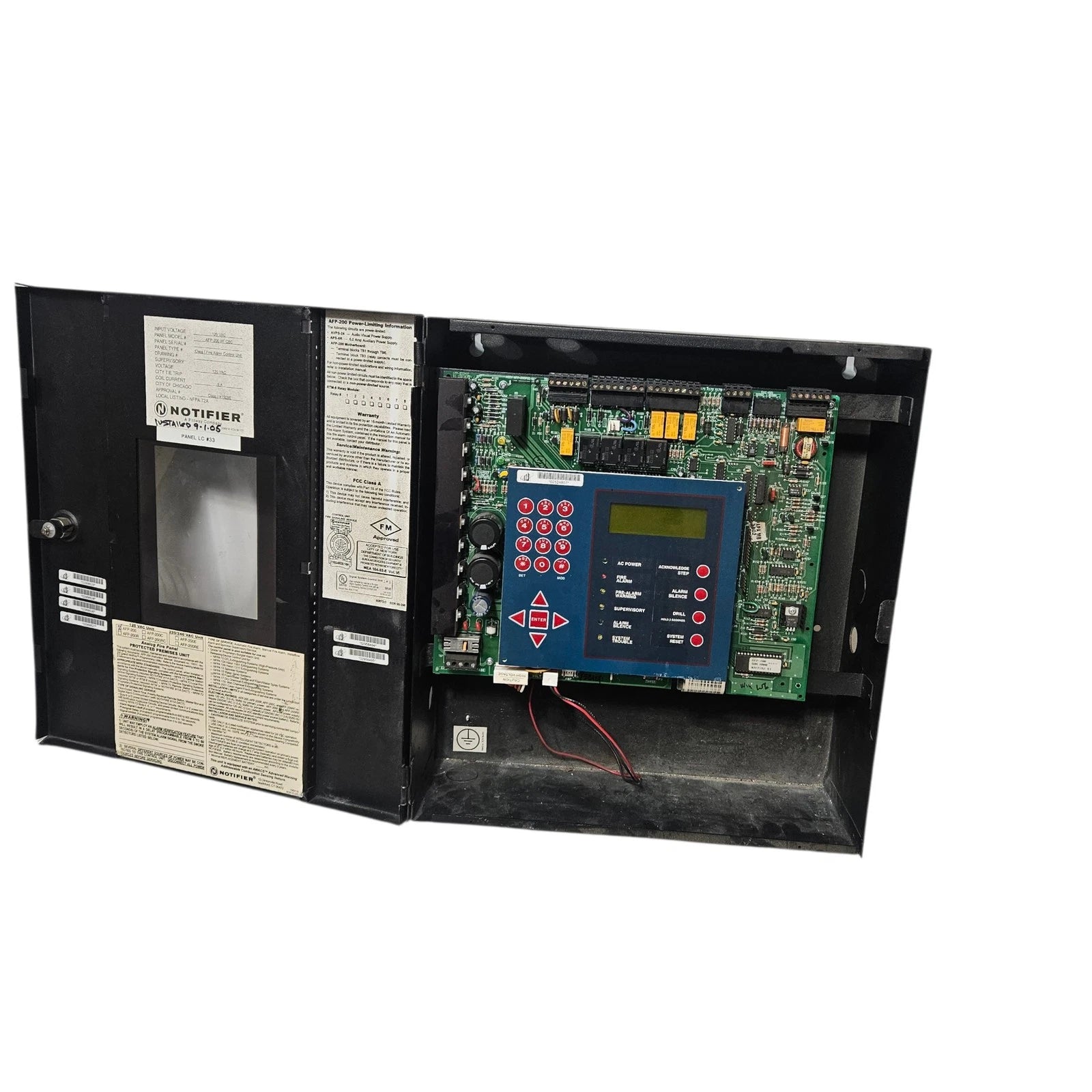

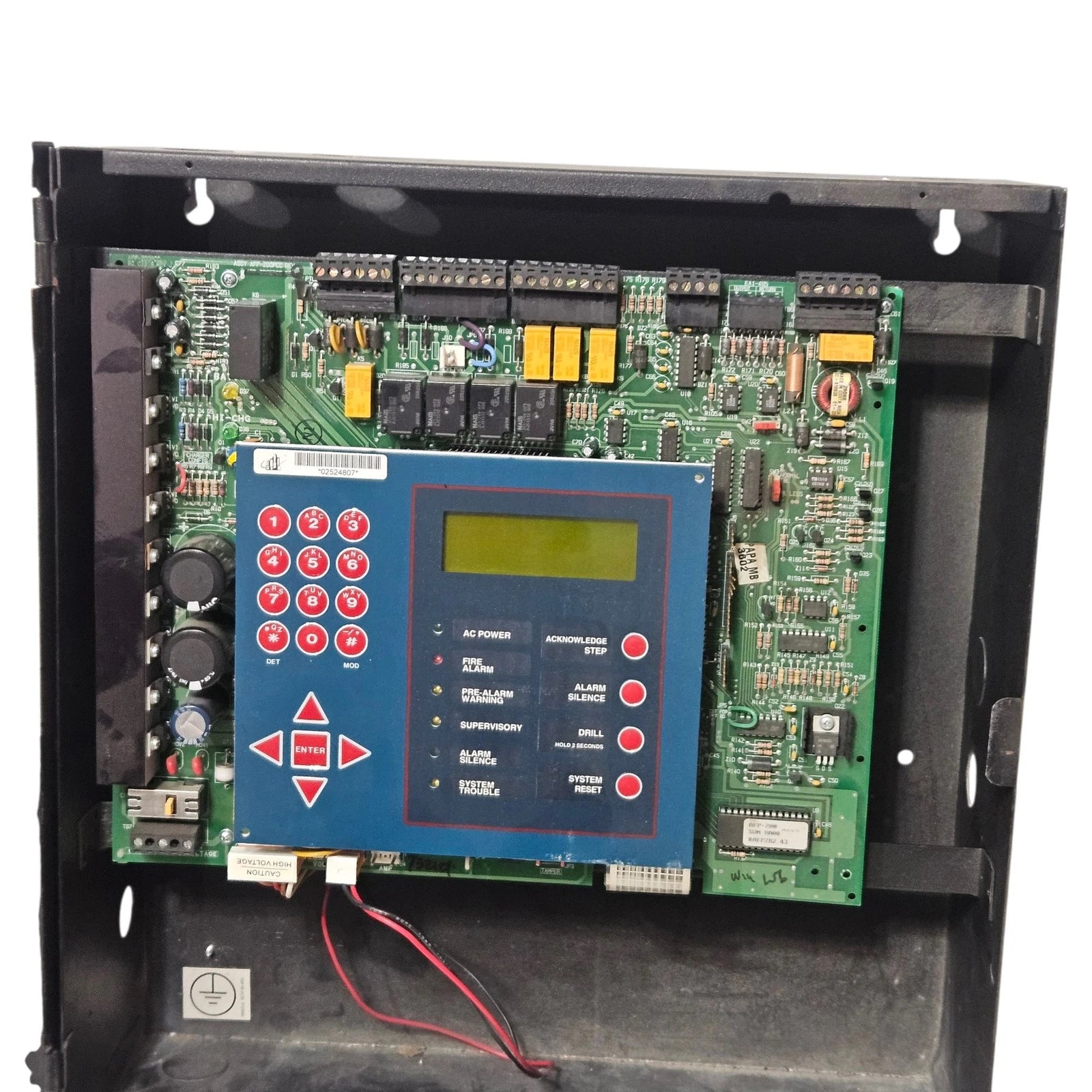

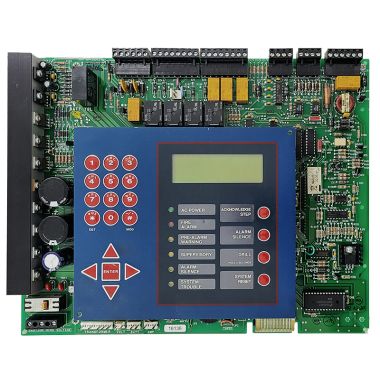

AFP-200 | Notifier Fire Alarm Control Panel
- Regular price
- $2,249.00
- Sale price
- $2,249.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: AFP-200
Description
The Notifier AFP-200 is an intelligent addressable fire alarm control panel designed for mid-sized commercial or institutional buildings. It supports up to 198 intelligent devices and features advanced detection, releasing, and notification capabilities.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Drives
|
| Part Number | AFP-200 |
| Subcategory | Control/Interface Board |
| Primary Input Power | 120 VAC, 50/60 Hz, 3.0 A |
| Total 24 VDC Output Power | 5.0 A (shared across internal loads and NACs) |
| NAC Circuits | 4 total; NAC 1: 2.25 A; NAC 2–4: 2.25 A shared (3.0 A w/ APS-6R) |
| Smoke Detector Power | 500 mA (four-wire detector output) |
| Auxiliary Non-resettable Power | 500 mA |
| Battery Charging Range | 7–18 AH standard; dual-rate up to 90 hours standby |
| Charger Voltage | High rate: 29.1 V, Float: 27.0 V |
| Relay Contact Rating | 2.0 A at 30 VDC |
| Addressable Points |
198 intelligent (99 detectors + 99 modules) |
| Total Point Capacity | 301 (including NACs and programmable relays) |
| Display | 80-character backlit LCD |
| Event History Storage | 650 events, non-volatile w/ shadow memory |
| Cabinet Dimensions (HxWxD) | 16.125" x 14.5" x 5.5" (40.96 x 36.83 x 13.97 cm) |
| Weight | 2.12 lbs |
Information About AFP-200
The AFP-200 provides intelligent control over up to 198 addressable devices (99 detectors and 99 modules) using Style 4, 6, or 7 wiring. It includes four built-in NACs with a total output of 5.0 A regulated 24 VDC power, expandable up to 8.0 A with the APS-6R power supply. Two circuits can be configured for 3.0 A output when expanded. The panel also delivers 500 mA for four-wire smoke detectors and 500 mA of non-resettable auxiliary power. It supports battery charging for 7 AH to 18 AH batteries and dual-rate charging for up to 90 hours of standby.
Designed for flexible use, the AFP-200 includes pre-alarm features (AWACS™), drift compensation, day/night sensitivity modes, auto detector testing, and programmable maintenance alerts. Releasing capabilities include four independent hazards, abort functions, cross-zone logic, and discharge timers. The system is field-programmable and supports an LCD-80 remote display, EIA-485 ACS annunciators, printer interfaces, and remote modem access. It stores up to 650 events in non-volatile memory with shadow history and allows per-point configuration of verification, PAS presignal, and walk test features.
Key Features:
- 198 Intelligent Device Capacity: Supports 99 analog detectors and 99 monitor/control modules across Style 4, 6, or 7 circuits.
- Integrated Notification Circuits: Four NACs totaling 5.0 A (expandable to 8.0 A); circuits 3 & 4 increase to 3.0 A with APS-6R.
- Releasing Control Functions: Four independent hazard zones, configurable cross-zoning, delay/discharge timers, and abort inputs.
- Advanced Detection Logic: Includes AWACS™ pre-alarm, manual/day-night sensitivity adjustment, drift compensation, and maintenance alerts.
- Power Supply & Charger: 120/230 VAC input, 24 VDC regulated output, 7–18 AH battery support, and high/float charge voltage regulation.
- Programming & Interfaces: Field or PC programmable with Autoprogram, password protection, printer and LCD interfaces, remote modem access.
- Event History & Diagnostics: Stores 650 non-volatile events with real-time clock, shadow history, walk test checks, and PAS presignal support.
- Annunciation & Expansion: LCD-80, ACS series annunciators, LDM custom annunciation, and printer support over EIA-485.
- Regulatory Compliance: Compliant with NFPA 72, UL-listed; offers flexible regional formatting (e.g., European time/date).
- Retrofit Detector Support: Compatible with various non-Notifier detectors using FZM-1 interface for legacy system upgrades.
The AFP-200 combines intelligent device control, releasing logic, and full-featured programming into one powerful panel for scalable fire protection systems.
