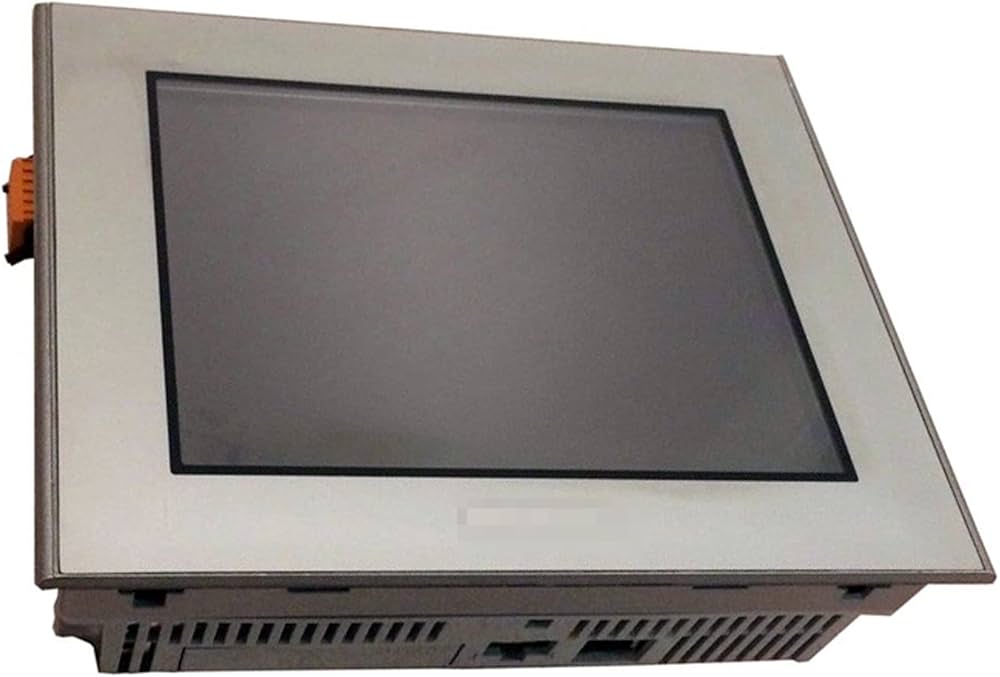

AGP3400-T1-D24 | Pro-face 7.5 inch HMI Touchscreen

Description

The Pro-face AGP3400-T1-D24 is a 7.5-inch HMI touchscreen designed for industrial applications. It provides an interface for monitoring and controlling processes. The unit supports various communication protocols and is suitable for integration into automated systems.

Technical Specifications

Information About AGP3400-T1-D24

The Pro-face AGP3400-T1-D24 is a versatile human-machine interface (HMI) designed for industrial automation applications, falling under the HMI/MMI/OIT category and part of the GP3000 series. It offers a 7.5-inch TFT color LCD display that provides clear and vibrant visual feedback, making it an ideal operator interface for monitoring and controlling industrial processes. This HMI is designed to enhance operational efficiency by allowing users to interact with machines and systems through a user-friendly touchscreen interface, providing real-time access to critical data and system status.

The 7.5-inch display features a resolution of 640 x 480 pixels (VGA), ensuring sharp and detailed visuals that are easy to read, even in environments with challenging lighting conditions. The TFT (Thin Film Transistor) color LCD technology ensures that the screen delivers high brightness, excellent color accuracy, and wide viewing angles, which are essential for maintaining clarity in industrial settings. The display’s size and quality make it suitable for a wide range of applications, from simple machine control to more complex system management in manufacturing plants, processing facilities, and other automation environments.

The AGP3400-T1-D24 is equipped with multiple communication interfaces, including two serial ports, one USB port, and one Ethernet port, providing flexibility in how it connects to various industrial devices and networks. The dual serial ports allow the HMI to interface with legacy equipment, making it a suitable choice for environments where older devices still need to be integrated into modern control systems. This compatibility ensures that the AGP3400-T1-D24 can be deployed in both new installations and retrofitted into existing systems without requiring extensive modifications.

The Ethernet port enables high-speed communication with other devices and networks, facilitating real-time data exchange and remote monitoring capabilities. This feature is especially valuable in industrial automation environments where constant communication between devices and centralized control systems is critical for maintaining process efficiency and operational integrity. The Ethernet interface allows for seamless integration into industrial Ethernet networks, enabling operators to monitor and control systems from remote locations or integrate the HMI into larger supervisory control and data acquisition (SCADA) systems.

The USB port provides additional flexibility by allowing users to connect external devices, such as storage drives or input peripherals, directly to the HMI. This feature can be used for data logging, software updates, or transferring configuration settings between devices, further enhancing the versatility of the AGP3400-T1-D24 in a variety of industrial applications.

In terms of power requirements, the AGP3400-T1-D24 operates on a 24 VDC power supply with a current rating of 0.9 amps, making it compatible with standard industrial power supplies. The low power consumption ensures that the device can operate efficiently without placing significant demand on the system’s power resources, which is particularly important in environments where power efficiency is a concern.

The conformal coating applied to the AGP3400-T1-D24 adds an additional layer of protection, ensuring that the device can withstand harsh industrial conditions. The coating protects the internal components from exposure to moisture, dust, chemicals, and other contaminants commonly found in industrial environments, thereby extending the lifespan of the HMI and maintaining reliable performance over time. This rugged design makes the AGP3400-T1-D24 suitable for deployment in environments where equipment is exposed to challenging conditions, such as factories, processing plants, and outdoor installations.

The robust construction of the AGP3400-T1-D24, combined with its wide range of communication options and user-friendly display, makes it an ideal solution for industrial applications that require reliable and efficient operator interfaces. Whether used in machine control, process monitoring, or system diagnostics, this HMI provides the necessary functionality to streamline operations and improve system oversight. Its ability to communicate with both modern and legacy devices ensures that it can be integrated into a wide range of control systems, making it a flexible and future-proof solution for industrial automation.

The 7.5-inch touchscreen is designed for ease of use, allowing operators to navigate through system menus and adjust settings with minimal effort. The intuitive interface can be customized to display relevant information, such as real-time data, alarms, or operational status, giving operators the ability to respond quickly to system changes or issues. The touchscreen’s responsiveness and clarity further enhance the user experience, reducing the likelihood of errors during operation.

In summary, the Pro-face AGP3400-T1-D24 is a high-performance HMI that offers a 7.5-inch TFT color LCD display, multiple communication interfaces, and a rugged design with conformal coating for enhanced durability. With its 640 x 480 pixel resolution and versatile connectivity options—including serial, USB, and Ethernet—the AGP3400-T1-D24 provides a reliable and flexible solution for industrial automation and control applications. Its compatibility with legacy and modern systems, combined with its user-friendly interface, makes it an ideal choice for environments that demand efficient, real-time control and monitoring of processes. The device’s low power consumption and robust construction further ensure that it will deliver long-term, reliable performance in challenging industrial settings.

Manufacturer information

Pro-face is a leading manufacturer of human-machine interface (HMI) solutions. They specialize in touchscreens, industrial PCs, and software designed for factory automation. Known for their durability and user-friendly interfaces, Pro-face products enhance operational efficiency in a wide range of industrial environments.
