AGP3500-S1-D24 | Pro-face 10.4 inch HMI Touchscreen

Description

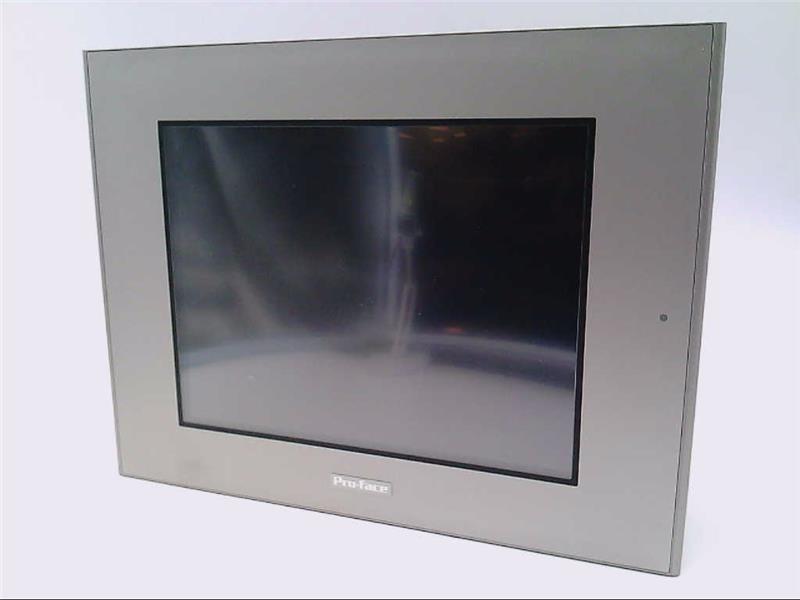

The Pro-face AGP3500-S1-D24 is a 10.4-inch HMI touchscreen designed for industrial automation applications. It provides a user interface for monitoring and controlling processes. The unit operates on a 24V DC power supply and is equipped with a resistive touchscreen for input. It is suitable for use in environments requiring reliable human-machine interaction.

Technical Specifications

Information About AGP3500-S1-D24

The AGP3500-S1-D24 is a human-machine interface (HMI) touchscreen designed for industrial automation applications, offering a robust and reliable solution for operator control and process monitoring. Manufactured for use in various automation environments, this model falls under the HMI/MMI/OIT (Man-Machine Interface/Operator Interface Terminal) category and is designed to facilitate seamless interaction between the user and automated systems. Its primary function is to provide an intuitive interface for controlling equipment, visualizing system data, and configuring processes in real time, making it an essential component in modern industrial environments.

This HMI features a 10.4-inch STN color LCD touchscreen, providing a clear and accessible interface for operators. The display resolution of 640 x 480 pixels (VGA) ensures sharp and detailed visuals, making it easy to read data and monitor ongoing processes. The 4096-color support further enhances the display quality, allowing operators to differentiate between various data points and system alerts more easily, improving efficiency and accuracy in process management. The large screen size and high-resolution display are especially beneficial in environments where detailed visual data is necessary for making quick decisions.

In terms of memory, the AGP3500-S1-D24 is equipped with 16 MB of EPROM flash memory, which is utilized for storing application data, configuration settings, and user interfaces. This non-volatile memory ensures that critical data is retained even in the event of power loss, providing long-term reliability. Additionally, the unit includes 320 KB of SRAM, which is used for storing temporary operational data and variables during runtime. The combination of flash memory and SRAM ensures efficient data management and quick access to stored information, making the device responsive and capable of handling complex operations.

The AGP3500-S1-D24 supports multiple communication protocols, making it versatile and compatible with a wide range of industrial systems. It is equipped with RS-232C, RS-422, and RS-485 communication ports, providing connectivity options for different types of industrial equipment and devices. These communication standards are widely used in automation environments for connecting to programmable logic controllers (PLCs), sensors, and other control systems, ensuring that the AGP3500-S1-D24 can integrate seamlessly into existing infrastructures. The availability of multiple communication interfaces allows for flexible system configurations, supporting both legacy and modern devices.

In addition to the serial communication ports, the AGP3500-S1-D24 is fitted with two USB ports, further expanding its connectivity options. These USB ports can be used for connecting external peripherals such as keyboards, data storage devices, or for programming the HMI. The USB interface simplifies data transfer and system updates, allowing for easy upload and download of application files or firmware upgrades. This feature makes maintenance and system adjustments more straightforward and less time-consuming for operators and engineers.

The AGP3500-S1-D24 operates on a 24 VDC power supply, which is a standard requirement in most industrial environments. The use of 24 VDC ensures that the device can be easily integrated into existing control panels and power systems without requiring additional power conversion equipment. This simplifies installation and reduces the overall cost and complexity of system integration. Additionally, the low power consumption characteristic of the 24 VDC power supply ensures energy efficiency while maintaining stable operation over extended periods.

Designed for use in demanding industrial environments, the AGP3500-S1-D24 is built to withstand harsh conditions while delivering consistent performance. The resistive touchscreen is durable and responsive, allowing operators to interact with the interface even in environments where gloves or protective equipment are required. This feature enhances the HMI’s usability in various industrial sectors, including manufacturing, processing, and utilities, where operators need to maintain control over systems under different operational conditions.

The AGP3500-S1-D24’s combination of reliable performance, flexible communication options, and high-quality display make it an excellent choice for industries that require robust and user-friendly interfaces for system control and monitoring. Its ability to handle complex automation tasks, coupled with its durable design, ensures that it can meet the demands of modern industrial applications, providing operators with the tools they need to optimize performance, reduce downtime, and maintain operational efficiency.

In summary, the AGP3500-S1-D24 is a powerful and versatile HMI touchscreen designed for industrial environments. Its 10.4-inch STN color display, extensive communication options, and robust memory and power specifications make it a reliable solution for operators looking to improve control and monitoring capabilities within their automation systems. Its integration into existing industrial setups is made easy by its multiple communication ports, USB connectivity, and standard 24 VDC power requirements, offering both flexibility and reliability in complex automation scenarios.
